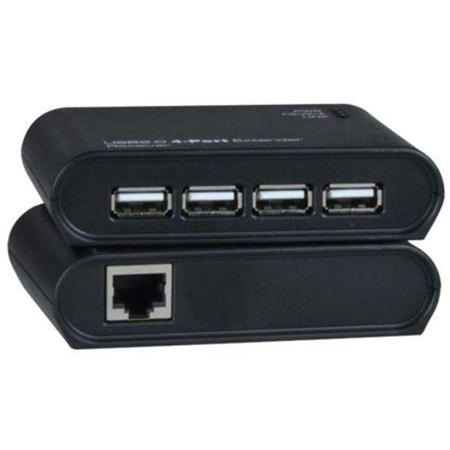

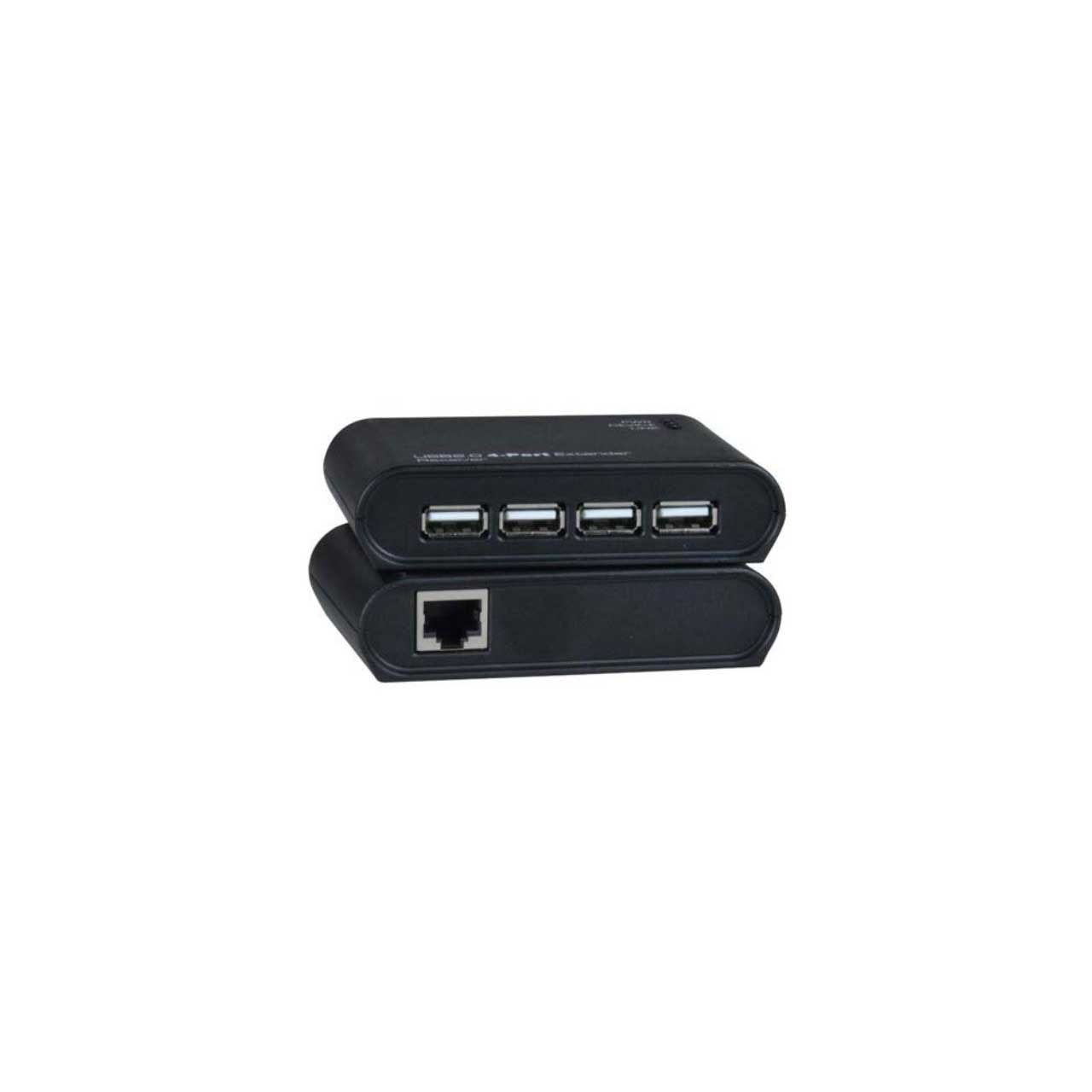

NTI XTENDEX USB2-C5-4LC 4-Port USB 2.0 Extender via CAT5/5e6/7 up to 165 Feet/55m Tx/Rx

Name: NTI XTENDEX USB2-C5-4LC 4-Port USB 2.0 Extender via CAT5/5e6/7 up to 165 Feet/55m Tx/Rx
Brand: Network Technologies Inc
SKU: NETT-USB2-C5-4LC
Price: 125.40 USD
Availability: PreSale

ITEM #: NETT-USB2-C5-4LC MFG #: USB2-C5-4LC

Network Technologies Inc

List Price:

$132.00

Our Price:

$125.40

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

USB2-C5-4LC - Overview

Extend four USB devices up to 165 feet (50 meters) using CAT5/5e/6/6a/7 cable!

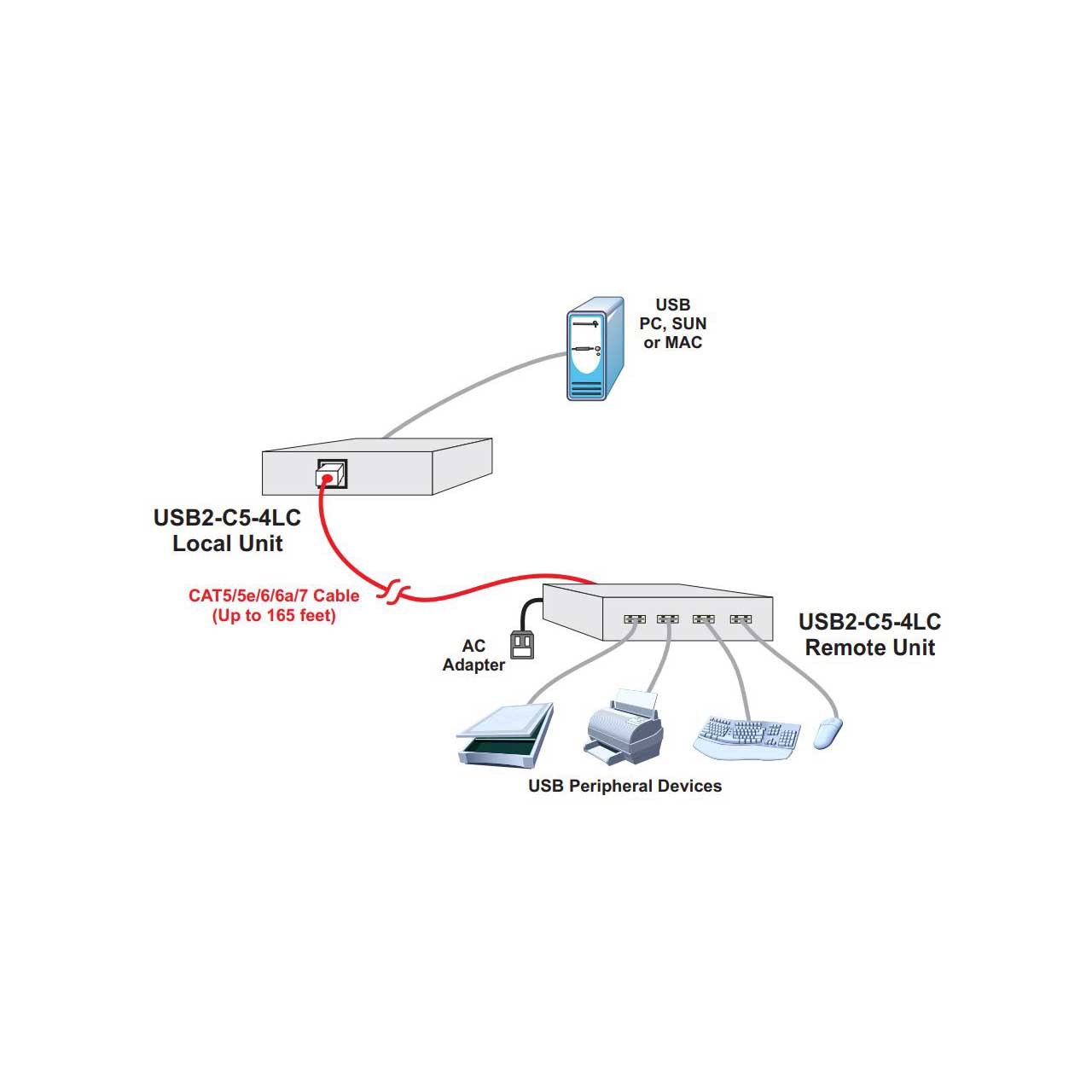

The XTENDEX USB2-C5-4LC Low-Cost 4-Port USB 2.0 Extender extends four USB devices up to165 feet (50 meters) using CAT5/5e/6/6a/7 cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to four USB devices. The local and remote units are interconnected via CAT5/5e/6/6a/7 cable.

Features:
- Extend self-powered and/or bus-powered USB peripheral devices (security cameras, printers, scanners, keyboards, etc.).
- Extend up to 165 feet (50 meters) via a single CAT5/5e/6/6a/7 cable.
- Transparent data extension.
- Compatible with USB computers (PC, SUN, MAC).
- Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
- Compliant with USB 2.0 specifications.
- Supports Plug-n-Play specification.
- No drivers required.
Specifications:
- Local Unit
- One female USB Type B connector.
- Must connect directly to a computer; will not work connected to a USB hub.
- One female RJ45 connector.
- Supports a USB computer (PC, SUN, MAC).
- Multiplatform support: Windows XP/7/Vista/8, Mac OS

  Remote Unit
- Four female USB Type A connectors.
- One female RJ45 connector.
- Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
- Supports self-powered and/or bus-powered USB devices.
- Does not support USB hubs.
- Compatible with USB touch screen monitors, including HP Compaq L2105tm

  Power
- Local unit: powered from attached computer.
- Remote unit: 100 or 240 VAC at 50 or 60 Hz via AC adapter. (included)
- The combined current consumption of the connected devices cannot exceed 1.5A
- Environmental:
- Operating temperature: 32 to 122°F
- Dimensions: WxDxH: 3.75x2.68x0.92 in.
- Regulatory Approvals: CE, FCC, RoHS.
- Max Distance: 165 feet (50 meters) over CAT5/5e/6/6a/7 cable.

  Cables:
- 0.5-meter male USB Type A to male USB Type B interface cable included, Use CAT5/5e/6/6a/7 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Item Includes:
- USB Extender (local and remote unit)
- USB Type A to Type B male-to-male cable
- User manual
- US AC adapter
Warranty:
- 2-Years
