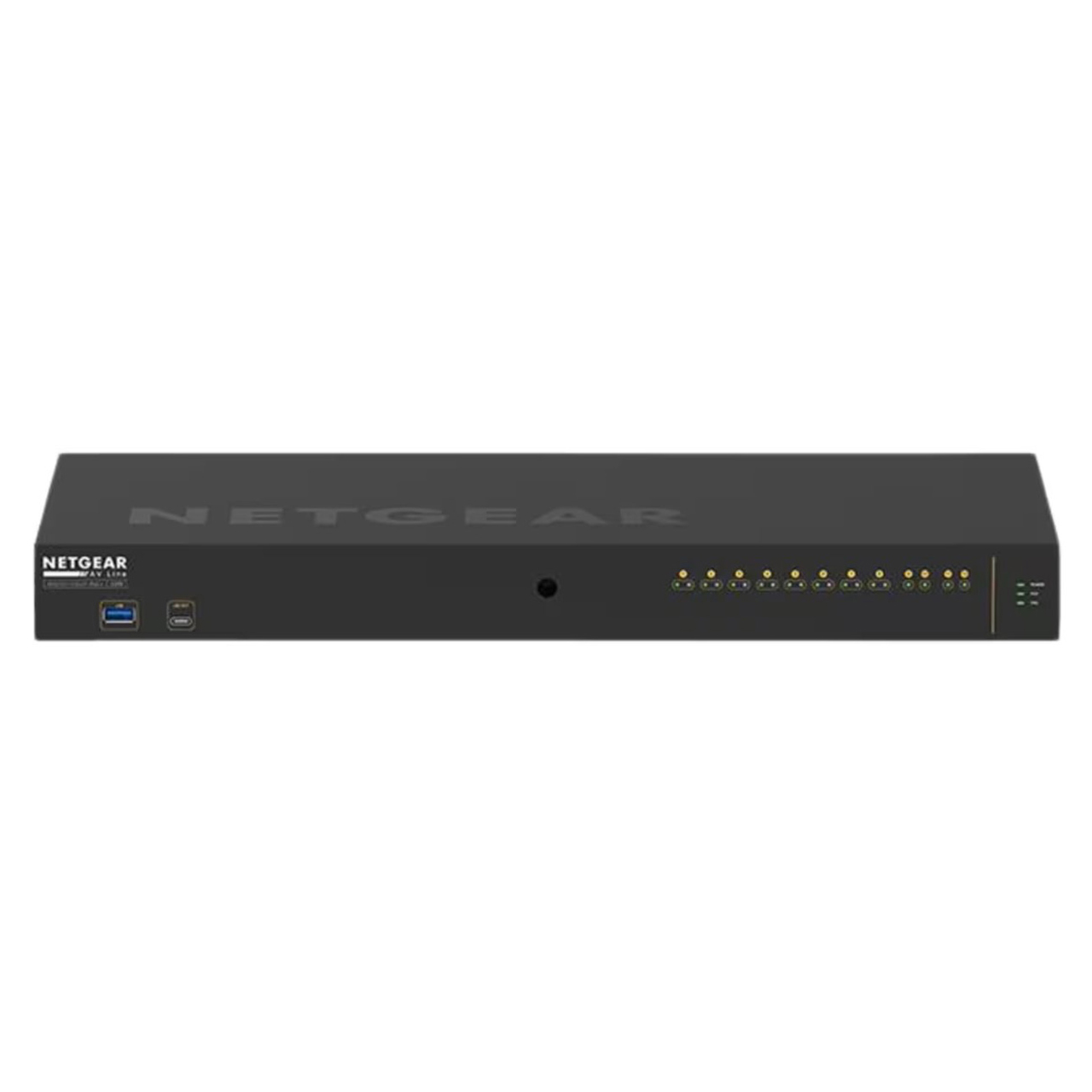

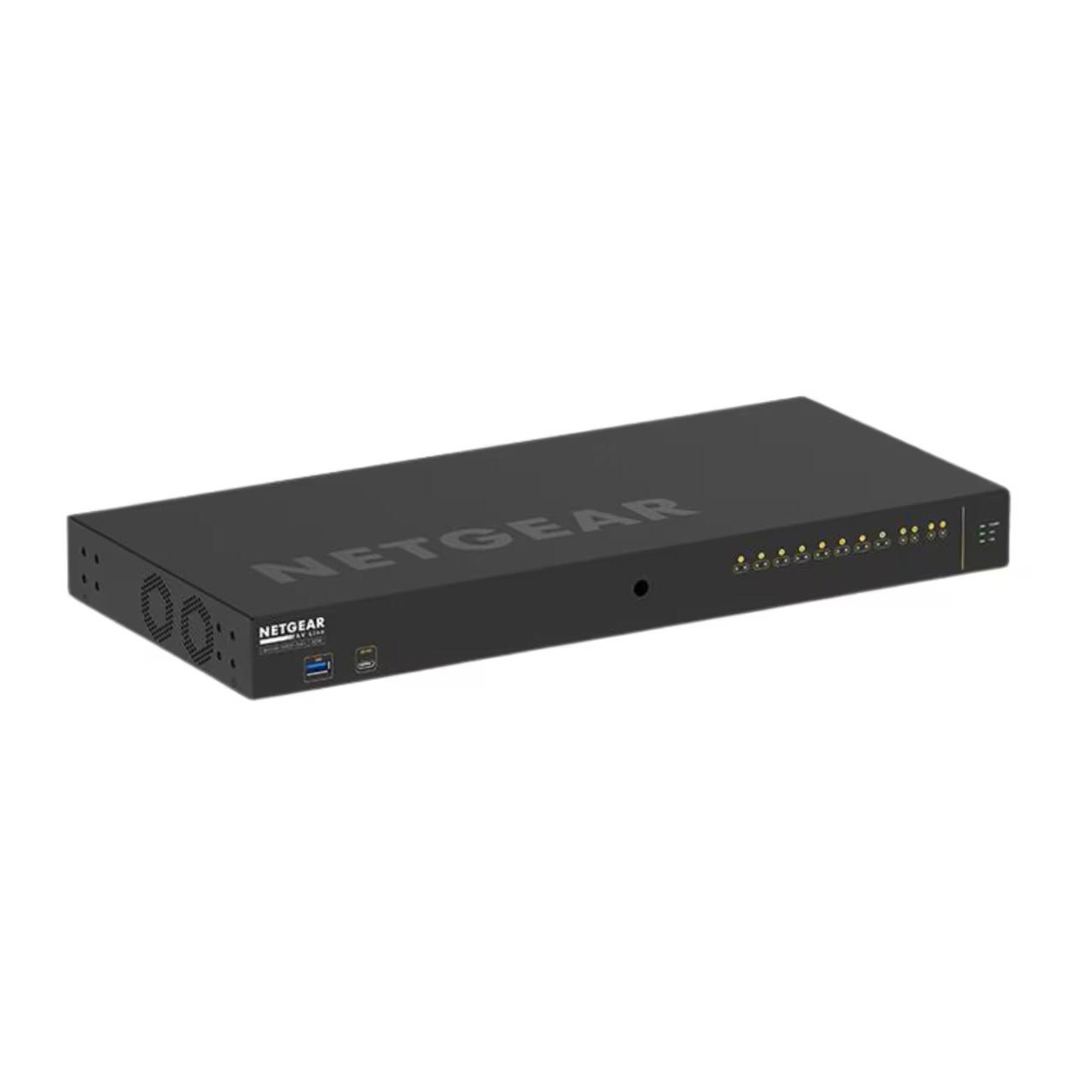

Netgear GSM4212P 12-Port Network Switch for Use with ADDERView Matrix C-Range

ITEM #: NG-AVM-C12-US MFG #: AVM-C12-US

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Adder Corporation
Free Shipping with $49 Minimum Order

Our Price:

$800.00

Add to Wish ListLeasing Options
Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AVM-C12-US - Overview

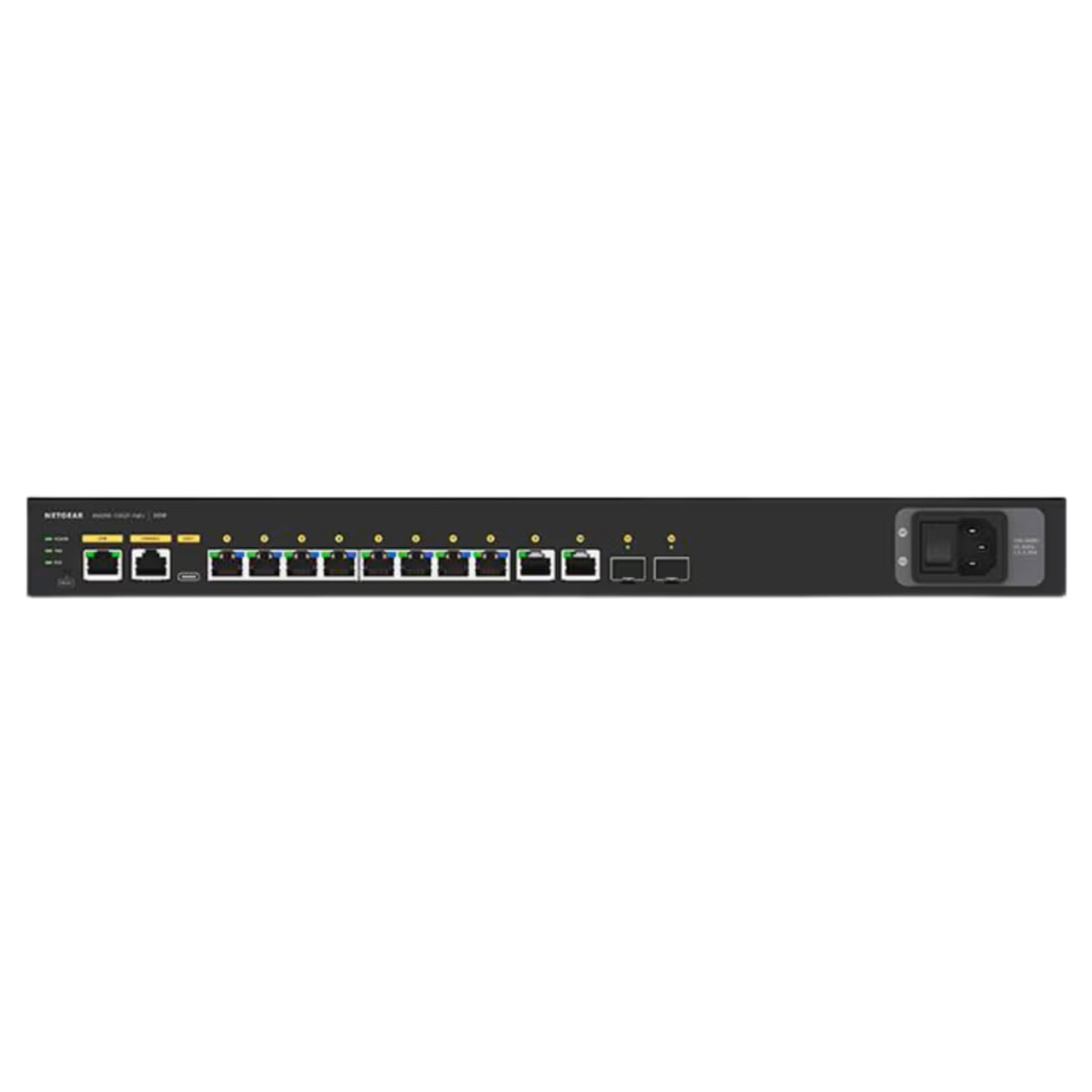

Adder offers the Netgear AVM-C12-US for the ADDERView Matrix solution. Ideal for streamlined KVM solutions, these switches are preconfigured to support IGMP v2, snooping and Jumbo frame rate up to 9216 bytes, out-of-the-box. The AVM-C12-US has 10x CATX ports and 2x SFP ports. Other network switches can be used but must adhere to minimum specification.

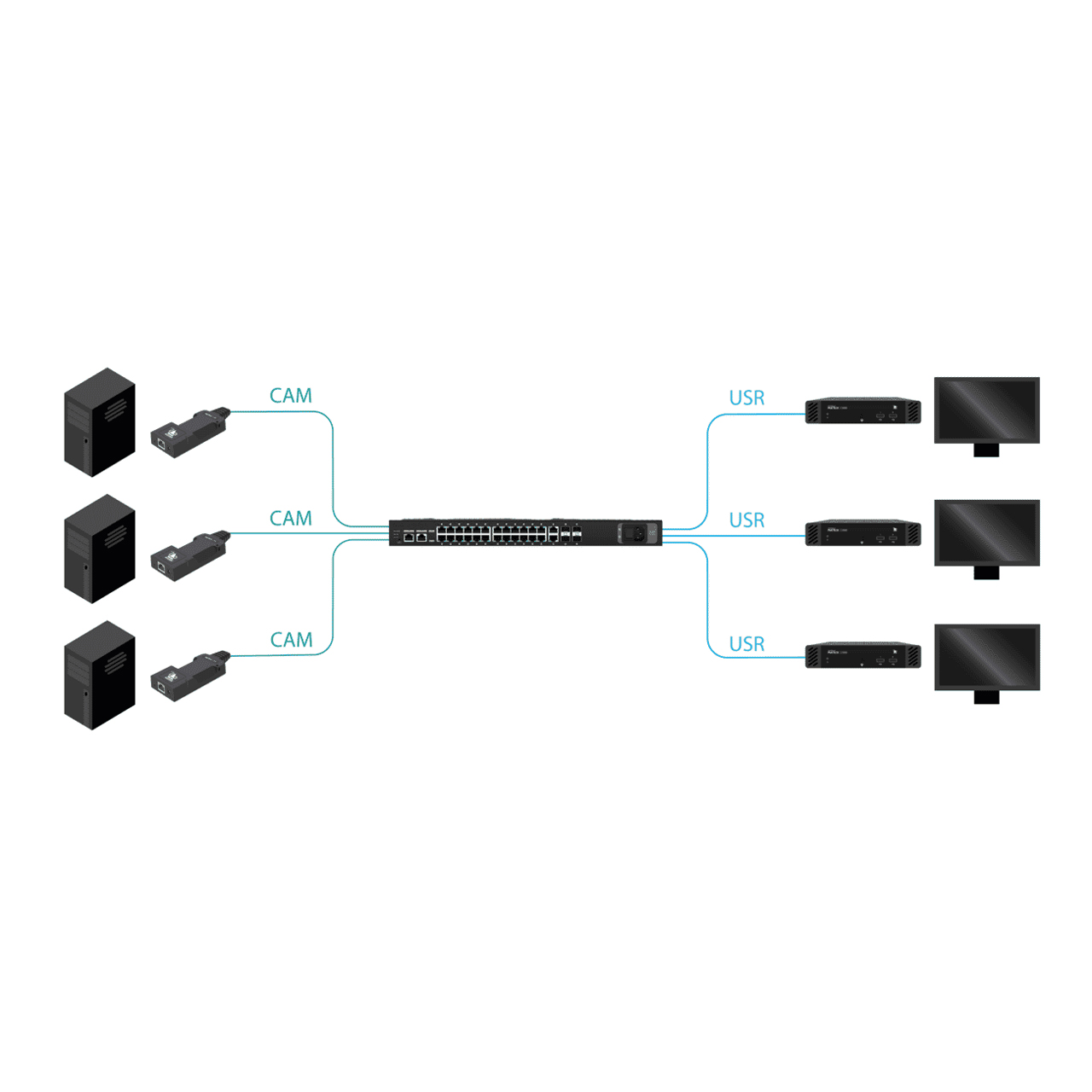

Streamlined KVM matrix solutions are perfect for setups where ease of use and low maintenance are paramount. Typically configured unmanaged (not using a dedicated KVM management switch), these systems are designed for quick installation and reliable operation with minimal technical knowledge required. Users can enjoy the same high-quality performance and essential features as our more complex solutions, but in a configuration that allows them to set up once and trust in continuous, hassle-free operation. These solutions deliver exceptional functionality with simplicity and reliability at their core.

  • Features:

    • Easy to Use. Simple to Deploy - ADDERView Matrix delivers a 'plug and play' experience that allows anyone with limited IT knowledge to deploy easily and quickly.
    • Flexible and Scalable - Each user station is the master controller of its own matrix and can have up to 16x sources programmed into its user interface.
    • Space and Time Saving - Using ZeroU USB powered computer access modules, an ADDERView Matrix can be installed without taking up extra space or resources in your rack.
    • Fast Video and USB Switching - With a switching time of less than a second, ADDERView Matrix delivers unrivalled user experience. Switch quickly using an On-Screen Display or via keyboard/external device hotkeys.
    • Perfect Digital Video in Real-Time Using spatially lossless encoding with 1:1 pixel mapping, ADDERView Matrix provides pixel-perfect and color accurate video with no artifacts.
    • Unlimited Extension Distances Extension distance is not limited with ADDERView Matrix. Extend beyond 100 meters by simply adding fiber optic transceivers via an in-built SFP port.


  • Specifications:

      Link Ports
    • 8p8c (RJ45): 10x
    • SFP: 2x

      Network Support
    • Bandwidth: 1GbE
    • 10/100 Support: Yes

      Power Source
    • Input Power Supply: Internal Power Supply Unit
    • Output Power Supply: PoE (802.3.AF)
    • Power Additional Information: 8x Ports Support 802.3.AF Total PoE budget of 125W

      Power Consumption
    • Maximum Power (Watts): 164
    • Typical Power (Watts): 18

      Physical Design
    • Construction Material: Robust metal construction
    • U Size: 1
    • Width: 17.3" (440mm)
    • Height: 1.7" (43.2mm)
    • Depth: 7.9" (200mm)
    • Weight: 6.3lb (2.85kg)


  • Item Includes:

    • 1x AVM-C12 Matrix Switch (NETGEAR GSM4212P)
    • 1x Country Specific IEC Mains Cab
    • 1x Rack-Mounting Standard Brackets
    • 1x Longer Brackets for Recessed Mounting
    • 1x Rubber Footpads for Tabletop Installation
    • 1x Quick Start Guide


  • Warranty:

    • 2-Year Limited Warranty
