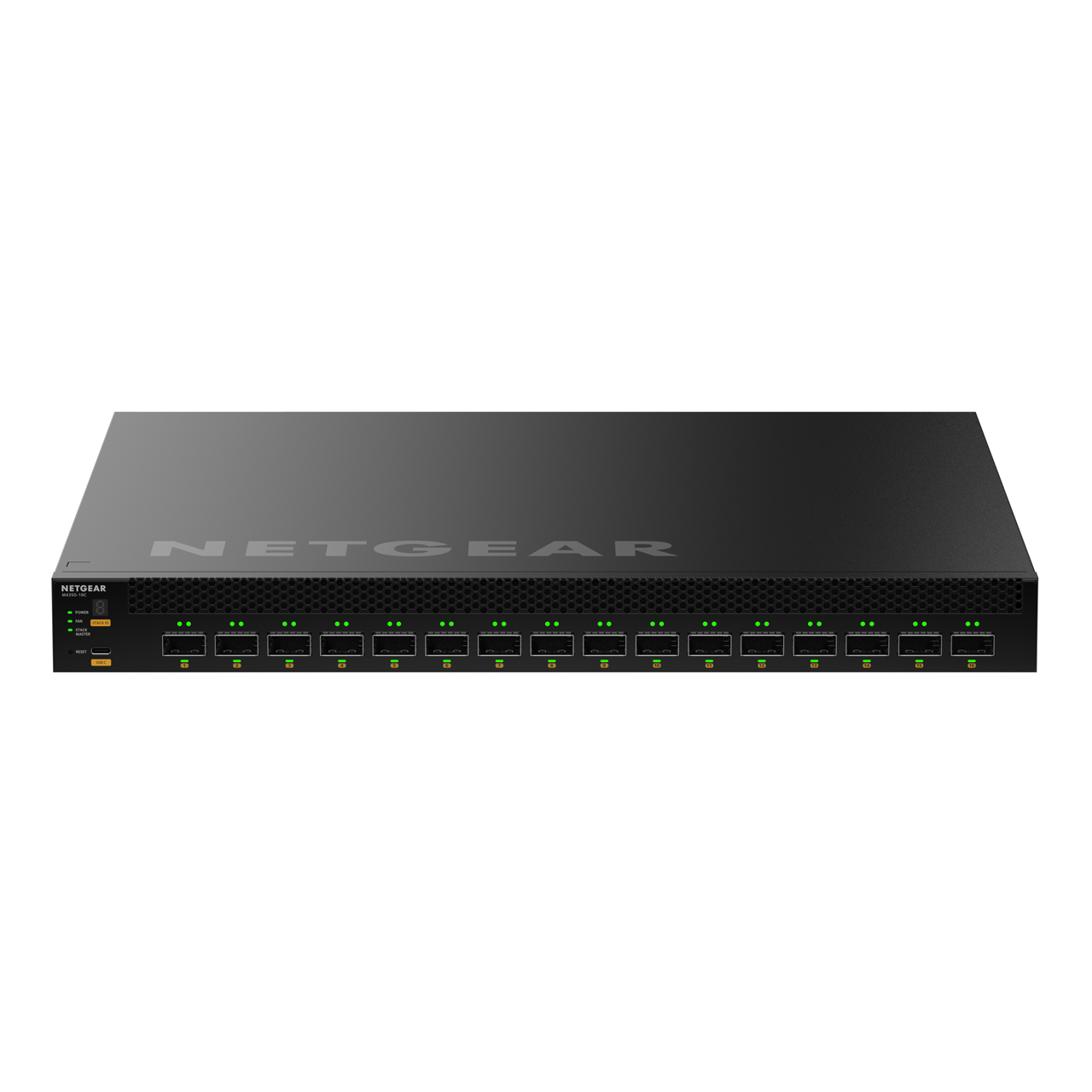

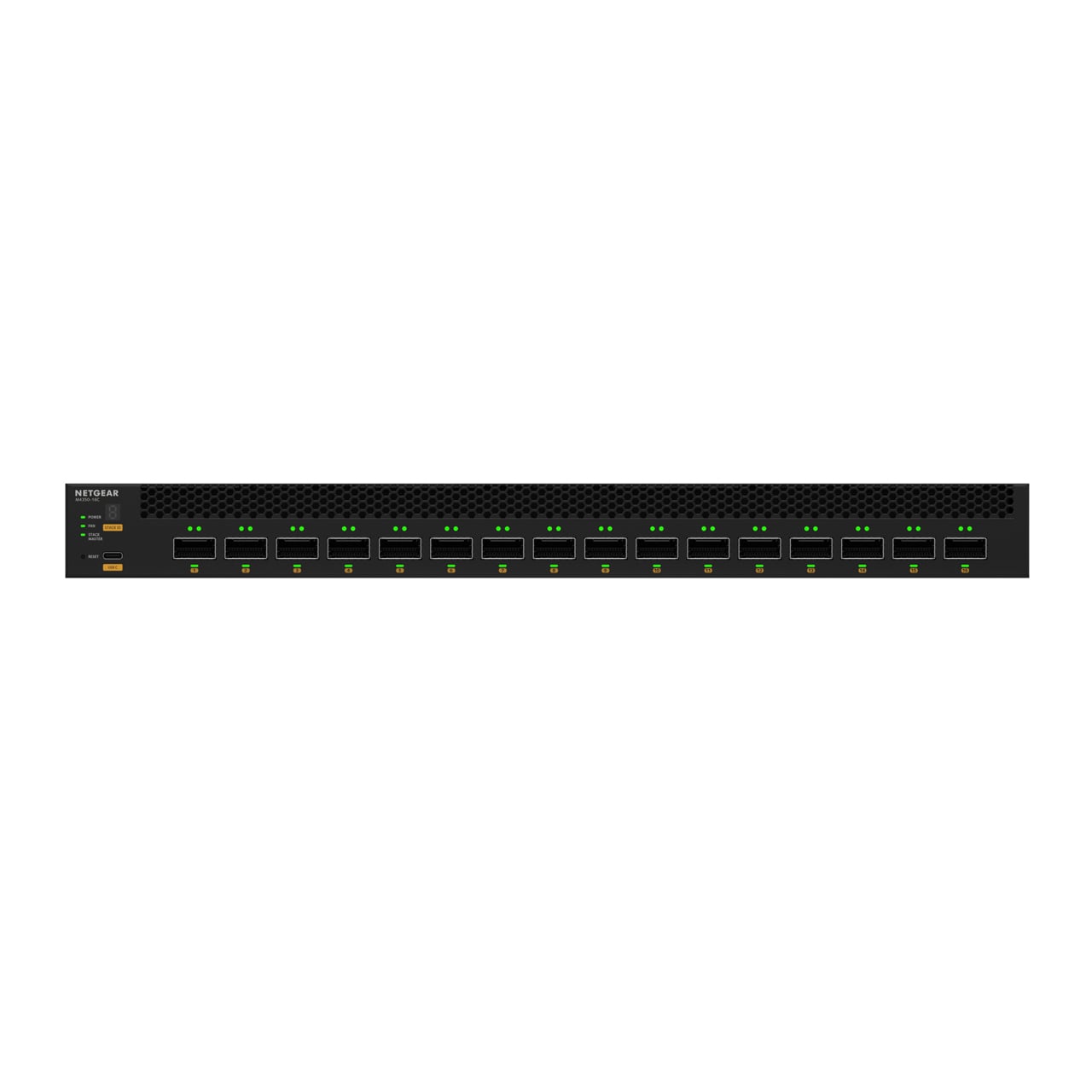

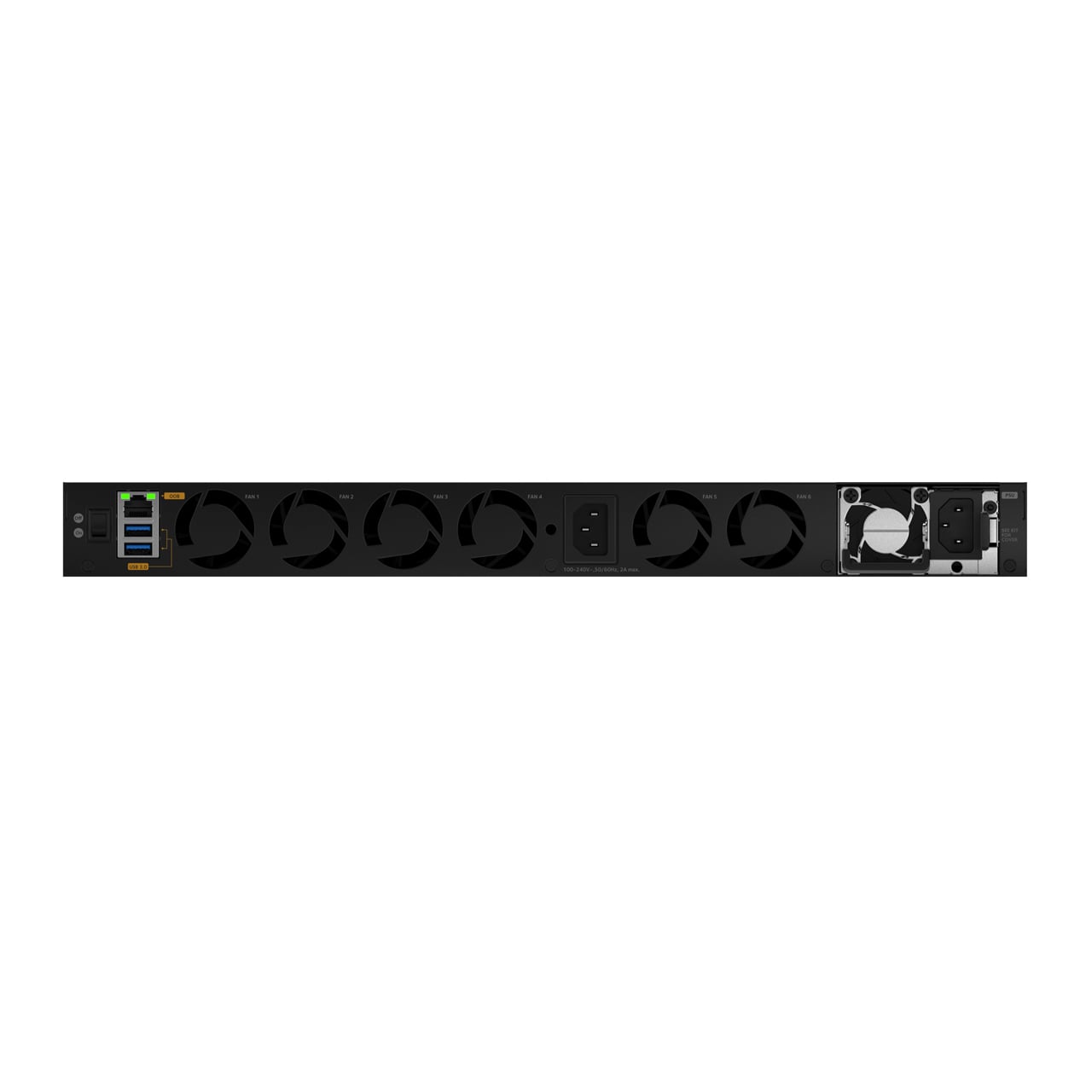

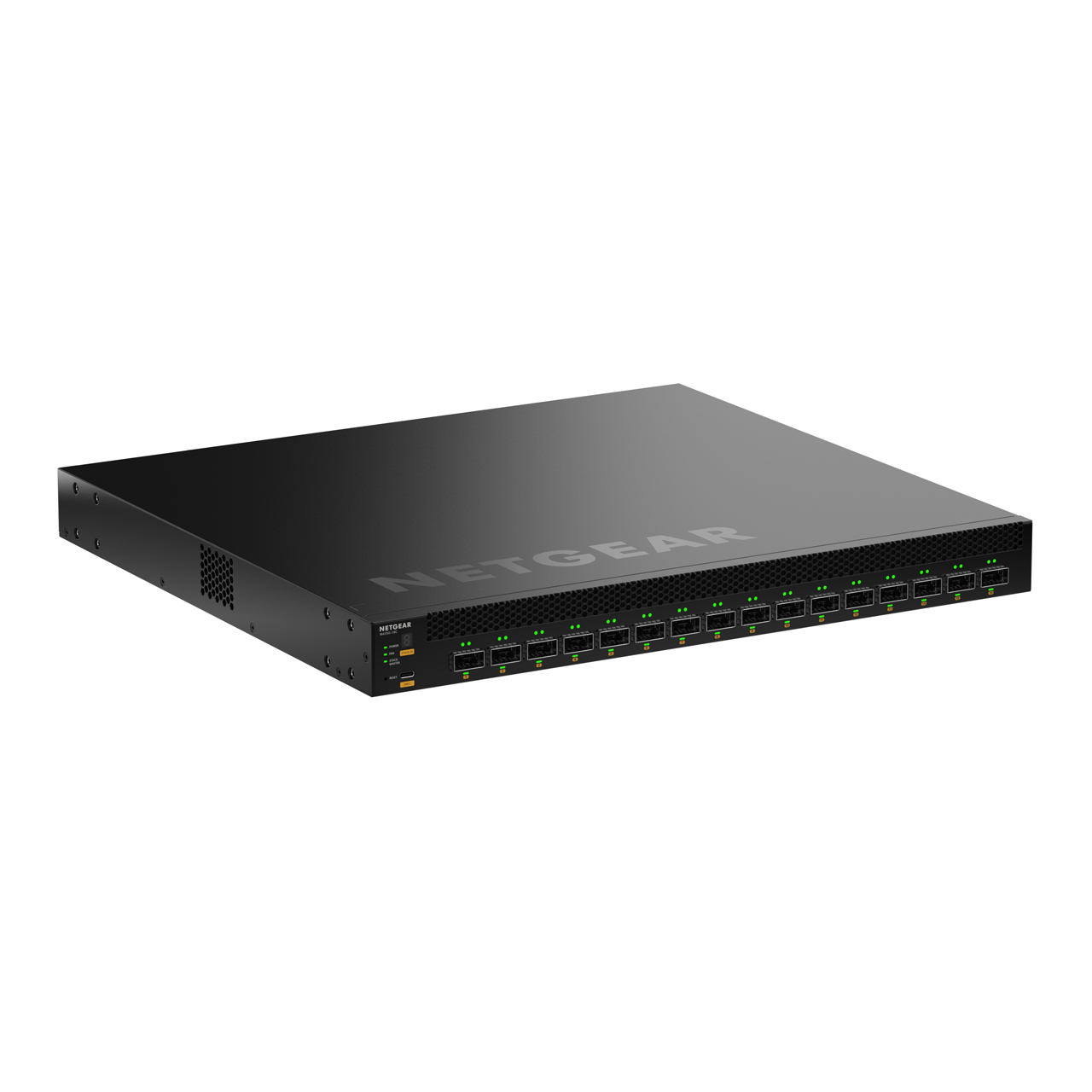

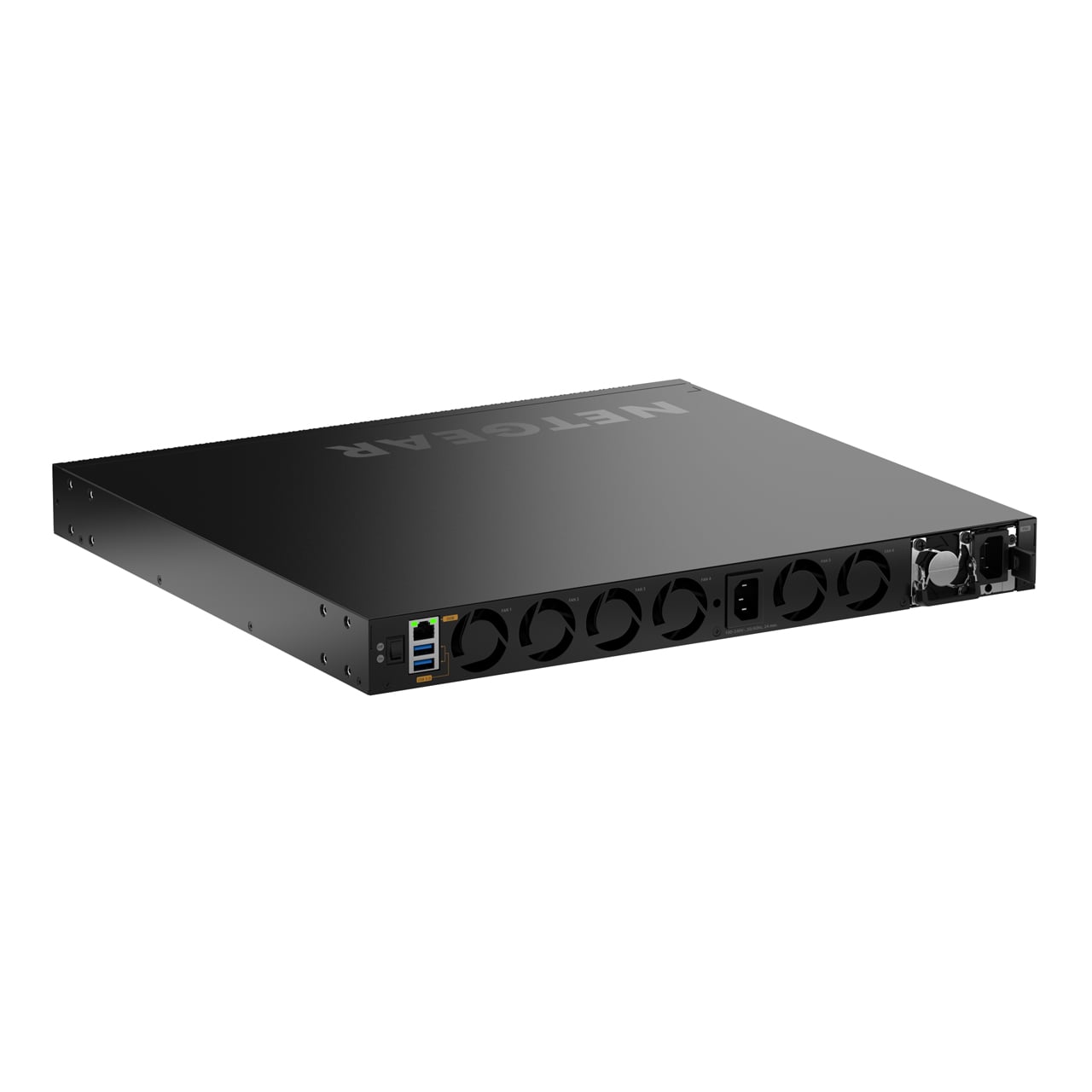

Netgear M4350-16C Fully Managed Switch with 16x 100G QSFP28 Fully Managed Switch

M4350-16C - Overview

• Features:

  • NETGEAR Listens To and Supports the Pro AV Community
    - IGMP PlusTM means AV-over-IP multicasting will work out of the box and not flood your network
    - Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
    - The Engage Controller manages all M4250, M4300, M4350, and M4500 switches for your AV installations
    - NETGEAR Pro AV Design team to help with system design and implementation to ensure the project will work
    - AVB, Dante, Q-SYS, AES67, NVX, AMX, IPMX, NDI 4/5/6, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others.
    - SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI
  • Enterprise-Class Hardware
    - From 1G to 2.5G, to 10G, to 25G, to 100G within 15.7" (40cm) depth except M4350-16M4V (MSM4320 17" / 43.2cmdepth)
    - Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)
  • Other IT Use Cases
    - Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
    - Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack
  • Industry Standard Management
    - Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
    - SNMP, sFlow and RSPAN - the entire feature set is available without license


• Specifications:

  • Primary Port Speed: 100 Gigabit
  • Number of Ports: 16x 100G QSFP28
  • IGMP Support: Enhanced (NETGEAR IGMP Plus)
  • Jumbo Frame Support: Yes, up to 12kb
  • AVB Support: Yes, included
  • Acoustics: Quiet Mode 30.4dB@ 77°F (25°C)
  • Power Consumption:
    - Maximum: 161.9W/552.40Btu/hr
    - Standby (no port connection): 69.1W/235.43Btu/hr
  • Dimensions (LxWxH): 15.75" x 17.32" x 1.73"
  • Weight: 17.7lbs


• Item Includes:

  • 1x M4350-16C (CSM4316)
  • 1x Power cord
  • 1x Console USB Type-C cable
  • 1x Rack-mounting standard bracket set
  • 1x Set of longer brackets for recessed mounting
  • 4x Rubber footpads for tabletop installation
  • 1x Installation guide
