Neutrik NMJ6HF-S 1/4 Inch Stereo Jack Switched - Solder - Supplied with NRJ-WB and NRJ-NUT-B

ITEM #: NMJ6HF-S MFG #: NMJ6HF-S

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the NMJ6HF-S

NMJ6HF-S - Overview

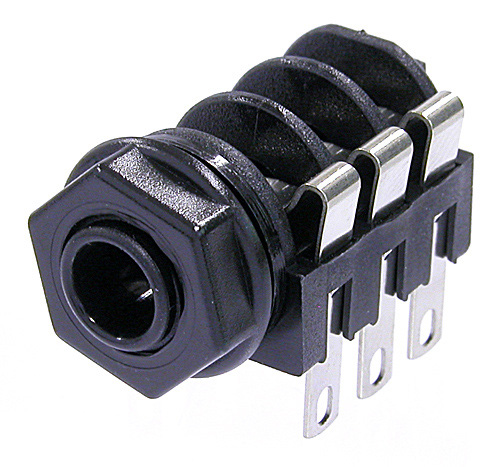

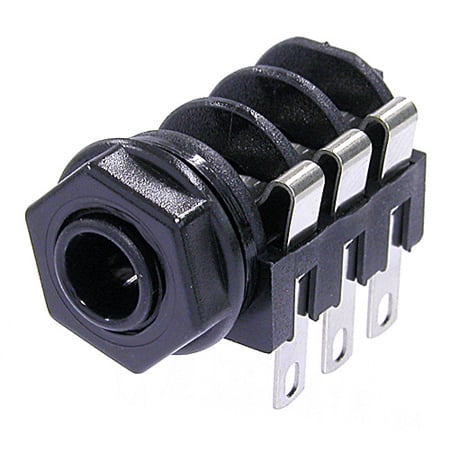

Neutrik NMJ6HF-S 1/4" stereo jack, switched, with a full threaded nose and standard solder lugs, mounting nut included. Mates with all stereo A-gauge plugs acc. EIA RS-453 standard.

  • Features:

    • Wide body and extremely durable contacts
    • Mates with all stereo A-gauge plugs acc. EIA RS-453 standard

  • Specifications:

    • Connection Type: Jack
    • Gender: Female

    • Electrical
    • ContacT Resistance: < 15 mΩ
    • Contact Resistance: < 30 mΩ
    • Dielectric Strength: 1 kVdc
    • Insulation Resistance: = 1 GΩ @ 500 V dc
    • Rated Current Per Contact: 3 A
    • Rated Current Per Contact: 0,50 A @ 50 V (Switch contact)
    • Switching Contacts: 3

      Mechanical
    • Insertion Force: < 30 N
    • Withdrawal Force: > 10 N
    • Lifetime: > 10000 mating cycles
    • Panel Thickness: < 3 mm

      Wiresize
    • Wiring: Horizontal PCB mount
    • Locking Device: Retention spring
    • Mounting Direction: Rear mounting
    • Chassis Shape: 11.2 mm

      Material
    • Cap / Nut / Washer: PA 6.6 15% GR
    • Contact Plating: 2 µm Ag
    • Contacts: Bronze (CuSn6)
    • Shell: Polyamide (PA 6.6 15 % GR)

      Environmental
    • Standard Compliance: EIA RS 453, IEC 60603-11
    • Solderability: Complies with IEC 68-2-20
    • Temperature Range: -25 °C to +70 °C
