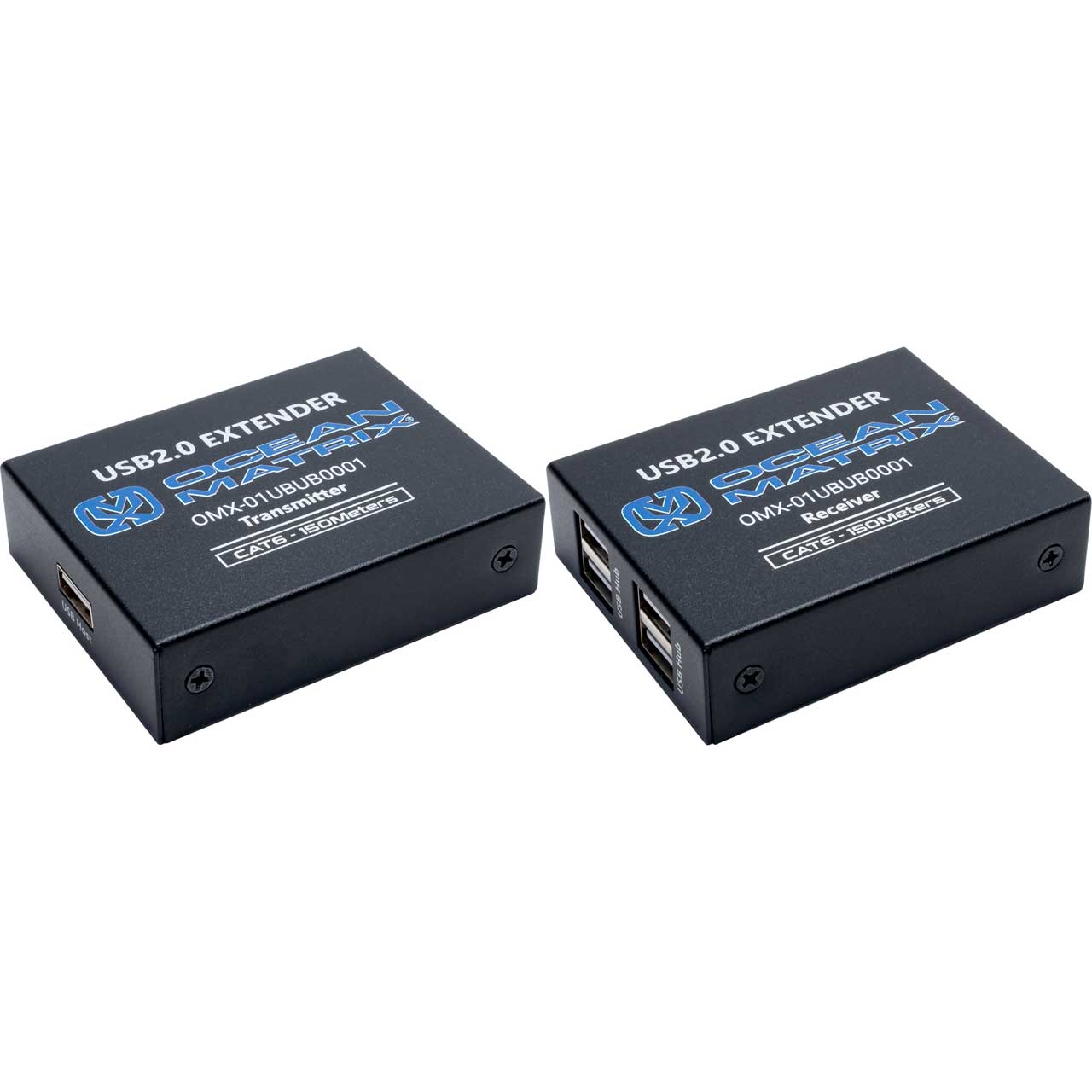

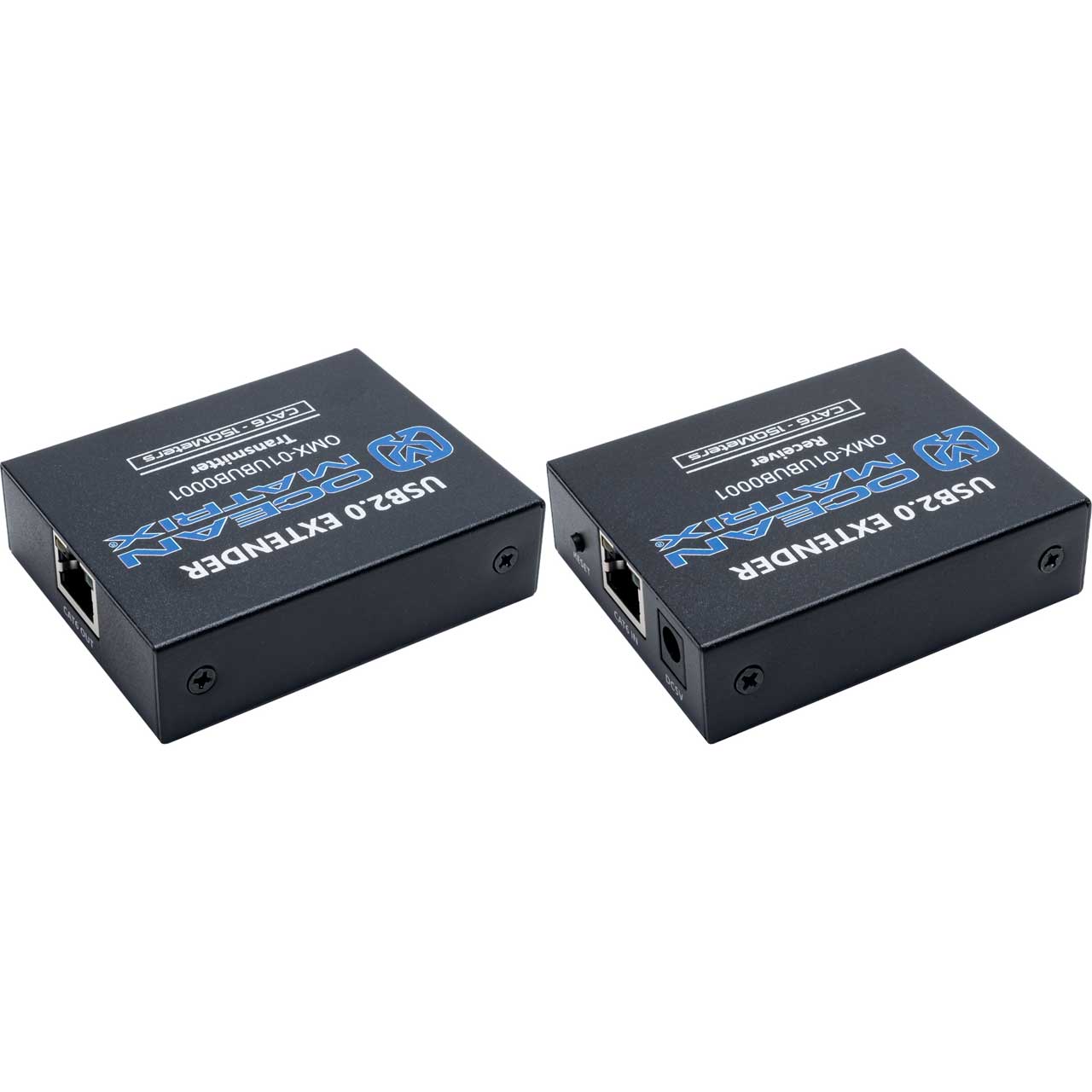

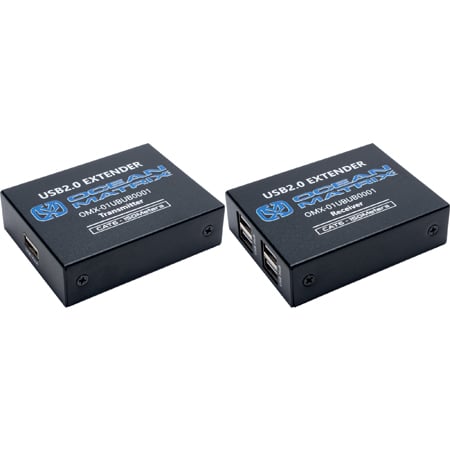

Ocean Matrix OMX-01UBUB0001 USB 2.0 Extender Over CAT5e up to 100m - CAT6 up to 150m

ITEM #: OMX-01UBUB0001 MFG #: OMX-01UBUB0001

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$122.95

Our Price:

$109.95

Availability: In Stock
iAvailability Description Popup


    OMX-01UBUB0001 - Overview

    Broaden the reach of your USB 2.0 signals well beyond the typical 15 foot limitation of standard cables using the cost effective Ocean Matrix 01UBUB0001 USB Extender. It's the practical solution for situations where longer cable lengths are required and you can't sacrifice data transfer speeds or reliability.

    The OMX system, containing a transmitter and receiver, is capable of signal extension up to 490 feet (via CAT6A) allowing users to create a centralized control hub for computers, media players, security equipment and similar USB devices without the expense of rewiring or relocating existing equipment.

    The Ocean Matrix 01UBUB0001 employs standard CAT5e/CAT6/CAT6A cabling and supports USB 2.0 formats. It has 4 USB 2.0 inputs at the receiver Hub. The transmitter can be powered by the source device so no additional power supply is required. This system is ideal for use in larger production houses, industrial machine control settings, distance learning applications and medical facilities.

    • Features:

      • Supports USB 2.0 high-speed, compatible with USB 1.1 full speed, USB1.0 low-speed

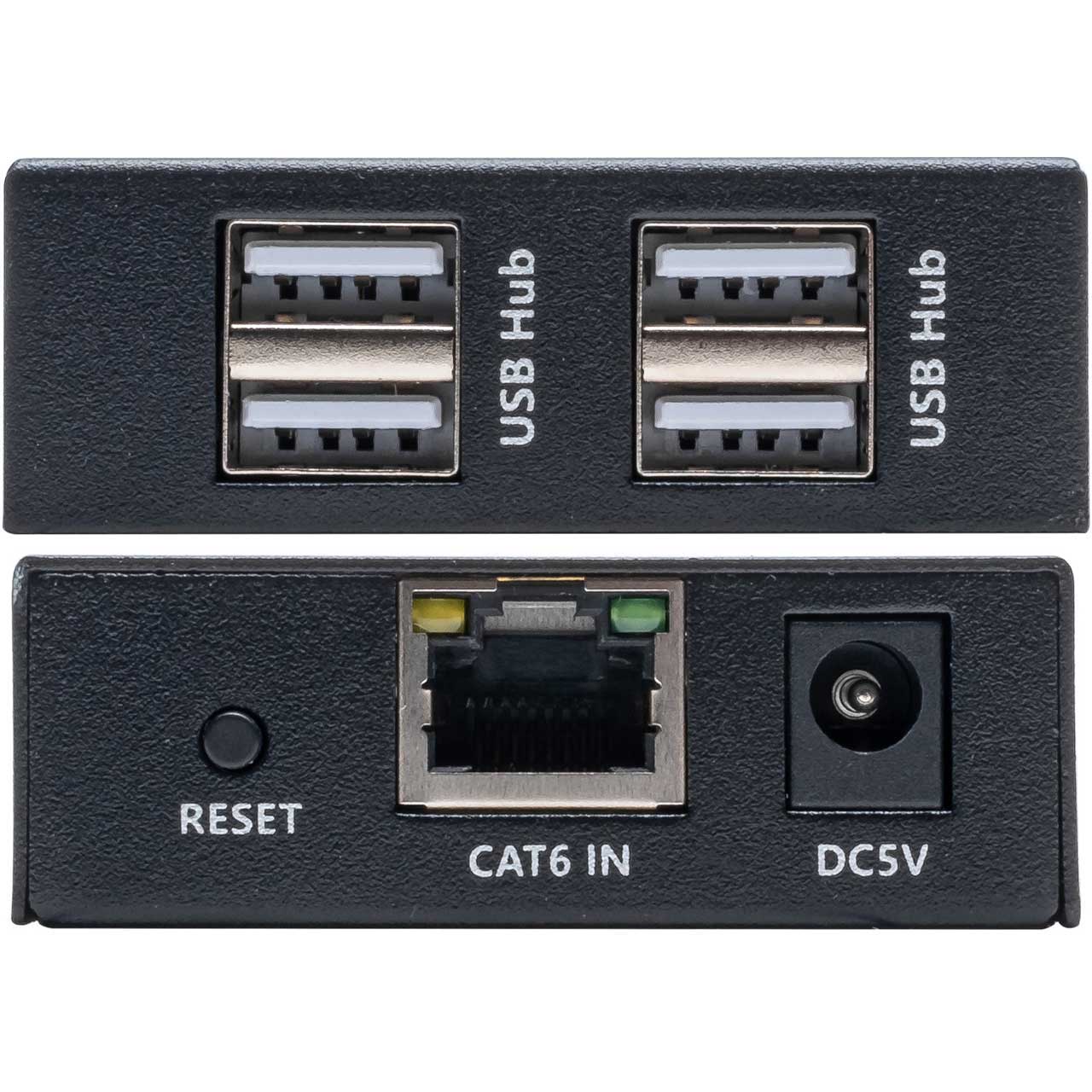

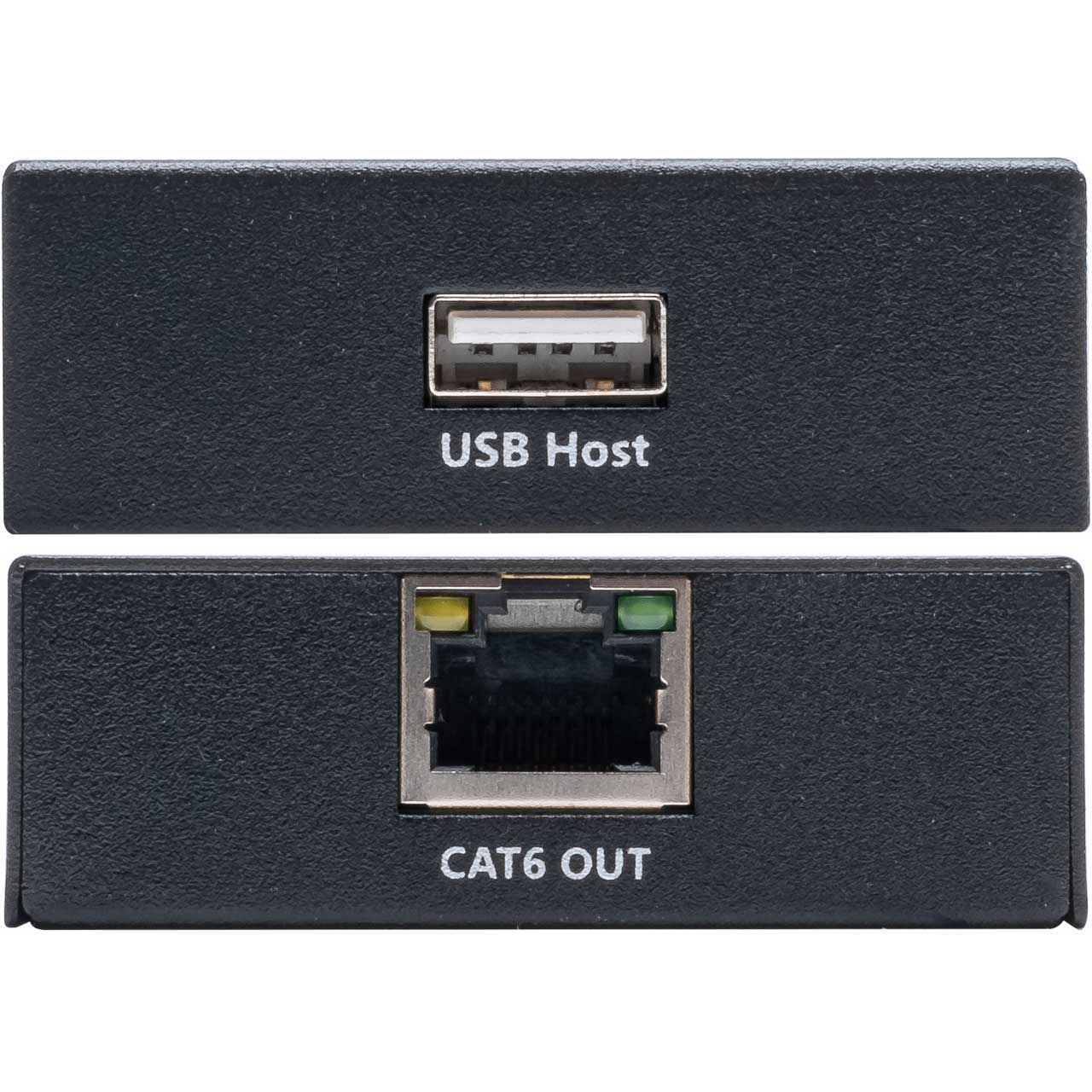

      • Supports 4 USB 2.0 inputs at the receiver "Hub" and 1 USB 2.0 output at the transmitter "Host"
      • Compatible with CAT5e/6/7 network cables- Cat5e transmission distance can reach 100M, and Cat6/7 transmission distance can reach 150M
      • Supports USB hub connection
      • The Transmitter is powered by the source device- no additional power supply is required.
      • *Note: some high-powered USB devices may require their own power supply.*
      • Lightning protection, surge protection, and ESD protection

    • Specifications:

      • Compatibility: USB 2.0, USB 1.1, USB 1.0
      • Supports CAT5e / CAT6 / CAT6A / CAT7 / IEEE-568B Standard
      • Transmission Distance: Up to 150m via CAT6/6A/7; Up to 100m via CAT5e
      • Power Supply: TX: Powered by Source Device | RX: DC5V/1A
      • Power Consumption: TX: ≤ 0.69W | RX: ≤ 1.23W
      • Operating Temperature: -4 - 140°F (-20 - 60°C)
      • Storage Temperature: -22 - 158°F (-30 - 70°C)
      • Dimensions (LxWxH): Both TX & RX: 3.035 x 2.37 x 0.81
      • Weight: TX: 0.275 lbs (125g) RX: 0.288 lbs (130g)

    • Item Includes:

      • OMX-01UBUB0001 USB 2.0 Extender Set (1 x Transmitter / 1 x Receiver)

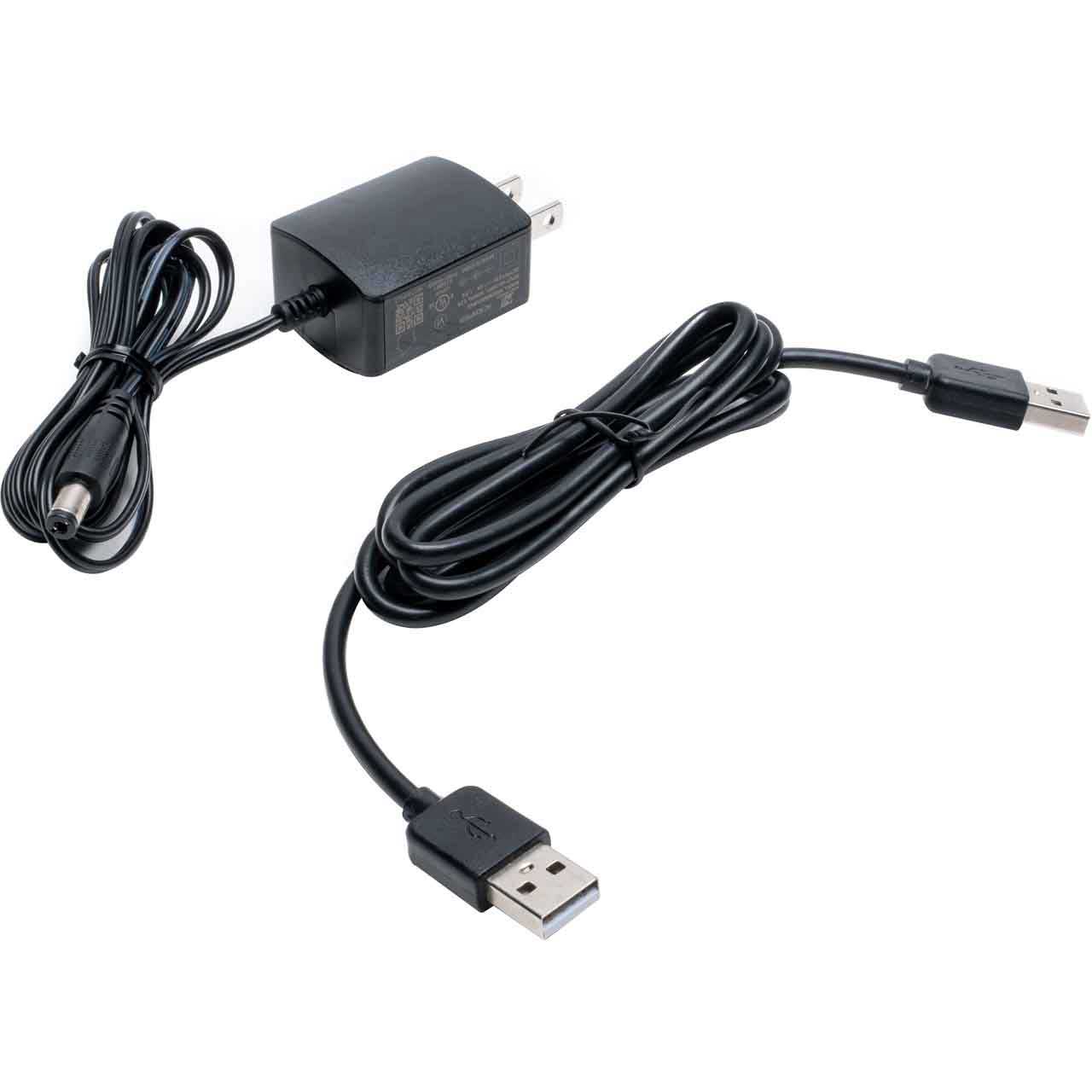

      • 1 x DC5V/1A
      • 1 x USB Cable

    • Warranty:

      • 1 Year
