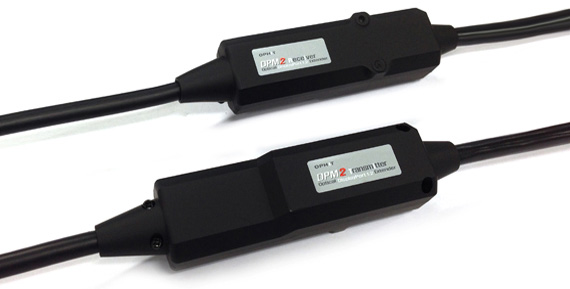

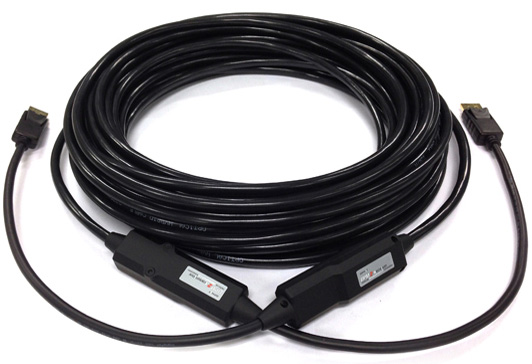

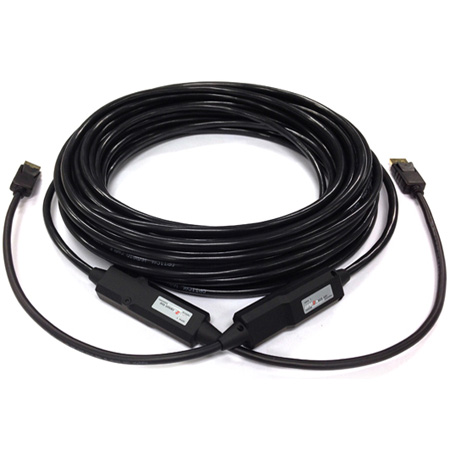

Ophit DPM2-A010 DisplayPort 1.2 4K Fiber Optic Cable - 4K UHD up to 40 Meters (131 Feet) - 10 Meters (32 Feet)

DPM2-A010 - Overview

• Features:

  • High speed and long distance transmission by optical system
  • Compatible with DisplayPortV1.2a standard by VESA
  • Supporting resolution up to 4K UHD (3840x2160@60Hz)
  • Extends up to 40 meters (131.fit)
  • MMF optical fiber + copper hybrid cable structure
  • HBR2(High Bit Rate) cable assembly (up to 5.4Gbs data rate)
  • AUX and Hot Plug channels are transmitted by copper line
  • DPCP compliant
  • Power operation LED installed


• Specifications:

  • Connector (transmitter): DisplayPort 20pin (male)
  • Connector (receiver): DisplayPort 20pin (male)
  • Optic Fiber: Copper + Optical Hybrid
  • Video Bandwidth: 21.6Gbs
  • Supporting Resolution & Distance: 4K UHD (3840x2160@60Hz) /40M(131ft)
  • Power Consumption (transmitter): 0.92 (max)
  • Power Consumption (receiver): 1.05 (max)
  • Dimensions(W x D x H): Transmitter: 2.95 inch x 0.98 inch x 0.78 inch (75 x 25 x 20 mm) Receiver: 2.95 inch x 0.98 inch x 0.78 inch (75 x 25 x 20 mm)
  • Operating Temperature Range: 0°C ~ 50°C
  • Storage Temperature Range: -20°C ~ 70°C


• Item Includes:

  • DPM2 Cable
  • User's manual
