PAG PAGlink PL16 2-Position Charger for V-Mount Batteries

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

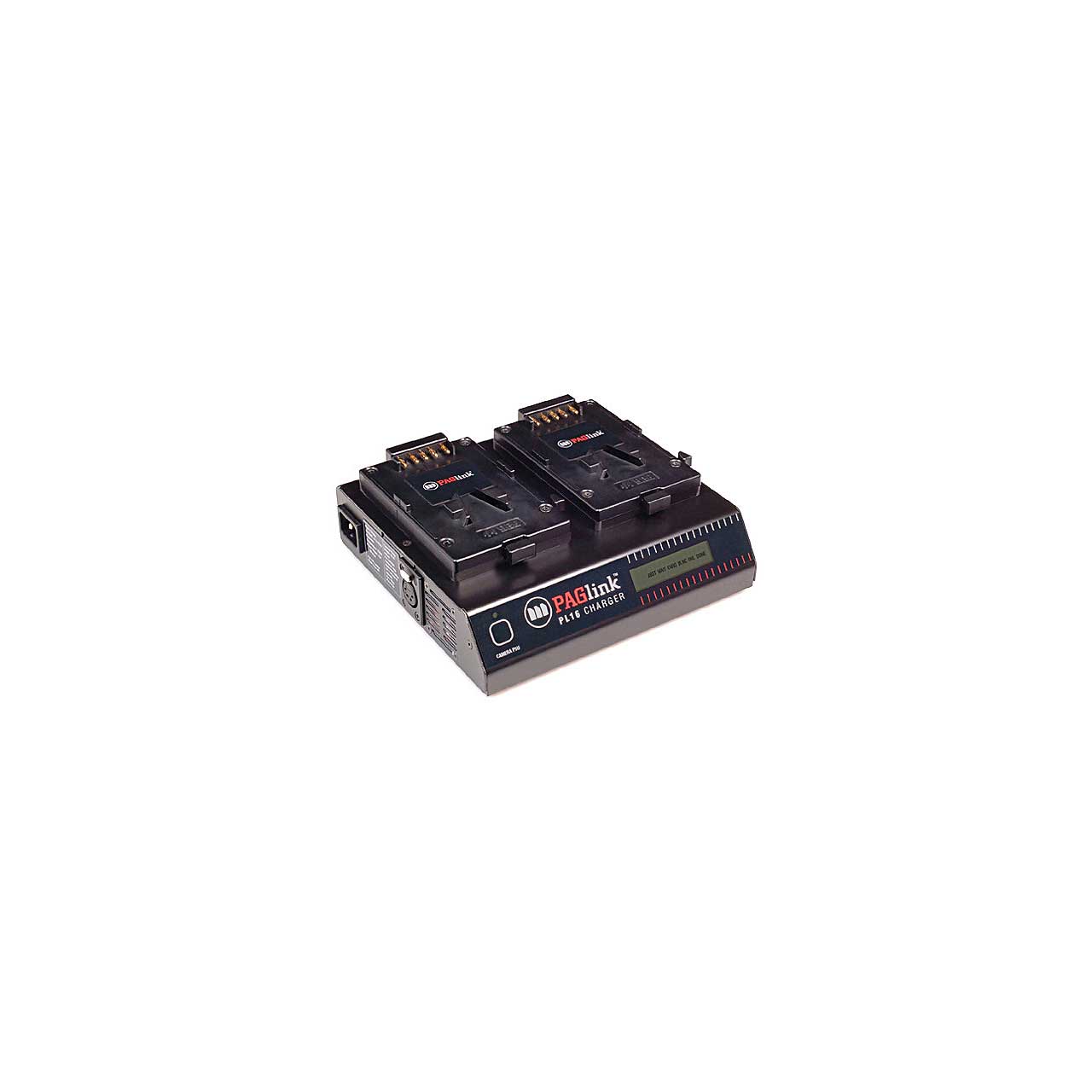

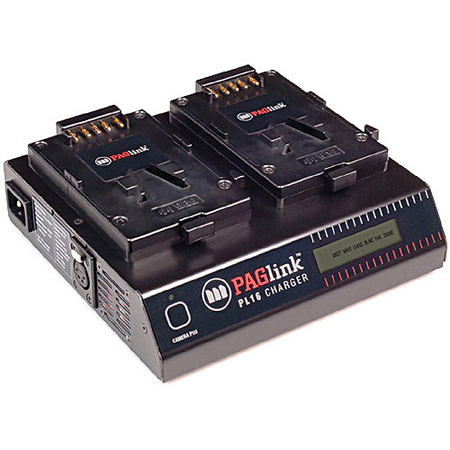

    PAG PAGlink PL16 2-Position Charger for V-Mount Batteries

    Item #: PAG-9707   •   MFG #: 9707



    List Price:$870.00
    Our Price:$783.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


    Share!





    The PAG PAGlink PL16 V-Mount Charger is designed to fast-charge up to 16 batteries simultaneously, 8 linked on each position. After a shoot, simply stack your batteries on the charger, and by the morning they will all be fully-charged and ready to use again. This means no more midnight battery swapping. 8 fully-discharged batteries will be fully-charged in approximately 12 hours. The charger uses the available power efficiently and intelligently to achieve fully-charged batteries safely, and as quickly as possible.

    The stages of the charging process for each channel are clearly indicated on the charger's large backlit LCD screen. The batteries communicate with each other to manage their own charging, which is fully automatic. The most discharged batteries are given priority. The battery's state of charge is displayed on its individual Run-Time & Capacity Display, so that you know at a glance when batteries are fully-charged and ready to use. The display characters can be inverted for legibility, with a single button press. The display reverts automatically after the battery is removed from the charger. Fully-charged batteries stop accepting charge automatically and independently of others in the stack. The batteries can be left on the charger to top-up until they are needed.

    Typical Battery Charging Times (96Wh batteries):
    1 battery: 2hrs 30mins
    2 batteries: 3hrs
    4 batteries: 6hrs
    6 batteries: 9hrs 30mins
    8 batteries: 11hrs 45mins
    16 batteries: 24hrs


    • Features

      • Fast-charge PAGlink batteries in any state-of-charge, individually or linked
      • Charge up to 16 batteries simultaneously
      • Fast, efficient, automatic charging
      • No more midnight battery swapping
      • Features a 100W camera power supply
      • Lightweight, rugged, compact and quiet

    • Specifications

      • Designed for parallel charging the following PAGlink batteries, from any state of charge, individually or linked: Model 9303 PAGlink PL96e; Model 9304 PAGlink PL96T; Model 9308 PAGlink PL150e; Model 9309 PAGlink PL150T
      • Suitable for parallel charging individually: Model 9307V PAG L90 Slim; Model 9310V PAG L95e/L96e; Model 9305V L96T; Sony V-Mount
      • Battery Connectors: 2 x V-Mount.
      • Li-Ion Intelligent Parallel Charging program: Maximum output 6A at 16.8V (100W approx.).
      • Recovery Charge Program: Recovers Li-Ion batteries that have been overdischarged and where the output has been shut down.
      • Self Test Program: Shuts down to a safe condition should tests fail.
      • Mains Input: 100-240V autoselected. Frequency 50-60 Hz. Maximum power consumption 220W.
      • Output Protection: Charger protected against short circuit and excess battery voltage.
      • AC Mains Failure Protection: Should mains failure occur during a charging program, or while the charger is connected, it will shut down to a safe condition.
      • User Interface: Stages of the charging process are indicated for each channel on the charger's LCD screen. The charger is fully automatic in operation.
      • Safety: Designed to comply with electrical safety standard BS EN 60065 and UL6500.
      • Operating Temperature Range: +32°F to +104°F
      • Height: 3" Width: 8.6" Depth: 7.5" Weight: 3.4lbs
      • Suitable for powering cameras that can accept a 16.8V input.
      • Output: 16.8V DC. Maximum current 5.5A (90W).
      • Output Connector: XLR4F connector (pin 1 neg. pin 4 pos).

    • Item Includes

      • AC power cable

    • Warranty

      • 2 years
