PAG PAGlink PL16 2-Position Charger for Gold Mount Batteries
  • PAG PAGlink PL16 2-Position Charger for Gold Mount Batteries
  • PAG PAGlink PL16 2-Position Charger for Gold Mount Batteries
  • PAG PAGlink PL16 2-Position Charger for Gold Mount Batteries

Questions? Ask a Markertek Expert:
800-522-2025 Email

PAG PAGlink PL16 2-Position Charger for Gold Mount Batteries

Item #: PAG-9707A   •   MFG #: 9707A



List Price:$870.00
Our Price:$783.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

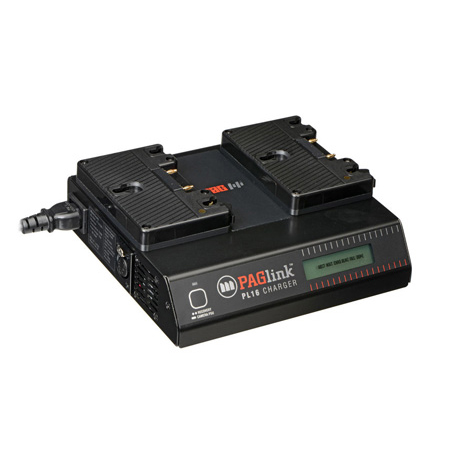

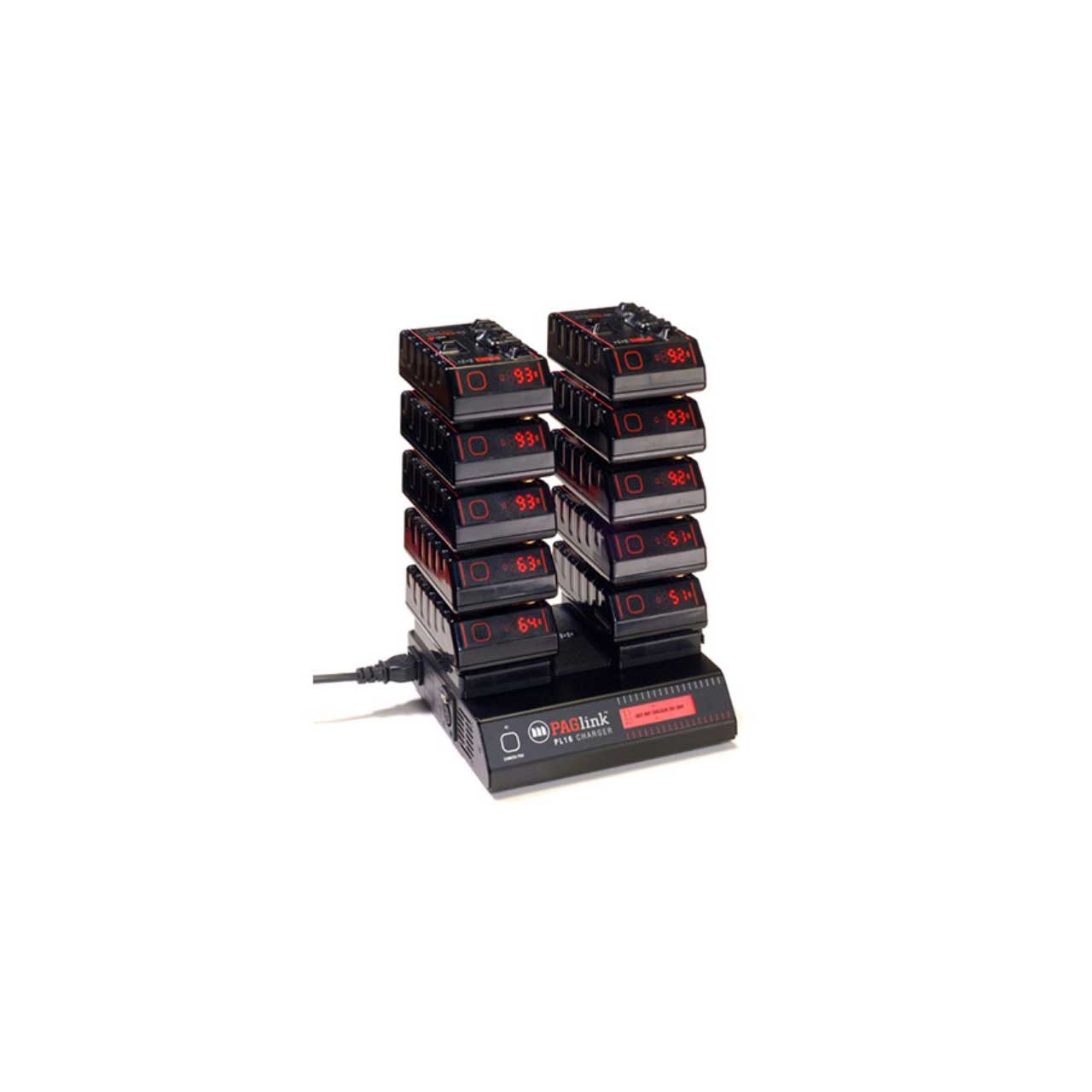

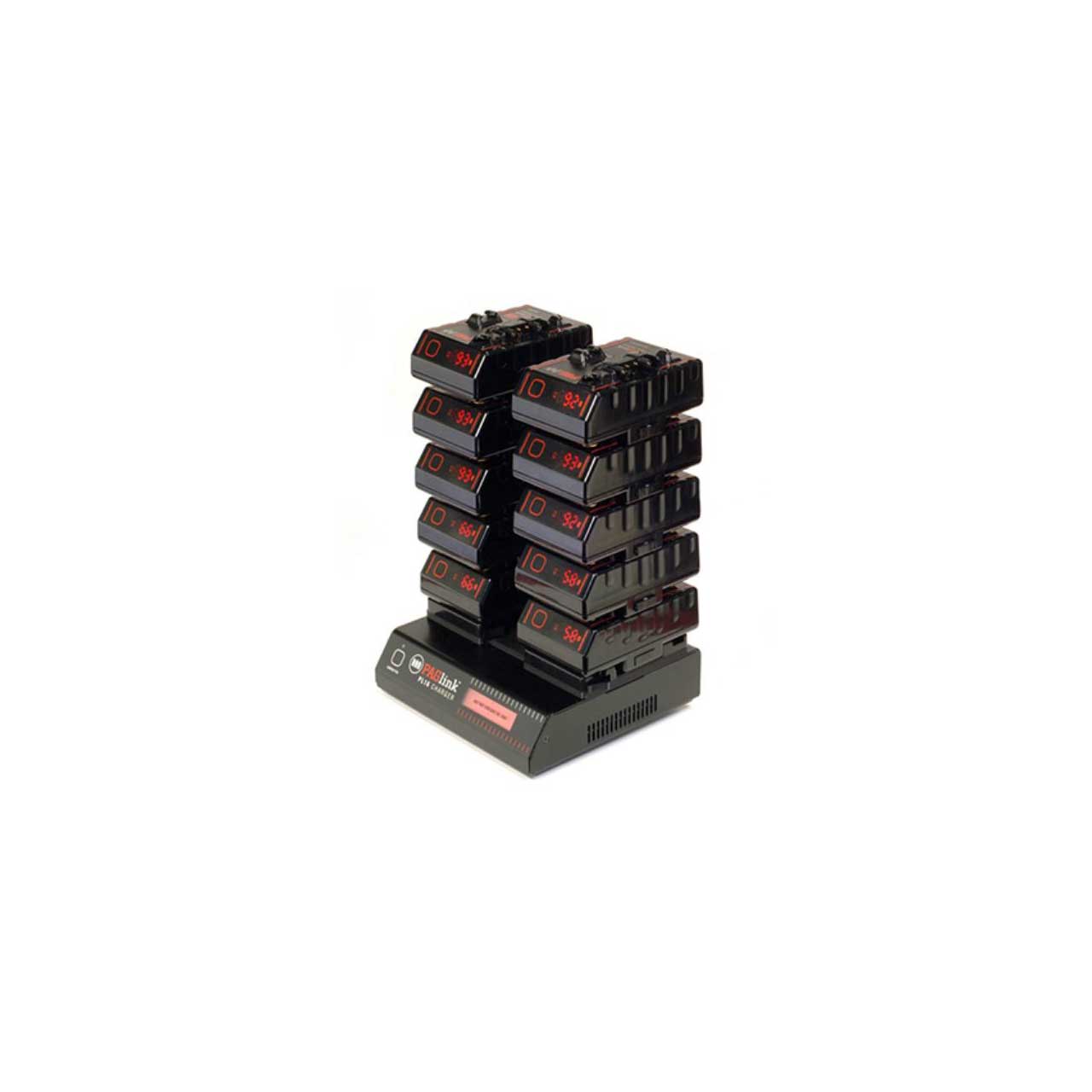

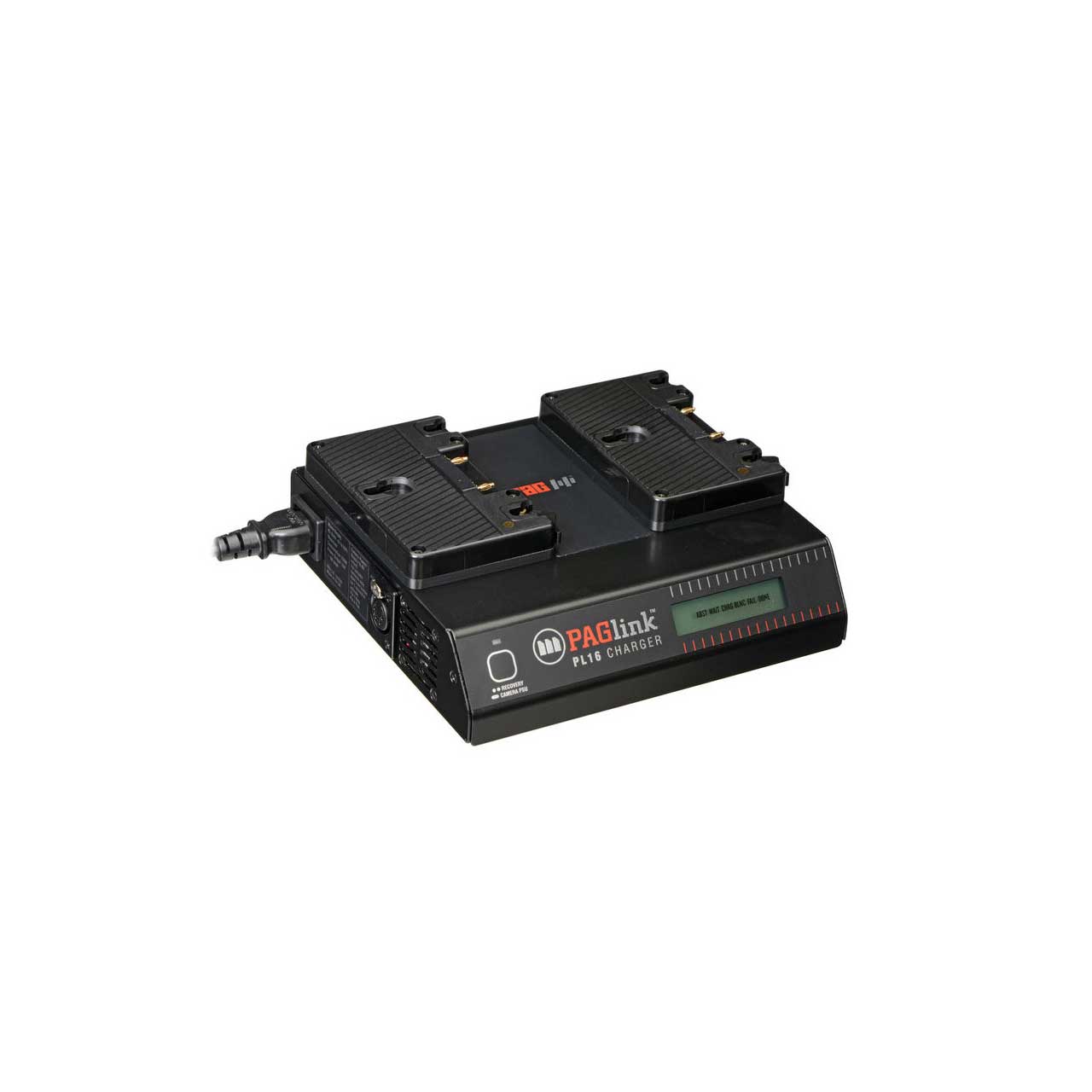

    The PAG PAGlink PL16 Gold Mount Charger is the ideal location charger for PAGlink Gold Mount Li-Ion batteries. Up to 16 batteries can be fast-charged simultaneously, 8 linked on each position. After a shoot, simply stack your batteries on the charger, and by the morning they will all be fully-charged and ready to use again. This means no more midnight battery swapping. 8 fully-discharged batteries will be fully-charged in approximately 12 hours. The charger uses the available power efficiently and intelligently to achieve fully-charged batteries safely, and as quickly as possible.

    The stages of the charging process for each channel are clearly indicated on the charger's large backlit LCD screen. The batteries communicate with each other to manage their own charging, which is fully automatic. The most discharged batteries are given priority. The battery's state of charge is displayed on its individual Run-Time & Capacity Display, so that you know at a glance when batteries are fully-charged and ready to use. The display characters can be inverted for legibility, with a single button press. The display reverts automatically after the battery is removed from the charger. Fully-charged batteries stop accepting charge automatically and independently of others in the stack. The batteries can be left on the charger to top-up until they are needed.

    Typical Battery Charging Times (94Wh batteries):
    1 battery: 2hrs 30mins
    2 batteries: 3hrs
    4 batteries: 6hrs
    6 batteries: 9hrs 30mins
    8 batteries: 11hrs 45mins
    16 batteries: 24hrs


    • Features

      • Features linked battery charging - an industry first developed by PAG.
      • Charges simultaneously up to 16 PAGlink Gold Mount batteries from any discharged state.
      • Charge up to 8 batteries overnight on one charger.
      • No more midnight battery swapping.
      • Fewer chargers required.
      • The charge status of each battery is shown on its individual display.
      • A recovery feature revives deeply discharged batteries.
      • Compact, robust and lightweight.
      • Quiet and cool-running - the ideal location charger.
      • Incorporates a 100W camera power supply with XLR4 output.
      • Accepts firmware updates via the battery connectors.

    • Specifications

      • Designed for parallel charging the following PAGlink batteries, from any state of charge, individually or linked: PAGlink HC-PL94T Model 9306
      • Suitable for parallel charging the following PAG Gold Mount Li-Ion batteries: PAG L96e Model 9310A; PAG L96T Model 9305A
      • Battery Connectors: 2 x Gold Mount.
      • Li-Ion Intelligent Parallel Charging program: Maximum output 6A at 16.8V (100W approx.).
      • Recovery Charge Program: If a battery will not accept charge, and is indicated as ABST on the charger display, a Recovery Charge Program can be initiated by two presses of the front panel button, which will enable the battery to be charged. Additionally, the charger will automatically recover a Li-Ion battery where the output has been shut down.
      • Self Test Program: The internal microcomputer constantly monitors the battery under charge, as well as the operation of the charger's own functions, which will be shut down to a safe condition should any of the tests fail.
      • Mains Input: 100V to 265V AC. Frequency 50-60 Hz. Maximum consumption 220W.
      • Output Protection: Charger protected against short circuit and excess battery voltage.
      • AC Mains Failure Protection: Should mains failure occur during a charging program, or while the charger is connected, it will shut down to a safe condition.
      • User Interface: The charge status of each battery is indicated by its own display. The different stages of the charging process are indicated for each channel on the charger's LCD screen. The charger is fully automatic in operation.
      • Safety: Designed to comply with electrical safety standard BS EN 60065 and UL6500.
      • Operating Temperature Range: +32°F to +104°F
      • Height: 3" Width: 8.6" Depth: 7.5" Weight: 3.4lbs
      • Suitable for powering cameras that can accept a 16.8V input.
      • Output: 16.8V DC. Maximum current 5.5A (90W).
      • Output Connector: XLR4F connector (pin 1 neg. pin 4 pos).

    • Item Includes

      • AC power cable

    • Warranty

      • 2 years
