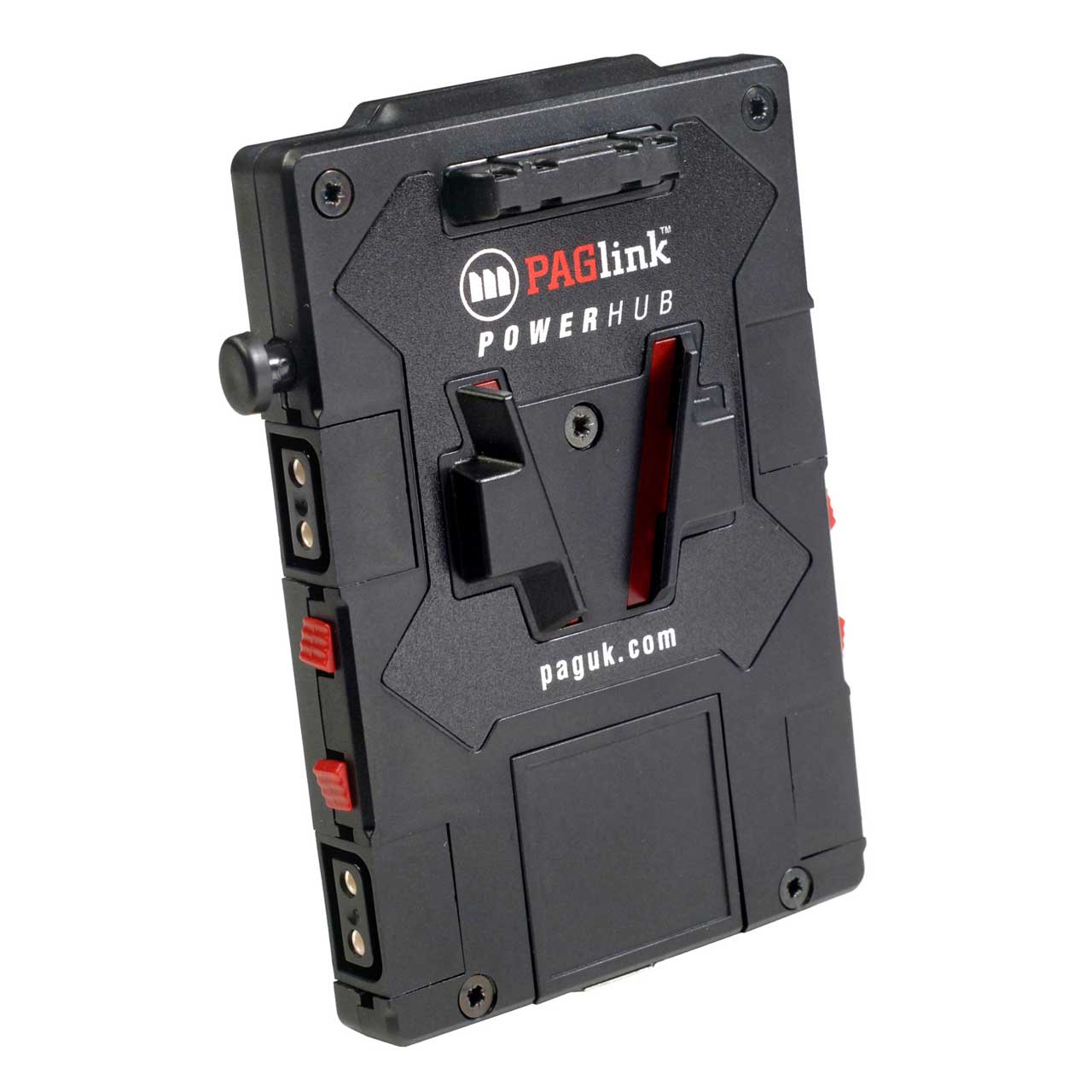

PAG 9709 PowerHub for PAGlink System

ITEM #: PAG-9709 MFG #: 9709

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

9709 - Overview

The PAG 9709 PowerHub is a compact and configurable camera accessory power device, designed for use with the PAGlink system of linking batteries.

The PAGlink battery system is designed for high-load camera set-ups; the linked batteries provide up to 12A, enabling you to power simultaneously the camera and multiple 12V accessories, such as a camera light, a monitor, audio and transmission devices. The PowerHub provides the multiple outputs that are required to do this.

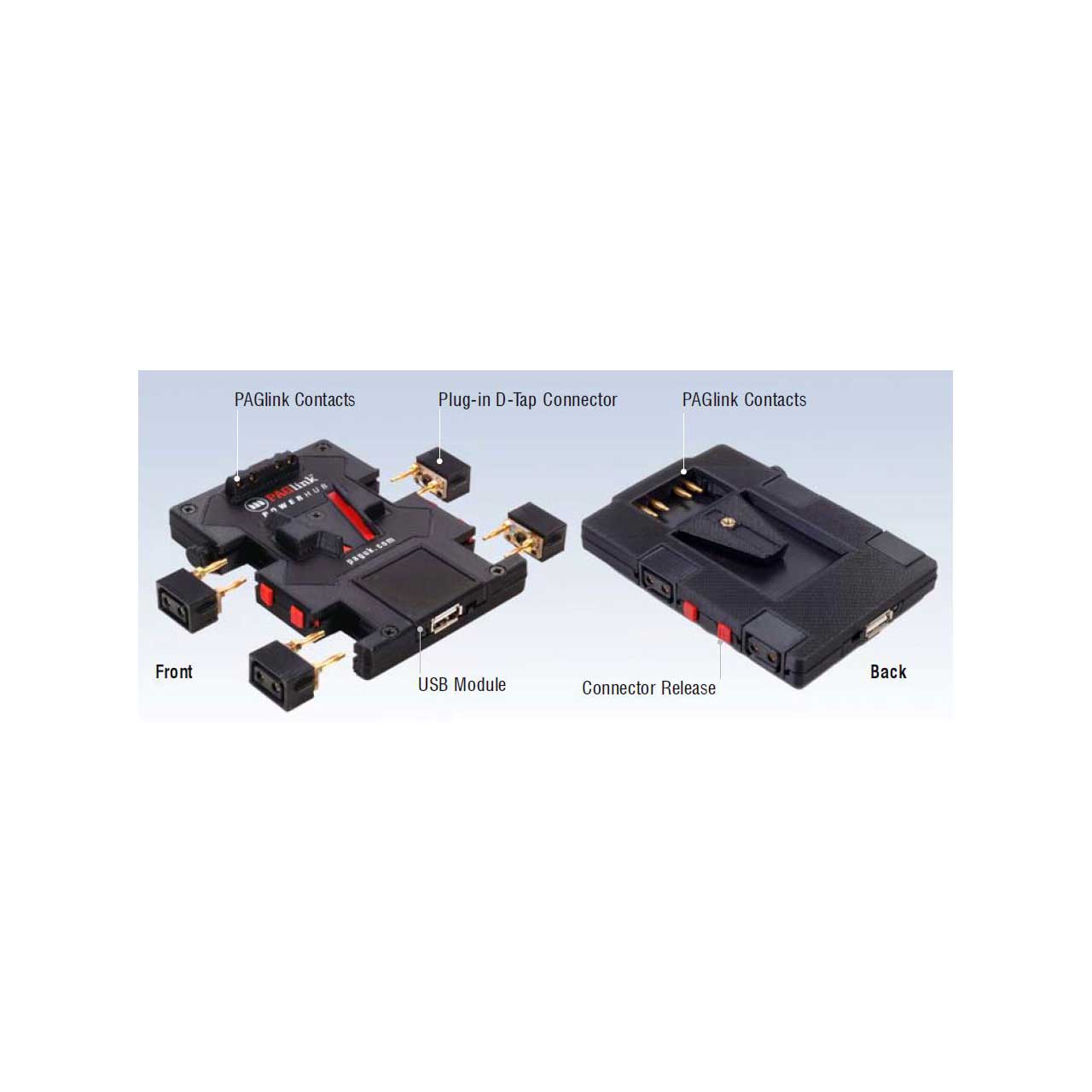

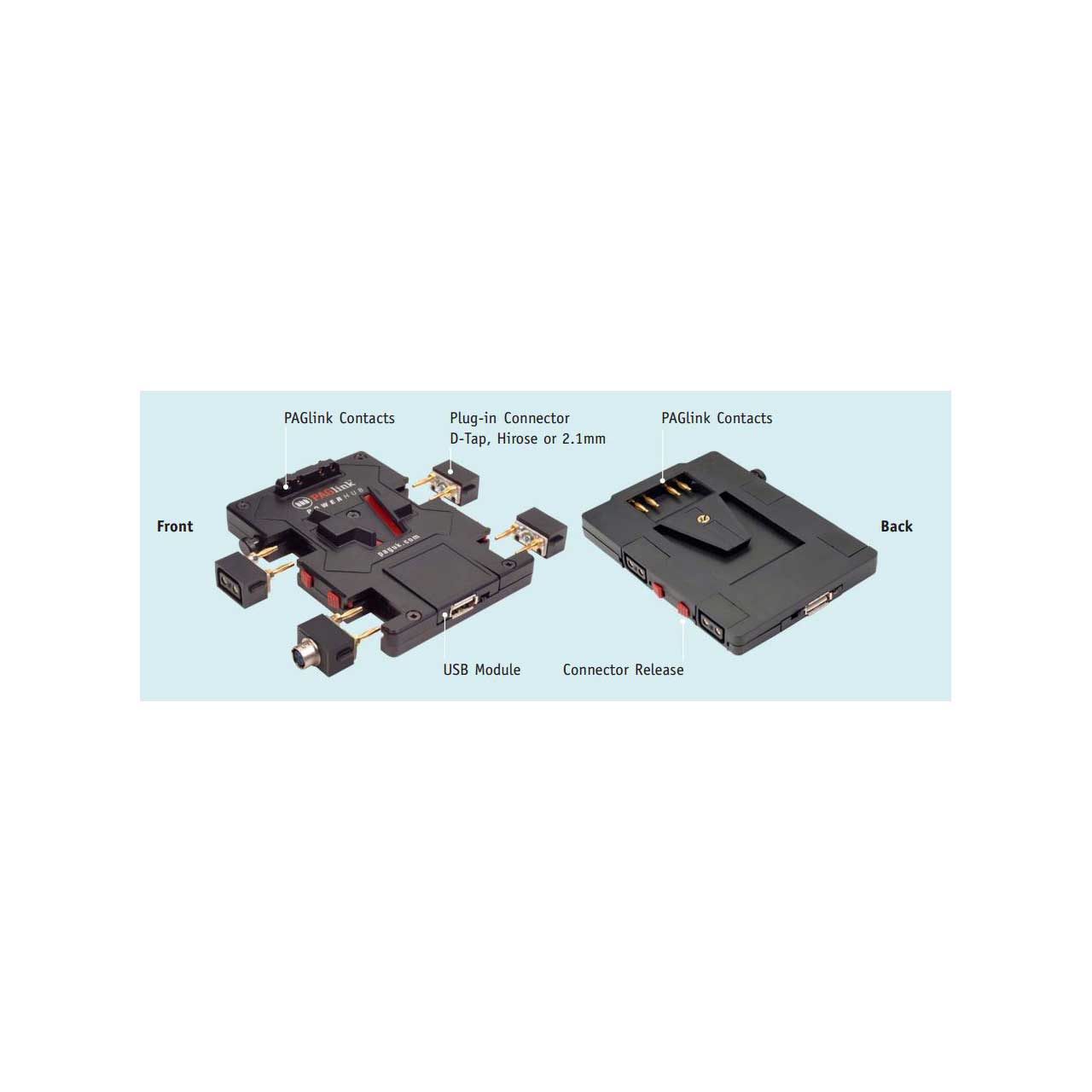

PowerHub incorporates four D-Tap output connector units which have been designed to be interchangeable with other connectors of your choice, such as Lemo (2-pin), Hirose (4 pin) or 2.1mm (PP90), available separately.

The outputs can be positioned to the left or right side of the camera, allowing you to configure the PowerHub to your individual requirement. A USB module (5V, 1A) has also been incorporated allowing you to charge your smartphone, or power other devices.

The PowerHub can be used sandwiched between two PAGlink batteries, thereby maintaining the system's hot-swap feature, or connected to the rear battery, where an accessory bracket can be mounted to the unit's face. The ultra-compact and lightweight PowerHub measures just 12mm in depth, when installed between batteries.

NOTE: The PAGlink PowerHub Model 9709 can ONLY be used with PAGlink V-Mount batteries. It draws power from their upper linking contacts. It cannot be used connected directly to the camera as it has no camera V-Mount contacts.

  • Features:

    • Power 12V camera accessories using PAGlink V-Mount batteries only
    • Situate between 2 PAGlink batteries to maintain the hot-swap capability
    • 4 x D-Tap outputs for 12V camera accessories (unregulated)
    • Lemo, Hirose & 2.1mm DC interchangeable connectors available separately
    • 1 x USB module (5V 1A) for charging your smartphone.
  • Specifications:

    • USB Output 5V 1A
  • Item Includes:

    • 4 x D-Tap connectors
    • 1 x USB
  • Warranty:

    • 18 months
  • GTIN:
