PAG PAGlink PL16plus 4-Position Charger for V-Mount Batteries

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

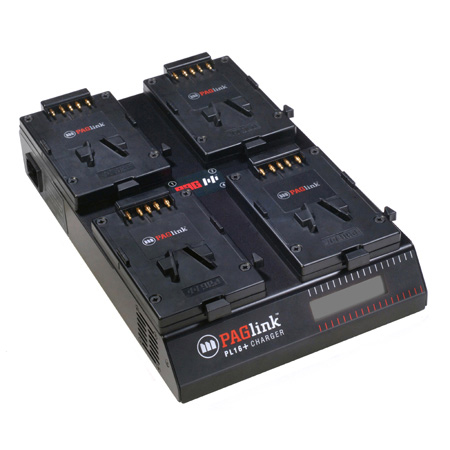

    PAG PAGlink PL16plus 4-Position Charger for V-Mount Batteries

    Item #: PAG-9711   •   MFG #: 9711



    List Price:$990.00
    Our Price:$891.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The PAG PAGlink PL16+ V-Mount Charger is a 4-position, simultaneous charger that greatly reduces the number of chargers required to manage a large PAGlink Gold Mount battery inventory - making it ideal for broadcasters and rental companies. The high-powered charger uses the available current to fully charge each battery in the fastest possible way, ensuring peak performance and a longer cycle life. The PL16+ is quiet, compact and cool-running. It features a hard-wearing steel case, and weighs only 3.5lbs (1.6kg). Its slim design makes it easy to transport and suitable for location use.

      The stages of the charging process for each channel are clearly indicated on the charger's large backlit LCD screen. The batteries communicate with each other to manage their own charging, which is fully automatic. The most discharged batteries are given priority. The battery's state of charge is displayed on its individual Run-Time & Capacity Display, so that you know at a glance when batteries are fully-charged and ready to use. The display characters can be inverted for legibility, with a single button press. The display reverts automatically after the battery is removed from the charger. Fully-charged batteries stop accepting charge automatically and independently of others in the stack. The batteries can be left safely on the charger to top-up until you need them.

      Typical Battery Charging Times (96Wh batteries):
      1 battery: 2hrs 30mins
      2 batteries: 3hrs
      4 batteries: 6hrs
      6 batteries: 9hrs 30mins
      8 batteries: 11hrs 45mins
      16 batteries: 24hrs
      32 batteries: 48hrs


      • Features

        • Fast-charge PAGlink batteries in any state-of-charge, individually or linked
        • Charge up to 32 batteries simultaneously
        • Fast, efficient, automatic charging
        • Ideal for broadcast organizations and camera hire companies
        • Lightweight, rugged, compact and quiet

      • Specifications

        • Designed for parallel charging the following PAGlink batteries, from any state of charge, individually or linked: Model 9303 PAGlink PL96e; Model 9304 PAGlink PL96T;
        • Suitable for parallel charging individually: Model 9307V PAG L90 Slim; Model 9310V PAG L95e/L96e; Model 9305V L96T; Sony V-Mount
        • Battery Connectors: 4 x V-Mount.
        • Li-Ion Intelligent Parallel Charging program: Maximum output 6A at 16.8V (100W approx.).
        • Recovery Charge Program: Recovers Li-Ion batteries that have been overdischarged and where the output has been shut down.
        • Self Test Program: Shuts down to a safe condition should tests fail.
        • Mains Input: 100-240V autoselected. Frequency 50-60 Hz. Maximum power consumption 220W.
        • Output Protection: Charger protected against short circuit and excess battery voltage.
        • AC Mains Failure Protection: Should mains failure occur during a charging program, or while the charger is connected, it will shut down to a safe condition.
        • User Interface: Stages of the charging process are indicated for each channel on the charger's LCD screen. The charger is fully automatic in operation.
        • Safety: Designed to comply with electrical safety standard BS EN 60065 and UL6500.
        • Operating Temperature Range: +32°F to +104°F
        • Dimensions: 314 x 217 x 75mm Weight: 1.6kg
        • 32 batteries: 48hrs.

      • Item Includes

        • AC power cable

      • Warranty

        • 2 years
