PAG CPS100 On-Camera Power Supply - Gold Mount

ITEM #: PAG-9750A MFG #: 9750A

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$616.00

Our Price:

$554.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    9750A - Overview

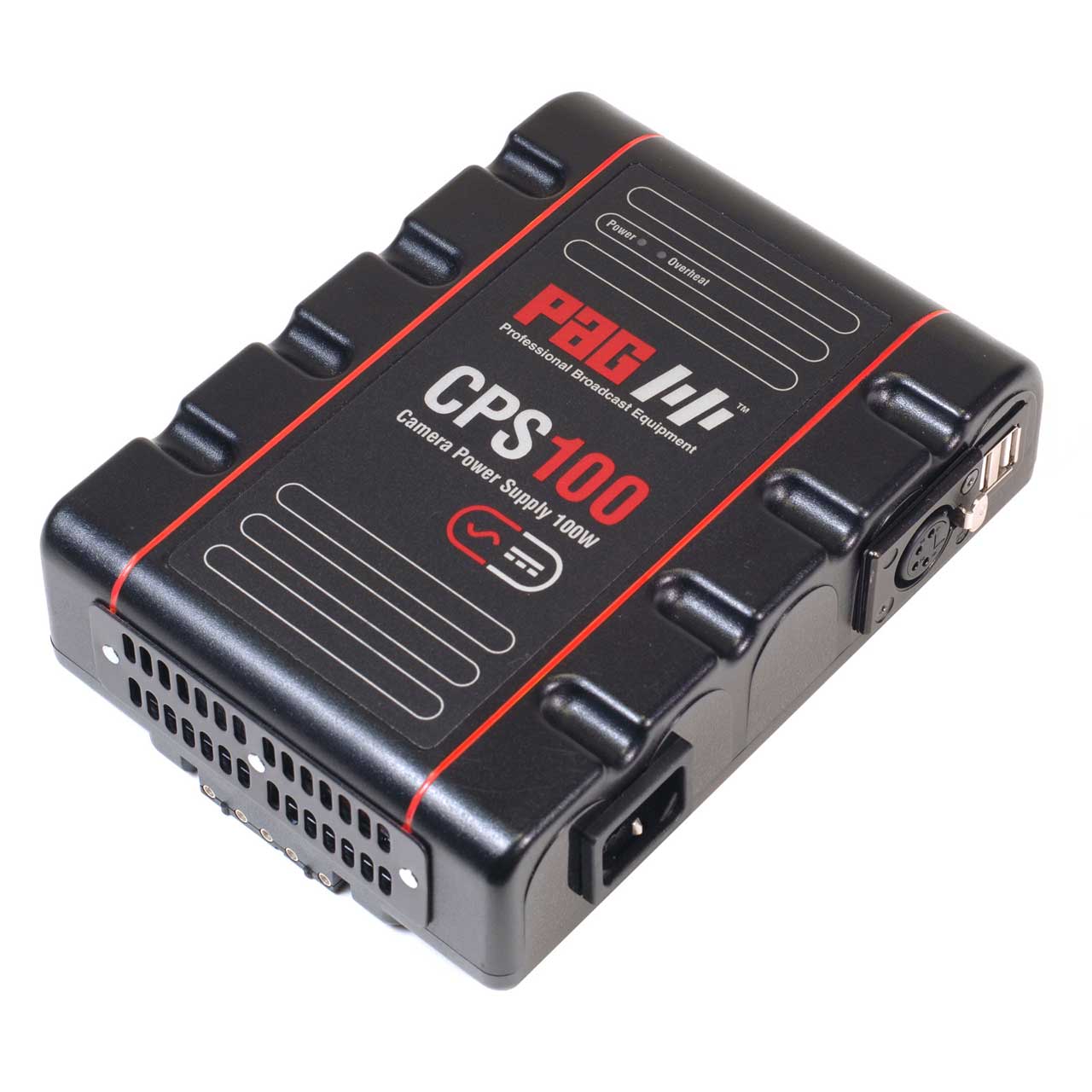

    The PAG 9750A CPS100 Camera Power Supply is an on-camera power AC adaptor with a Gold Mount connector that will supply up to 100W to power your camera and charge your smartphone simultaneously. It can be mounted to the rear of the camera via the battery connector. Alternatively it can be used off camera.

    The PAG CPS100 can be used to power HD broadcast camera set-ups that include picture monitoring, audio or lighting accessories. A parallel XLR4 output is included for powering camera accessories. Twin USB connectors are incorporated that output 5V, ideal for charging a smartphone.

    The CPS100 has a constant output of 100W and a peak output of 150W. It can be powered from any AC supply worldwide. Thermal protection is included and the unit will automatically restart after cooling.

    • Features:

      • AC on-camera power adaptor
      • 100W at 15V constant output
      • 150W peak output
      • Input voltage 90-264V AC
      • Gold Mount connector
      • Compact, lightweight design
      • Parallel XLR4 output for lighting or audio accessories
      • Twin USB output (5V) ideal for charging smart phone battery
      • Engineered to highest safety and reliability standards
      • Power on indicator
      • Overheat indicator
      • Thermal protection with auto-restart (after cooling).

    • Specifications:

      • Input Supply: 90-264V ~ auto-selected
      • Frequency 47-63Hz
      • Maximum power consumption 175W
      • Output: 15V DC, 105W nominal
      • Output Protection: protected against over-current and short circuit
      • The output is protected against over-temperature and over-voltage by means of a latching shutdown circuit
      • Output Connectors: Gold Mount battery connector
      • Parallel XLR4 output included for camera accessories (pin 1 neg pin 4 pos.)
      • Two standard USB outputs for charging smartphone etc
      • Output is 5W at 5V total
      • Operating Temperature Range: 0°C to +40°C (+32°F to +104°F)

    • Item Includes:

      • AC power lead

    • Warranty:

      • 18 months
