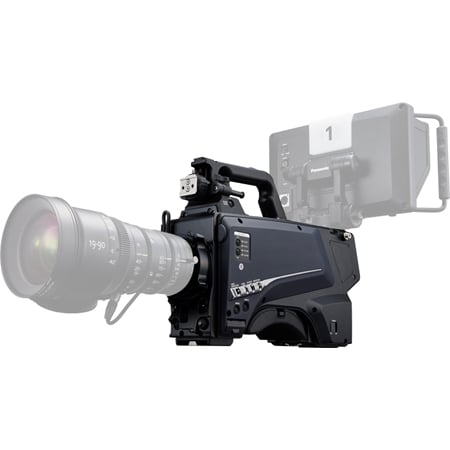

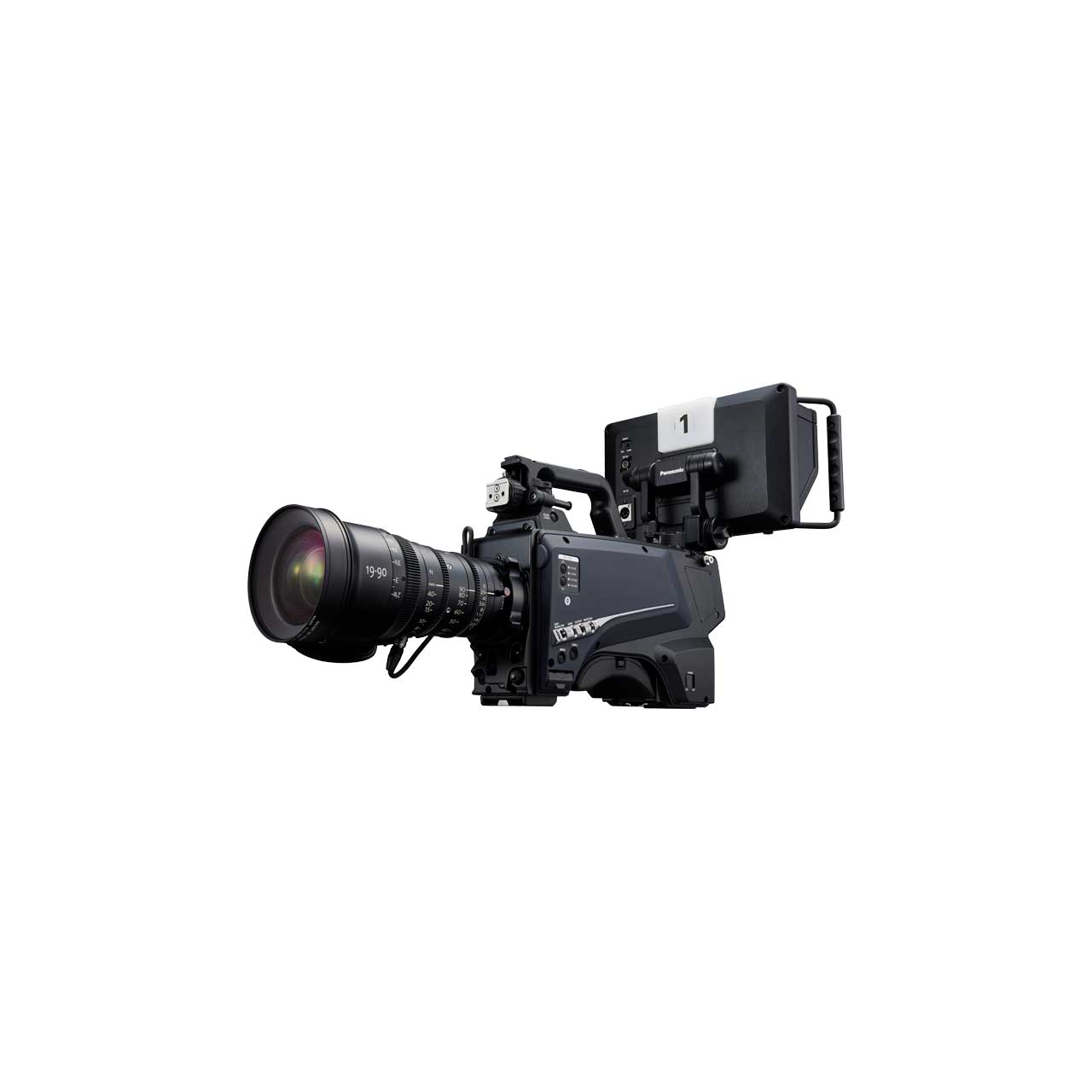

Panasonic AK-PLV100GSJ 4K CINELIVE 4K Studio Camera wtih 5.7K Super 35mm Image Sensor & PL Mount - LEMO Connector

ITEM #: PAN-AK-PLV100GSJ MFG #: AK-PLV100GSJ

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$45,777.33

Our Price:

$43,488.47

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    AK-PLV100GSJ - Overview

    4K PL-mount Studio Camera with Shallow Depth of Field for Live Cinematic Video
    As video picture quality continues to be improved, the market is demanding increasingly engaging and captivating coverage of live sports and other events. In response, Panasonic announces an all-new studio camera for live cinematic video -- the Panasonic AK-PLV100GSJ -- a 4K PL-mount studio camera equipped with a 5.7K Super 35 mm image sensor for creating diverse video expressions with unprecedented freedom.

    For Studio Camera Users
    Inspiring cinematic video with shallow depth of field
    Panasonic's new PL-mount 4K studio camera with a 5.7K Super 35 mm image sensor is powerfully expressive thanks to its shallow depth of field. It provides the visual beauty of a cinema camera without sacrificing studio-camera operability. What's more, it is fully compatible with Panasonic’ s AK-UCU600/HCU250 Camera Control Unit (CCU). Simply replace the camera head of an existing system with the AK-PLV100GSJ and start creating powerful cinematic live video.

    For Cinema Camera Users
    Simplified System for Live Cinematic Video
    Live production with a cinema camera normally requires the addition of many external devices, resulting in time-consuming preparation and increased risk of operational breakdowns due to system complexity. AK-PLV100GSJ is a super35 image sensor camera with studio camera's capabilities which makes the simplest system and requires no accessories, just like a studio camera.In addition to it, AK-PLV100GSJ outputs 12G/3G directly from its camera head to eliminate the need for a CCU. Forget those large systems--simply show up with your AK-PLV100GSJ for cinematic-level live production!

    • Features:

      • Diverse Functions for Cinematic Live
      • 5.7K Super 35 mm Image Sensor
      • Dual Native ISO
      • 14-stop Dynamic Range and Rich Tones with V-Log
      • FILM-REC Gamma
      • Multiple Frame Rates
      • Motorized ND Filter
      • Support for Rich Expressions
      • Digital Extender (2x)
      • Dynamic Range Stretch (DRS) Function
      • Focus Assist Functions
      • Skin Tone Detail Correction
      • Linear Matrix
      • 12-Axis Color Correction
      • Video Transmission for Live Operation
      • Long-Distance Transmission
      • Video Transmission (TRUNK)
      • Other Functions

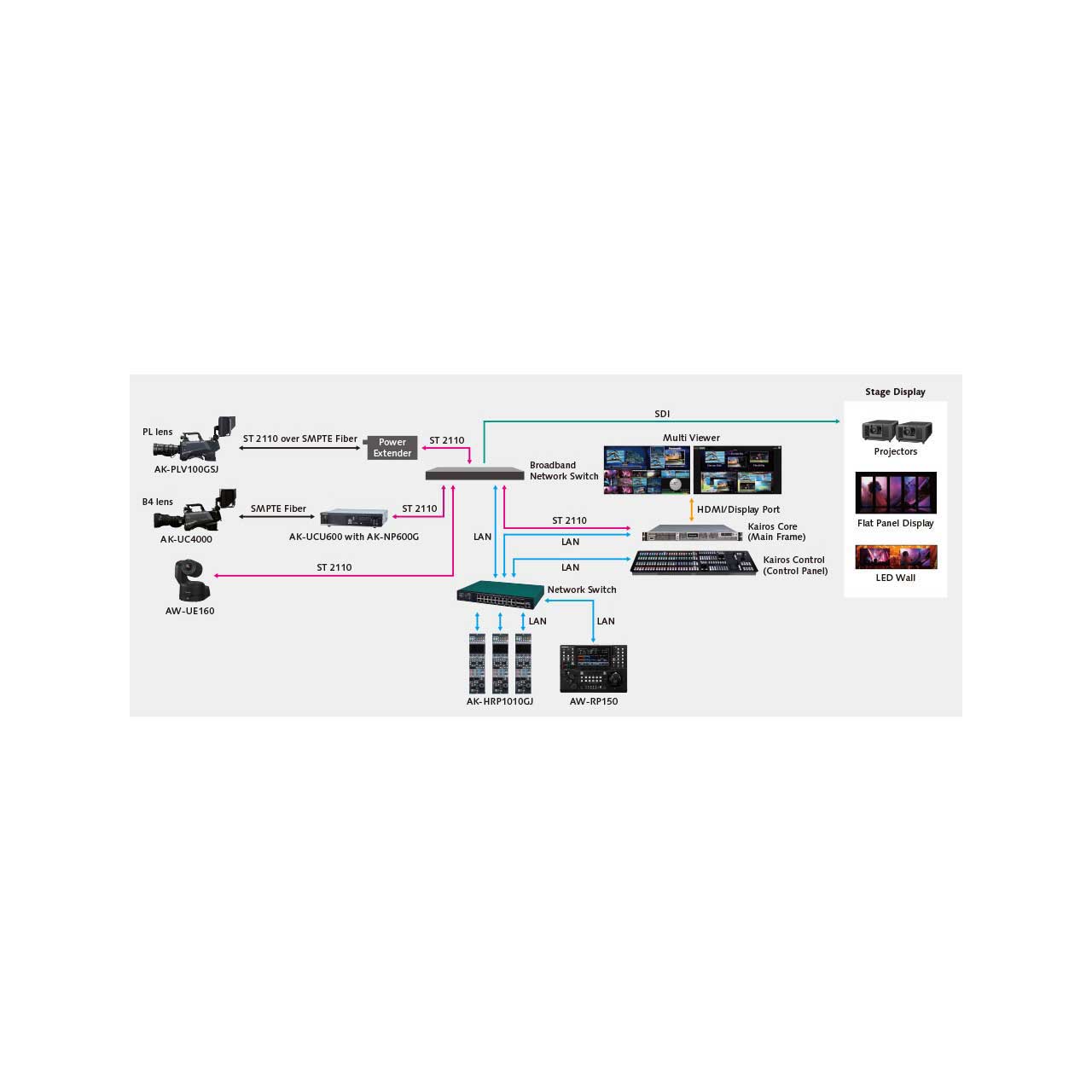

      • Flexible System Configuration
      • IP Operation
      • Baseband Operation
      • Compatible with IT/IP platform "KAIROS"

    • Specifications:

      • General
      • Power Supply:
        - DC 12 V (when using an external power supply)
        - DC 190 V (when AK-HCU250PJ/HCU250PSJ/HCU250EJ/HCU250ESJ is connected)
        - AC 240 V, 50 Hz/60 Hz (when AK-UCU600PJ/UCU600PSJ/UCU600EJ/UCU600ESJ is connected)
      • Power Consumption:
        - 82 W (maximum, when connecting to an external 12 V and including supply to an externally connected devices)
        - 92 W (maximum, when AK-HCU250PJ/HCU250PSJ/HCU250EJ/HCU250ESJ/UCU600PJ/UCU600PSJ/UCU600EJ/UCU600ESJ is connected and including supply to an externally connected devices)
      • Operating Temperature: 14 °F to 113 °F (Preheating required under a temperature 32 °F or below)
      • Storage Temperature: -4 °F to 140 °F
      • Operating Humidity: 85% or less (relative humidity)
      • Weight: Approx. 9.26 lbs. (body only, excluding the accessories)
      • Dimensions (W x H x D): Body only 5-31/32 x 10-17/32 x 15-5/16 inches (excluding protrusions)

        Camera Unit
      • Pickup Device: 17.25 million pixels, 5.7K Super 35 mm sensor
      • Optical Filter: ND: Clear, 1/4, 1/16, 1/64

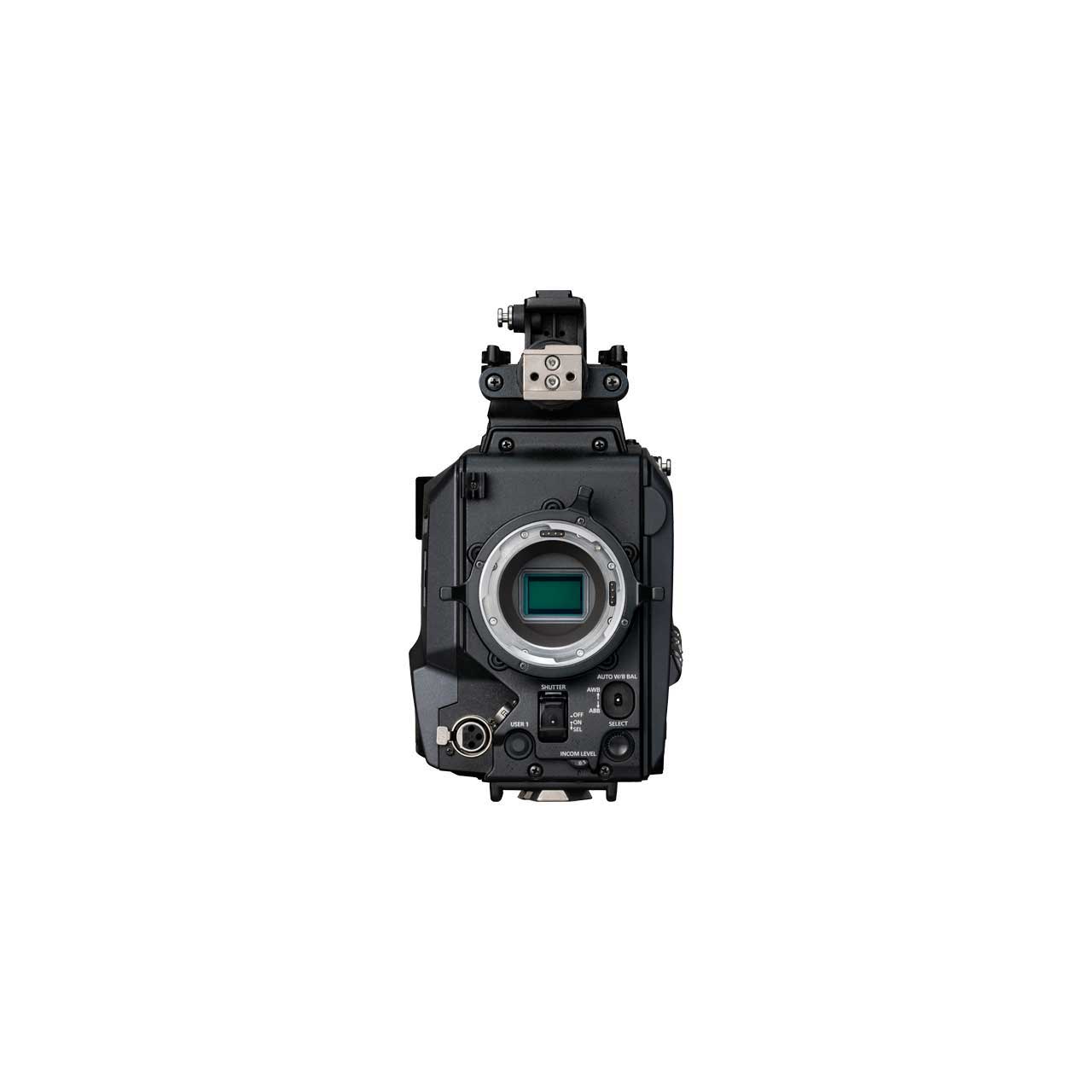

      • Lens Mount: 35mm PL Mount
      • Sensitivity: F11 (59.94Hz)/F12 (50Hz), 2000 lx, 3200 K, when white reflectivity is 89.9%
      • Horizontal Modulation: 50% or above (27.5 MHz)
      • S/N: 62 dB or above
      • Horizontal Resolution:
        - HD: 1000 TV lines or above (center)
        - 4K: 2000 TV lines or above (center)
      • Gain Switching: 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36
      • Shutter Speed:
        - [59.94i]/[59.94p] mode: 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
        - [29.97p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
        - [23.98p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
        - [50i]/[50p] mode: 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
        - [25p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
      • System Format:
        - 3840x2160/59.94p/50p/29.97p/25p/23.98p
        - 1920x1080/59.94p/50p/29.97p/25p/23.98p

        Video Input/Output
      • [SDI OUT1] terminal:
        - BNC x 1
        - 12G/6G/3G/1.5G-SDI: 0.8 V [p-p] , 75 ω
      • [SDI OUT2] terminal:
        - BNC x 1
        - 3G/1.5G-SDI: 0.8 [p-p], 75 ω
      • [AUX] terminal:
        - BNC x 1
        - [GL/RET IN] terminal/[HD TRUNK] terminal
        - [PROMPTER] terminal by switching the setting in the menu
        - [GL/RET IN]: 3G/1.5G-SDI: 0.8 V [p-p], 75
        - [HD TRUNK]: 3G/1.5G-SDI: 0.8 V [p-p], 75
        - [PROMPTER]: VBS signal 1 V [p-p], 75
      • Audio Input/Output
      • [MIC 2] terminal:
        - XLR x 1, 3-pin (female type)
        - [LINE]/[MIC]/[+48V] switchable
        - [LINE]: 0 dBu
        - [MIC]: -60 dBu, -40 dBu, or -20 dBu menu can be selected
      • [MIC] terminal (front):
        - XLR x 1, 3-pin (female type)
        - [LINE]/[MIC]/[+48V] switchable
        - [LINE]: 0 dBu
        - [MIC]: -60 dBu, -40 dBu, or -20 dBu menu can be selected

        Intercom
      • [INTERCOM1] terminal: XLR x 1, 5-pin, female type
