Overwhelming image quality with a resolution of 2,000 TV lines.

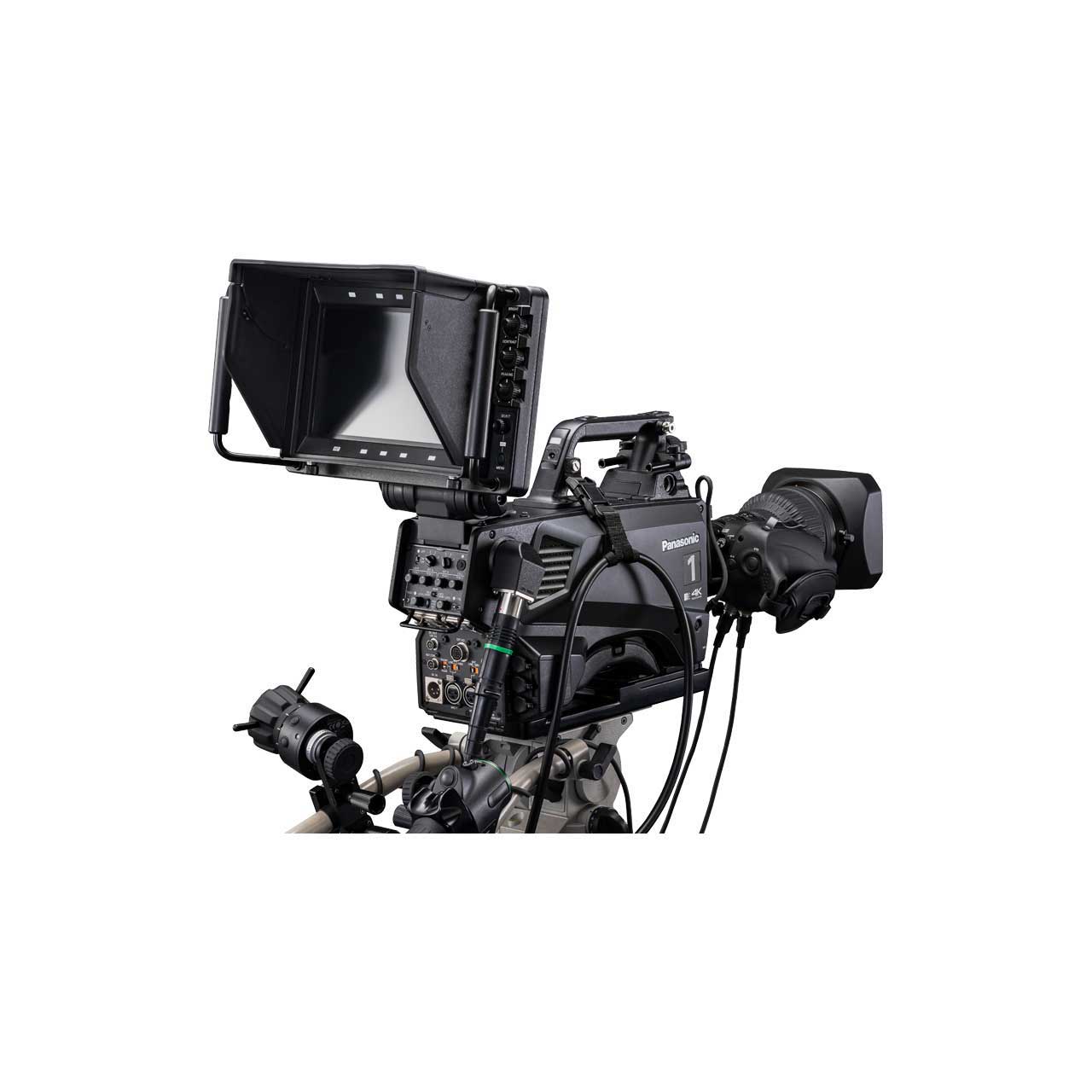

The Panasonic AK-UC3300GSJ camera is equipped with a large 11.14-megapixel 4K image sensor and uses oversampling to achieve horizontal and vertical resolution of 2,000 TV lines. An S/N ratio of 62 dB or higher is maintained with a high sensitivity of F10/59.94 Hz, F11/50 Hz enabling shooting of expressive, high-quality video.
11.14-megapixel 4K Image Sensor
With a large 11.14-megapixel 4K image sensor, high sensitivity of F10/59.94 Hz, F11/50 Hz (2,000 lx) and low noise with an S/N ratio of 62 dB or higher are achieved. In addition, oversampling achieves a resolution of 2,000 TV lines in the horizontal and vertical directions for a richly detailed high-resolution images.

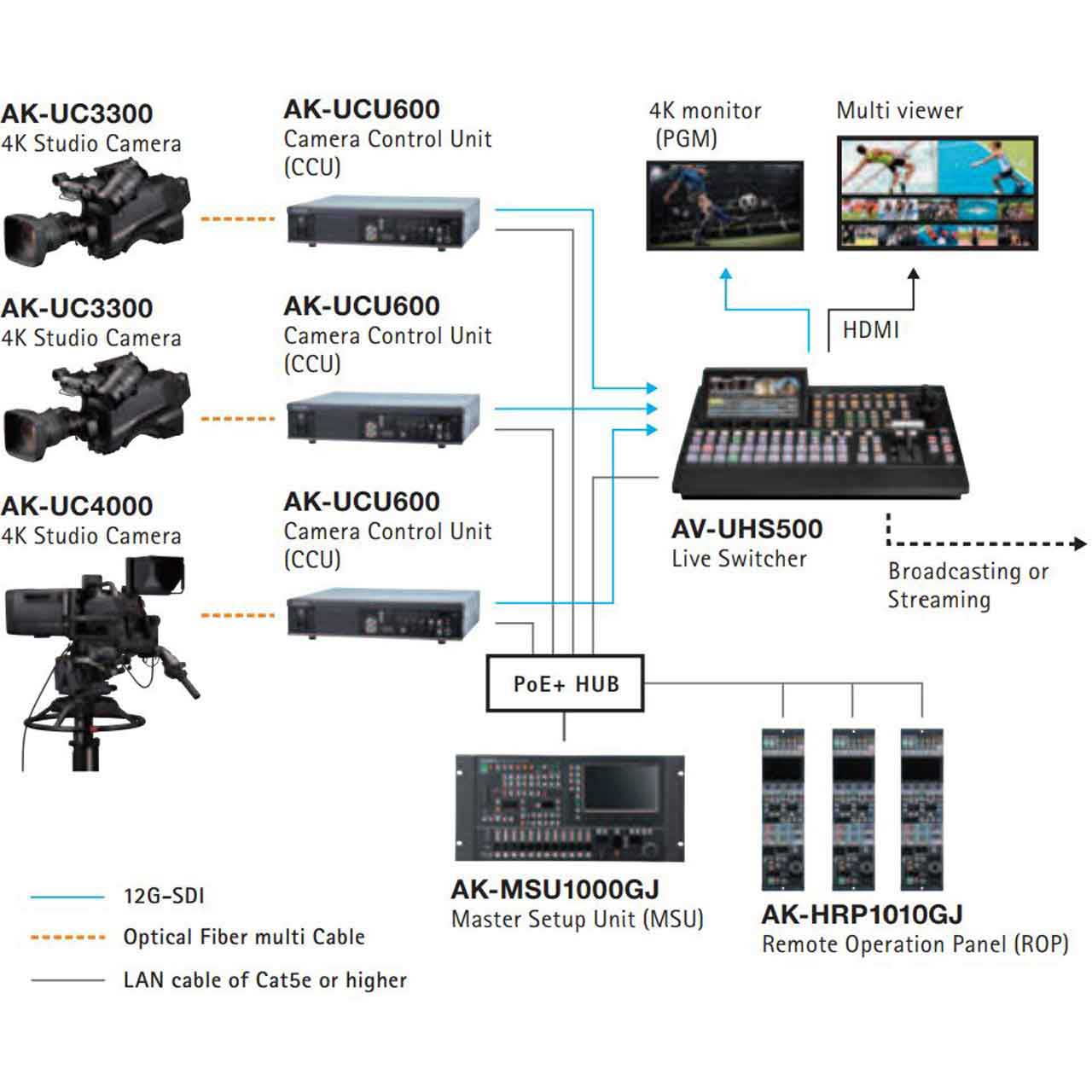

Long-distance transmission of uncompressed video signals to the
Camera Control Unit (CCU) via optical fiber is supported. Transmission
of approximately 2 km ( 6561 feet or 1-1/4 miles) ) is possible when power is supplied from the CCU. In addition, the transmission distance can be extended up to 10 km (approximately 6 miles) by using an external power supply for the camera and general-purpose optical transmission equipment. In addition to a dedicated serial line, IP connection via LAN cable is also supported for control between the CCU and the Remote Operation Panel (ROP)
