Panavise 899-06W Pass Thru J-Box Standard Mount - White

ITEM #: PANA-899-06W MFG #: 899-06W

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$30.99

Availability: In Stock
iAvailability Description Popup


    899-06W - Overview

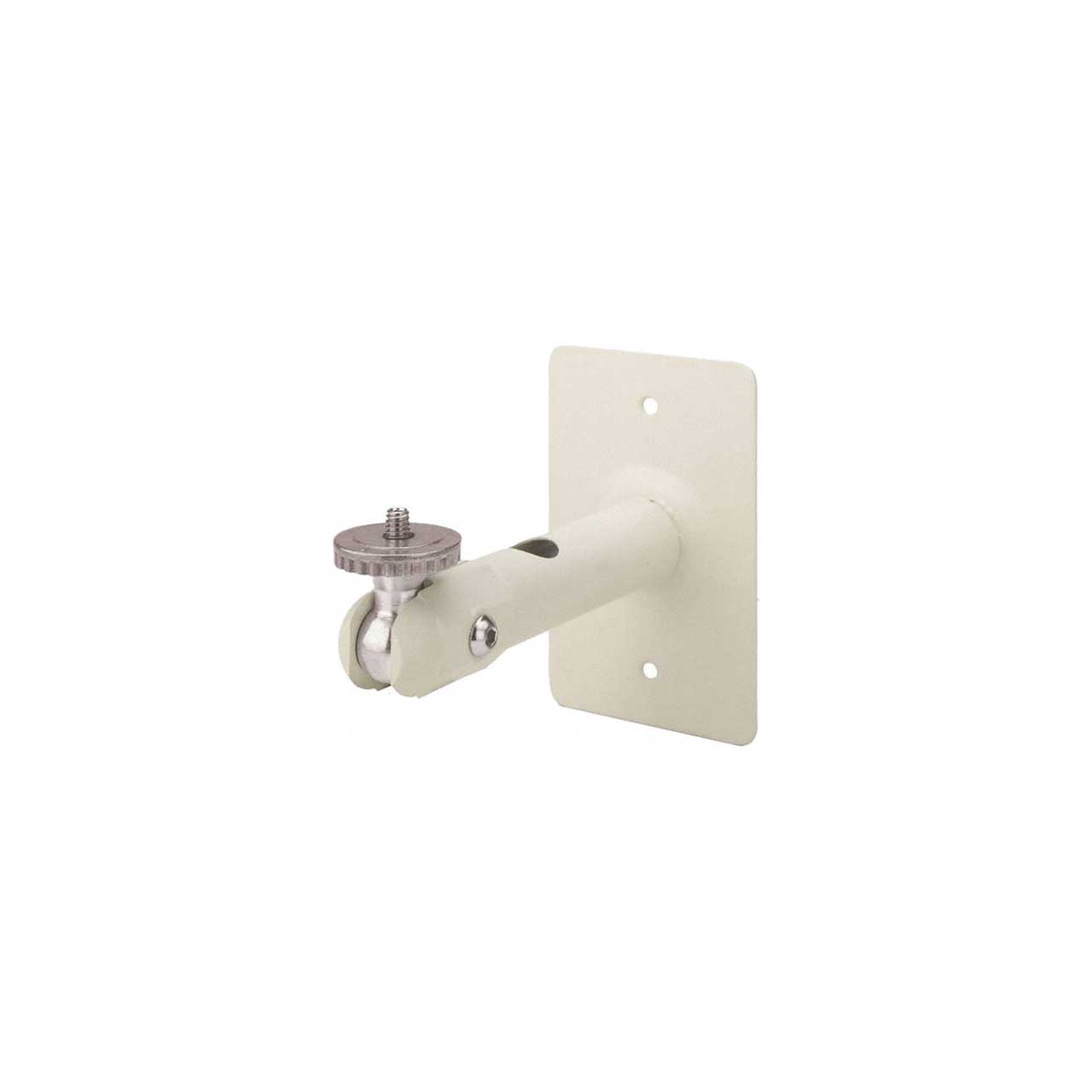

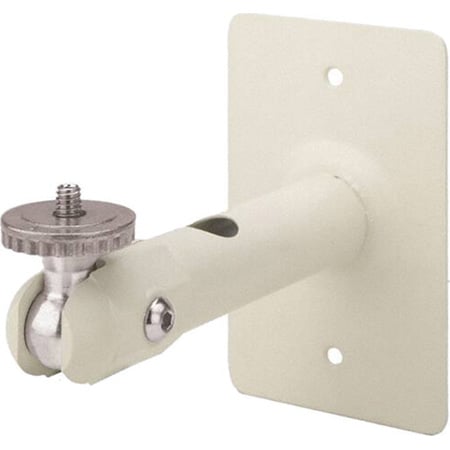

    The Panavise 899-06W cream 6" Pass-Through J-Box Standard Mount is a junction box mount that is designed to mount CCTV cameras securely onto a solid surface. Cables can be wired through the built-in conduit hole to protect it while also maintaining a clean installation. The camera's angle can be adjusted thanks to the mount's ability to tilt up to 210° and turn and rotate 360°, while a lock-ring securely holds the camera in place. In addition, the mount features a 1/4"-20 thread mount, making it compatible with most CCTV cameras.

    • Features:

      • Hollow aluminum shaft [1.0" (25.4mm) outside diameter; 0.875" (22.2mm) inside diameter] with slot for cable pass thru
      • Round pass thru hole is 0.625" (15.9mm) in diameter
      • 1/4-20 mounting stud with lockring
      • Fully adjustable at the camera (210° Tilt, 360° Turn & 360° Rotation)
      • Integral J-Box mounting plate
      • Knob and tamper-resistant set-screw adjusting options included
      • 6" (152.4mm) overall length (from base to top of lockring)

    • Specifications:

      • Shaft: Aluminum
      • Mounting Stud: 1/4-20 with Lockring
      • Tilt: 210, 360 and 360° Rotation

    • GTIN:

      0729315899627
