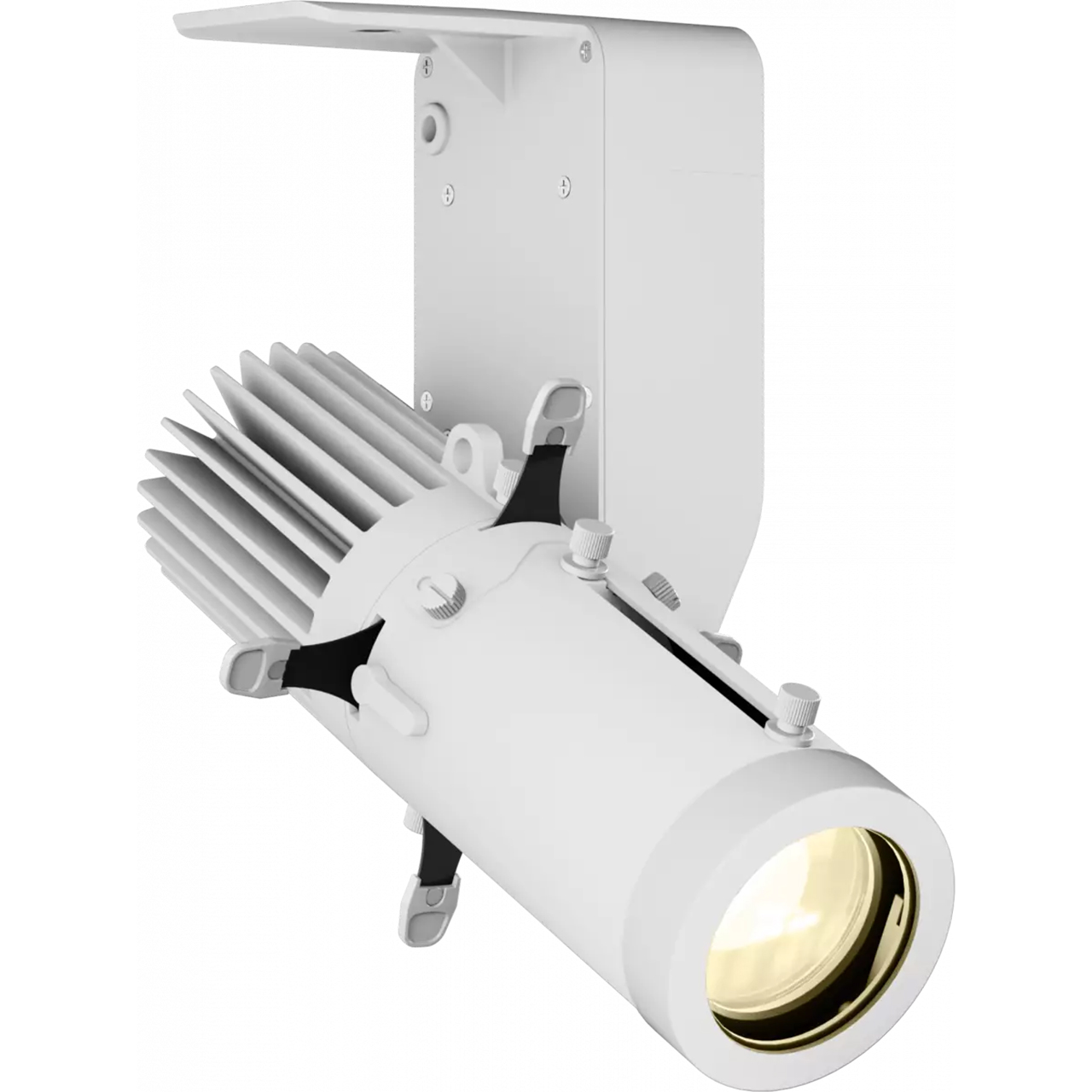

ProLights PIECLDISPLAYDATVW ECLDisplay DATVW 35W White LED Spotlight with DMX and Knob Dimming - White

Name: ProLights PIECLDISPLAYDATVW ECLDisplay DATVW 35W White LED Spotlight with DMX and Knob Dimming - White
Brand: Prolights
SKU: PIECLDISPLAYDATV
Price: 607.50 USD
Availability: Backorder

ITEM #: PIECLDISPLAYDATV MFG #: PIECLDISPLAYDATVWW

Prolights

List Price:

$675.00

Our Price:

$607.50

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

PIECLDISPLAYDATVWW - Overview

Advanced but classy fixture!

The ProLights EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, commercials and any public venue where an advanced but classy fixture, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay DATVW can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 6 or local knob dimming control.

The EclDisplay DATVW includes a high-efficiency 33W tunable white, high CRI LED source, with a CCT range from 2,700K to 5,600K, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.

Please Note: The Prolights EclDisplay DATVW series is supplied without a lens. Optics are ordered separately.

Features:
- Data control through RDM, DMX, DALI Type 6 and local knob dimming
- 33W high CRI tunable white LED, from 2,700K to 5,600K, in black and white housing
- Multiple lens options: profile (zoom and static) or wash optics
Specifications:
- Source: 35W Variable White LED
- Source CCT: 2700K - 5600K
- Luminous Flux - 2700K:
  - (profile - 8°) 461 lm
  - (profile - 18° HD) 525 lm
  - (profile - 36° HD) 582 lm
  - (profile - 50° HD) 573 lm
  - (profile - 10°-20°) 838 lm @20°
  - (profile - 20°-40°) 833 lm @40°
  - (wash 25°-50°) 866 lm @50°
  - (wash 15°-30°) 802 lm @30°
- Luminous Flux- 5600K:
  - (profile - 8°) 641 lm
  - (profile - 18° HD) 1,180 lm
  - (profile - 36° HD) 1,242 lm
  - (profile - 50° HD) 1,225 lm
  - (profile - 10° - 20°) 1,168 lm @20°
  - (profile - 20° - 40°) 1,153 lm @40°
  - (wash 25° - 50°) 1,183 lm @50°
  - (wash 15° - 30°) 1,122 lm @30°
- Lux - 2700K:
  - (profile - 8°) 1,334 lx
  - (profile - 18° HD) 338 lx
  - (profile - 36° HD) 110 lx
  - (profile - 50° HD) 48 lx
  - (profile - 10° - 20°) 1,344 lx @10°; 426 lx @20°
  - (profile - 20° - 40°) 347 lx @20°; 91 lx @40°
  - (wash 25° - 50°) 134 lx @25°; 49 lx @50° - (walx @5 m)
- Lux - 5600K:
  - (profile - 8°) 1,807 lx
  - (profile - 18° HD) 738 lx
  - (profile - 36° HD) 232 lx
  - (profile - 50° HD) 100 lx
  - (profile - 10° - 20°) 1,765 lx @10°; 529 lx @20°
  - (profile - 20° - 40°) 587 lx @20°; 128 lx @40°
  - (wash 25° - 50°) 186 lx @25°; 69 lx @50° (lx @5 m)
- CRI:
  - 2700K: >96
  - 5600K: >96
- R9:
  - 2700K: >87
  - 5600K: >90
- TLCI:
  - 2700K: >96
  - 5600K: >97
- TM30 Rf:
  - 2700K: >96
  - 5600K: >92
- TM30 Rg:
  - 2700K: <101
  - 5600K: <99
- Source Life Expectancy: > 50.000 hrs (L70B10 @Ta 77°F)

  Optics
- Zoom Range:
  - (wash lens - optional) 15° - 30° or 25° - 50°
  - (profile lens - optional) 10° - 20° or 20° - 40° or fix 8°, 18°, 36°, 50°
  - Other: 360° lens rotation - shutter blades lockable, Optional 360° rotating barndoors and gel frame holder
  - Other: (profile lens) shutter blades lockable
  - Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37mm - image: 23mm - thickness: max 3mm

  Color System
- Color Mixing: Warm white + cold white - tunable white
- CCT: linear CCT control

  Dynamic Effects
- Control Resolution: 16-bit dimmer control
- Static Mode: Selection of static dimmer
- Manual Mode: Manual adjustment of dimmer and strobe
- Auto Mode: Built-in programs with execution speed adjustment

  Control
- Supported Protocols: Local Knob, DMX, DALI Type6, RDM
- DMX Channels: 1/2/3/4ch
- RDM: For remote addressing and parameter configuration

  Electronics
- Dimmer: Linear 0% - 100% electronic dimmer
- Dimmer Curves: 4 selectable dimming modes available
- Strobe/Shutter: 1Hz - 30Hz, electronic
- Selectable PWM: 600Hz - 25000Hz
- Firmware Upgrade: Via DMX with UPBOXPRO/UPBOX1 (not included)

  Connections
- Power Connection: Screw terminal blocks
- Data Connection: Screw terminal blocks

  Electrical
- Mains Power Supply: 100V - 240V - 50/60Hz
- Max Power Consumption (230V): 33W
- Output (at 230V): 40 units on a single power line
- Power Factor: > 0.93

  Physical
- IP Rating: IP20
- Cooling: Fan-free with natural convection
- Housing: Die-cast aluminum
- Finish: White
- Operating Temperature: 14°F - 113°F
- Dimensions (WxHxD): 5.55" x 5.91"
- Weight: 3.31lbs

  Installation
- Suspension and Fixing: Track/Hanging/Ceiling installation
- Hardware On-Board: Lockable tilt with screw
- Other: Cable not included - Cable diameter range: 6mm - 10mm

  Certifications/Reports
- Compliance: CE, UKCA, RCM, cTUVus, FCC
