Trompeter/Cinch PL75-13A Concentric Twinax/Triax TRB Crimp Plug 3LUG for Belden 8232 Cable

ITEM #: PL75-13A MFG #: PL75-13A

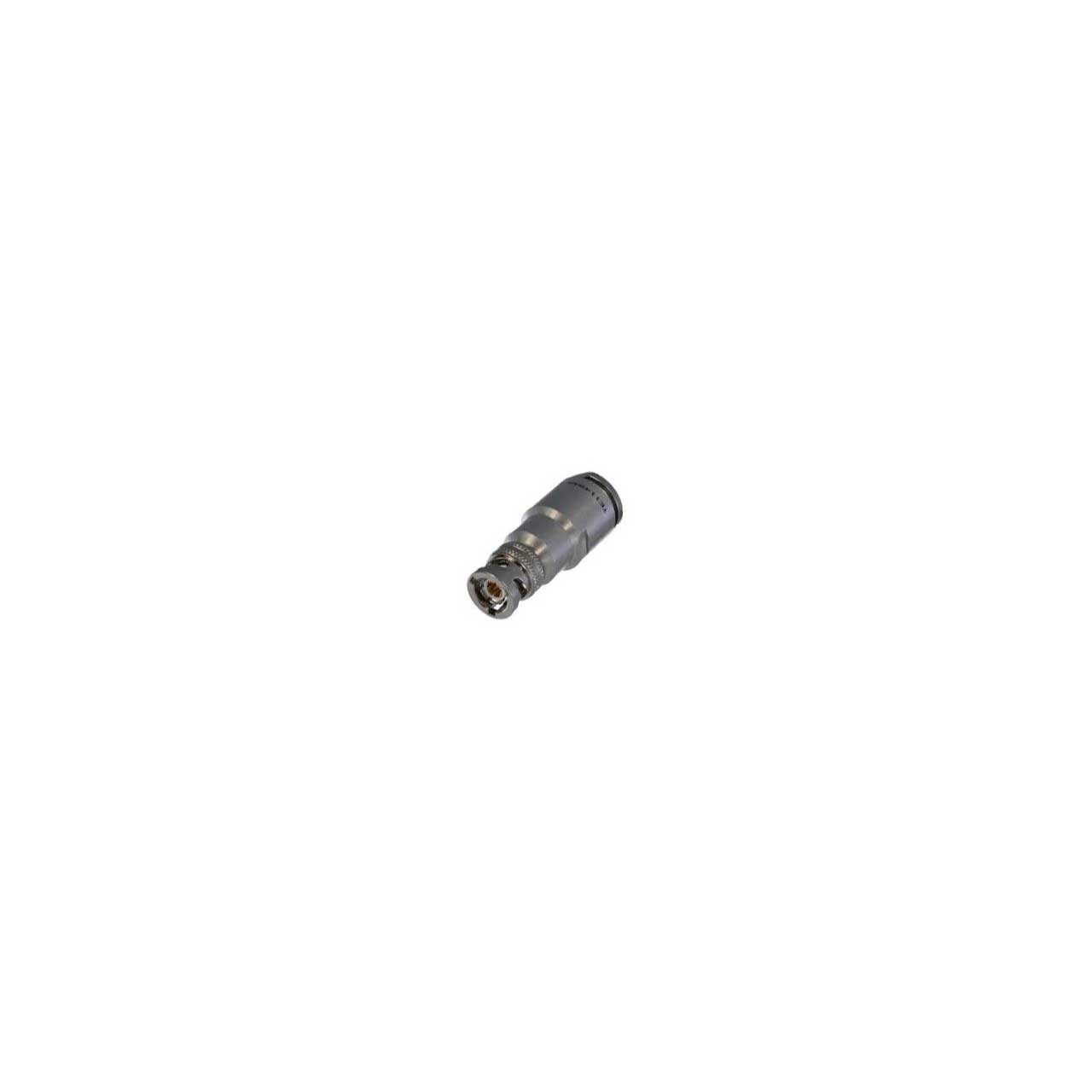

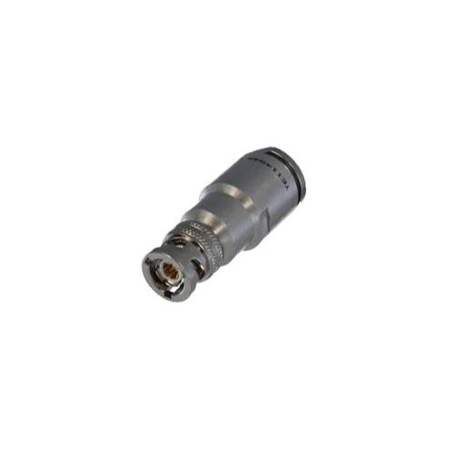

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PL75-13A

PL75-13A - Overview

The Trompeter/Cinch Connectivity Solutions PL75-13A is a TRB/Twinaxial/Triaxial, Wrench Crimp, Straight, 3-lug Male Plug for Belden 8232 cable.

  • Features:

    • Male Pin Concentric
    • Non-Constant
    • Free Hanging (In-Line)


  • Specifications:

    • RF Series: TRB
    • Gender:Plug (Pin)
    • Impedance: Non-Constant
    • Maximum Frequency: 500 MHz
    • Termination Style: Crimp
    • Orientation: Straight
    • Polarity: Standard
    • Mounting Style: Cable Mount / Free Hanging
    • Cable Type: Belden 8232
    • Body Finish: Nickel
    • Body Material: Brass
    • Body Style: Straight
    • Brand: Trompeter/Cinch Connectivity Solutions
    • Contact Plating: Gold
    • Contact Termination: Crimp
    • Coupling Mechanism: Bayonet
    • Isolation: Non-Isolated
