PureLink PI5100-010 PureInstall DisplayPort to HDMI Cable with TotalWire Technology & Secure Lock System - 3.3 Foot

ITEM #: PLK-PI5100-010 MFG #: PI5100-010

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$55.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PI5100-010 - Overview

PureLink's PureInstall PI5100-010 offers the professional connection from DisplayPort to HDMI! The PI5100 DisplayPort to HDMI cable included in the PureInstall Series transmits the signal from a DisplayPort-Ready source device to an HDMI-ready screen. It is equipped with a DisplayPort plug on one side and with an HDMI plug on the other side, with an integrated Security-Lock-System, which was developed especially for a more secure and more effective use of HDMI connections. Thanks to its reliable and high-quality equipment, this cable can be used in professional surroundings without problem. Please note, this cable is not bidirectional; therefore, it cannot be used for connecting HDMI sources to DisplayPort-ready sinks.

The Latest Generation
PureInstall's DisplayPort cables comply with the DisplayPort standard as well as the HDMI standard. They support resolutions up to WUXGA (1920x1200) and are downward compatible with all former DP and HDMI specifications.

Secure-Lock-System
Conventional HDMI plugs easily lose grip in the socket. The solution: PureLink High Speed HDMI adapters with Secure-Lock-System. The SLS technology was developed by PureLink, especially for a more secure use of HDMI connections. This plug design is one of a kind on the current market and enhances the stability of the connection even with high traction rates, securing the connection permanently.

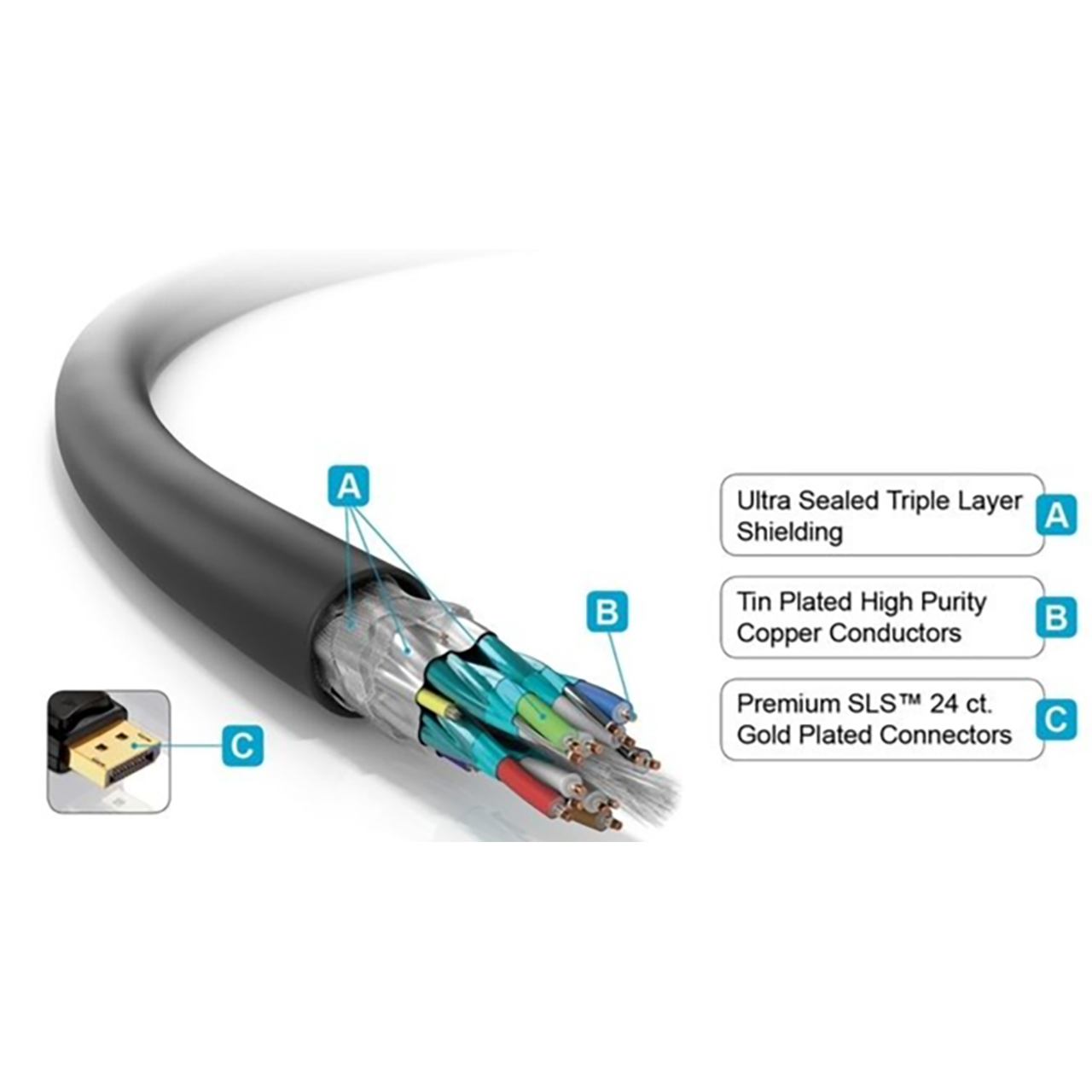

Triple Shielding
Our unique triple-shielding technology consists of a 100% closed aluminum foil, a thick netting, and an additional inner shielding. Due to this, our cables are immune to interference and crosstalk. The ultra-pure inner conductor made of OFC copper can therefore unfold its full potential.

  • Features:

    • DP 1.1/HDMI 1.4 for resolutions up to WUXGA/1920x1200
    • Gold-plated precision contacts with PureLink SLS (Secure-Lock-System)
    • DisplayPort male to HDMI-A male
    • High purity, tinned OFC copper conductors and triple shielding, AWG28
    • 100% tested for professional AV applications

  • Specifications:

      Connections
    • Connector Material: PVC
    • Contact Material: 24 ct. gold plated, long-life design
    • Shielding: Yes
    • Connector 1: DisplayPort male (20-pin)
    • Connector 2: HDMI Type A male (19-pin)
    • DisplayPort Dimensions: 2" x 0.8" x 0.4" (53mm x 20mm x 11mm)
    • HDMI Dimensions: 1.7" x 0.8" x 0.4" (43.5mm x 19.5mm x 10.5mm)
    • Contacts: 24 ct. gold plated, long-life design

      Electric Signal
    • Maximum Pixel Clock/Bandwidth: WUXGA (1920x1200) or 1080p (1920x1080)/FullHD/2K
    • HDCP: Yes
    • EDID: Yes

      Cable
    • Type: Round cable
    • Inner Conductor Material: Tinned OFC Copper
    • AWG: AWG28
    • Number of Shieldings: 3
    • Shielding 1: Aluminium Foil (100% density)
    • Shielding 3: Mesh (100% density)
    • Outer Material: Elastic PVC
    • Outer Diameter: 7.3mm

      Signal Transmission
    • Supported Standards: DisplayPort, HDMI
    • Transmission Modes: Digital audio and video signals
    • Supported Colors: 16/24 bit RGB/YUV, Deep Color, x.v.Color
    • Further Standards: 3D, FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)

  • Item Includes:

    • 1x PureInstall DisplayPort to HDMI Cable - 3.3 Foot

  • Warranty:

    • Limited Life Time Warranty

  • GTIN:

    0817705024718
