Palmer Audio AHMCTXLV2 Multi Cable Tester for Audio/Video and Data Cables

ITEM #: PLM-AHMCTXLV2 MFG #: PAL-AHMCTXLV2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$89.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PAL-AHMCTXLV2 - Overview

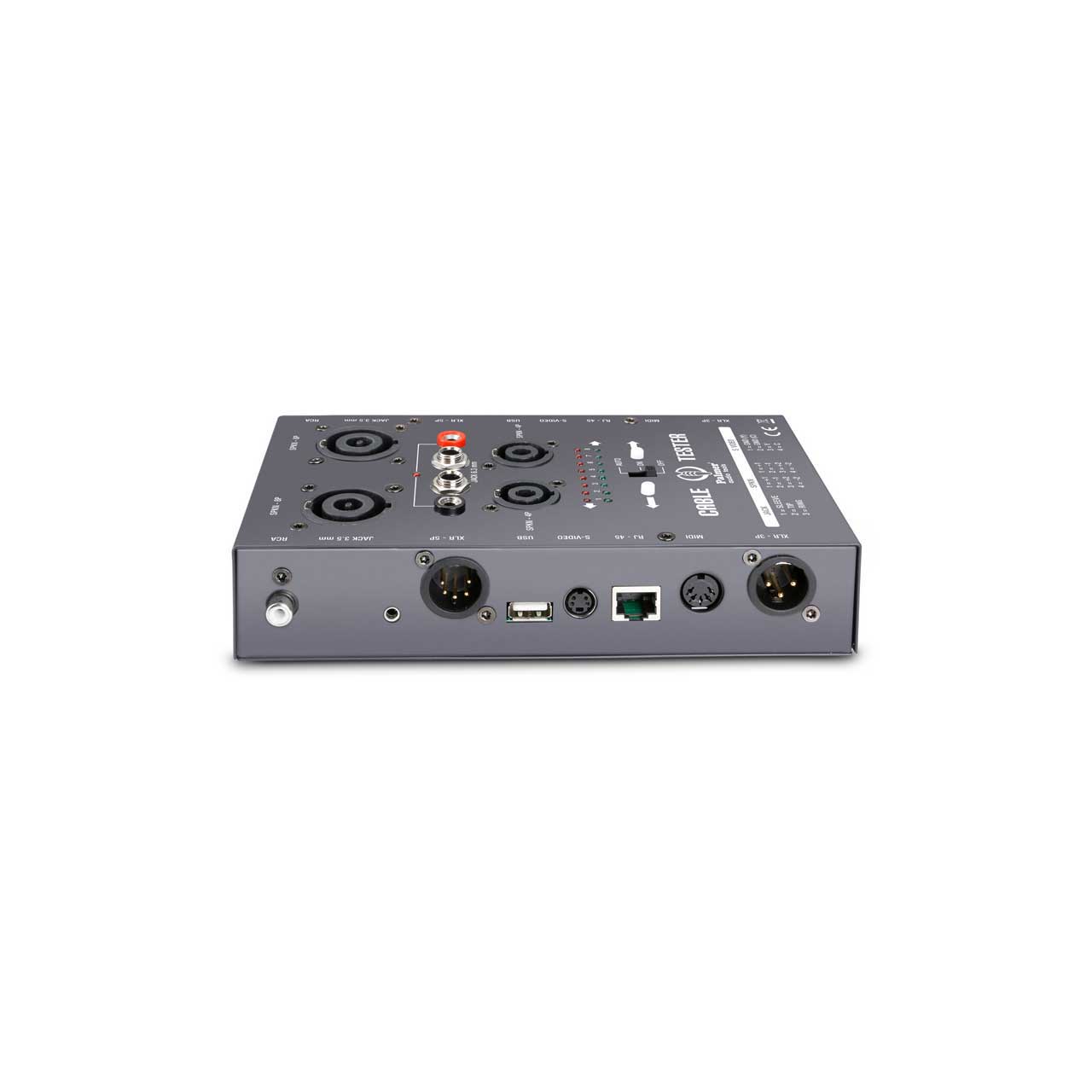

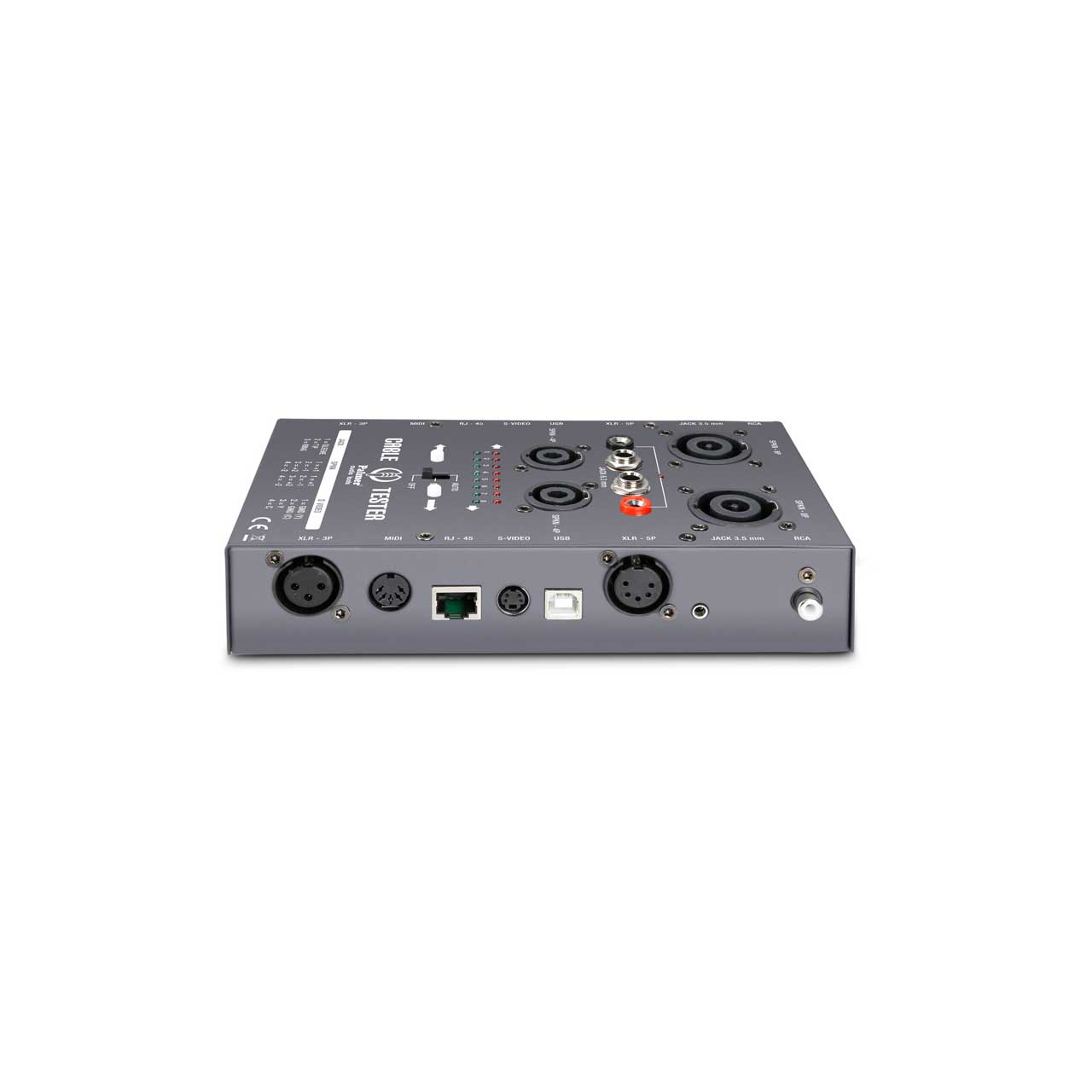

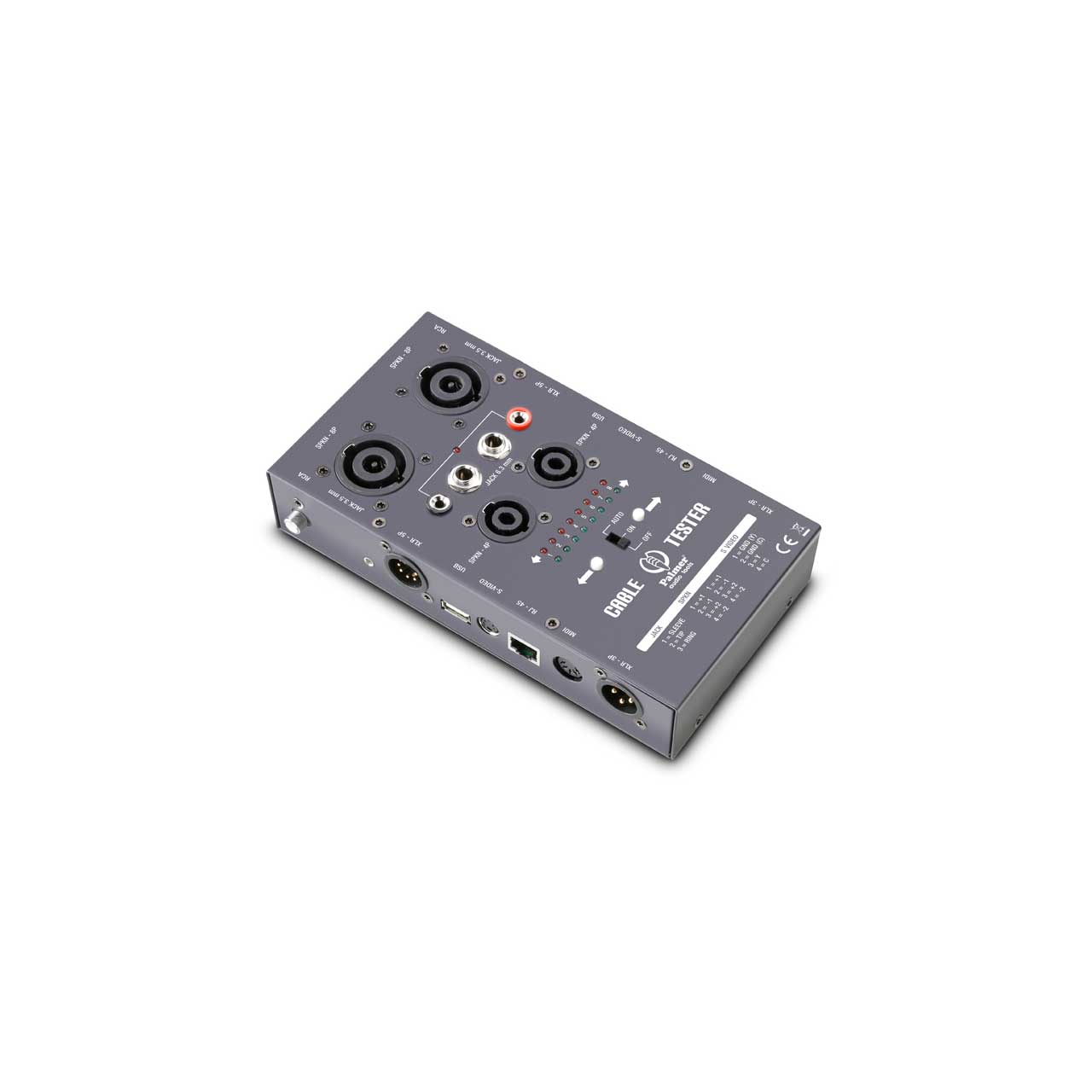

    The professional quality Palmer Audio AHMCTXL V2 allows you to test the most frequently used audio, video and data cables quickly and effortlessly. It provides automated and manual test modes with dual LED strips indicating proper pin connection and continuity. The AHMCTXL V2 can test cables with Speakon 4-pin and 8-pin, XLR 3-pin and 5-pin, 3.5 mm and 6.35 mm TS and TRS, RCA, DIN/MIDI, USB, RJ-45 and S-Video connectors. It includes a pair of probes that enable troubleshooting cables with other types of connectors or the wiring in studios and installations. The compact AHMCTXL V2 Cable Tester for professional and home use comes in a rugged steel housing with powder coating finish for years of reliable service.

    • Features:

      • Multi-wire cable tester for 11 connector types
      • XLR, TS and TRS, Speakon, RCA, DIN/MIDI, USB, RJ-45, S-Video
      • Automated and manual test modes
      • LED indicators
      • Comes with two probes for quick continuity testing
      • Compact steel housing
      • Powered by two AA batteries

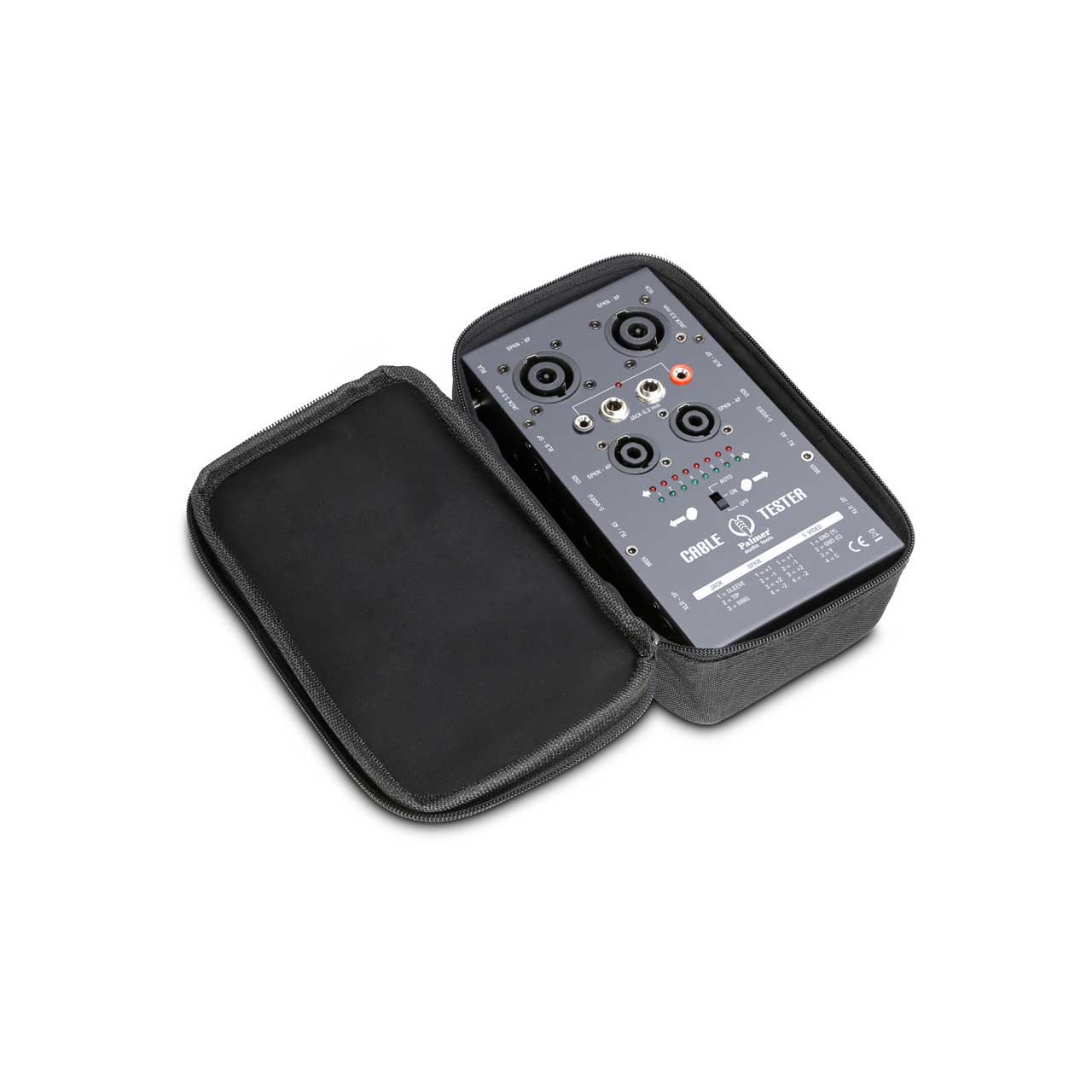

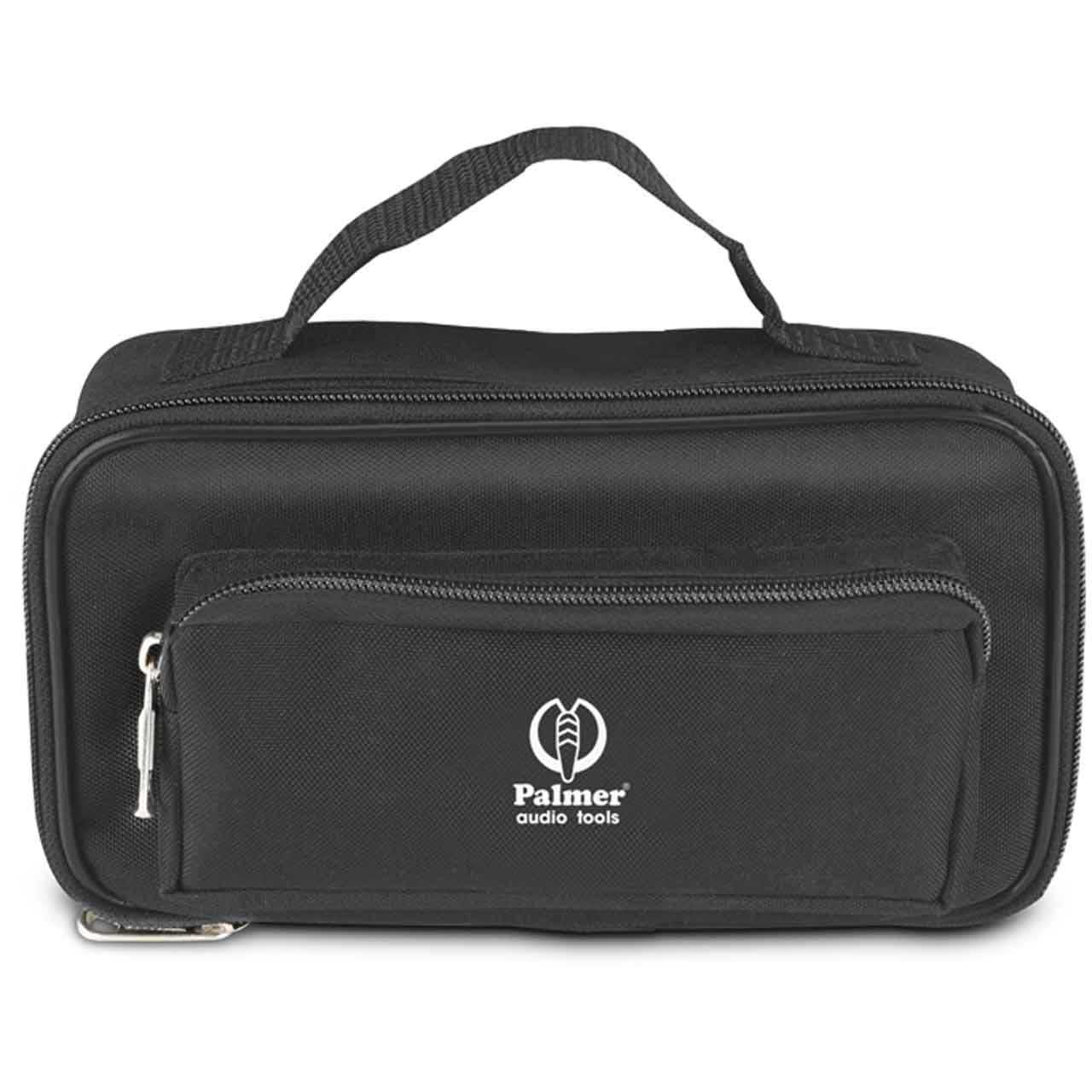

      • Includes carry pouch

    • Specifications:

      • Product type: Test Equipment
      • Connectors: 3.5 mm jack, 6.3 mm jack, RCA, RJ45 (CAT), S-Video, Speakon, 4-pin, Speakon, 8-pin, USB, XLR (3-pin), XLR (5-pin)
      • Controls: Auto Scan, On / Off, Scan switch
      • Indicators: LED chain
      • Operating voltage: 9 V block
      • Acoustic continuity test: no
      • Test cable: Yes
      • Cabinet material: sheet steel
      • Cabinet surface: Powder coated
      • Width: 120 mm
      • Height: 40 mm
      • Depth: 200 mm
      • Weight: 0,95 kg

    • Warranty:

      • 5 Years

    • GTIN:

      4049521257896


    PAL-AHMCTXLV2 - Required Accessories
