The Palmer ORBIT 11 is an active coaxial 3-way studio monitor designed for mixing, mastering, post-production, sound design, broadcasting, and content creation. Its coaxial True Point Source design combines a 6.5" midrange driver and a 1" tweeter on a single acoustic axis and provides consistent 120° x 120° dispersion for stable imaging and reliable balance across the listening area.
The controlled, consistent dispersion pattern helps to maintain reliable balance and translation, while the cardioid front baffle reduces rearward energy to limit room interaction.
Low frequencies are handled by two impulse-compensated 8" woofers mounted in a sealed, die-cast aluminum enclosure with 5 to 16 mm wall thickness, which is designed to counteract mechanical forces and minimize cabinet vibration, delivering an impressively deep bass response down to 28 Hz.
Internal processing operates at 96 kHz/24-bit with FIR filtering for linear-phase behavior and time-coherent driver integration.

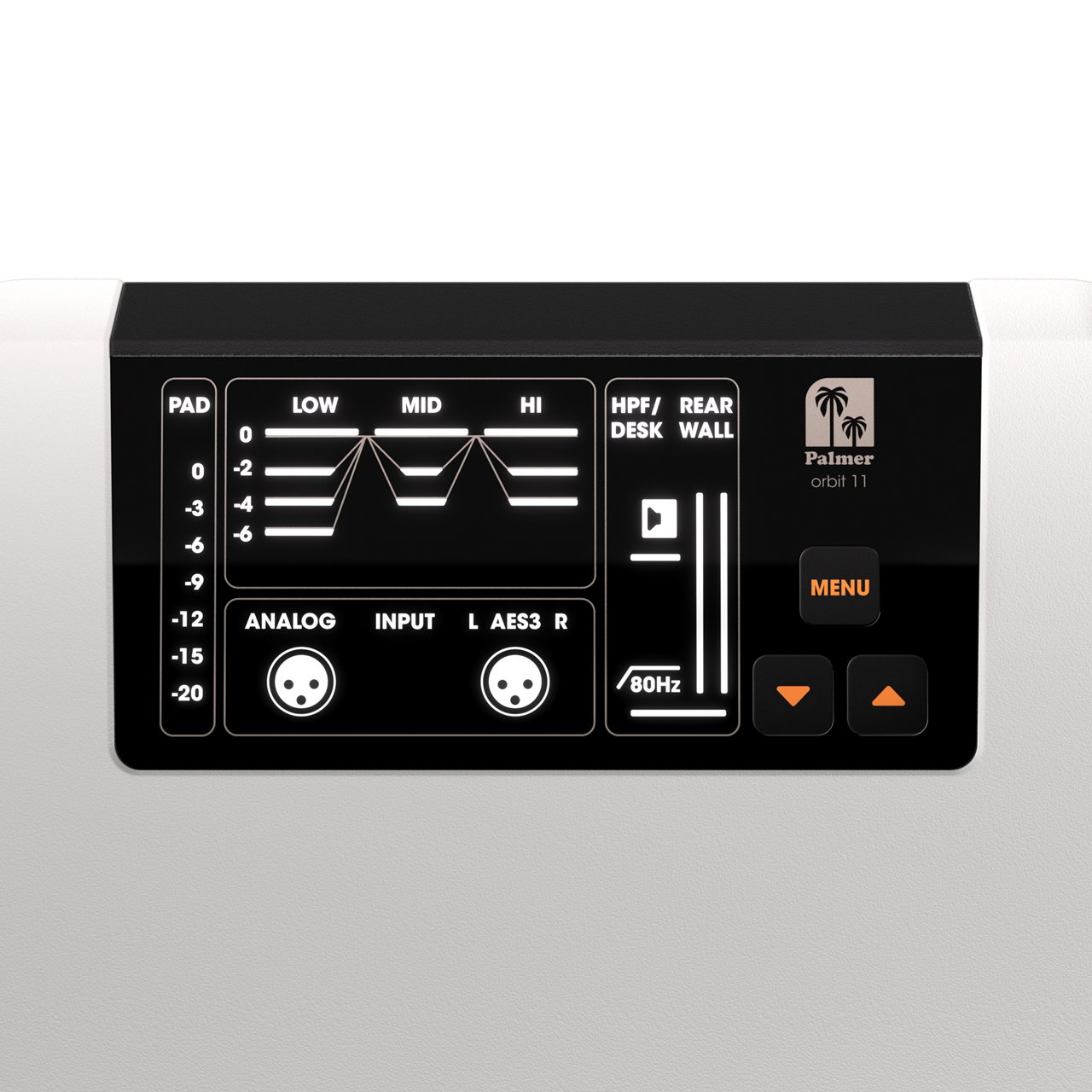

For fast setup, the top-mounted control panel provides direct access to the input pad, 3-band EQ, Desk and Rear Wall presets, and an 80 Hz high-pass filter. Connectivity options include a balanced XLR line input and AES3 via XLR, with an AES3 Thru output for daisy-chaining.
For wall or ceiling installation, the ORBIT 11 features threaded mounting points and an M8 eye-bolt point for safety attachment, and it is compatible with the Gravity Tilt-and-Swivel Mount GSPWMBS20B.
Engineered in Germany with musical sensitivity, the ORBIT 11 is built for reliable monitoring with time-coherent reproduction and extended low-frequency response, made for those who listen.
