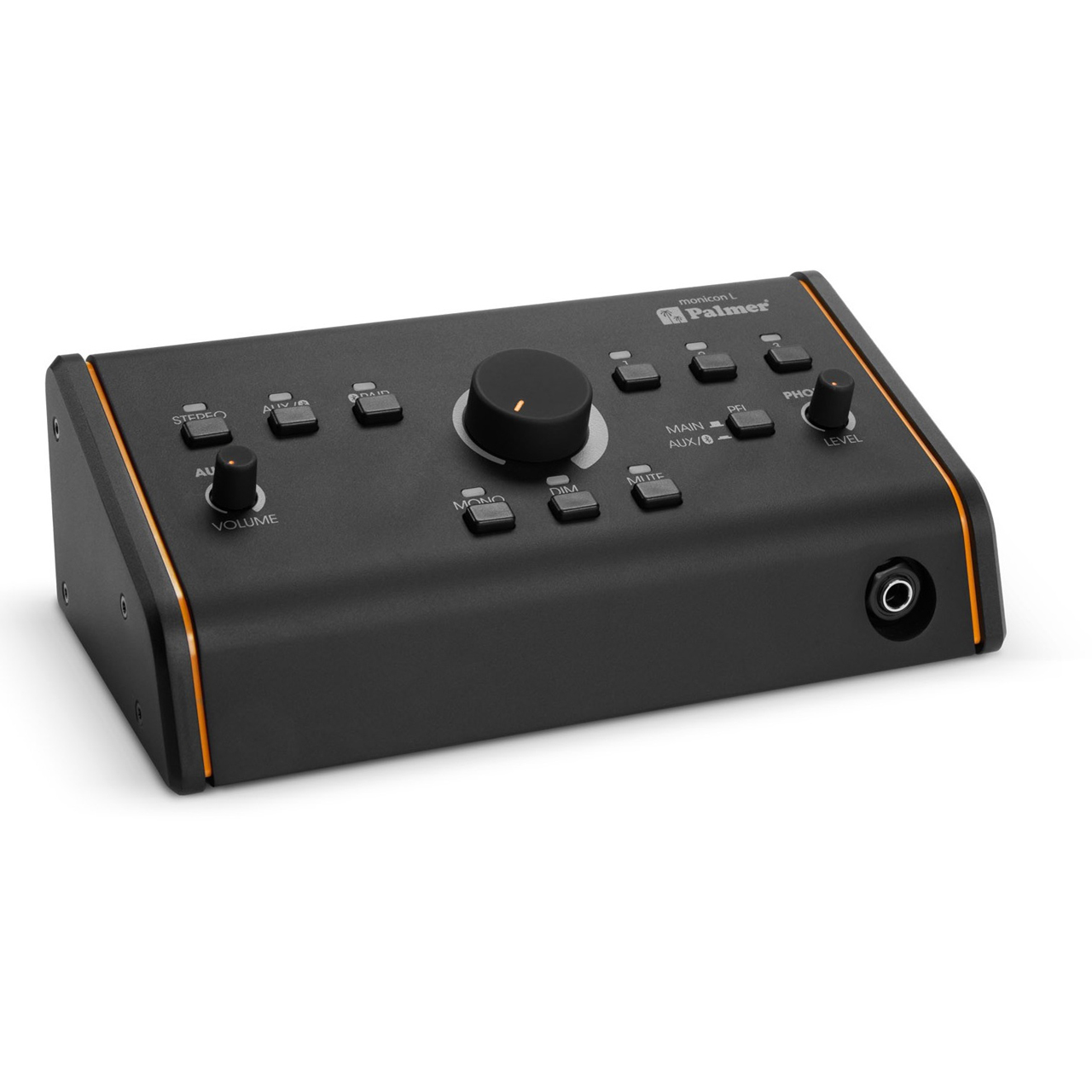

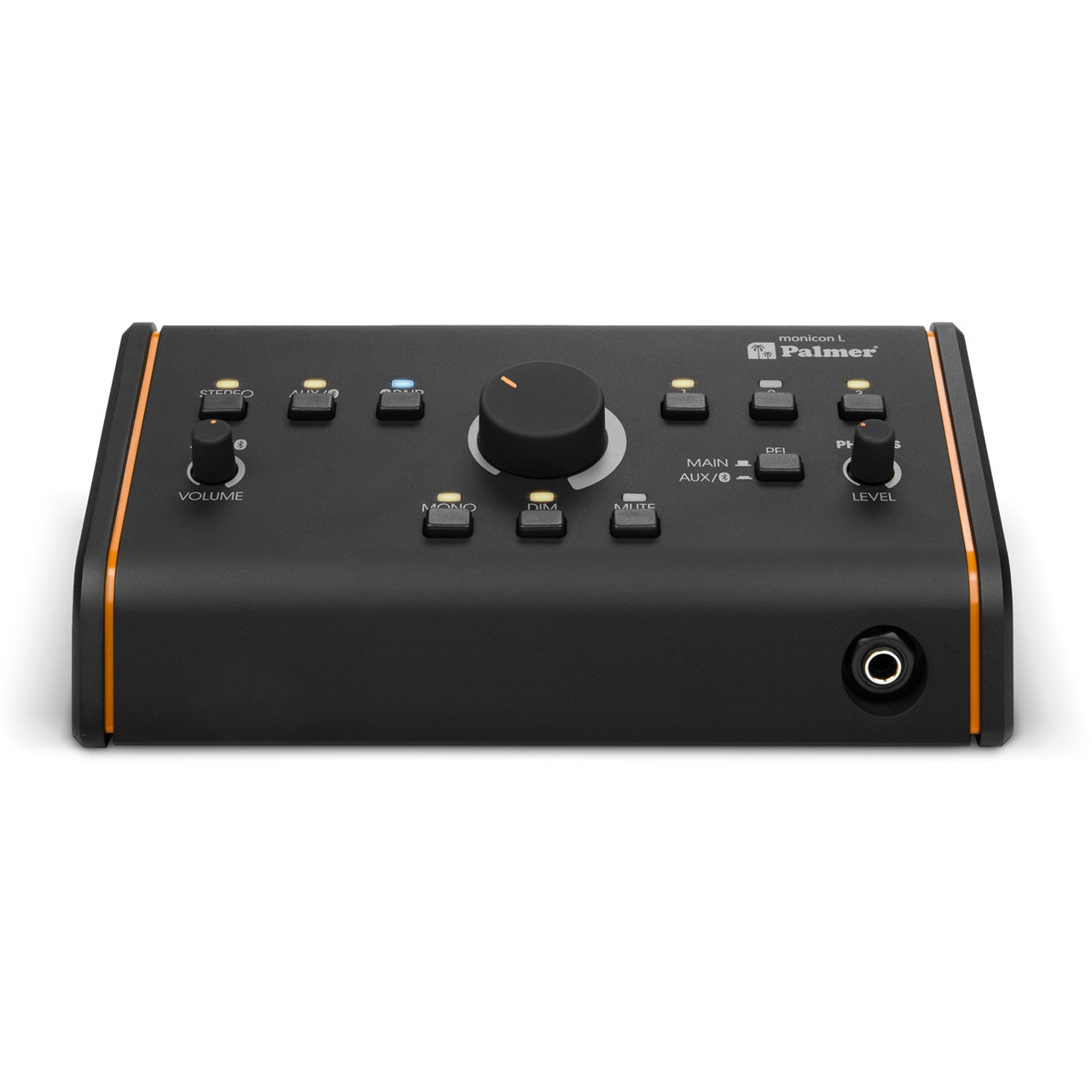

Palmer Audio MONICON L G2 Active and Passive Studio Monitor Controller with Balanced XLR and Bluetooth

ITEM #: PLM-PALPMONICLG2 MFG #: PAL-PMONICONLG2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$299.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PAL-PMONICONLG2 - Overview

Stereo Phones output with independent volume control

The Palmer MONICON L G2 is a versatile, compact studio monitor controller for professional project studios and ambitious home set-ups. It features three inputs for different signal sources: balanced via XLR/TRS combo sockets as well as AUX and Bluetooth for mobile or digital devices. The inputs and outputs can be switched on/off via dedicated buttons with LED status display.

Two stereo outputs and an additional mono output allow flexible control of the speakers, for example, for main monitors, nearfield systems, or subwoofers. The large analogue volume control allows precise control of the output level. Functions such as "Mono," "Dim," and "Mute" support practical monitoring conditions and facilitate quick adjustments in everyday studio life. With its own volume control and PFL function, a separate headphone output allows isolated pre-listening to input signals without affecting the main mix. The integrated power supply provides power to the Bluetooth, the headphone amplifier, and output three. The signal path itself stays entirely analogue, which makes latency-free and pristine audio playback possible. MONICON L stands for reliable signal management, transparent sound control, and intuitive operation.

  • Features:

    • Latency-free analogue audio signal path
    • Large precision volume control
    • Supports both passive and active operation
    • AUX/Bluetooth input with dedicated volume control
    • Input and output source selectors with Status LEDs
    • Robust and ergonomic desktop housing
    • Dedicated switches for MONO, DIM, MUTE and PFL source
    • Engineered in Germany

  • Specifications:

    • Type: Passive
    • Material: Aluminium, Steel sheet
    • Frequency Response (±0.2dB, rel. Avg): 20Hz - 20kHz
    • Crosstalk: -79dB
    • Color: Black
    • Bluetooth Version: Bluetooth ® 5.3
    • Features: Audio Streaming (A2DP)
    • Supported Audio Codecs: SBC
    • Input Signal Type: Balanced & Unbalanced (parallel)

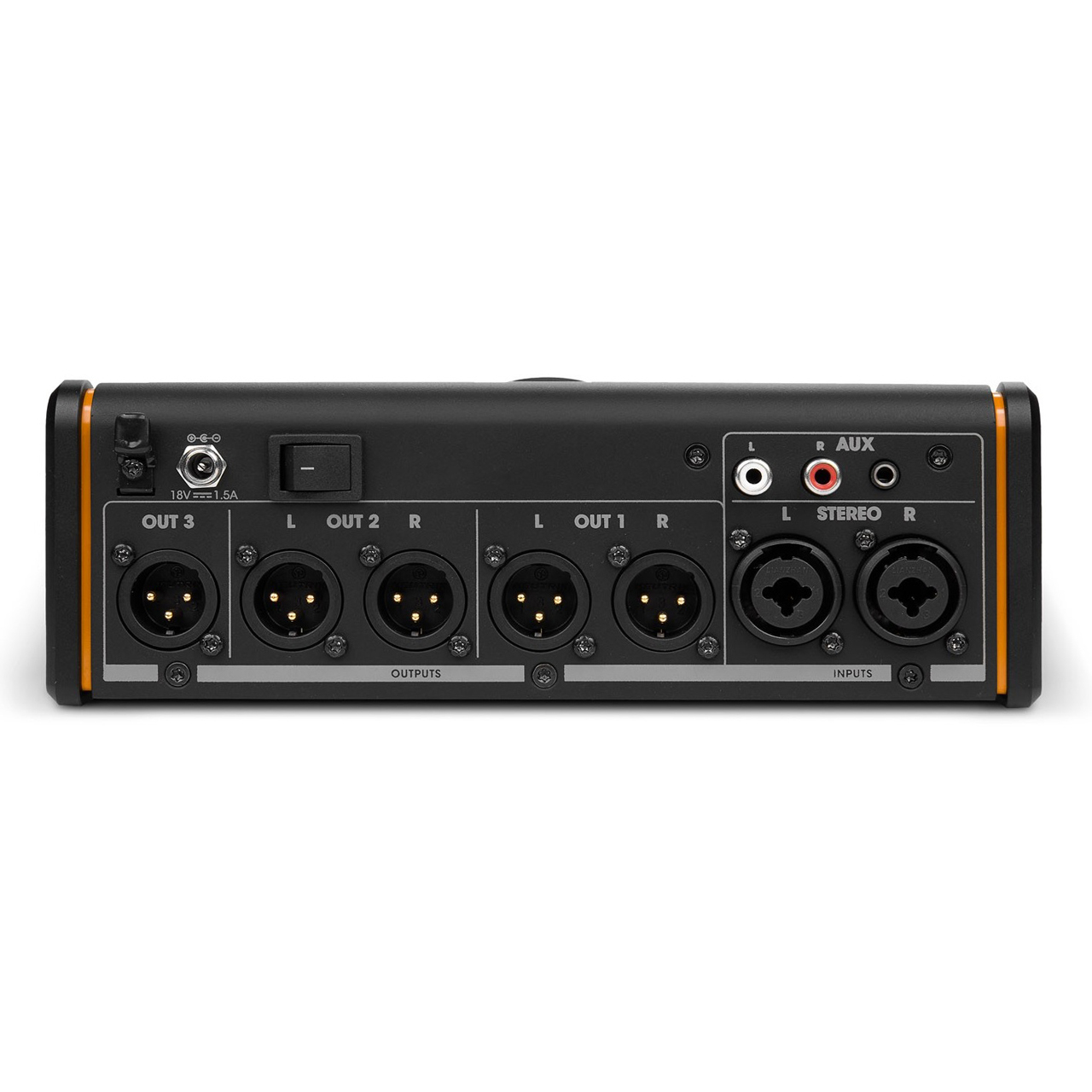

    • Inputs: 3x Stereo (balanced XLR/TRS Combo, AUX and Bluetooth)
    • Outputs:
      - 2x Stereo
      - 1x Mono outputs (balanced XLR)
    • Number of Balanced Line Inputs: 2
    • Balanced Line-In Connector Type: XLR combo socket
    • Number of Unbalanced Line Inputs: 2
    • Unbalanced Line-In Connector Type: 2x RCA female (Stereo)
    • Nom. Input Clipping, Unbalanced (<1% THD, 1kHz, unity): 15dBu
    • Nom. Input Clipping, Balanced (<1% THD, 1kHz, unity): 20dBu
    • Input Impedance (balanced): 20kΩ
    • Input Impedance (unbalanced): 10kΩ
    • THD+N: = 0.001% (+4dBu)
    • Min. CMRR (0dB below clip, 1kHz, unity): 55dB
    • Min. SNR (<1% THD, 1kHz, unity, A-weighted): 112dB
    • Output Signal Type: Headphone, Balanced
    • Number of Balanced Line Outputs: 5
    • Balanced Line Outputs Connector Type: XLR 3-pole male
    • Number of Headphone Outputs: 1
    • Headphone Output Connector Type: 1/4" Jack TRS female
    • Min. Headphone Impedance: 10Ω
    • Max. Headphone Output Power: 100mW
    • Max. Output Level (<1% THD, 20Hz - 20kHz): 20dBu
    • Balanced Output Impedance (1kHz): 600Ω
    • Dynamic Range (AES17): >115dB
    • Power Supply Type: External switched-mode power supply (SMPS)
    • Ambient Temperature: 32°F - 104°F (0°C - 40°C)
    • Maximum Air Humidity (non-condensing): 80%
    • Dimensions (HxWxD): 2.99" x 8.58" x 4.88"
    • Weight: 2.00lbs
