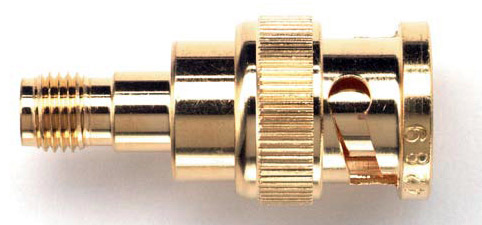

Pomona 4289 SMA Female to BNC Male Adapter

ITEM #: POM-4289 MFG #: 4289

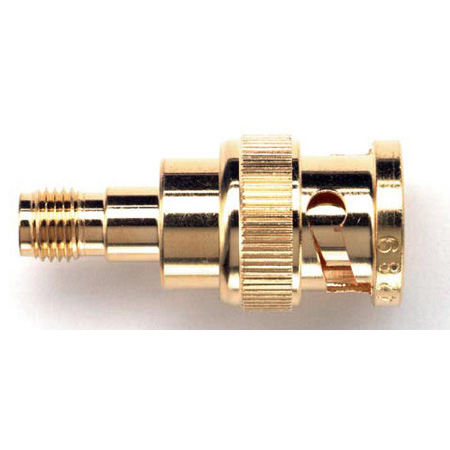

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the POM-4289

4289 - Overview

MATERIALS:
Body - Gold Plated Beryllium Copper
Male Contact - Gold Plated Brass
Female Contact - Gold Plated Beryllium Copper
Dielectric: Teflon per L-P-403
Finish: Body and Contacts - Gold plated per MIL-G-45204, Type II, Class 2
Marking: "Pomona 4289"

  • Specifications:

    • Voltage: Shield/Earth: 30VAC/60VDC Max.
    • Inner Conductor/Shield: 335VRMS Max.
    • Operating Temperature: -65§C (-85§F) to +165§C (+329§F)
    • Nominal Impedance: 50 Ohms
    • Frequency Range: 0-12.4 GHz
