Pure Resonance Audio RZMA240BT 3RU Rack Mount 4 Zone Commercial Bluetooth Mixer Amplifier - 4x240 Watts/4 Ohm - 70V/100V

ITEM #: PRAC-RZMA240BT MFG #: RZMA240BT

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,039.99

Our Price:

$1,699.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    RZMA240BT - Overview

    Powerful and feature-packed!

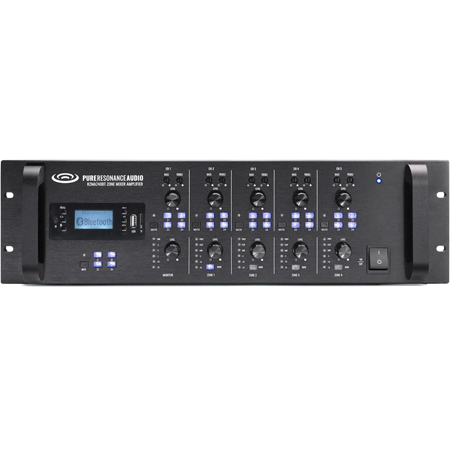

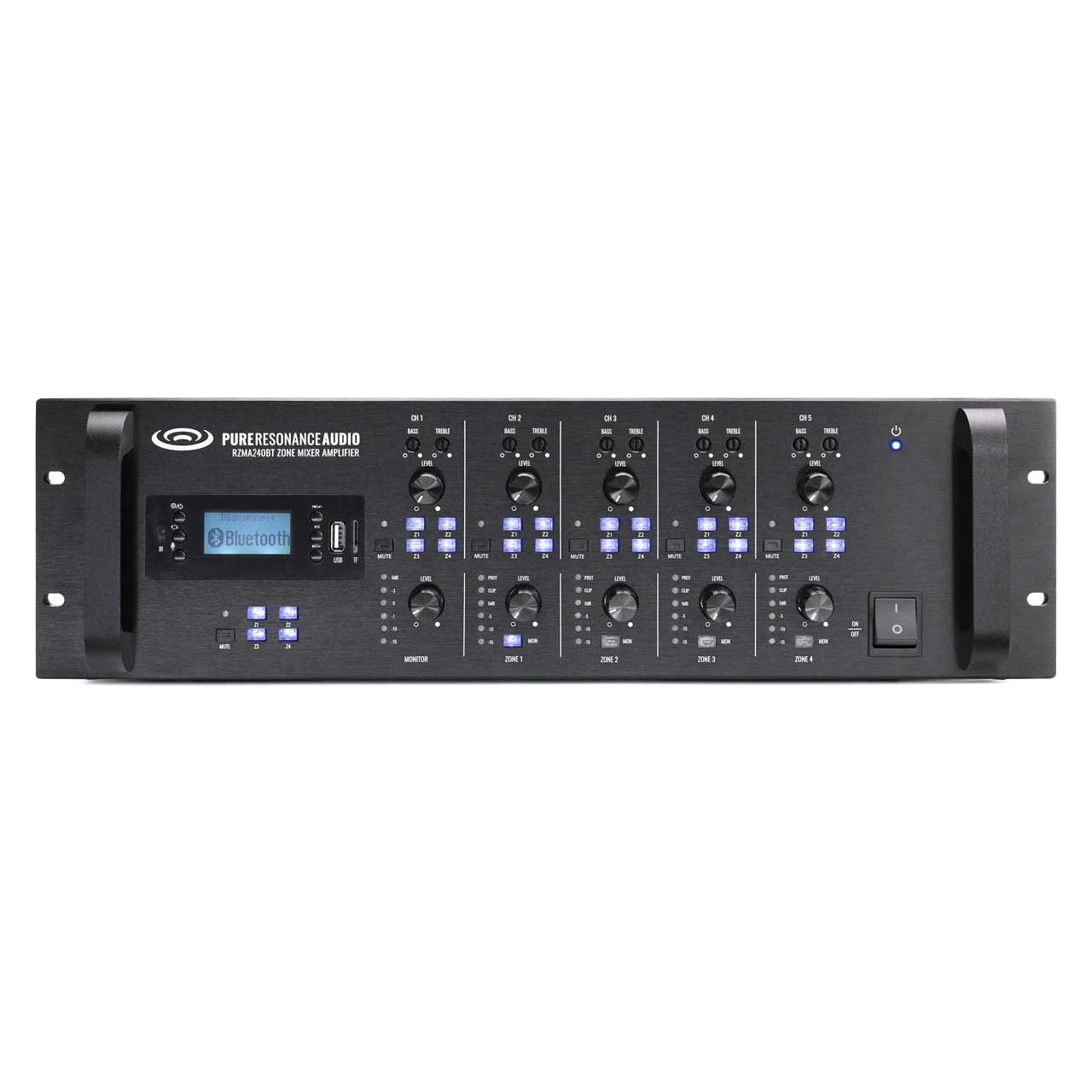

    The Pure Resonance Audio RZMA240BT is a 4 zone commercial mixer amplifier equipped with built-in MP3, an FM tuner, Bluetooth, and recording capability. Featuring 4 x 240-watt output capability at 4 ohms, 70 and 100 volts, this multi-zone mixer amplifier is full of power and designed with advanced matrix technology.

    MULTI-ZONE
    This advanced multi-input audio mixer amplifier features matrix technology, letting you route up to 5 separate inputs to 4 distinct zones. That's four-zone selectable inputs to be assigned to a zone, or across multiple zones with the push of a button. A monitor channel provides a 1-watt 8-ohm output for a control room monitor speaker. A convenient IR remote is available for volume and source control, and remote microphones can be daisy-chained via Cat5 for zone paging.

    ALL-IN-ONE SOLUTION
    Designed as an all-in-one solution for configuring and operating multi-zone audio systems for hotels, sports venues, and houses of worship, schools, retail spaces, restaurants, meeting and conference spaces.

    SIMPLE TO OPERATE
    The RZMA240BT is equipped with zone-selectable inputs, meaning that an input can be assigned to any output. You simply push a button to route your inputs to the appropriate outputs, no programming or tuning required.

    BLUETOOTH
    Equipped with built-in MP3, FM tuner, Bluetooth and recording capability.

    POWERFUL
    Designed with 4 ohms, 70 volt and 100 volt terminals and 4 x 240W power output.

    MULTIPLE REAR INPUTS

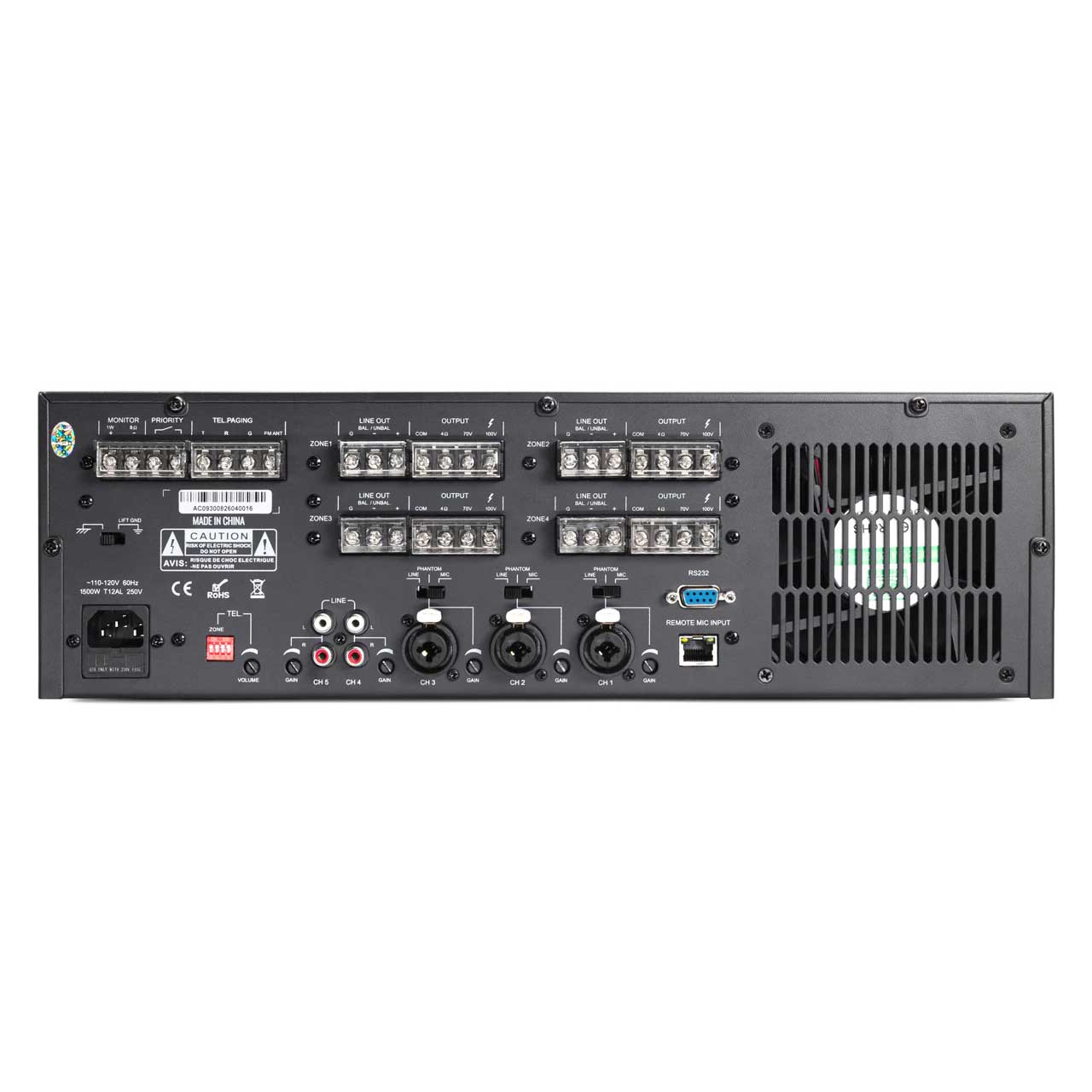

    The rear inputs on the RZMA240BT include 3 XLR/TRS combo jacks with MIC or LINE level switching, dual RCA inputs with variable gain control, telephone phone input with variable gain control, and remote mic input via network category cabling.

    • Features:

      • 4 channel amplifier in a 3U 19" rack mount design
      • All source inputs can be matrix assigned to different 4 zones output simultaneously
      • The 5 channel inputs & MP3 input are designed with separate bass, treble and volume control
      • 3 microphone/line inputs with phantom power and gain control
      • 2 AUX inputs by RCA with gain control
      • MP3 player with TF and USB inputs has a separate power supplied module
      • Built-in tuner audio source
      • One 4 zone remote microphone input via RJ45 port
      • 4 channel line inputs and speaker outputs
      • Versatile speaker outputs for each four channels: 70V, 100V and 4Ω
      • RS232 serial control port for third-party system communication
      • Priority input to override other inputs (equal to EMC input)
      • Input priority level from high to low: - Before contact priority control input: MIC1 TEL- Remote MIC MIC2= MIC3 = LINE4 = LINE5 = MP3
      • After contact priority control input: TEL MIC1 - Remote MIC MIC2 = MIC3 = LINE4 = LINE5 =MP3
      • Built-in monitor with volume control
      • Extensive protection of thermal, short-circuit, clip and overload with indicators
      • Ground lift switch

    • Specifications:

      • Rated Power Output: 4 Zone channels x 240W (960W total)
      • Speaker Outputs: 4Ω, 70V/100V
      • Monitor Output: 1W/8 Ω
      • Input Sensitivity and Impedance: CH1, CH2, CH3: MIC: ± 2.5mV/600 Ω
      • PHANTOM: ± 2.5mV
      • LINE: ~175mV/10K Ω balance input
      • CH5 - 6: 350mV/10K Ω balance input
      • TEL: 350mV/10K Ω
      • REMOTE MIC: ± 387mV/10K Ω
      • Tone: Bass: ±10dB at 100Hz - Treble: ±10dB at 100Hz
      • S/N Ratio: >65dB
      • LINE 1-4 Output Level: 1V/600 Ω (balance output)
      • Frequency: 80 - 16 kHz
      • MP3: Support MP3 format, max capacity of 32GB
      • TF File System: Only FAT16, FAT32, the biggest one partition, does not support folder to store
      • Harmonic Distortion: <1%
      • Power Consumption: 1500W
      • Supply Voltage: ~120V 60Hz
      • Relative Humidity: <95% (No condensation)

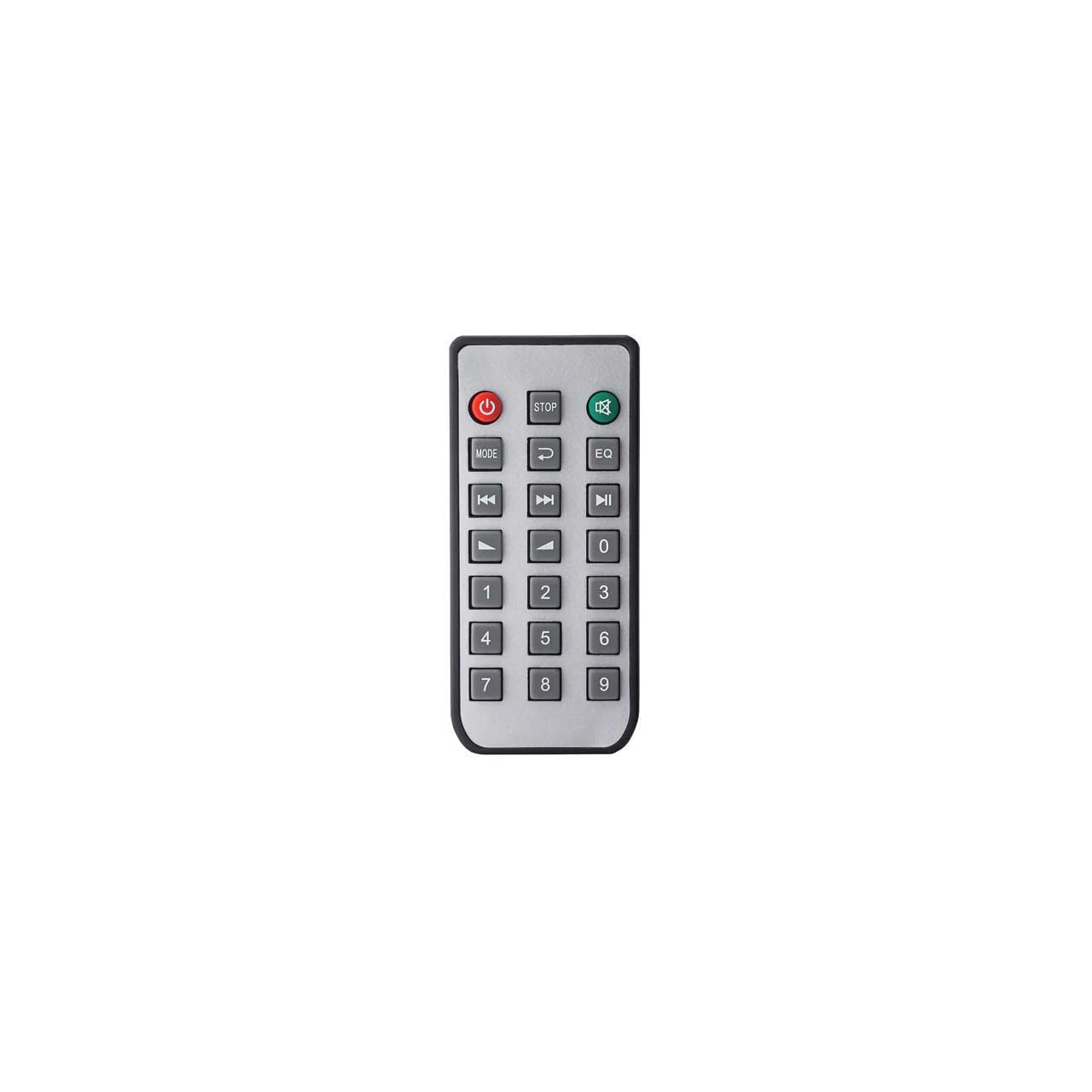

      • Remote Control: IR remote control with (replaceable) CR2025 3V lithium battery

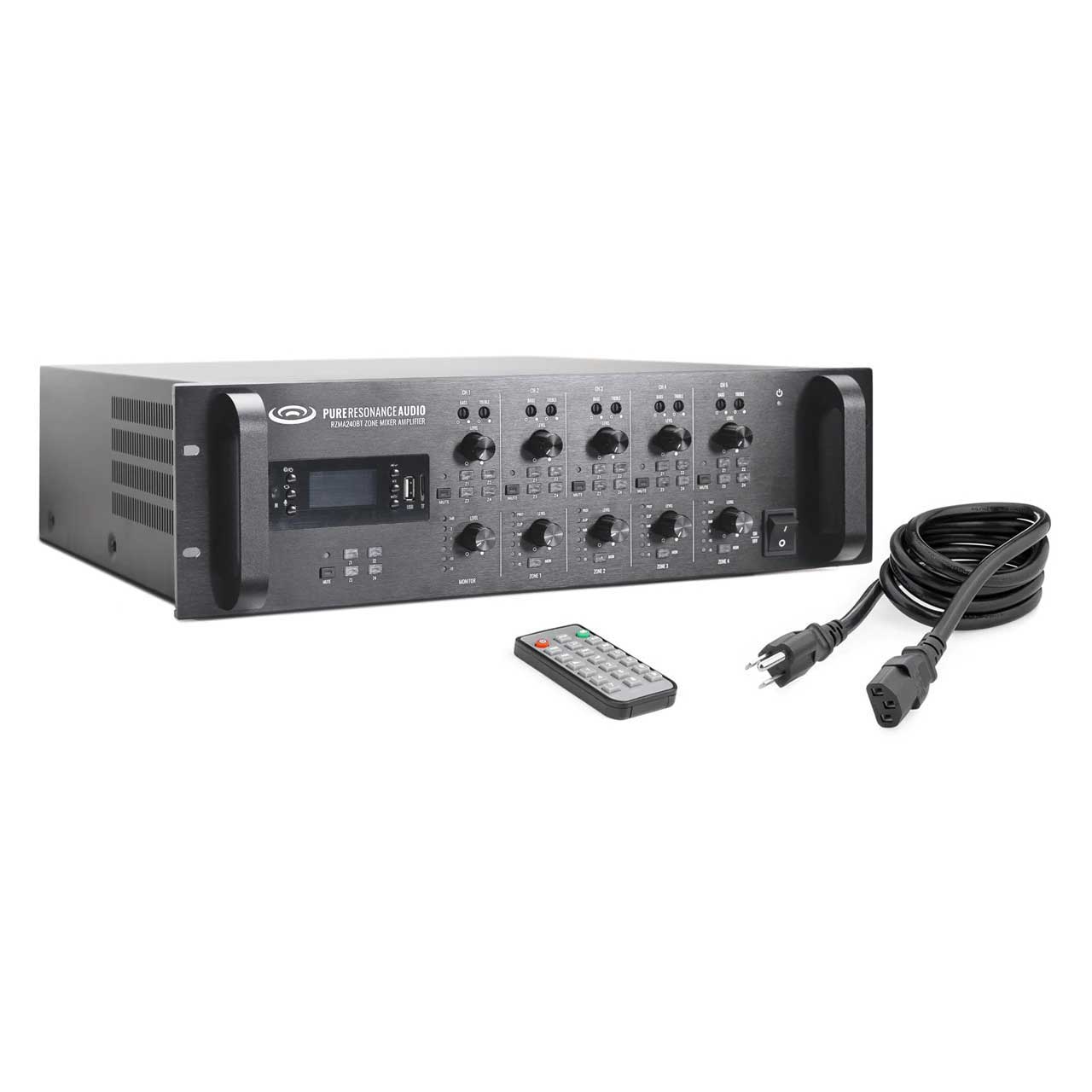

    • Item Includes:

      • 1x RZMA240BT 4 Zone Bluetooth Mixer Amplifier
      • 1x IR Remote Control with CR2025 3V lithium battery
      • 1x Power Cord

    • Warranty:

      • 1 Year

    • GTIN:

      0810538038747
