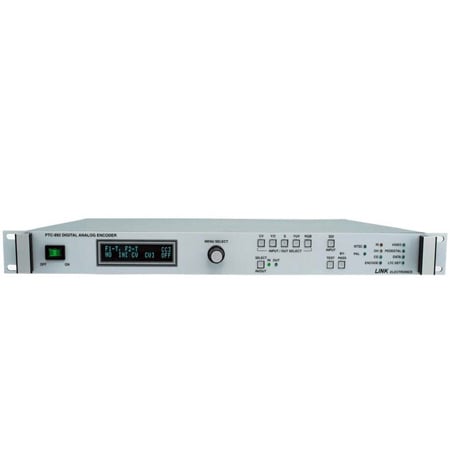

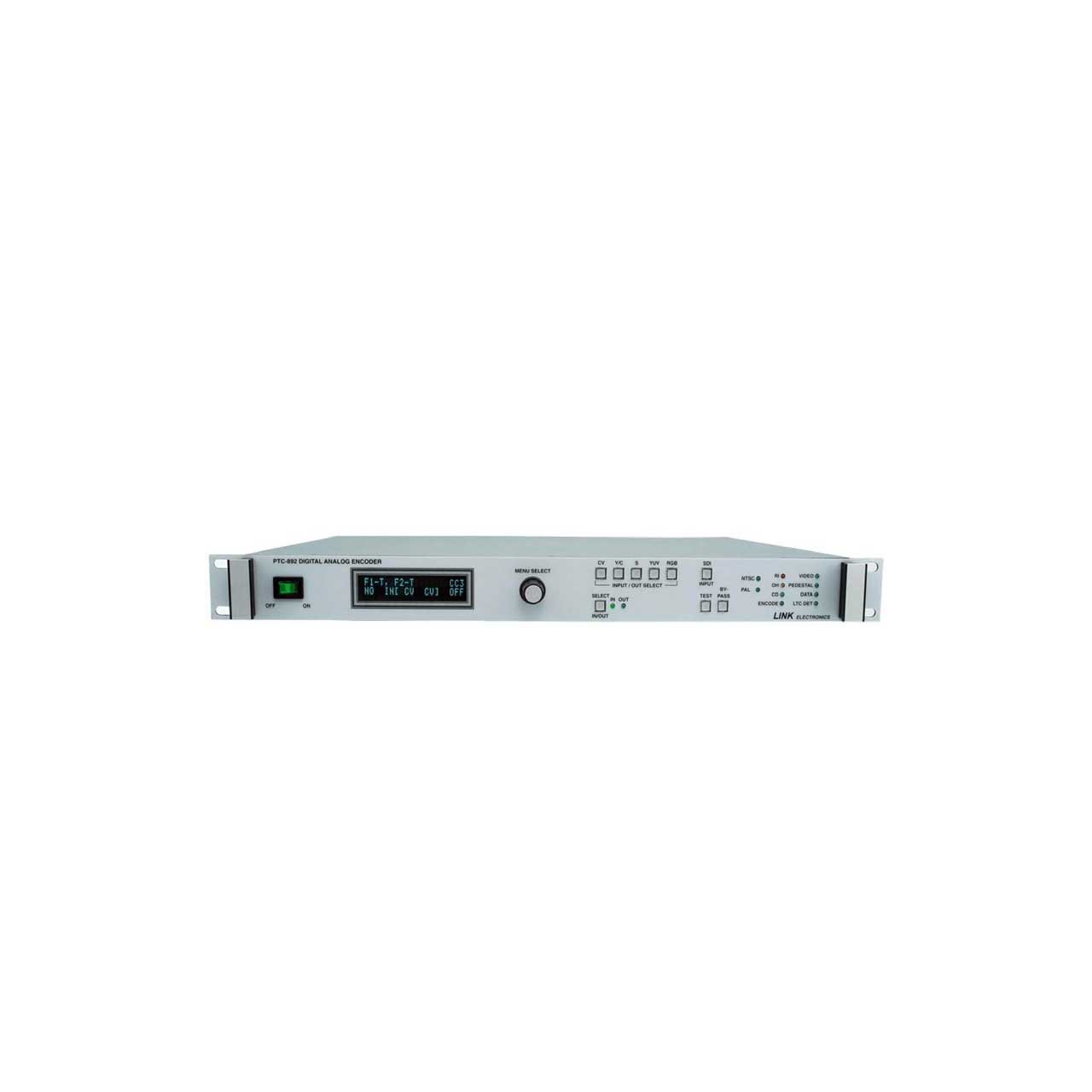

Link Electronics PTC-892 Closed Caption Encoder

ITEM #: PTC-892 MFG #: PTC-892

free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    PTC-892 - Overview

    The PTC-892 is captioning encoder, decoder, and data recover capable of inserting, decoding, and recovering data of captions and text for NTSC/PAL for the following signals: composite, Y/C, S-video,RGB, YUV, and SDI.

    Captioning and text may be inserted (encoded) in either field of the Vertical Blanking Interval (VBI).That inserted data may be displayed as open captions through the decoder output(s). In addition, caption data on the incoming or outgoing video may be recovered from either field of the VBI.This data can be sent to another encoder, to a language translation machine or program then re-encoded,or to be captured by a program to be manipulated. Each of these important functions(encoding, decoding, and data recovery) may be done simultaneously. Each of these functions can be controlled by the front panel menus or by serial communications.

    Inputs and outputs are provided for both SD SDIand SD analog, including composite, Y/C, S-video,YUV and RGB. The power loss feature bypasses the composite analog and SDI when AC power to the PTC-892 fails.

    In response to the FCC mandated requirements,captions shall not interfere with emergency crawls.The PTC-892 incorporates a weather-lift feature that moves the caption up to 4 lines, whenever a contact-closure is detected on its GPI input. The number of lines can be controlled by the front panel or by software commands.

    The serial communication port(s) allow for remote captioning. The dual ports allow multiple encoders to be controlled at once, a back up communication port, or to do data recovery out of its ports. Port 1 is either a "B" type USB port orRS-232 port. Port 2 is either a RS-232 port or an optional modem. Both ports can be set to have different baud rates (1200, 2400, 4800, 9600,19200, 38400) independently through the front panel menus.

    RS-232 port 2 will not go down to a baud rate of1200, because new modems will not allow this.When the optional modem goes off-hook, it takes priority over the RS-232 port 2. The RS-232 port 2control is restored when the modem hangs up.

    Front panel LEDs show the unit status with NTSC/PAL detection, modem status, encode on/off, video presence detection, negative pedestal on/off, serial data detection, and LTC detection.Front panel push buttons allow the user to select input, select output, perform an encoder test, and bypass the encoder.

    The PTC-892 is V-chip technology compliant and TSID ready. Link Electronics is incorporating this technology in the firmware of the PTC-892. ThePTC-892 handles automatic repetition of the "VChip"data and can interweave it with existing line21 closed captioning data.

    The PTC-892 has a Longitudinal Time Code (LTC)input for precise caption timing with the video. A front panel Vacuum Fluorescent Display (VFD)shows various functions and menus. A rotary optical encoder, front panel knob, provides easy selection of the various operating and set-up functions.

    • Features:

      • V-Chip compatible & TSID ready
      • Dual RS-232 com ports
      • LTC input & "B" Type USB port
      • Detailed front panel display with menus
      • Data Recovery of both caption & text
      • Weather Lift up to 4 lines
      • SD SDI/analog encoded outputs
      • User selectable data recovery modes
      • Firmware version viewed from front panel
      • User, power-up, and factory default settings
      • SD analog decoded outputs including component
      • Optional Modem w/ RI, OH, and CD indication
      • User selectable encode modes, including newswire
      • SD SDI to SD analog conversion
      • Auto Detection of NTSC/PAL
      • Encodes both caption and text
