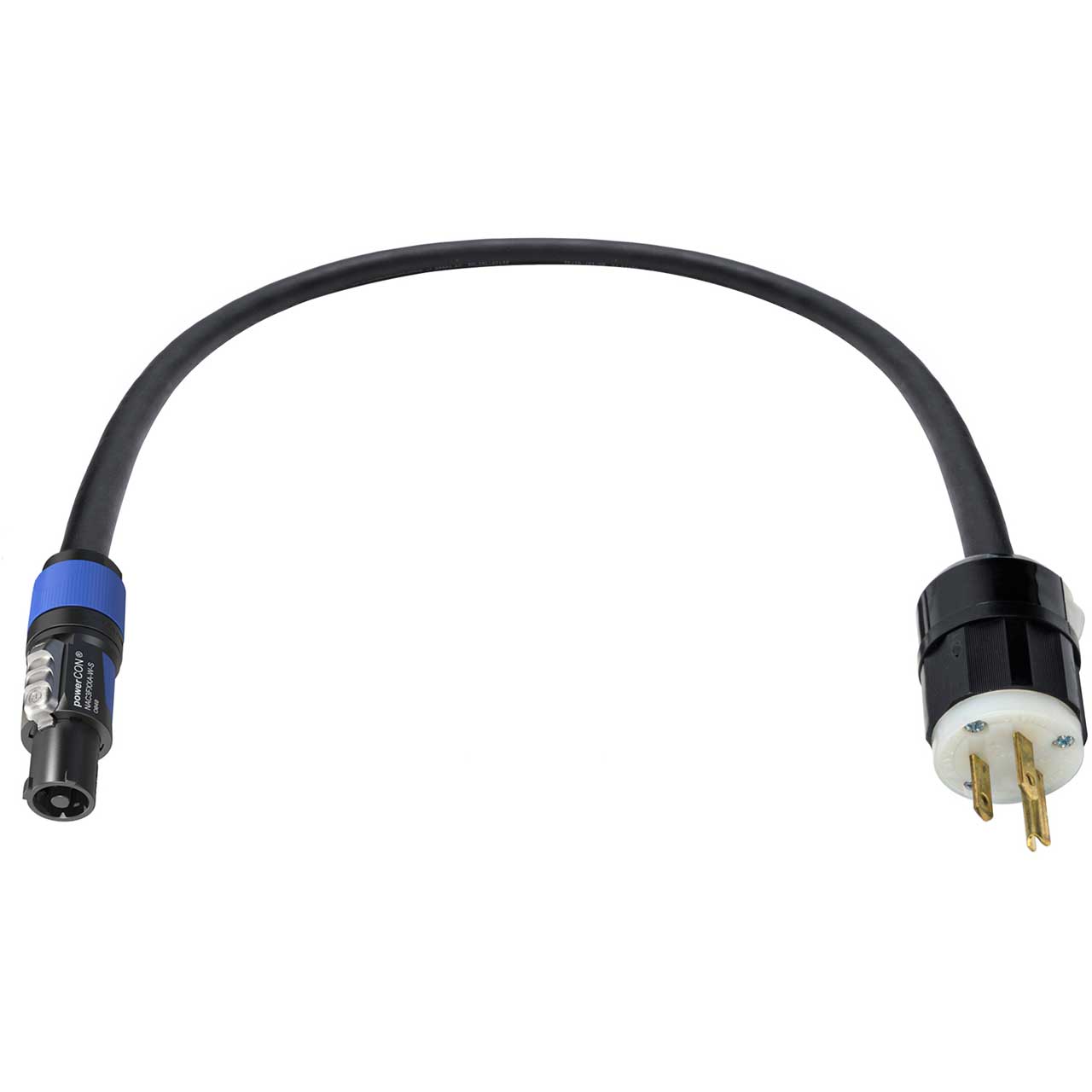

Laird Neutrik powerCON Locking 3-Pole 15-Amp Type A to Edison AC Wall Plug Power Cable - 15 Foot

ITEM #: PWRCN-ACIN-15 MFG #: PWRCN-ACIN-15

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$61.95

Our Price:

$55.95

Availability: In Stock
iAvailability Description Popup


    PWRCN-ACIN-15 - Overview

    powerCON® is a lockable 3 pole equipment (AC) connector with contacts for line, neutral, and premating safety grounds. It is rated at 15A/250V ac. Color coded for easy identification, powerCONr offers power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating. The contacts are designed to prevent damage from arcing when disconnected while under load. The cable is a 300V 12 AWG UL Listed 3 Conductor TPrene Jacketed Heavy Duty Power Cord - Black. Professionally assembled in our in-house cable shop for powering various Mackie, Turbosound, JBL and other gear that utilize the Neutrik powerCON® connector.

    • Features:

      • Neutrik powerCON® XX Series
      • NEMA 5-15P AC Plug
      • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable
      • Flexibility in Low Temperatures
      • IP 20 Rated
      • Water and Oil Resistant
      • Fully Annealed Stranded Bare Copper Conductors for Strength and Abrasion Resistance

    • Specifications:

      • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable:
      • UL Listed 3 Conductor Jacketed Heavy Duty Power Cord
      • TPrene Jacket - Black
      • 3 conductor colors: Black, White and Green

        Leviton 5266-C AC Plug Cable End:
      • 15 Amp
      • 125V
      • NEMA 5-15P

        Neutrik NAC3FXXA-W-S powerCON® XX Series:
      • Contact Resistance: ≤2 mΩ
      • Dielectric Strength: > 3 kVac (after mating cycle)
      • Insulation Resistance: > 10 GΩ (initially)
      • Number of Electrical Contacts: 2 + PE
      • Lifetime: typically 5000 mating cycles
      • Flammability: UL 94 V-0
      • Protection Class: IP20
      • Temperature Range: -33°F to 80°F
      • Rating Europe: EN 60320-1: 16A 250V AC, CBC
      • Rating USA/Canada: cUL 60320-1: 20 A 127 V AC, CBC

    • Warranty:

      • 1 Year
