ProX XSU-4X4 STAGEOne 4x4 Aluminum Portable Stage with Telescoping Legs - 16 to 22 Inch Platform Height - 6 Decks

ITEM #: PXG-XSU-24X4PKG MFG #: XSU-24X4PKG

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$9,749.99

Our Price:

$3,299.99

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup
  • Shipped truck freight.


XSU-24X4PKG - Overview

Designed by Professionals. Built for Performers. Backed by 40 Years of Excellence.

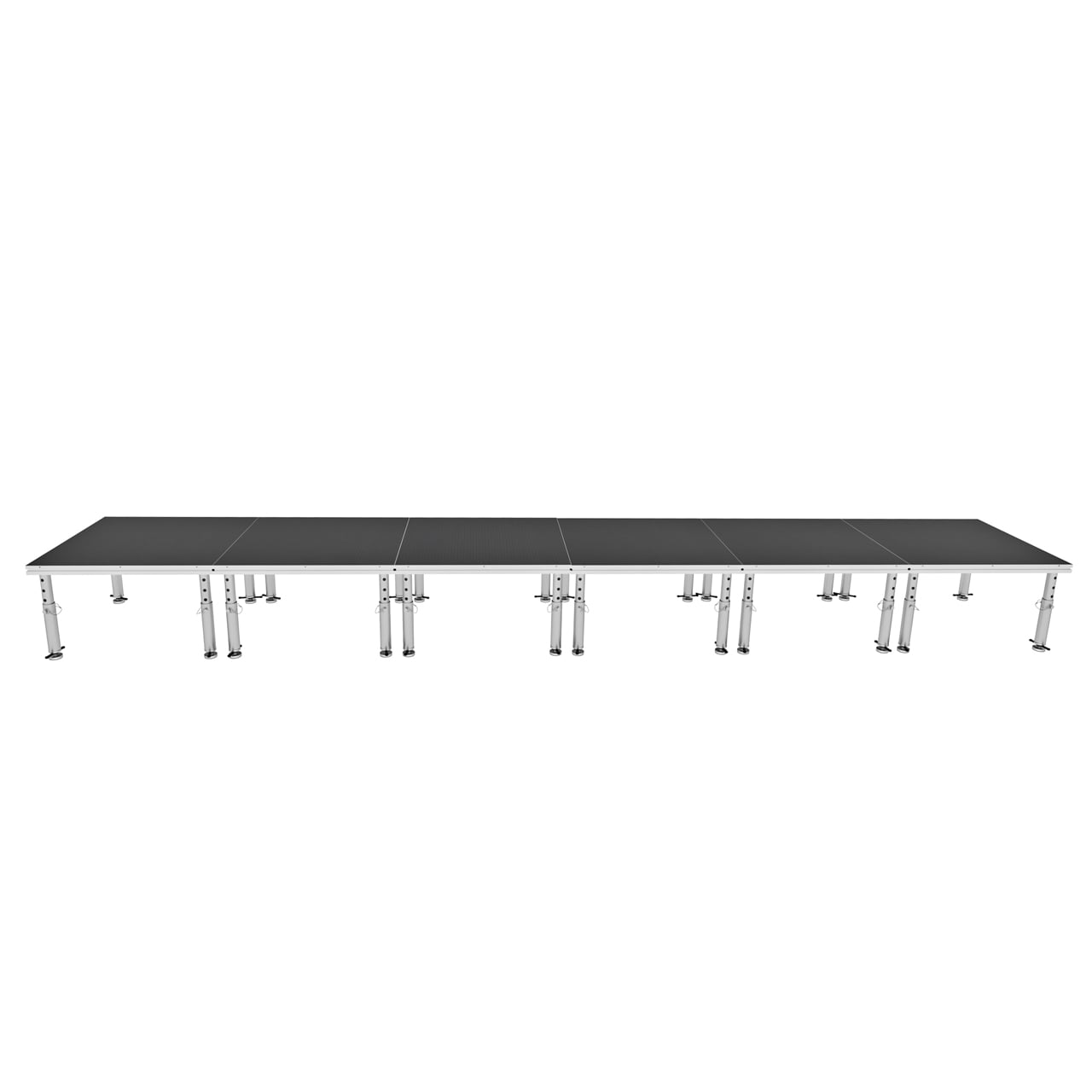

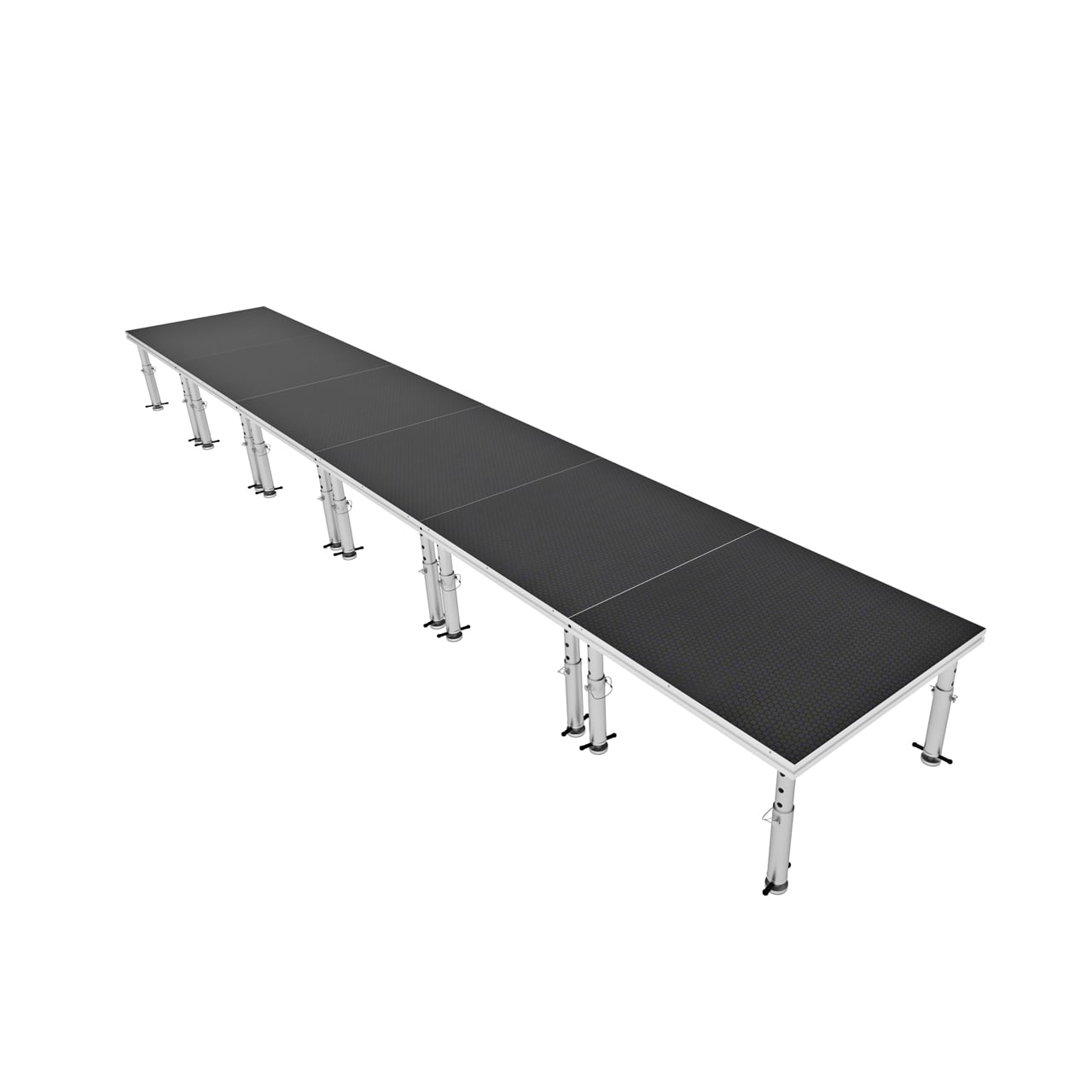

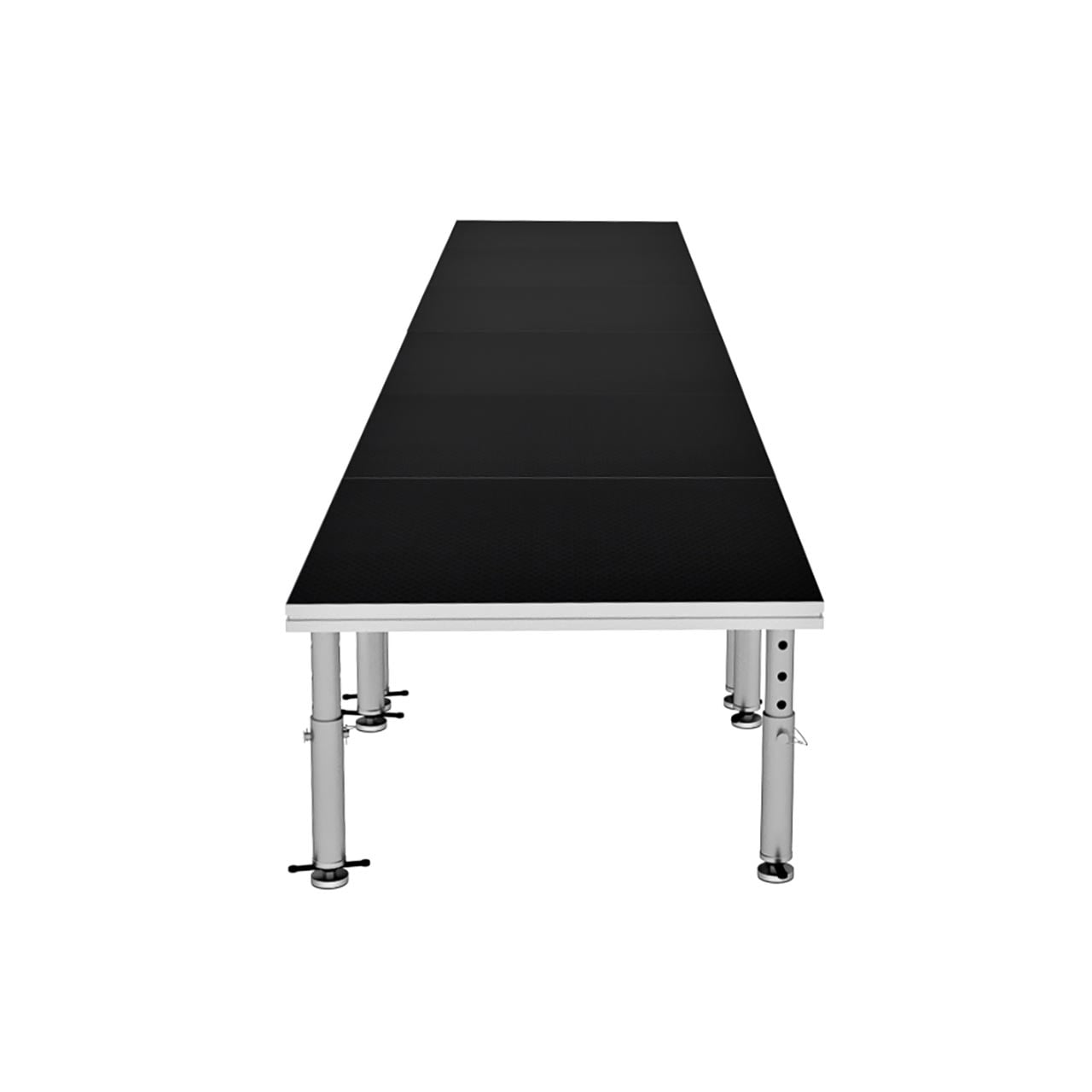

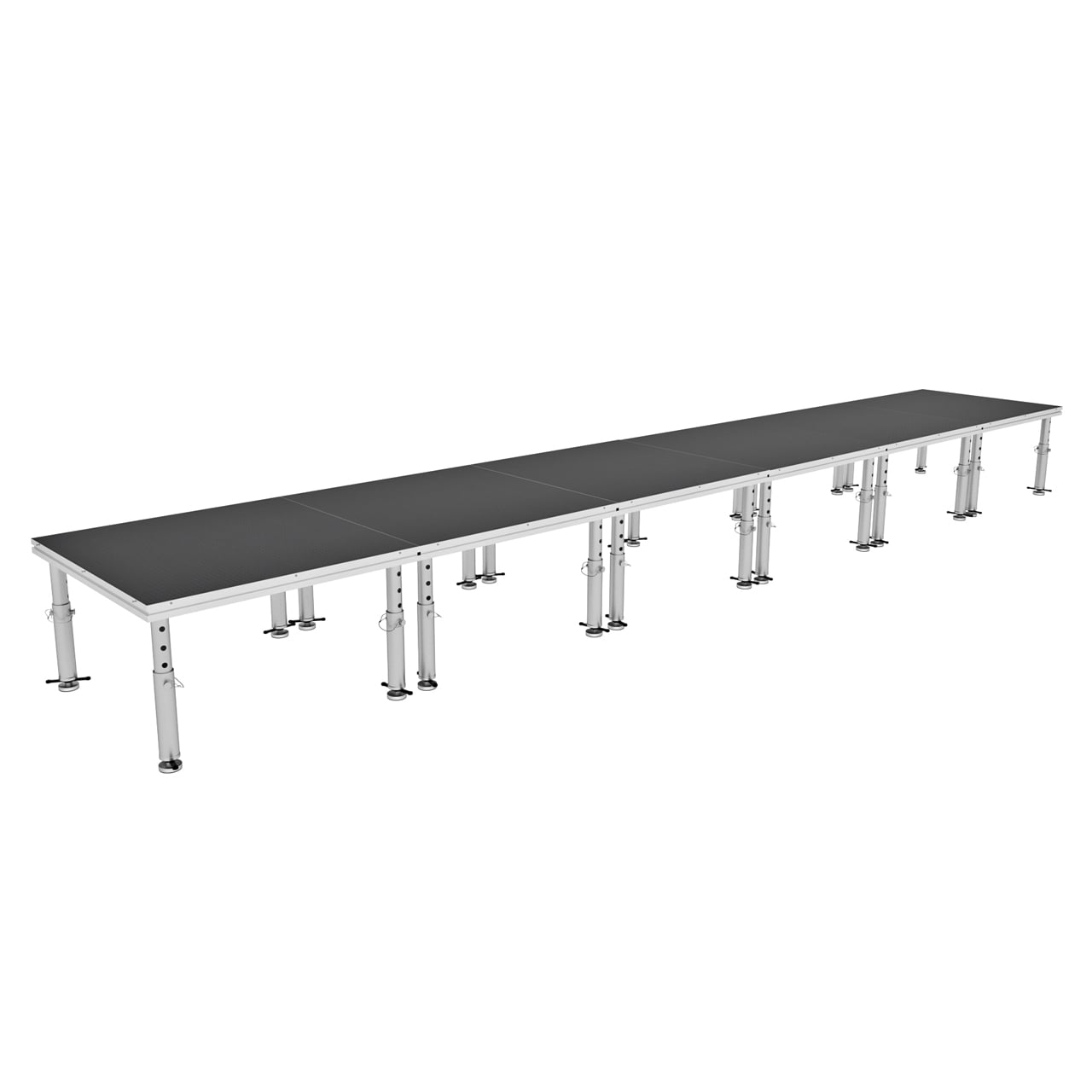

The ProX StageOne™ XSU-24X4PKG is a complete single-stage platform designed for durability and long-term use. This package includes 6 StageOne™ 4 ft x 4 ft decks, forming a 24 ft x 4 ft stage & comes complete with 6 Adjustable, 16-22 inch legs per stage deck. These platforms are ideal for Mobile DJs, Small Clubs, Party Rentals, Churches, Schools, and more.

Portable and Versatile

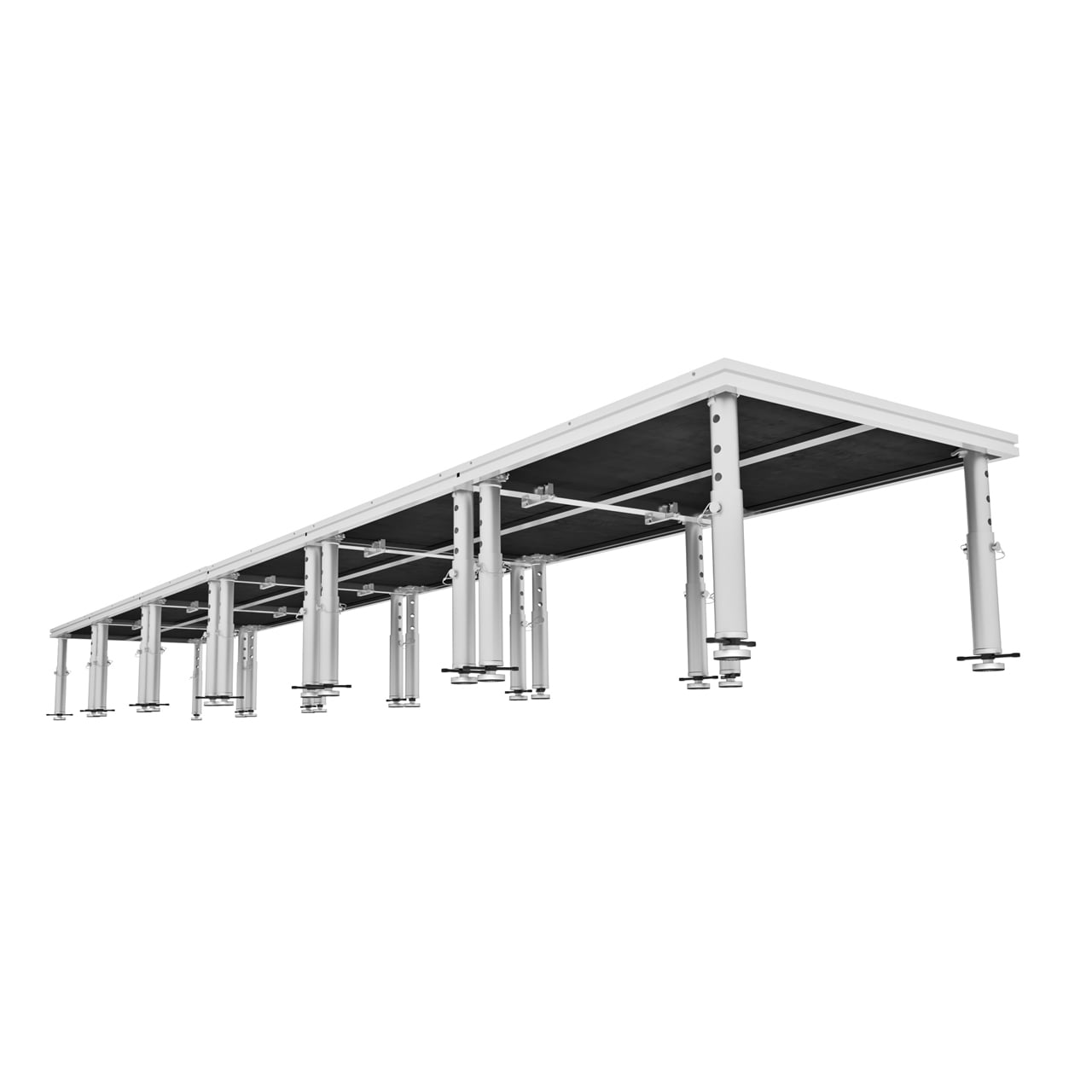

Designed for adaptability, these stage platforms are a practical solution for small venues and both indoor and outdoor events. Telescoping legs adjust from 16" to 22" in height and feature an integrated security pin and cable system to lock each leg firmly in place. Each leg also includes a twist-adjustable foot, adding up to 2 extra inches of height-reaching a total elevation of 24". The extended foot design provides enhanced stability on uneven surfaces, making these stages ideal for mobile, modular, or temporary setups.

Signature Protection
ProX stage platforms feature the Signature Honeycomb Digital™ Surface, constructed with a rugged, hexagonal-patterned High-Pressure Laminate (HPL) top that delivers superior grip and durability. Built for both indoor and outdoor environments, each unit is supported by adjustable telescoping legs secured with a locking pin system. Precision leveling rubber feet allow for micro-adjustments on uneven terrain, ensuring a secure and level stage every time.

  • Features:

    • Tool-Free Assembly: Quick and easy setup by one person. No tools required
    • Locking System: Clamp and leveler create a monolithic, flush stage surface
    • Support System: Four-corner leg support for fast and secure setup
    • Riser Expansion: Compatible with additional leg systems for taller risers (sold separately)

  • Specifications:

    • Total Assembled Stage Size: 24 ft x 4 ft
    • Platform Material: High-Pressure Phenolic Laminate (HPL) over honeycomb core
    • Legs: Adjustable telescoping legs, 16"-22" height range (24" fully extended)
    • Deck Surface: .59" (15mm) exterior-rated plywood with virtually zero voids
    • Surface Finish: Non-slip, black textured HPL laminate top
    • Frame Construction: Aluminum frame with reinforced corners and cross profiles
    • Exterior Dimensions(L x W x H): 48" x 48" x 3"
    • Weight: 58 lbs
    • Shipping Dimensions Master Box(L x W x H): 50" x 50" x 37"
    • Shipping Weight: 450 lbs

  • Item Includes:

    • 1x StageOne™ XSU-4X4 Stage Deck Unit
    • 24x StageOne™ 16-22" Telescoping Legs
    • 12x StageOne™ Stage Security Clamps
    • 6x Deck Leveling Clip

  • Warranty:

    • ProX One-Year Limited Warranty

  • GTIN:

    0804589618065
