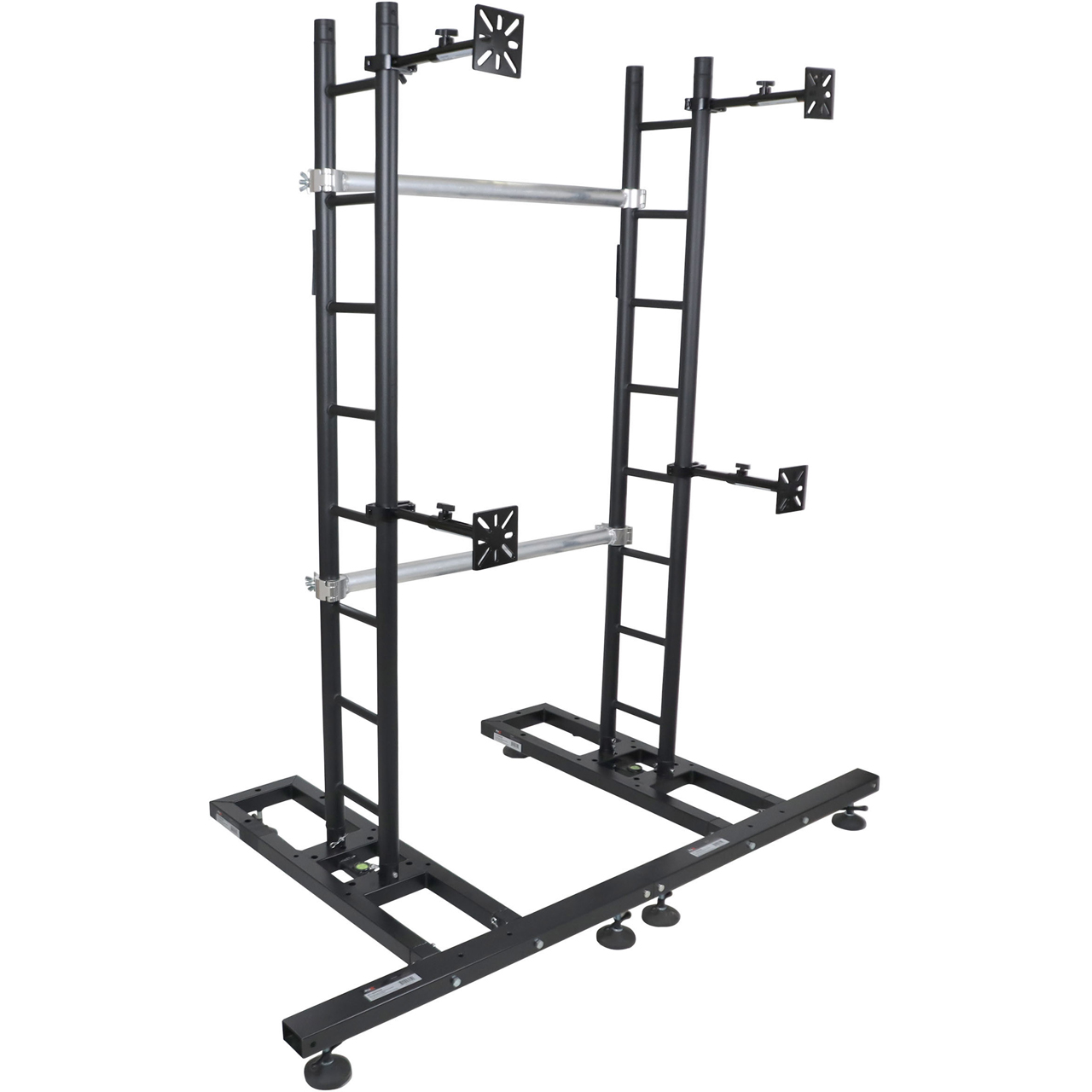

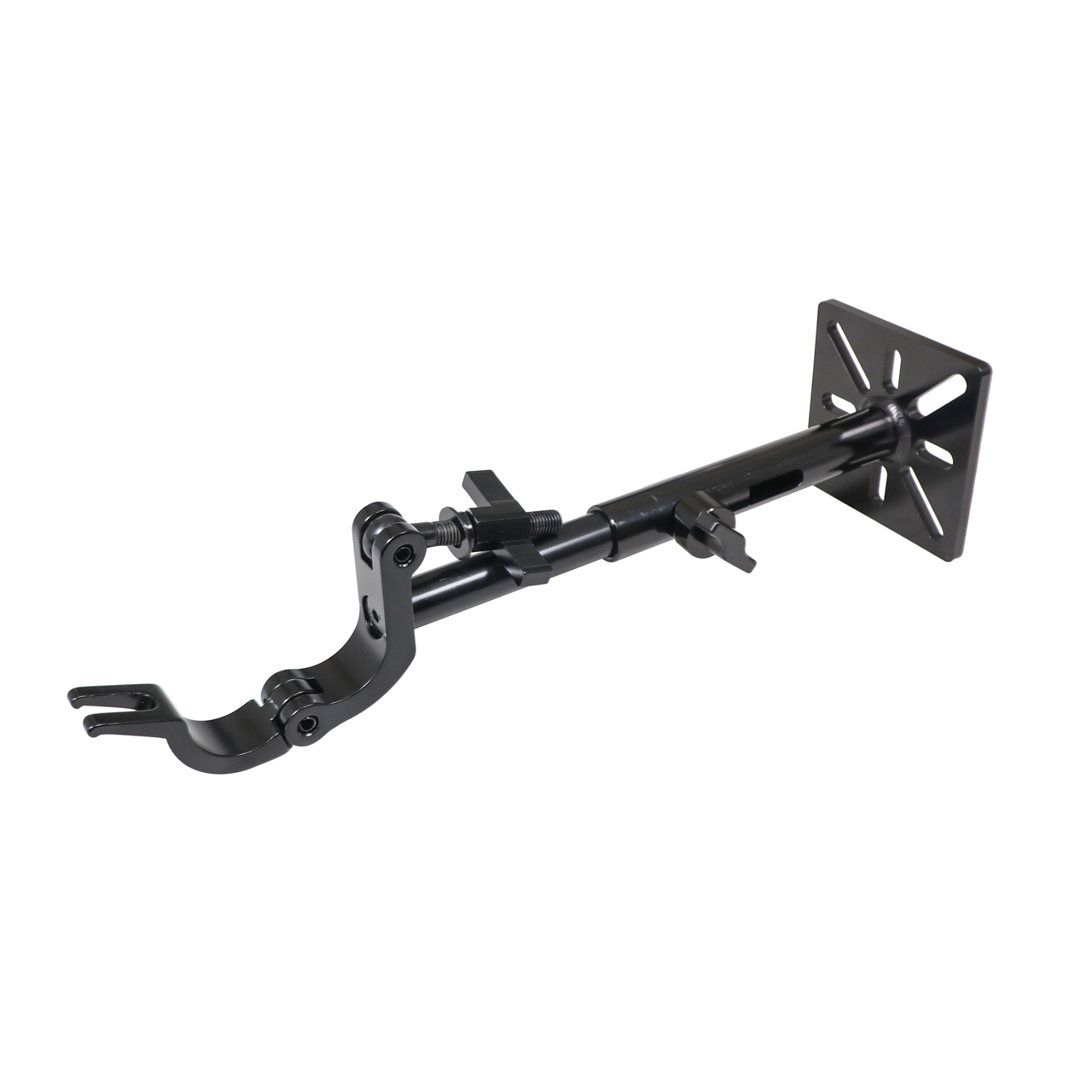

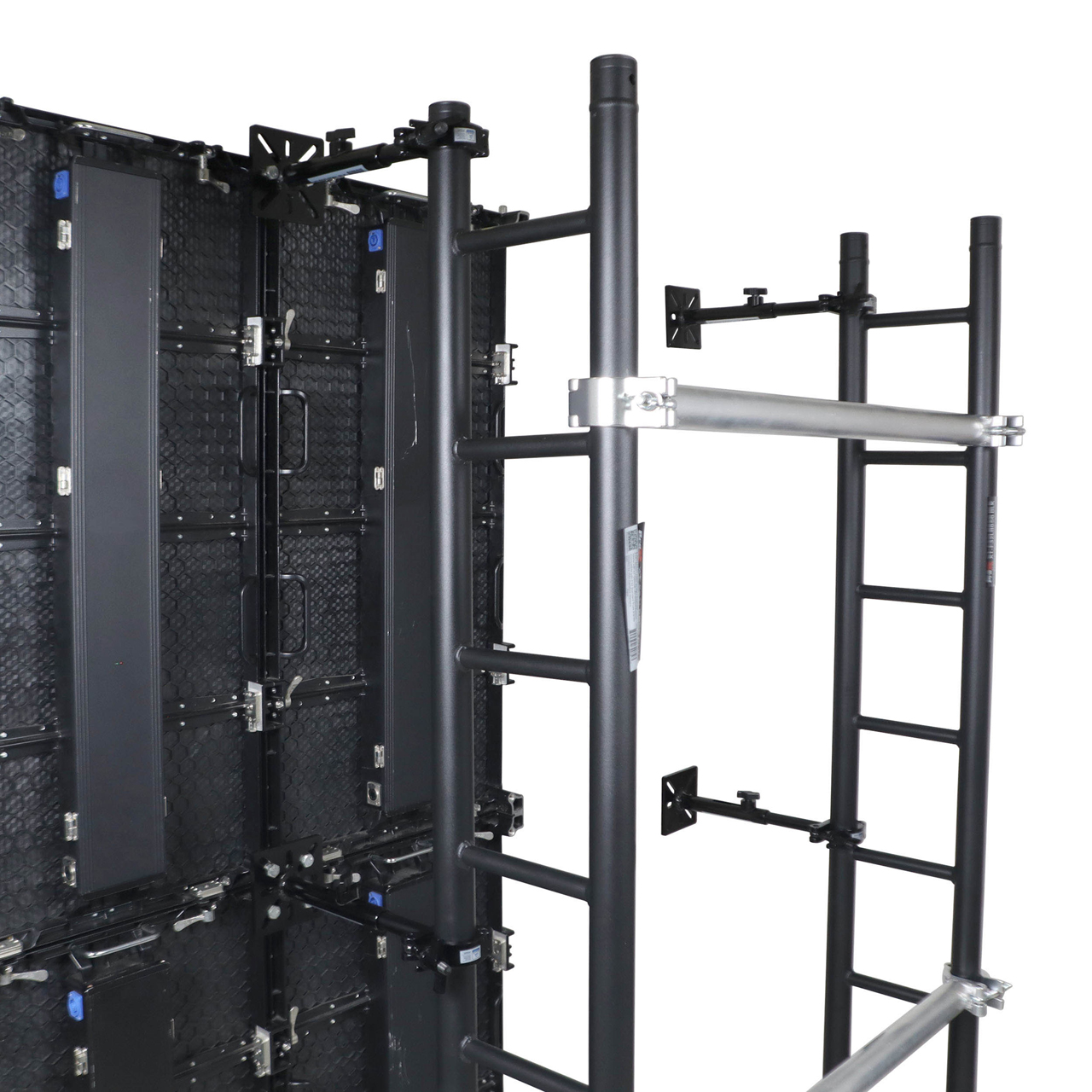

The ProX XT-TC5LEDPABLK is a professional-grade adjustable LED panel mounting plate designed to precisely position LED video panels on ProX ground-stacking and truss-mounted support systems. This universal mounting solution plays a key role in keeping LED walls perfectly straight, aligned, and structurally secure when used with the Truss on ProX XT-GSWSB Ground Support Stabilizing T-Base.
Featuring a telescoping offset extension adjustable from 10" to 13", this mount allows installers to fine-tune panel positioning based on LED cabinet depth and configuration, ensuring correct spacing from the truss or ground support column for a clean, professional LED wall appearance.

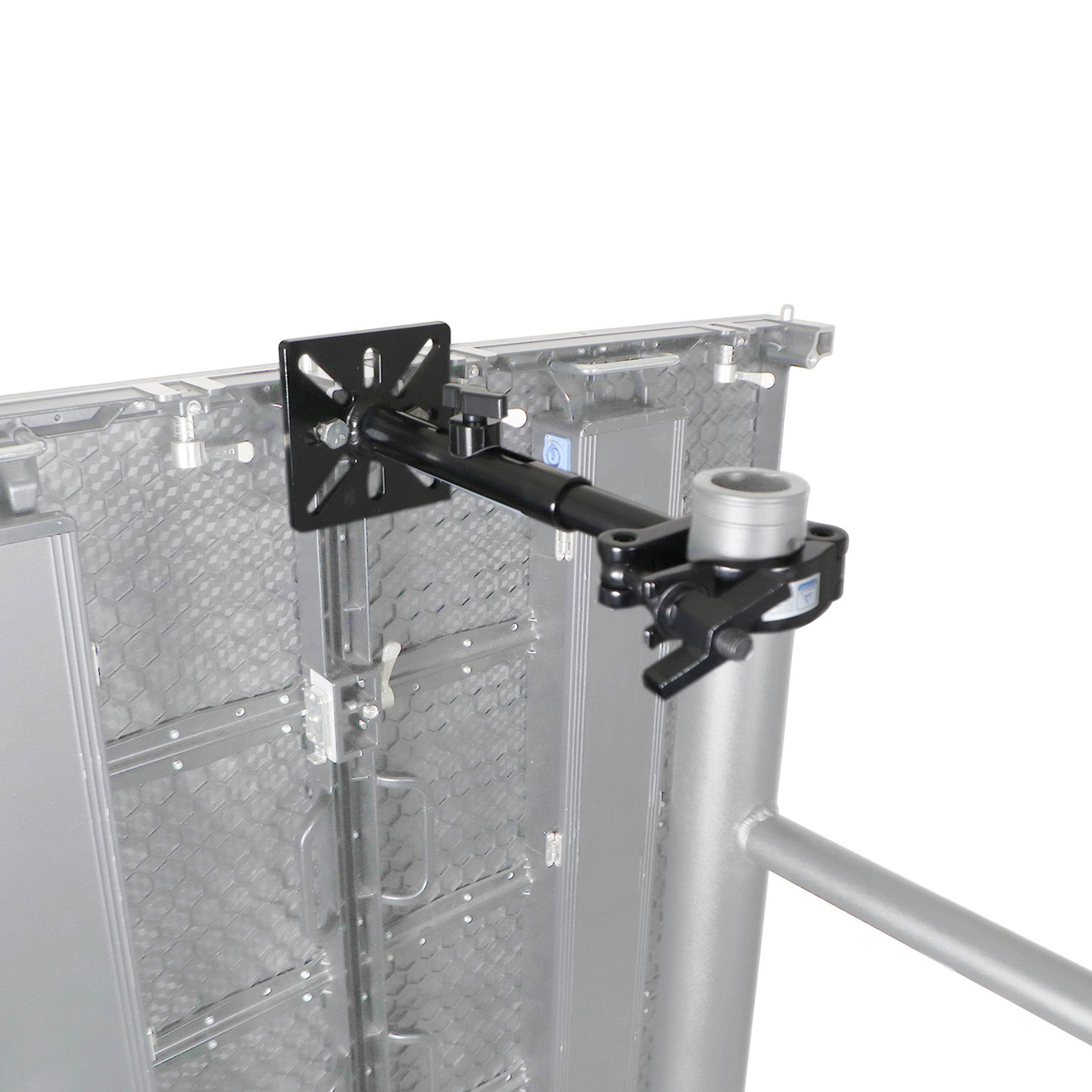

The multi-directional linking plate supports two to four LED panels per plate (depending on panel size) and includes eight CNC-slotted mounting holes compatible with M8 and M10 hardware, offering flexible mounting options across a wide range of LED panel brands.

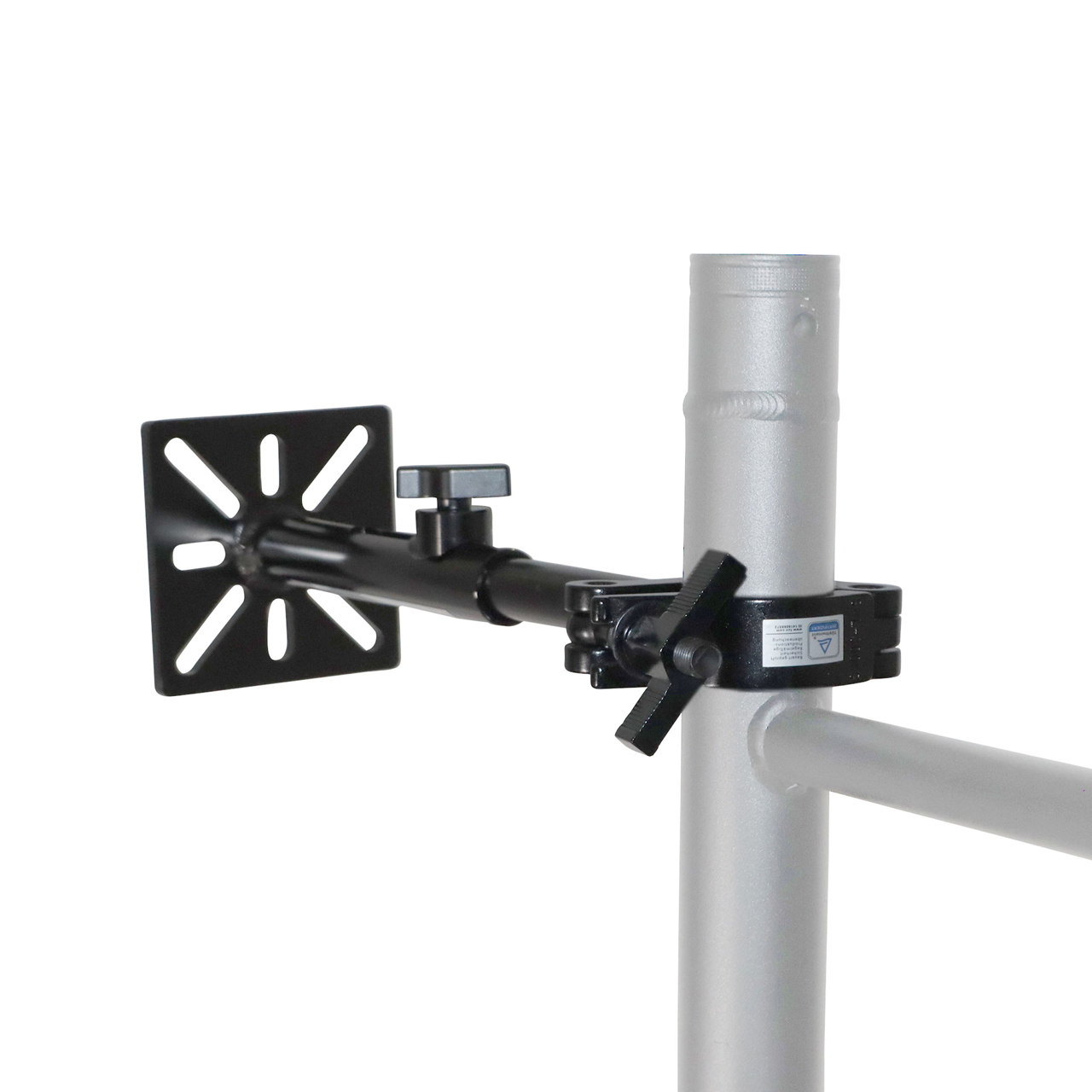

A heavy-duty 2" pipe truss clamp provides secure attachment to F32, F33, F34, and 12" bolt truss systems, allowing this mount to be used for ground stacking or hanging applications, in both vertical and horizontal panel orientations.
Finished in durable black powder coating, the XT-TC5LEDPABLK is built for touring, staging, rental, and permanent installations where accuracy, strength, and repeatability matter most.
