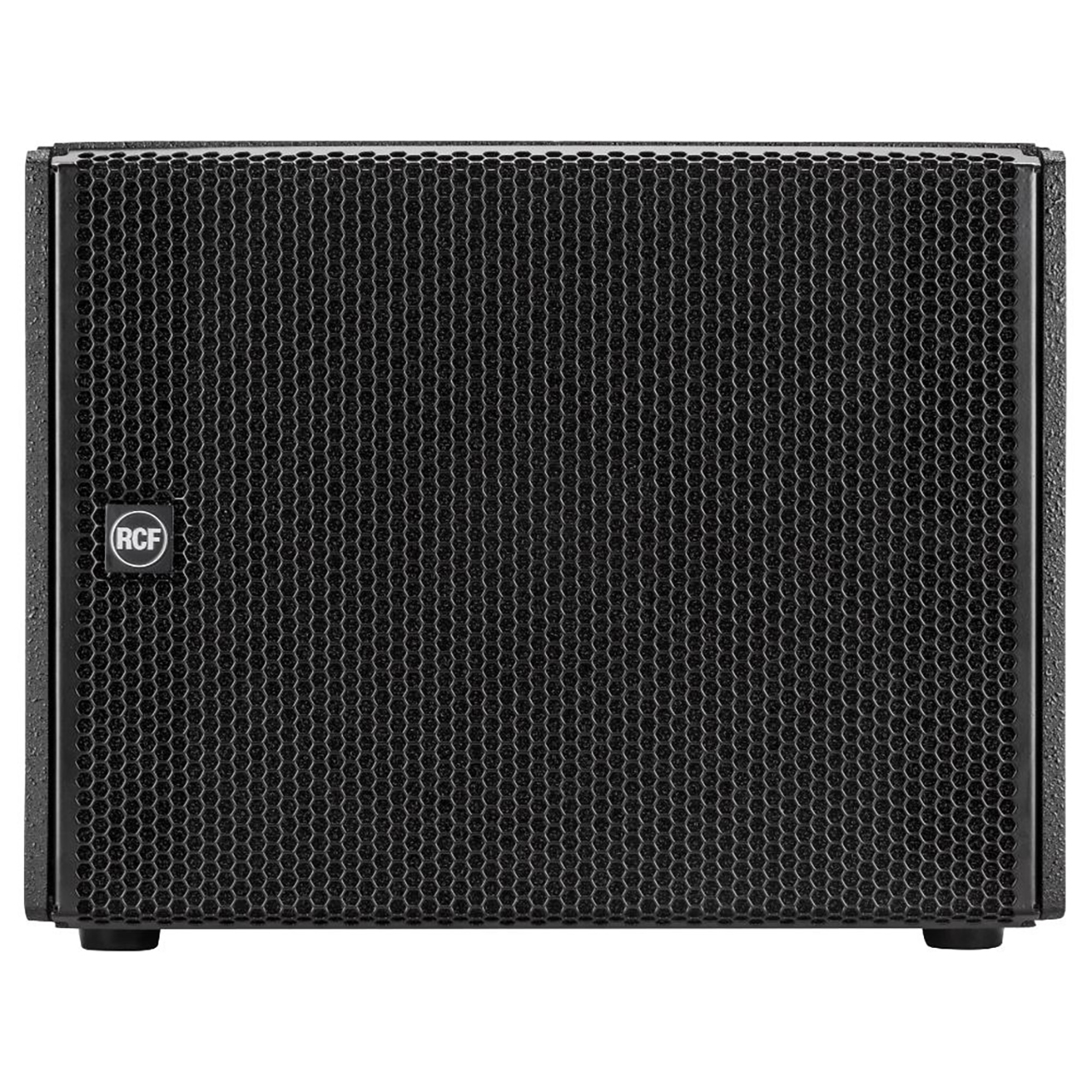

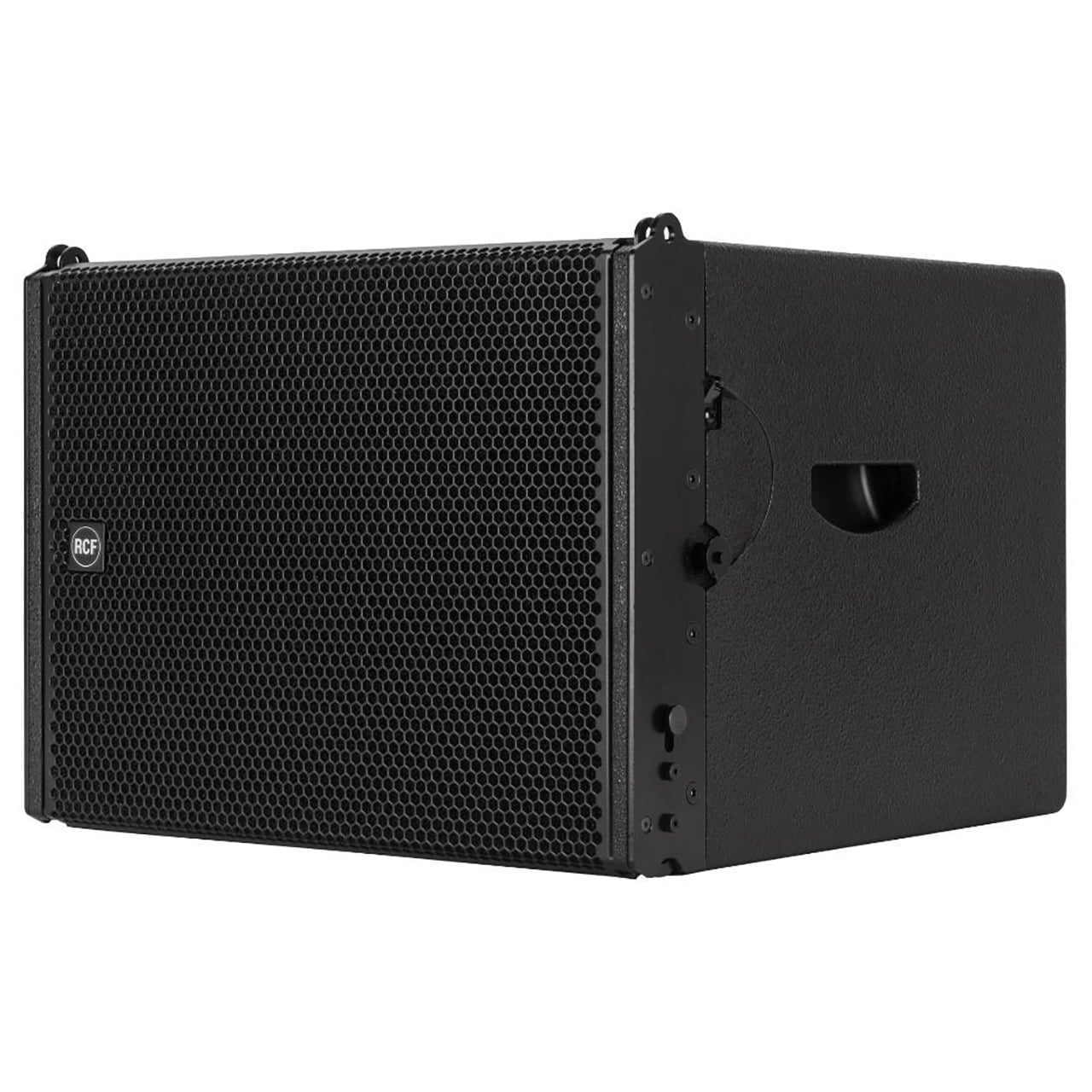

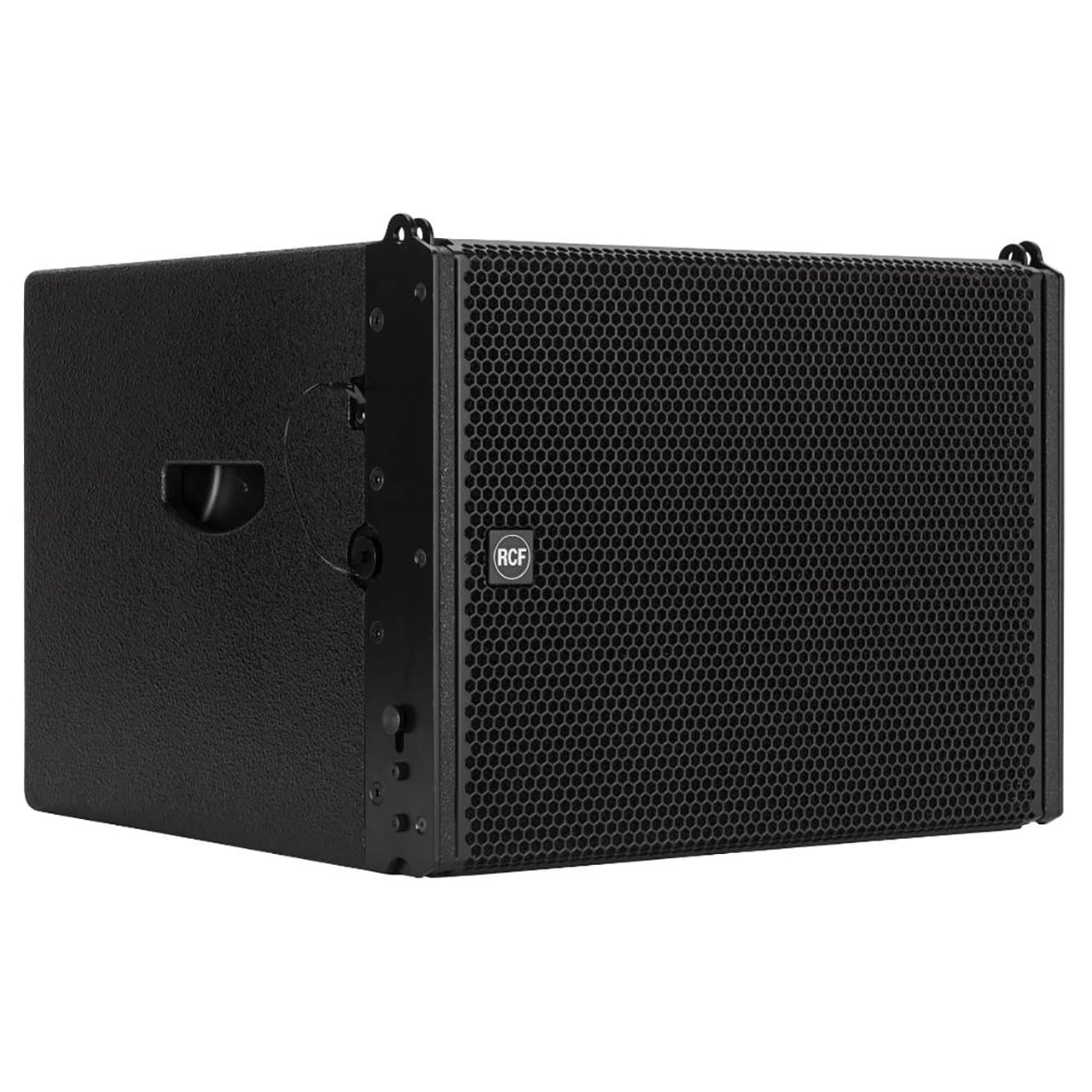

RCF HDL 12-AS Active 1400W 12-Inch Compact Flyable Subwoofer

ITEM #: RCF-HDL12-AS MFG #: HDL12-AS

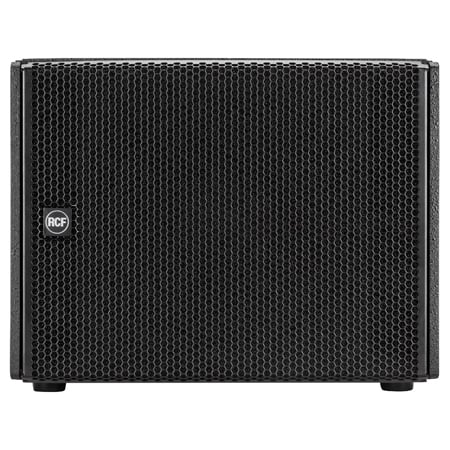

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$3,509.00

Our Price:

$2,199.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


HDL12-AS - Overview

Designed to Compliment the HDL 6-A Speaker System

The RCF HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12" woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.

  • Features:

    • 1400W Peak power - 700W RMS
    • 131dB max SPL
    • 40Hz - 120Hz frequency response
    • Stereo crossover
    • Switchable crossover frequencies
    • Designed to compliment the HDL 6-A speaker system
    • Polarity reverse switch

  • Specifications:

    • Frequency Response: 40Hz - 120Hz
    • Max SPL @ 1m: 131dB

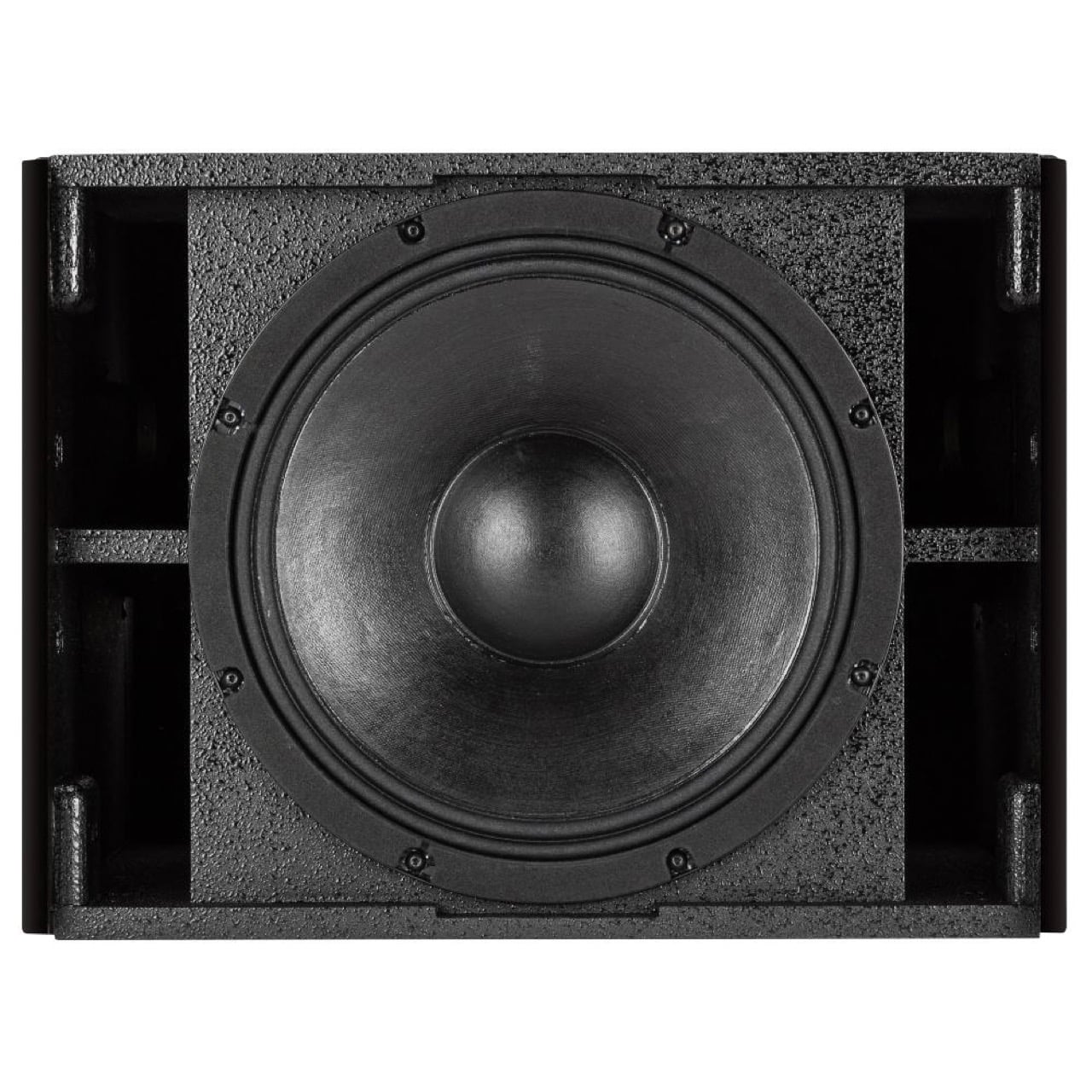

    • Woofer: 1 x 12", 3.0" v.c
    • Input Signal: Balanced and unbalanced
    • Input Connectors: XLR
    • Output Connectors: XLR
    • Input Sensitivity: -2dBu/+4dBu
    • Hi-Pass Frequencies: 40Hz
    • Low-Pass Frequencies: 80Hz, 110Hz
    • Protections: Thermal, RMS
    • Limiter: Soft Limiter

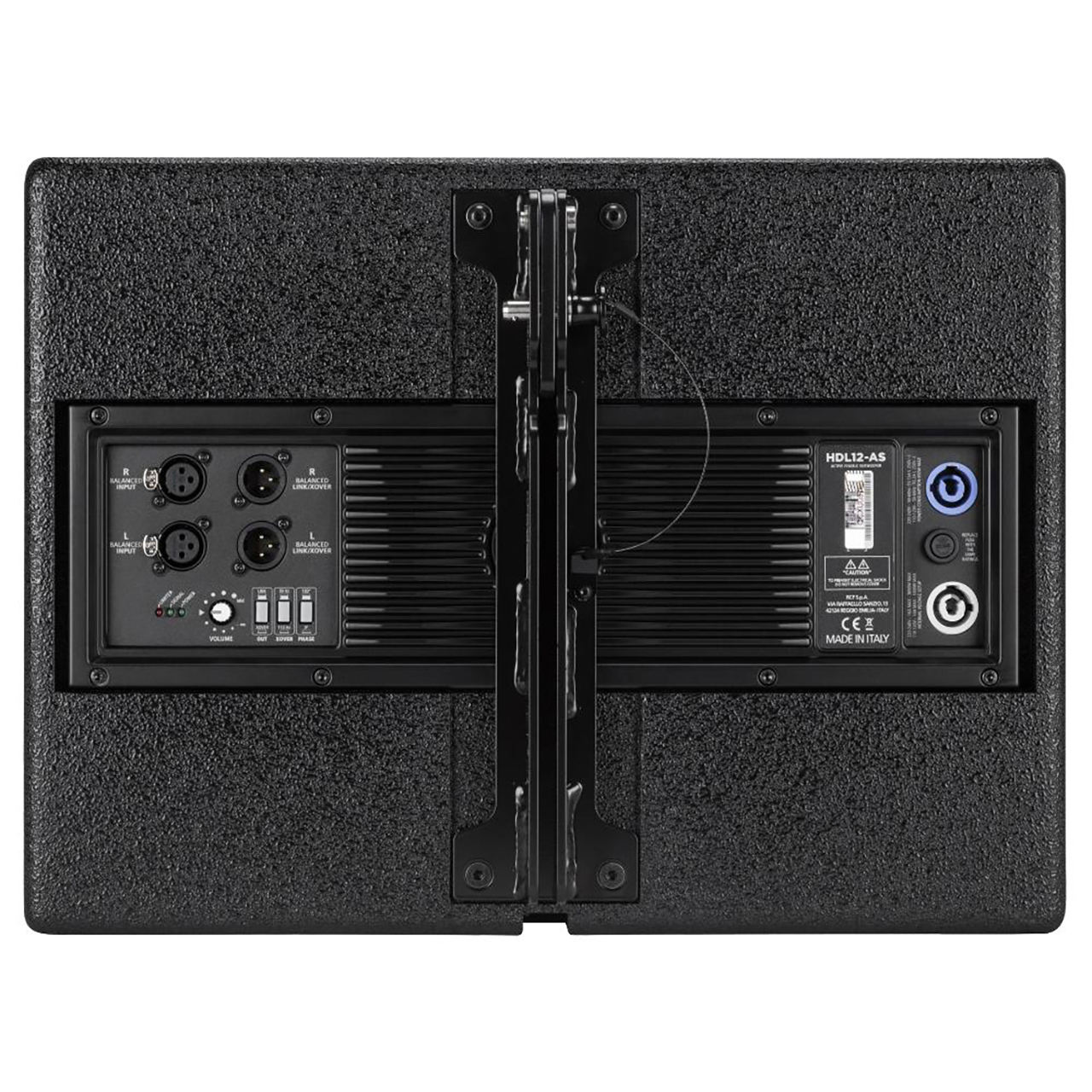

    • Controls:
      - Volume
      - EQ
      - Phase
      - Xover
    • Total Power:
      - 1400W Peak
      - 700W RMS
    • Low Frequencies:
      - 1400W Peak
      - 700W RMS
    • Cooling: Convection
    • Connections: powerCON In and Out
    • Safety Agency: CE compliant
    • Cabinet/Case Material: Baltic birch plywood
    • Handles: 2 side
    • Grille: Steel
    • Dimensions (LxWxH): 20" x 18.5" x 14.92" (508mm x 470mm x 379mm)
    • Shipping Dimensions (LxWxH): 20.47" x 22.05" x 17.13" (520mm x 560mm x 435mm)
    • Shipping Weight: 61.73lbs (28kg)
    • Product Weight: 55.12lbs (25kg)
