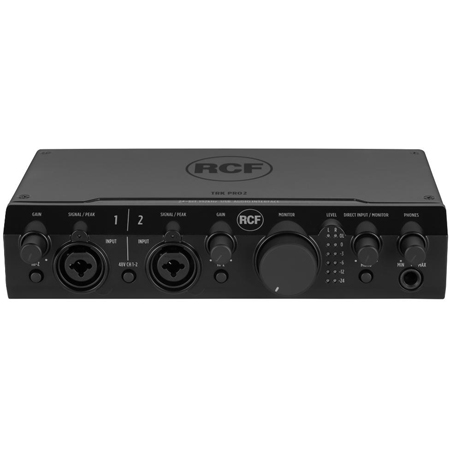

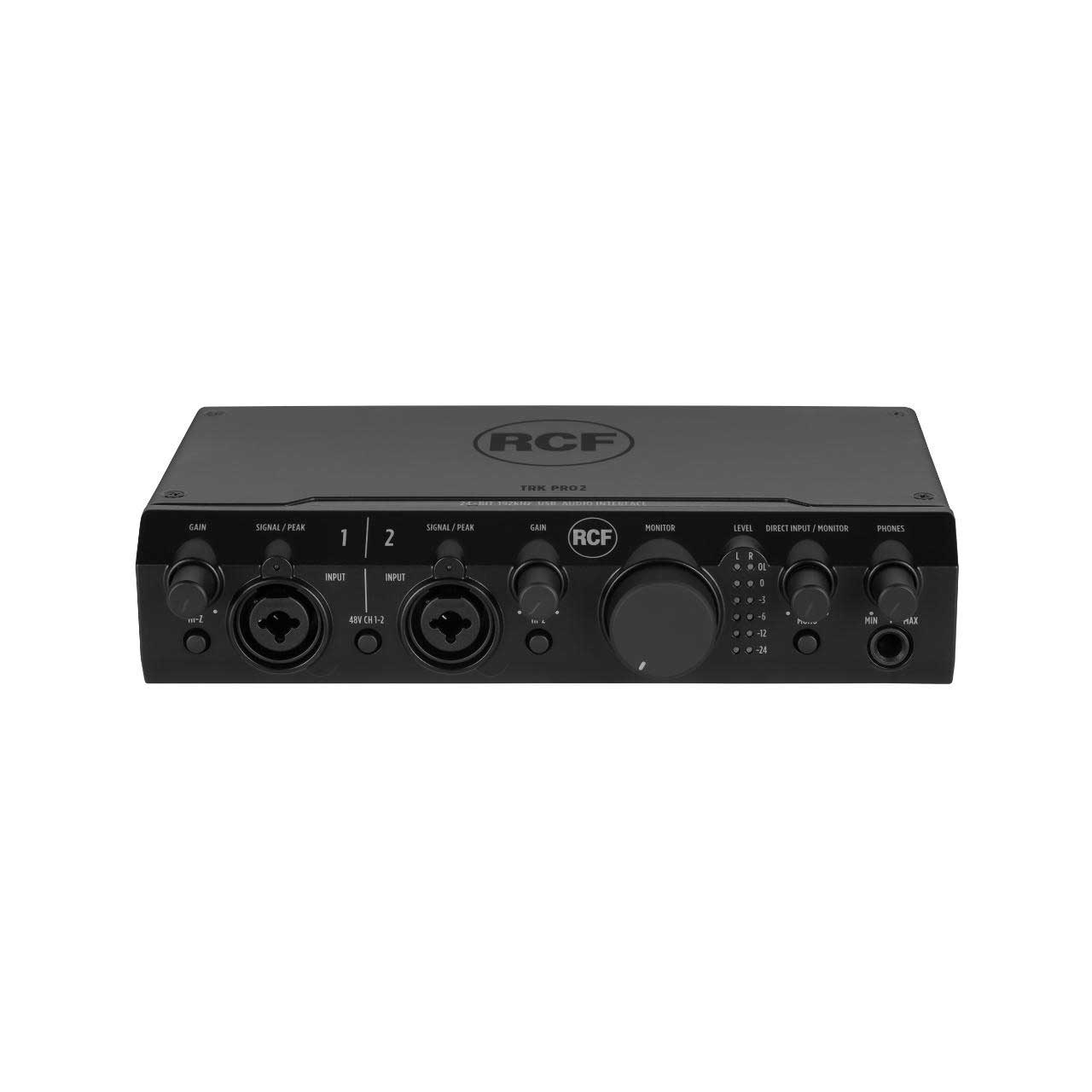

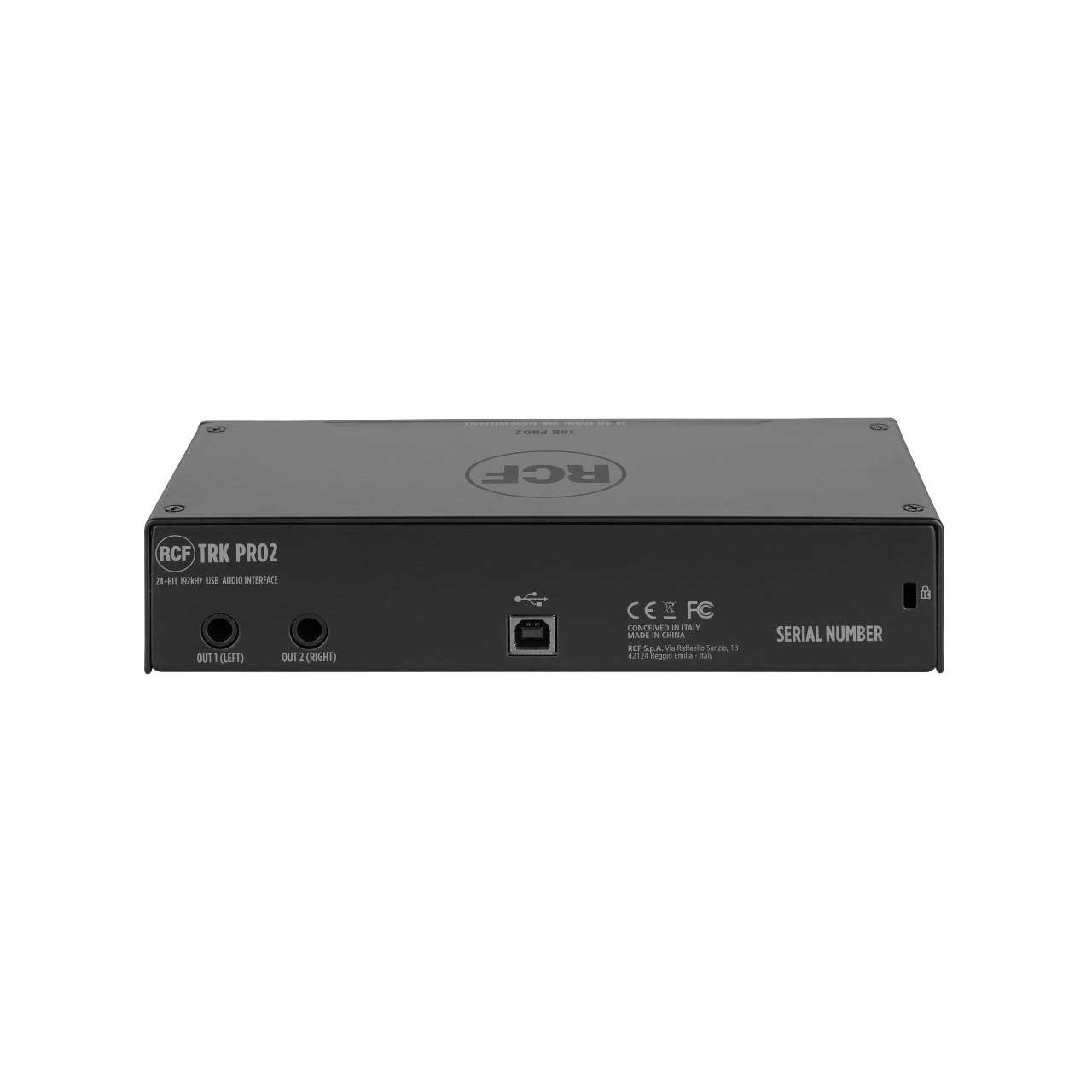

RCF TRK PRO2 24-BIT 192kHz USB Audio Interface

ITEM #: RCF-TRK-PRO2 MFG #: TRK PRO2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
RCF USA Inc
Free Shipping with $49 Minimum Order

List Price:

$349.00

Our Price:

$249.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    TRK PRO2 - Overview

    RCF TRK PRO2 hardware interface packs a robust and well-thought USB 2.0 studio-in-a-box with all the connectivity required for microphones, musical instruments, or line-level signals to a computer running macOS or Windows. The 2-channel internal linear preamp circuit allows the connection of 48V phantom-powered microphones and Hi-Z level instruments. Input signals can be routed to DAW (Digital Audio Workstation) at up to 24-bit, 192 kHz resolution; similarly, software monitoring and direct monitoring can be routed to the balanced outputs with variable mixing ratio. The interface can be connected to an amplifier and speakers, powered monitors, headphones, an analog mixer, or other analog audio devices.

    • Features:

      • 2 In 2 Out USB 2.0 Bus-Powered Audio Interface
      • Up to 24-Bit/192kHz
      • 2 Mic and Instrument/Line Combo input
      • High-Quality Preamps
      • Balanced Output
      • Independent Headphone Volume Control
      • Zero-latency monitoring
      • Independent Gain Control with Signal-Peak LED
      • Perfect for RDNet Measures

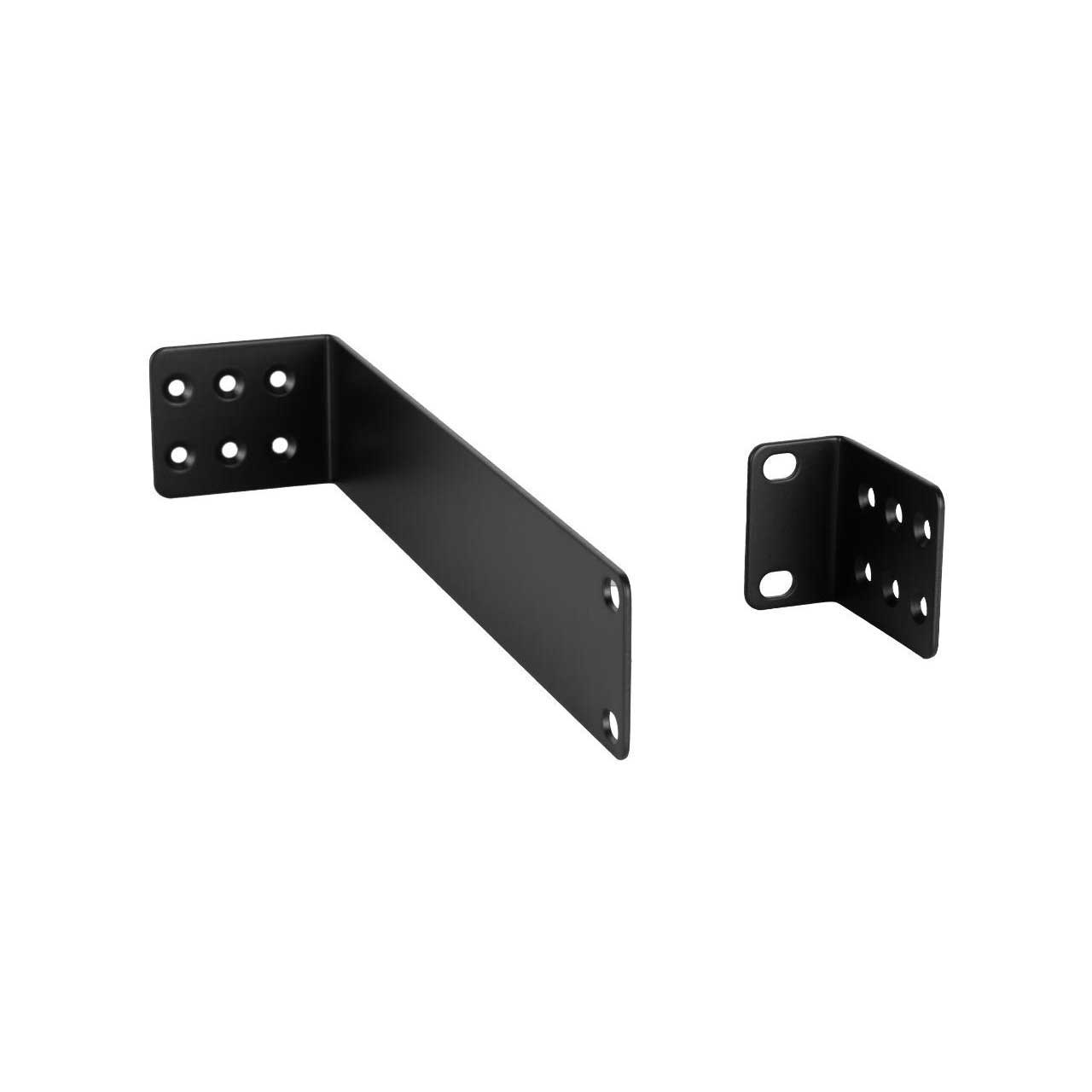

      • Rack Mount Ears included


    • Specifications:

      • Mic Input 1/2 (Balanced)
      • Freq. Response: 20Hz-20kHz, +/-0.1dB
      • THD+N: <0.0011%, -1dBFS, 20Hz-20kHz
      • Noise EIN: < -120dB
      • Dynamic Range: 107dB (A-weighted)
      • Input Impedance: 3.5KOhm
      • Gain Range: -9 dB ~ +47 dB
      • Maximum Input Level: +9 dBu

        Line Input 1/2 (Balanced)
      • Freq. Response: 20Hz-20kHz, +/-0.1dB
      • THD+N <0.0011%, -1dBFS, 20Hz ~ 20kHz
      • Dynamic Range: 107 dB (A-weighted)
      • Input Impedance: 15 kOhm
      • Gain Range: -20 dB ~ +36 dB
      • Maximum Input Level: +20 dB

        Instrument Input 1/2 (Unbalanced)
      • Freq.Response: 20Hz-20kHz,+/-0.1dB
      • THD+N: <0.0025%,-1dBFS,20Hz-20k
      • Input Impedance:1MOhm
      • Gain Range: -10 dB ~+46 dB
      • Maximum Input Level: +10 dBu
      • Dynamic Range: 107 dB (A-weighted)

        Analog Output (Balanced)
      • Maximum Output Level 0dBFS=12dBu
      • Freq.Response: 20 Hz~20 kHz,+/-0.2
      • THD+N: <0.0012%, -1dBFS, 20Hz-20 kHz
      • Dynamic range: 107 dB (A-weighted)

        Headphones Output (Unbalanced)
      • Output Impedance: <10 Ohm
      • Max Output Level: 500 Ohm - 114 mW

        Supported Sample Rates
      • 44.1 kHz, 48 kHz,
      • 88.2 kHz,96 kHz,
      • 176.4 kHz, 192 kHz

        Supported Bit Depth
      • 16 Bit, 24 Bit

        Standard Compliance
      • Safety agency: CE compliant

        Physical Specifications
      • Cabinet/Case Material: Steel
      • Hardware: Rack mount ears included
      • Color: Black - RAL 9005
      • Rack mounting: 1/2 19-Inches, 1U

        Size
      • Height: 46mm / 1.81"
      • Width: 210mm / 8.27"
      • Depth: 125.8mm / 4.95"
      • Weight: 0.85kg / 1.87Lbs

        Shipping Information
      • Package Height: 80mm / 3.15"
      • Package Width: 160mm / 6.3"
      • Package Depth: 267mm / 10.51"
      • Package Weight: 1.2kg / 2.65Lbs


    • GTIN:

      8024530019785
