Radio Design Labs DB-J3M Mic/Line Input Assembly - XLR - Mini Jack - Terminal Block - Black

ITEM #: RDL-DB-J3M MFG #: DB-J3M

free ship

List Price:

$87.23

Our Price:

$78.52

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    DB-J3M - Overview

    The D SERIES-J1, -J2 and -J3 are audio input accessories from Radio Design Labs offered in Decora® plates. The D SERIES panels are finished in RDL's grey/white, black or in stainless steel. These input panels are intended for installations demanding the ultimate in professional styling combined with durability, longevity and value. The D SERIES-J1, -J2 and -J3 fit directly into RDL back boxes (WB-1U, WB-2U) to fit cabinets, US or international walls. The back of each panel assembly is finished with a metal enclosure clearly labeled for easy installation.

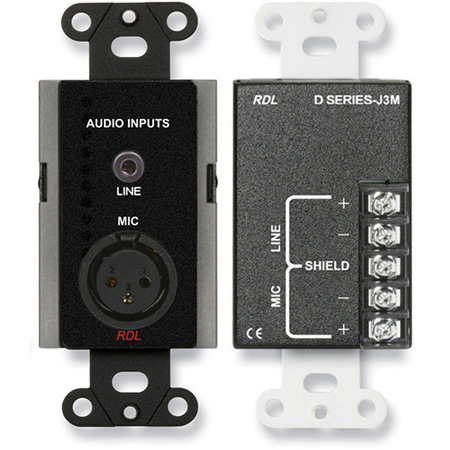

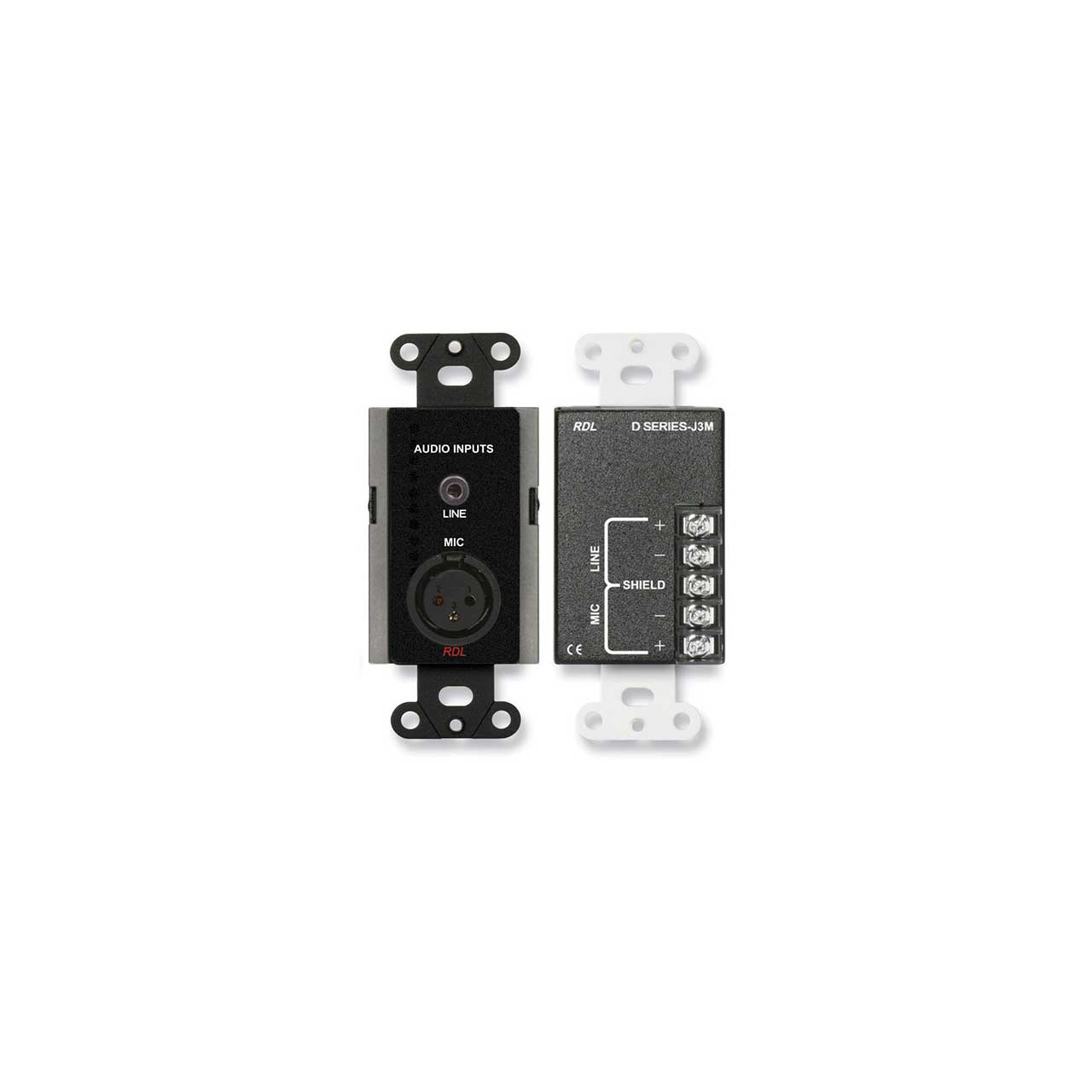

    The D SERIES-J3 is a complete audio input panel assembly. The front panel features a female XLR jack and two phono jacks. The XLR is connected directly to the rear-panel barrier block. The phono inputs are identical to the -J2.

    • Features:

      • Wall Mounted Audio Inputs
      • XLR Microphone Input with Gold Contacts
      • Mini-Jack Line Inputs
      • Hum Cancellation on Unbalanced Line Inputs
      • Transformer Isolation for Unbalanced Line Inputs
      • Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs

    • Specifications:

      • Input Connectors(2): XLR female with gold contacts (1), Phono jacks with gold contacts (2)
      • Output Connector: Terminal Block
      • Output Connections (5): Line: +, -, SHIELD, Mic: SHIELD (XLR Pin 1), + (XLR Pin 2), - (XLR Pin 3)
      • Frequency Response: 30 Hz to 20 kHz (+/-1 dB line level)
      • Power Requirement: Passive (all models)
      • Dimensions HxWxL: 4.13 x 1.7 x 2.15 Inches
      • Package Type: Cardboard Box
      • Weight: 0.505 Lbs
