RDL TX-TPS6A Passive Single-Pair Sender - Twisted Pair Format-A - Balanced audio line input

ITEM #: RDL-TX-TPS6A MFG #: TX-TPS6A

free ship

List Price:

$147.11

Our Price:

$102.16

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    TX-TPS6A - Overview

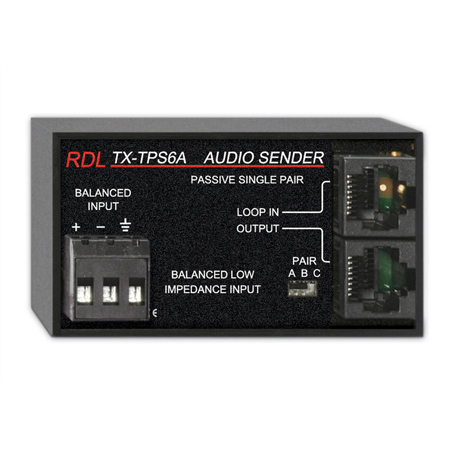

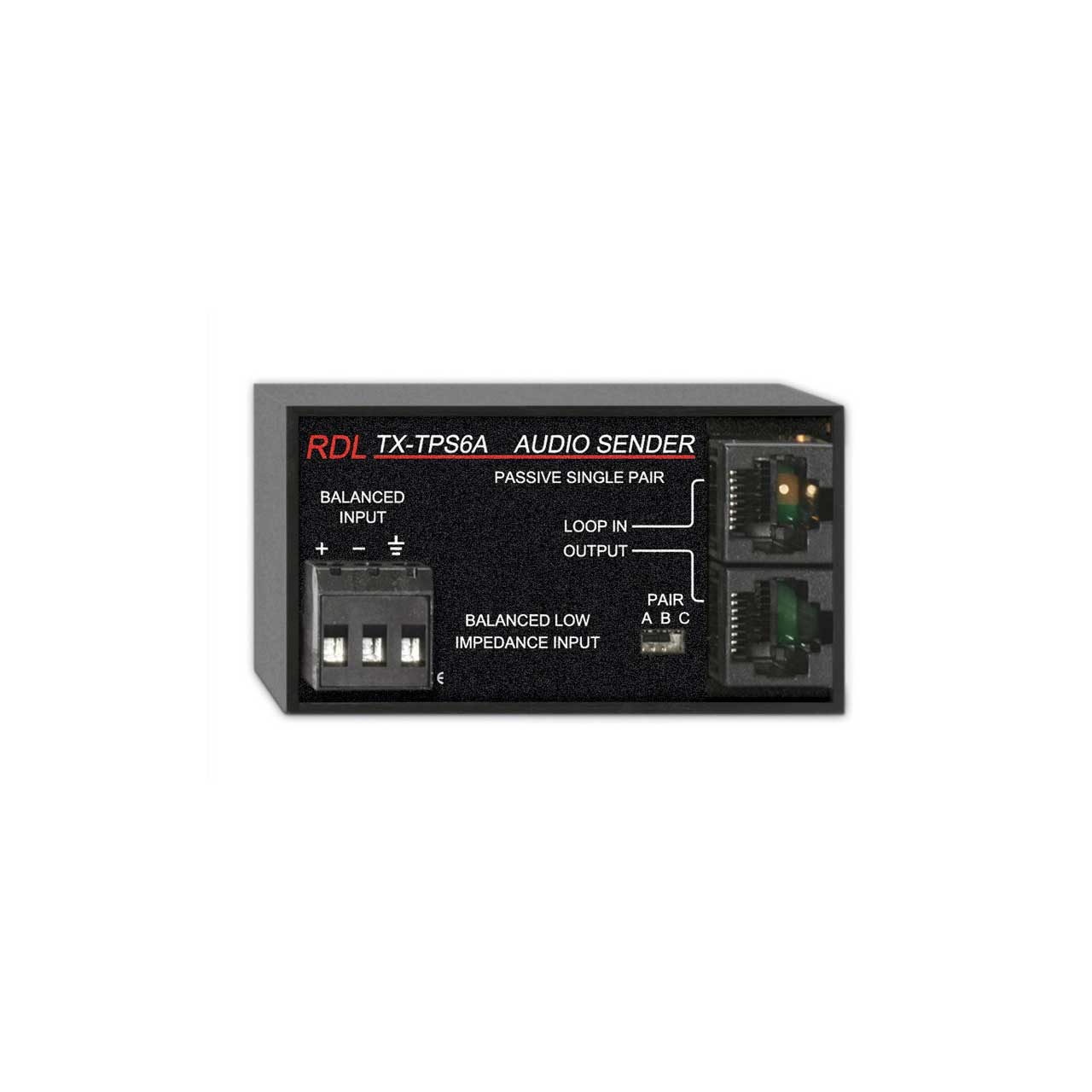

    The TX-TPS6A is a single-pair audio sending module compatible with RDL Format-A twisted pair products. One low-impedance +4 dBu balanced line-level audio source connects to the module using the detachable terminal block. A studio-quality transformer provides isolation between the audio source and the RJ45 OUTPUT.The TX-TPS6A is a single-pair sender, feeding the input signal to the cable pair set on the front-panel switch during installation. This module drives only one cable pair, therefore a LOOP IN RJ45 jack is provided to accept signals and power from other mic-level or line-level Format-A senders. Two other single-pair senders may be chained to the LOOP IN jack, or a single two-pair sender may be connected. If three single-pair senders are connected together, each sender must feed a different pair: A, B or C. The TX-TPS6A must be set to feed pair A if it is connected together with an RDL two-pair sender that feeds stereo audio on pairs B and C.The TX-TPS6A is a passive module that does not require power to operate. If power is present on a cable connected to the LOOP IN jack, that power is passed through to the modules connected to the OUTPUT jack.

    • Features:

      • Single +4 dBu Low-Impedance Balanced Audio Input
      • Input on Detachable Terminal Block
      • Switch Selects which RJ45 Pair (A, B or C) is Fed
      • Signal and Power Pair Pass-Through from LOOP IN Jack
      • Passive Circuitry Does Not Require Power
      • Galvanic Isolation through a Studio-Quality Transformer
      • Daisy-Chain with Single-Pair or Two-Pair Format-A Senders

    • Specifications:

      • Input: Low-impedance Balanced; Recommended source impedance < 150 ΩInput Connection: Detachable Terminal Block (Balanced)Input Level: +4 dBu balanced; +22 dBu Max
      • Format-A Signal Pair Used: Switch-selectable A, B, or C
      • Format-AInput: RJ45 LOOP IN
      • Output: RDL TP Format-A
      • Output Connection: RJ45
      • Frequency Response: 20 Hz to 20 kHz (± 0.1 dB)
      • THD+N: < 0.035% (50 Hz to 20 kHz, +4 dBu); < 0.1% (20 Hz to 20 kHz, +4 dBu)
      • Headroom above +4 dBu: > 18 dB
      • CMRR: > 85 dB (50 Hz to 150 Hz)Ambient Operating Environment: 0° C to 50° CPower Requirement: PassiveDimensions: 3.0" (7.6 cm) W; 1.6" (4.08 cm) H; 2.09" (5.3 cm) DPackage Type: Cardboard Box
      • Package Dimensions: 2 x 2 x 4 in.
      • Shipping Weight: 0.695 lbs.
      • WEEE weight: 0.645 lbs.
      • Tariff code: 8517.18.0000

    • GTIN:

      0813721016201
