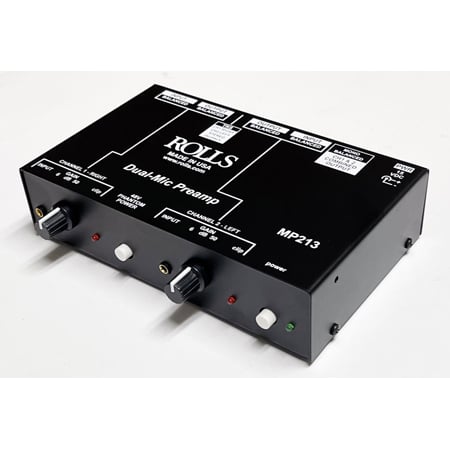

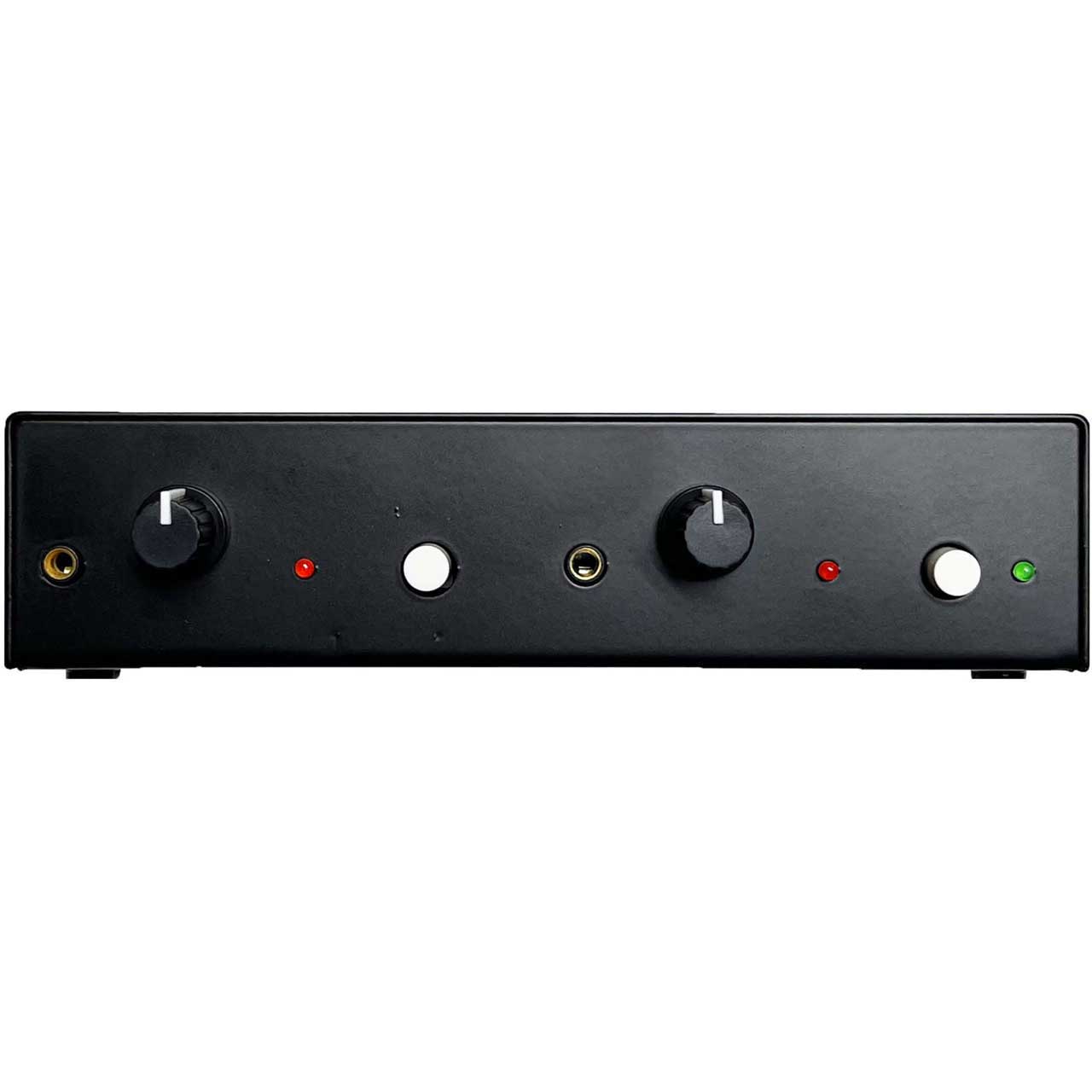

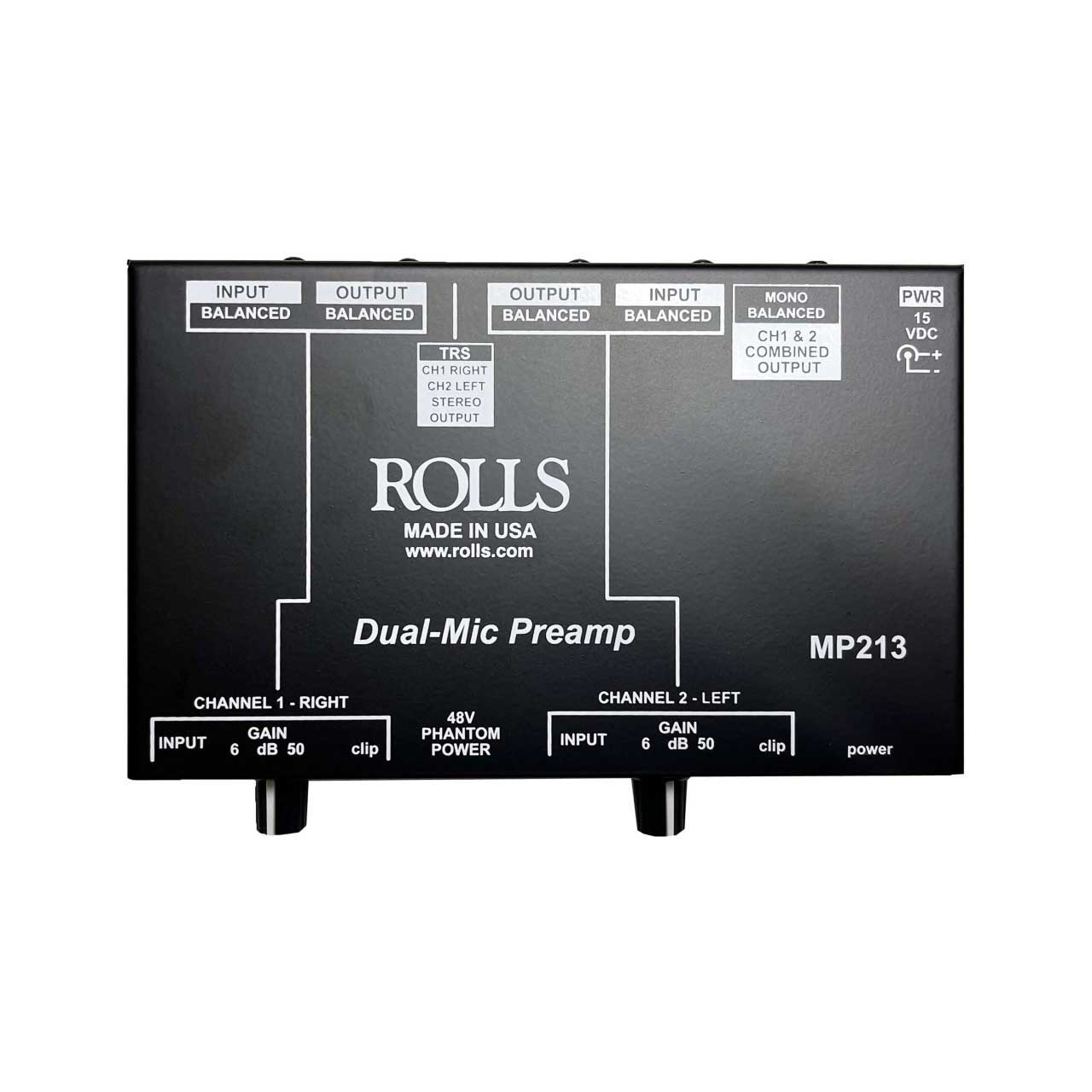

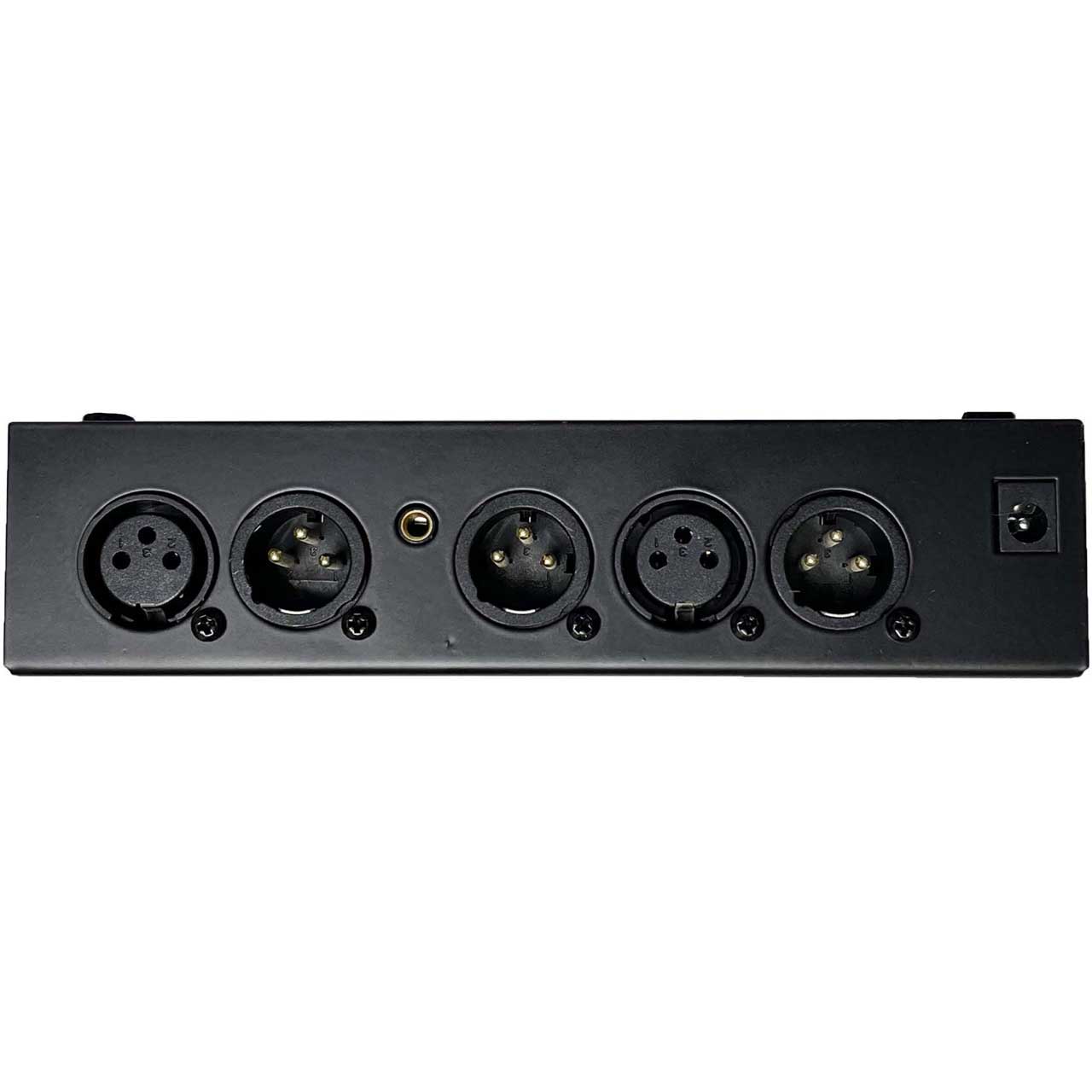

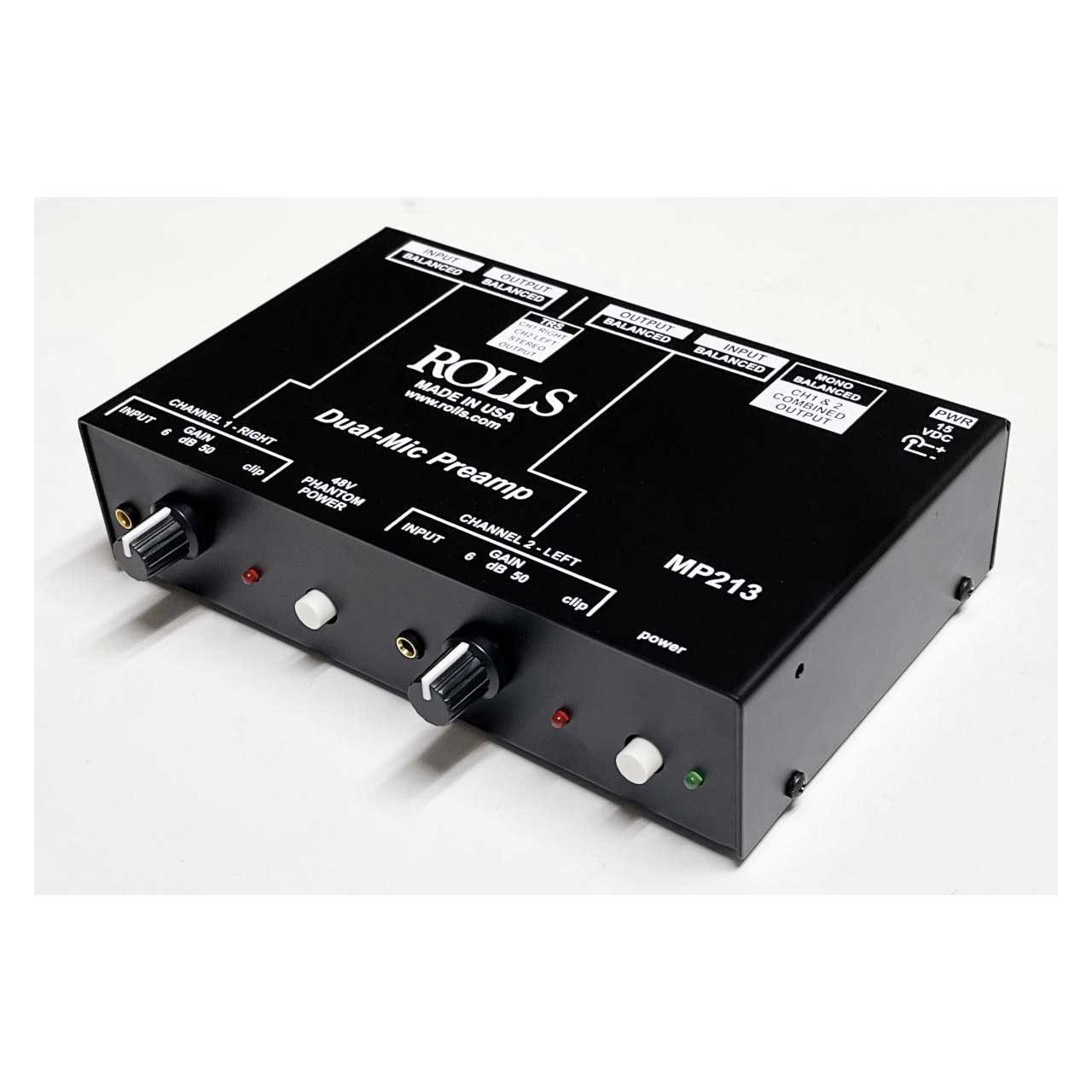

Rolls MP213 Dual-Mic Preamp with XLR and 1/8 Inch Inputs/Outputs

ITEM #: RLS-MP213 MFG #: MP213

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$189.00

Our Price:

$149.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    MP213 - Overview

    Your Ultimate Microphone Pre-Amplification Solution

    Introducing the Rolls MP213: Your Ultimate Microphone Pre-Amplification Solution

    Experience top-notch microphone pre-amplification with the MP213, a versatile unit tailored for various applications. Equipped with both XLR and 1/8" inputs, as well as XLR and 1/8" outputs, this compact device offers unparalleled convenience.

    With individual Gain controls and Clip LED indicators for each channel, achieving the perfect audio balance is now effortless. Additionally, the +48v Phantom power feature supports condenser microphones, ensuring professional-grade performance.

    The MP213 stands out with its specially designed 1/8" stereo output, catering to both camera microphone mixing and monitoring needs. Seamlessly adapt to different setups with this multipurpose output option.

    Built to deliver studio-grade performance, the MP213 utilizes a servo-balanced instrumentation amplifier, setting it apart from competitors using transistor inputs. This exceptional design provides an impressive 40 dB better common mode rejection ratio (CMRR) and significantly lower distortion.

    Embrace superior audio quality and versatility with the MP213-a small package that packs a powerful punch for all your microphone pre-amplification requirements.

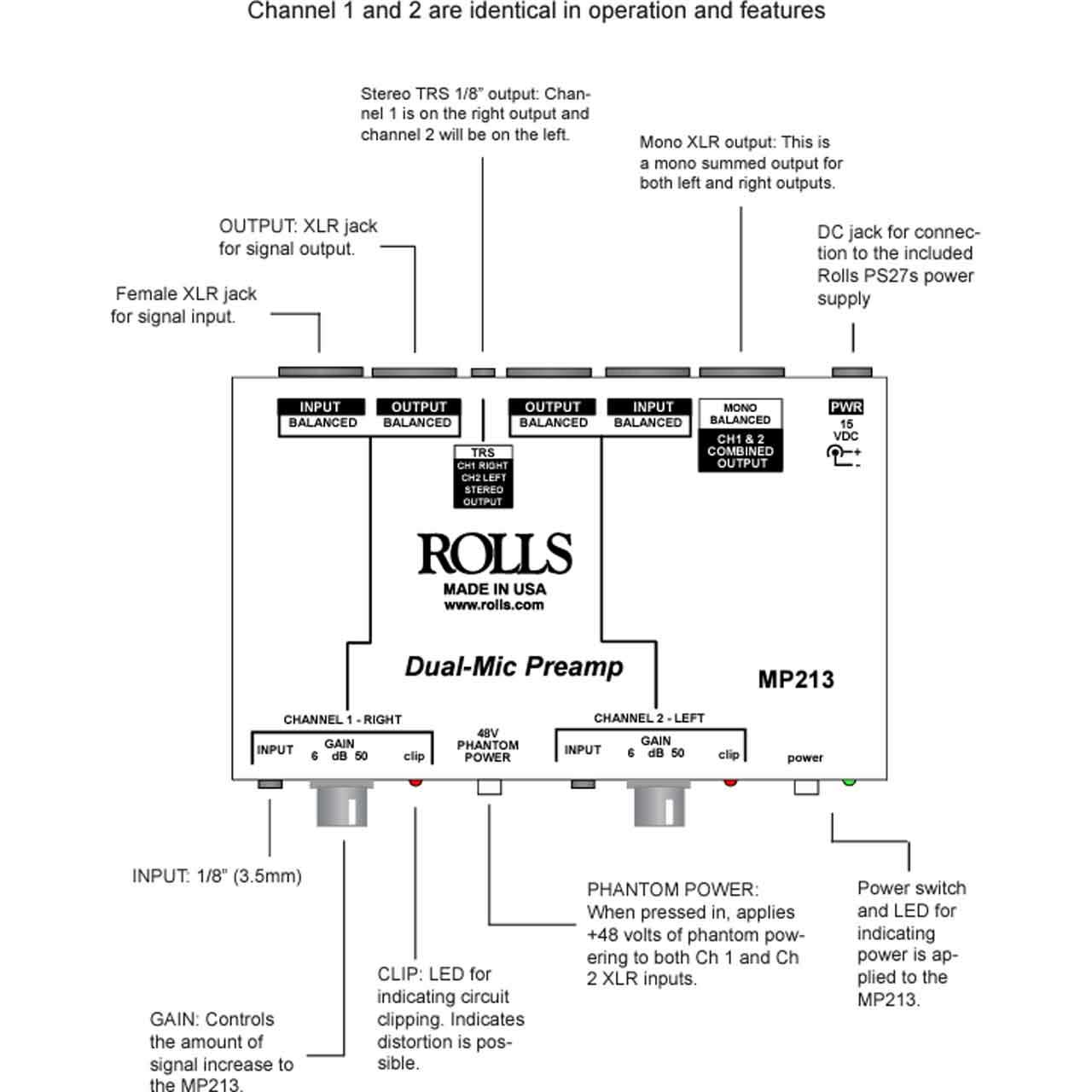

    • Features:

      • XLR and 1/8" Mic Inputs
      • XLR Outputs
      • Dual channel summed mono XLR output
      • Gain Controls
      • Clip LED indicators
      • 1/8" Output for stereo microphone recording or monitoring
      • +48 Volt Phantom Power

    • Specifications:

      • Inputs: XLR, 1/8" (3.5mm) TRS balanced Mic In
      • Outputs: XLR balanced, 1/8" Stereo
      • Input Impedance: 10K Ohms bal, unbal.
      • Max Input Level: +4 dBV XLR bal, +10 dBV unbal.
      • Max Gain: 60 dB/XLR, 54 dB 1/4"
      • Phase Shift: <10 deg. 20 Hz - 20 kHz
      • EIN: -108 dB max.
      • THD: <.01%
      • IMD (SMPTE): <.01%
      • CMRR: > 80dB
      • Phantom Power: +48 Volts, 6 mA
      • Power: 15 VDC adapter
      • Weight: 1 lbs (.45Kg)
      • Dimensions: 6.75" x 4.2" x1.4"

    • Item Includes:

      • 1x Rolls MP213 Dual-Mic Preamp
      • 1x 15V power supply PN PS27s
      • 1x Owners manual

    • Warranty:

      • 1-Year Limited Warranty
