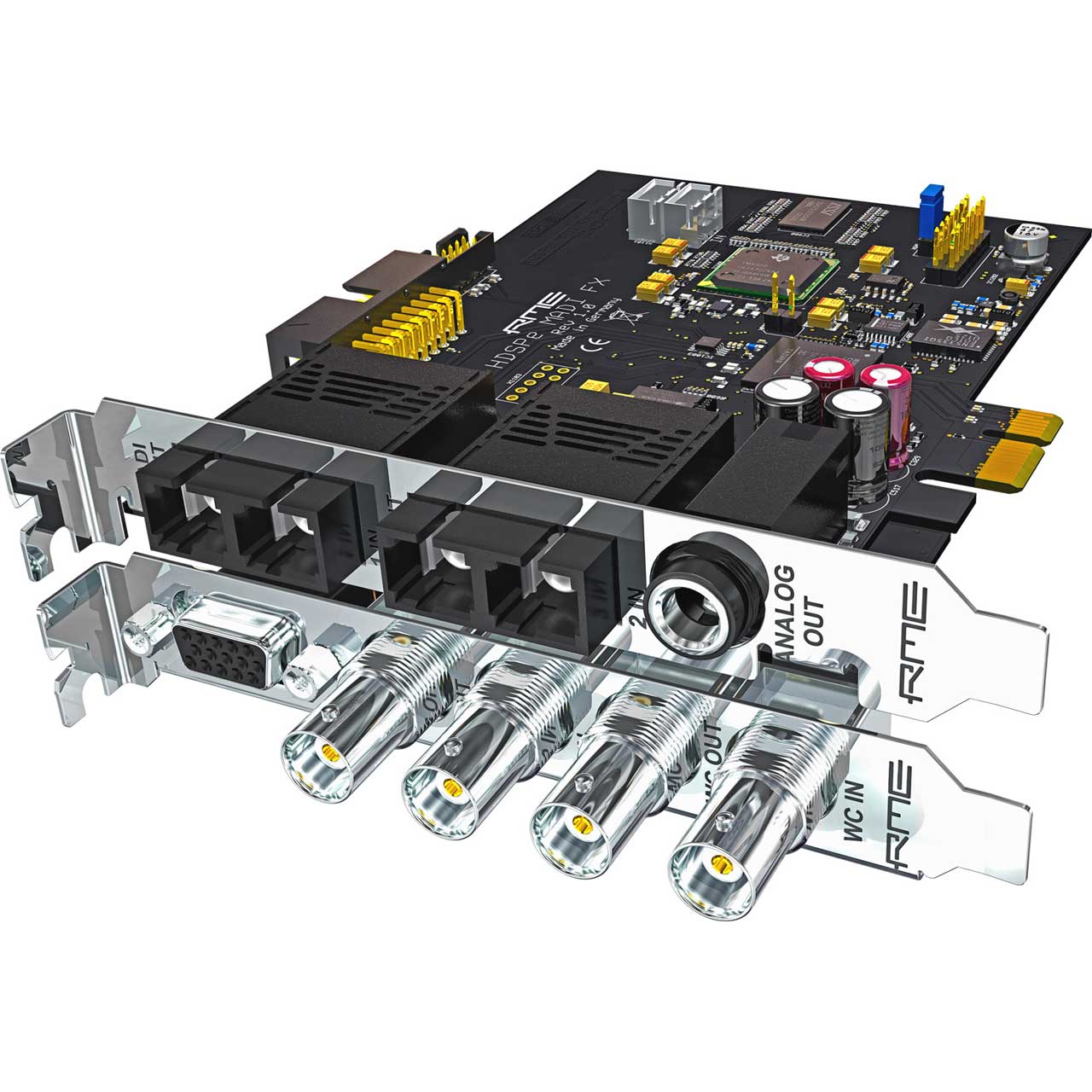

RME HDSPe MADI FX 390-Channel 24 Bit/192 kHz Triple MADI PCI Express Card

ITEM #: RME-HDSPMADI-FX MFG #: HDSPE MADI FX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,399.00

Our Price:

$1,999.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    HDSPE MADI FX - Overview

    The RME Audio HDSPe MADI FX marks a new milestone both in the history of audio interface cards in the past two decades and within the long series of outstanding RME devices. Never before has such a high-performance multi-channel audio system existed.

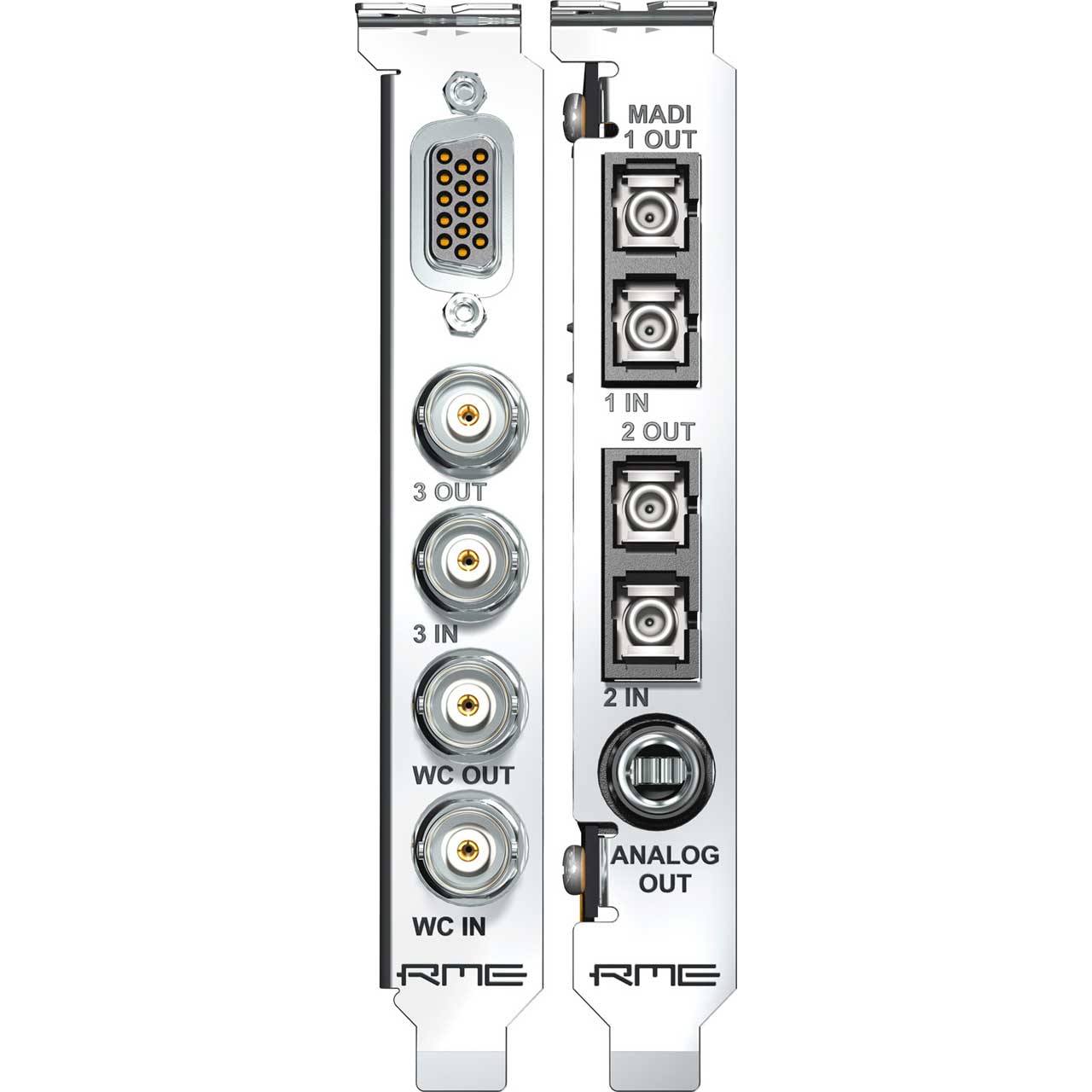

    The HDSPe MADI FX features 390 audio channels! Three MADI I/Os - two optical and one coaxial ?are accompanied by one AES/EBU I/O and one analog monitoring output. To complete the feature set, a Word Clock connection and four MIDI I/Os were added. The complete technology and connectivity are highly integrated into the smallest possible amount of space - typical for RME. Only one PCIe slot is required on the motherboard, plus one free slot opening on the case.

    To guarantee RME?s unique low latency performance with such a huge amount of audio channels, the HDPSe MADI FX introduces a newly developed modular Hammerfall Pro Audio Core. The high-tech core will process three times as many channels as the channel count of the previous MADI flagship, while actually reducing the system load and enabling ultra-low latencies down to 32 samples on modern computers.

    A sophisticated new efficiency technology will automatically deactivate currently unused channels, so that they require no processing power or bandwidth. A simple stereo playback will not require any more performance than from a standard stereo audio card - despite the use of a professional multi-channel system with almost 400 channels.

    • Features:

      • PCI Express Interface
      • 194 input- / 196 output channels = 390 channels
      • 3 x MADI I/O (2 x optical + 1 x coaxial)
      • AES/EBU I/O (via breakout cable)
      • 3 x virtual MIDI I/O over MADI
      • 1 x MIDI I/O via 5-pin DIN (breakout cable)
      • Stereo Analog Out
      • Word Clock I/O
      • TotalMix FX with 192 kHz effects engine
      • 1-Lane PCI Express Endpoint device (no PCI Express to PCI Bridge), revision 1.1.
      • 2.5 Gbps line speed
      • Packet-based full-duplex communication (up to 500 MB/s transfer rate)
      • All settings changeable in real-time
      • Automatic and intelligent master/slave clock control

    • Specifications:

      • Sync sources: MADI coaxial, MADI optical, AES/EBU, word clock, internal
      • Varipitch: by input signal or word clock
      • Sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (Sync/word clock)
      • Sample rate range: MADI: 32 kHz - 96 kHz, word clock: 27 kHz - 200 kHz
      • Jitter: < 1 ns, internal and all inputs
      • Jitter sensitivity: PLL operates even at 100 ns Jitter without problems
      • Comes with DIGICheck: the ultimate measurement, analysis and test tool
      • Input word clock: Signal Adaptation Circuit (functional from 1.2 Vpp input signal), switchable termination
      • Output word clock: BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
      • MIDI input and output: via two 5-pin DIN jacks

        Stereo Monitor Output (Phones):
      • Signal-to-Noise (DR): 110 dB RMS unweighted, 113 dBA @ 44.1 kHz
      • Channel separation: > 100 dB
      • Output: 6.3 mm TRS
      • Output impedance: 75 Ohm
      • Output level at 0 dBFS: +13 dBu

    • GTIN:

      4260123362850
