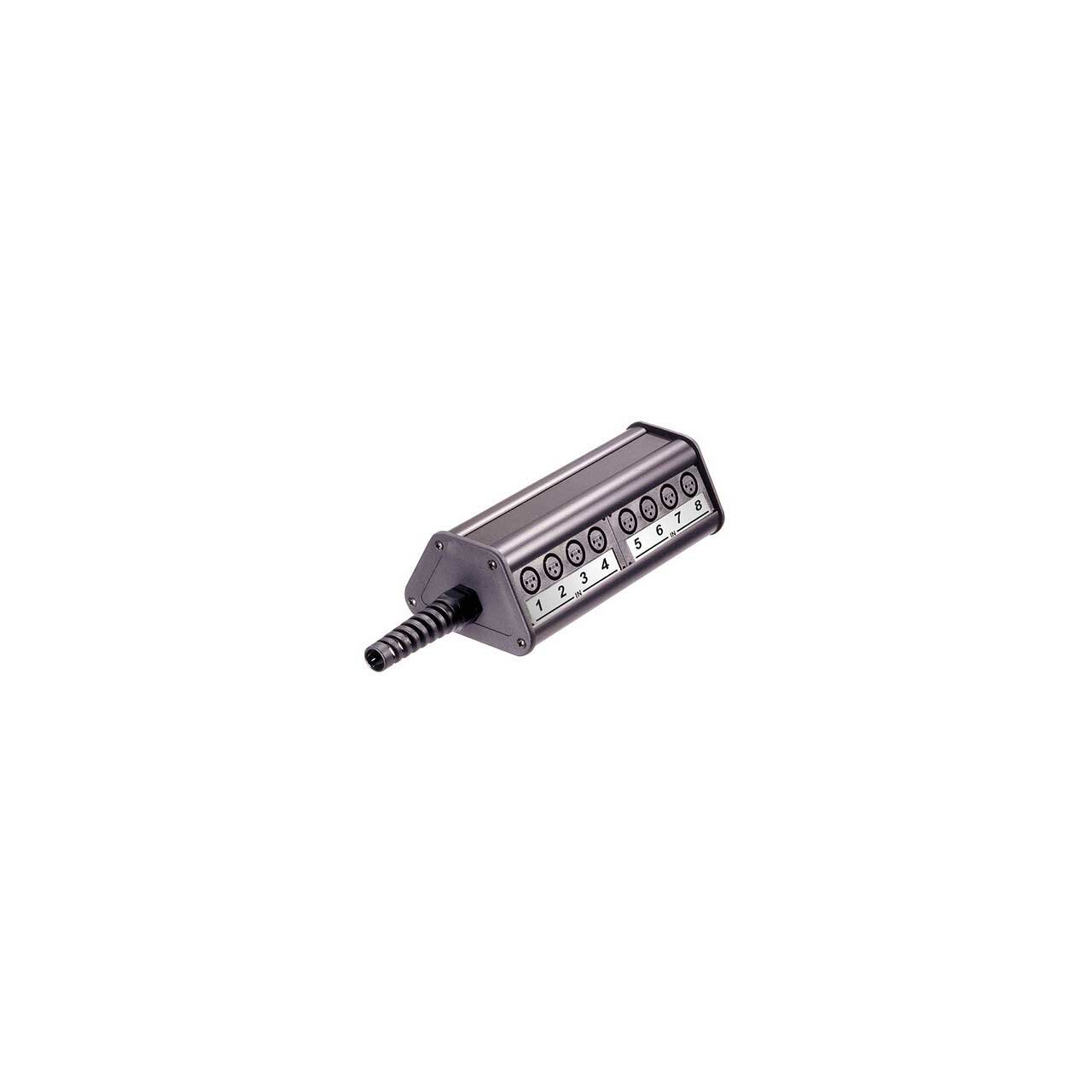

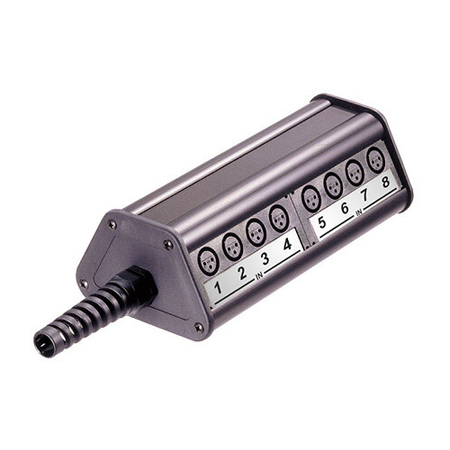

Rean NSB2B-16/0 Type B Modular Stage and Patch Box - 16 Inputs - Female/Send

NSB2B-16/0 - Overview

The Easy Way to Link your Audio System

• Features:

  • Metal housing - reliable and robust

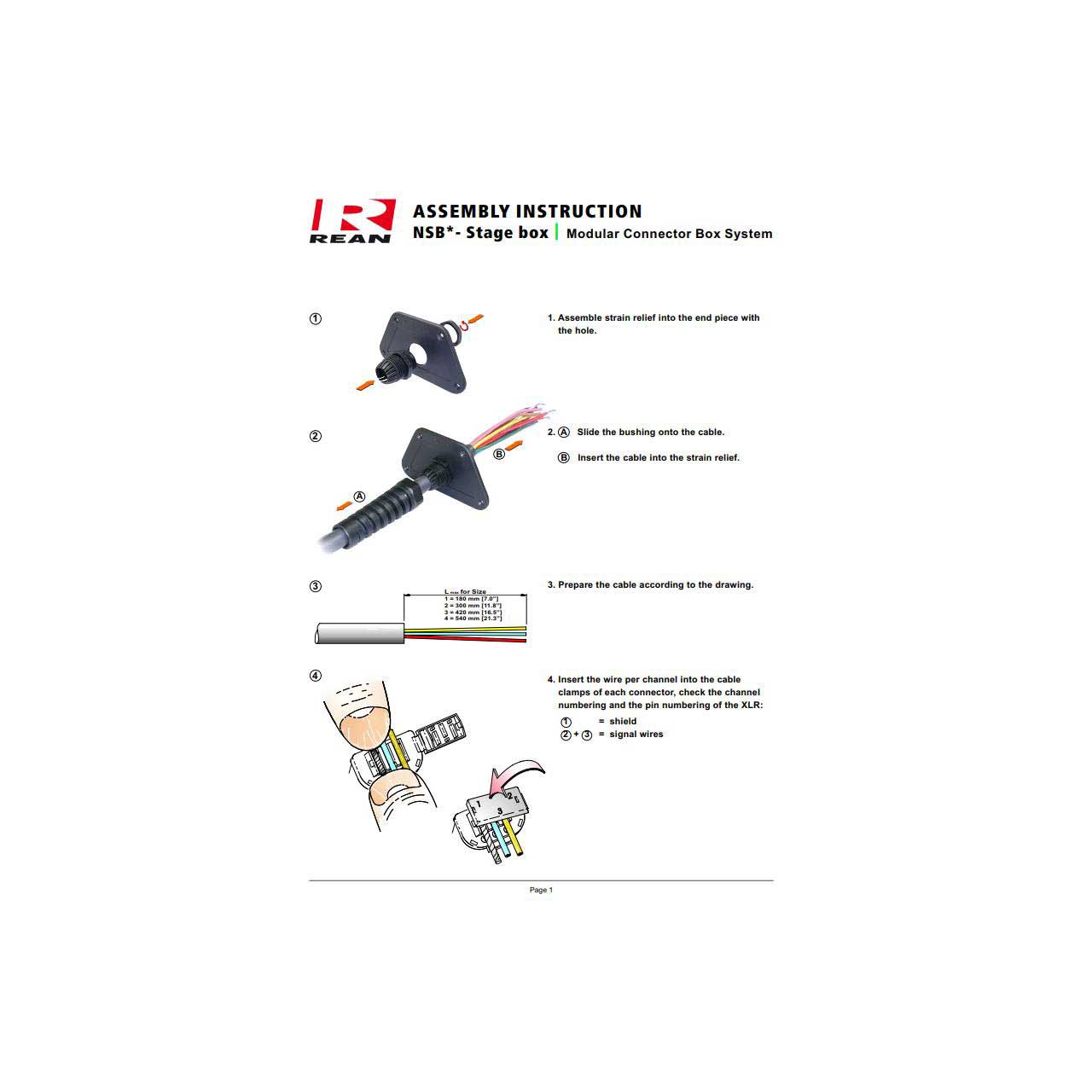

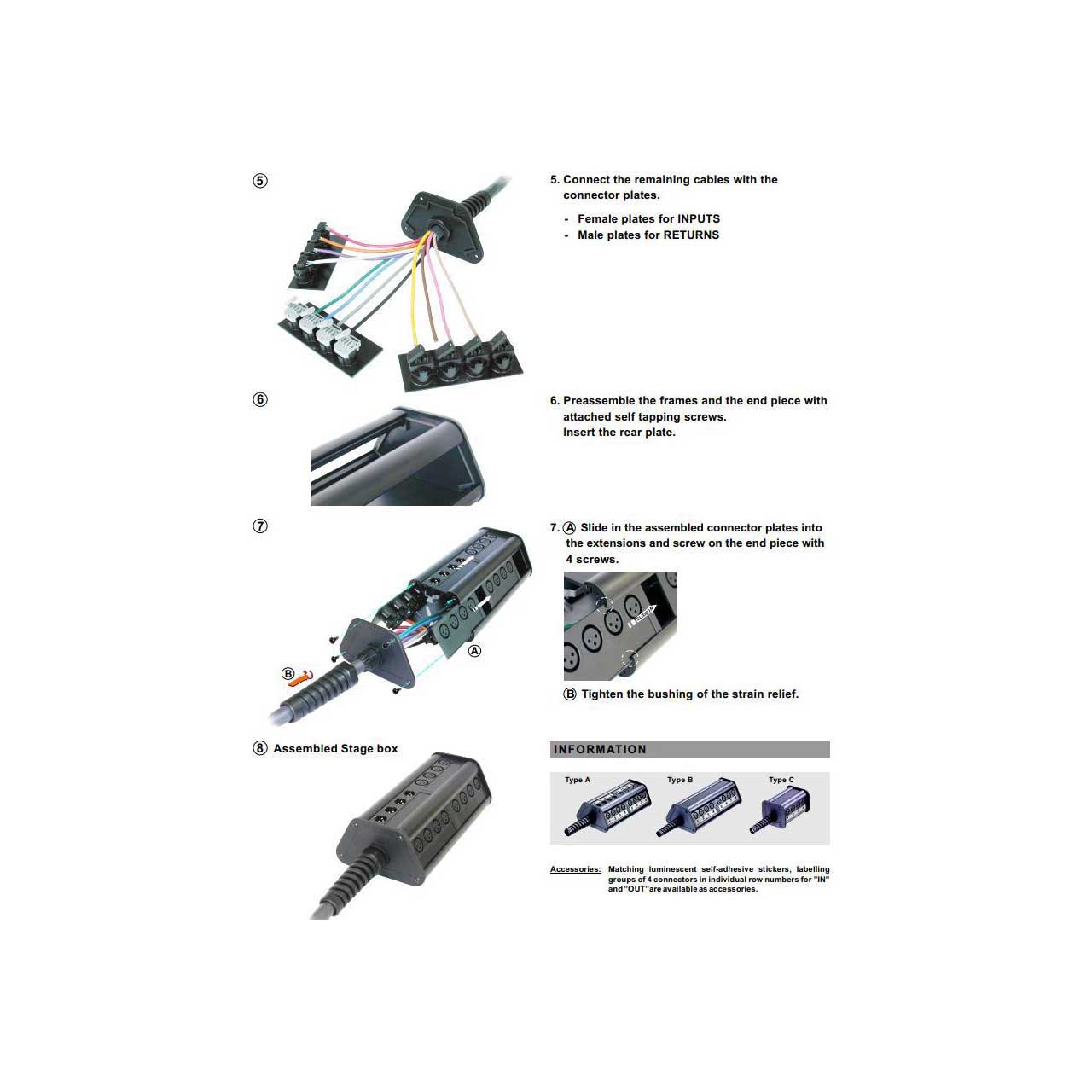

  • Easy to assemble, simple to use
  • Modular system for individual size and configuration
  • Designed to be in an individual combination of connectors for "IN" and "OUT" and length
  • 3 pole XLR IDC receptacles eliminate stripping and tinning of wires
  • Self-adhesive labels for channel numbering must be ordered separately
  • Extremely price competitive


• Specifications:

  • Electrical
  • Dielectric strength: 0.5 kVdc
  • Rated current per contact: 2 A

    Mechanical
  • Cable O.D.: 13 - 18 mm multicore
  • Insertion force: < 10 N
  • Withdrawal force: > 10 N
  • Lifetime: > 1000 mating cycles
  • Wiresize 0.22 and 0.14 mm²
  • Wiresize 24 and 26 AWG

    Material
  • Shell: Aluminium
  • Quad plates: POM
  • End pieces: Thermoplastic

    Environmental
  • Temperature range -25 °C to +70 °C


• Item Includes:

  • 1x Rean NSB2B-16/0 Box with all hardware and parts including plates, profiles, strain relief, end pieces, and screws.


• Warranty:

  • 3-Year Limited Warranty


• GTIN:

  0743406321002
