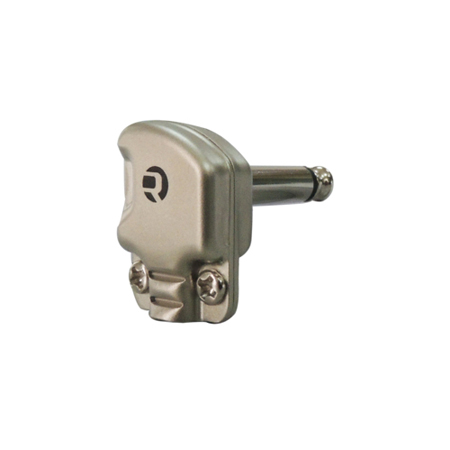

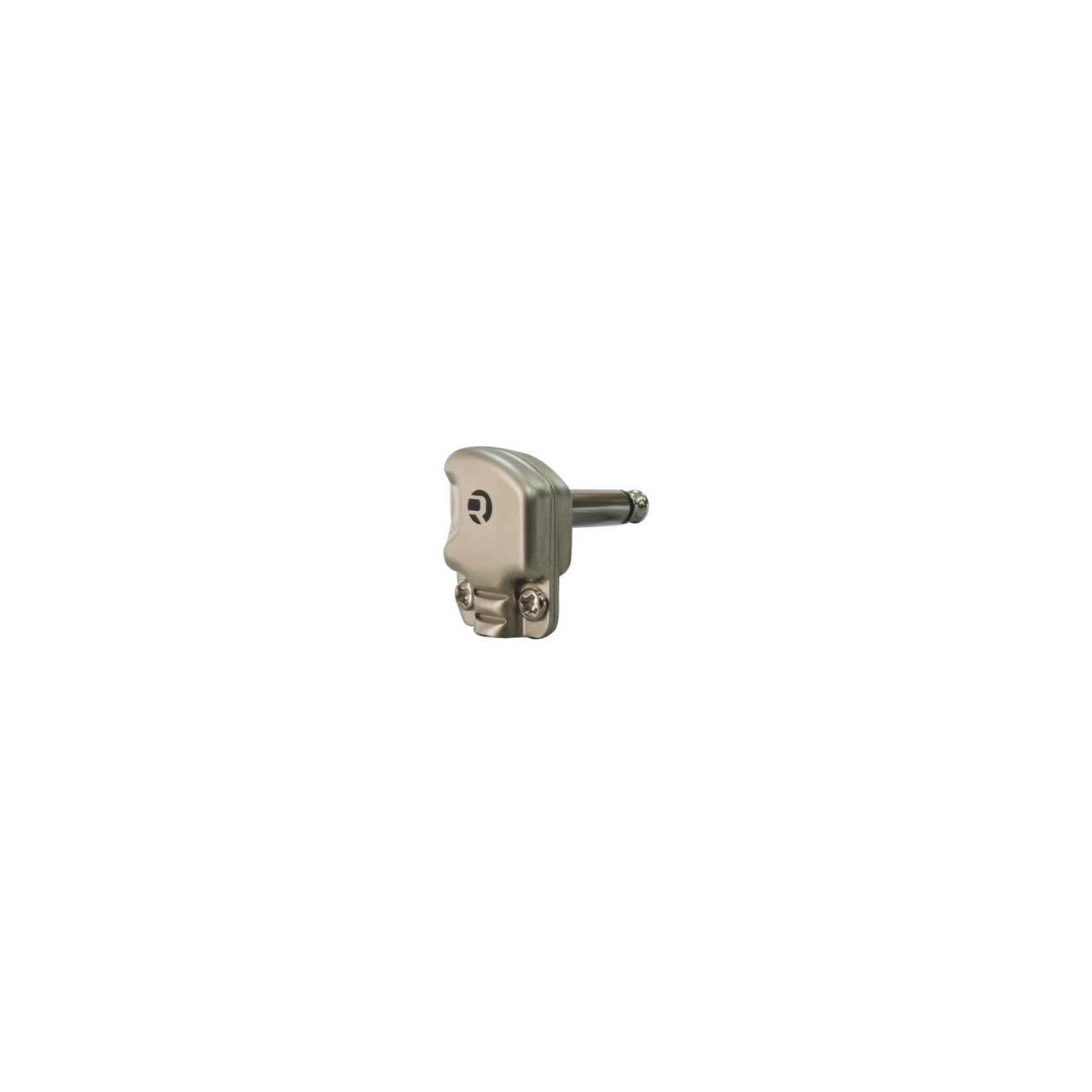

Rean RP2RCF-D 1/4 Inch Mono / Low-Profile Right Angle Pancake Plug - Nickel/Nickel - 100 Pack

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Rean RP2RCF-D 1/4 Inch Mono / Low-Profile Right Angle Pancake Plug - Nickel/Nickel - 100 Pack

    Item #: RN-RP2RCF-D   •   MFG #: RP2RCF-D




    Our Price:$162.00

    free ship


    Availability:
    In Stock
    i
    Item is Available for immediate shipping from our warehouse.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Rean RP2RCF-D Pancake 1/4" right angle plugs feature a modern, rectangular low-profile that's perfect for electric instrument pedalboards and other effects by daisy-chaining. Rean RP2RCF-D low profile right-angle TS plugs offer a ≥1GΩ insulation resistance, >1.0kVDC dielectric strength, and a -20°C to +70°C operating temperature range. The Pancake plugs are available with nickel or black covers and have a heavy duty cable clamp for best strain relief. Every Rean Pancake 1/4" right angle plug features a lifetime of >1000 mating cycles and complies with IEC 68-2-20.

      RP2RCF features a nickel-plated back cover. RP2RCF-BAG features a black-plated cover.


      • Features

        • 1/4" mono plug
        • Right angle version
        • Available with nickel or black cover
        • Heavy duty cable clamp for best strain relief
        • Cable O.D. up to 7 mm

      • Specifications

        • Electrical
        • Rated Current And Contact Resistance: Depends on mating connector
        • Insulation Resistance: ≥ 1 GΩ
        • Dielectric Strength: > 1.0 kV dc

          Mechanical
        • Cable O.D.: 6-7mm
        • Wiresize: 0.22 mm² / 24 AWG
        • Lifetime: > 1`000 mating cycles
        • Solderability: complies with IEC68-2-20
        • Operating Temperature: -20°C to +70°C

          Material
        • Shell: Steel
        • Shell Plating: bottom: Nickel, cover: Nickel or Black
        • Contacts: Brass
        • Contacts Plating: Nickel
