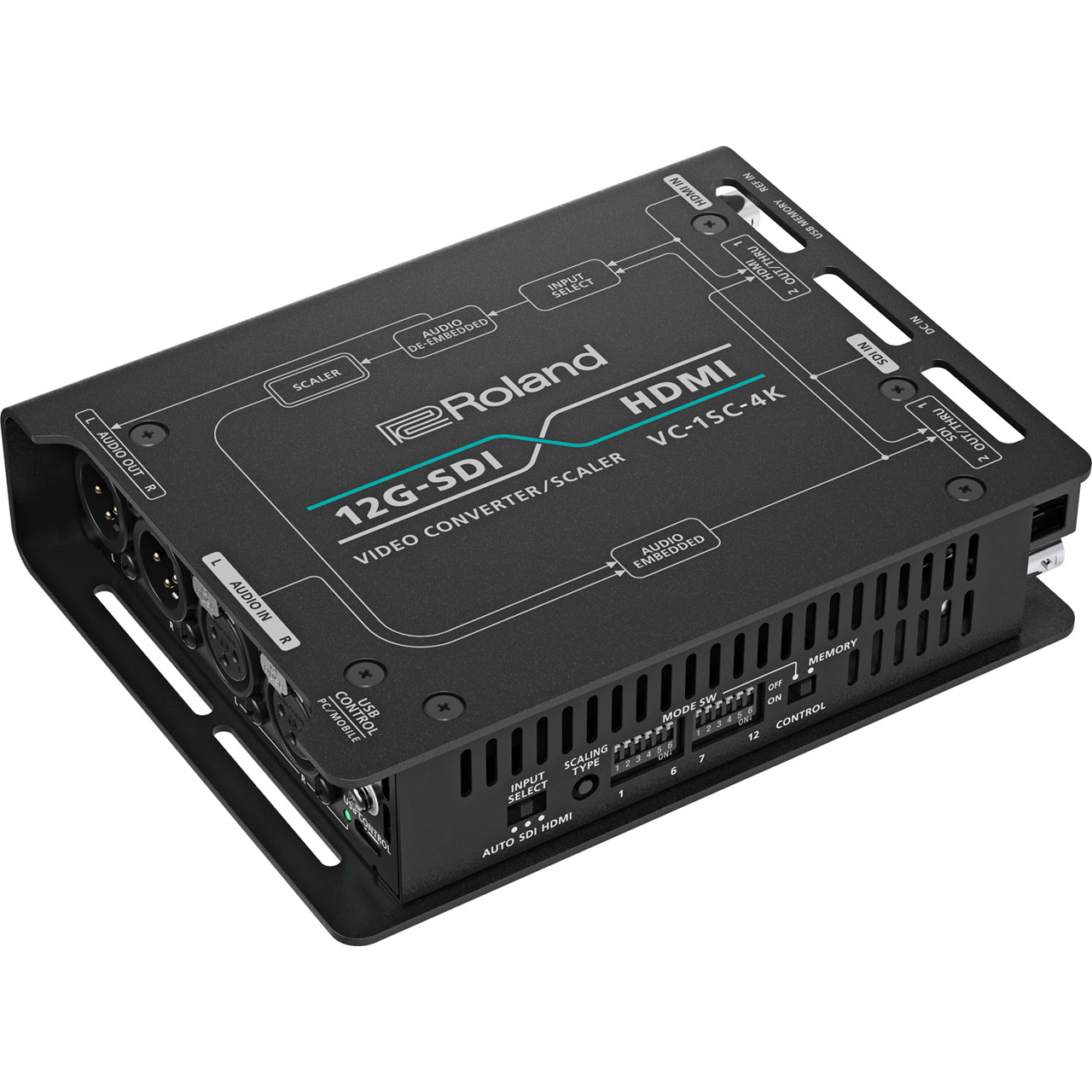

The Roland VC-1SC-4K is a powerful and practical solution for modern LED wall applications, providing a versatile interface and easy screen adjustment for different display types. This compact, rugged device features built-in scaling, 4:4:4 10-bit processing, and 12G-SDI/HDMI 2.0 support for seamless cross-format conversion between HD and 4K sources. Using the dedicated multi-platform control apps, it's simple to store/recall setups and adjust screen resolution, aspect ratio, ROI cropping, and much more.
Simplified Control for Modern Workflows

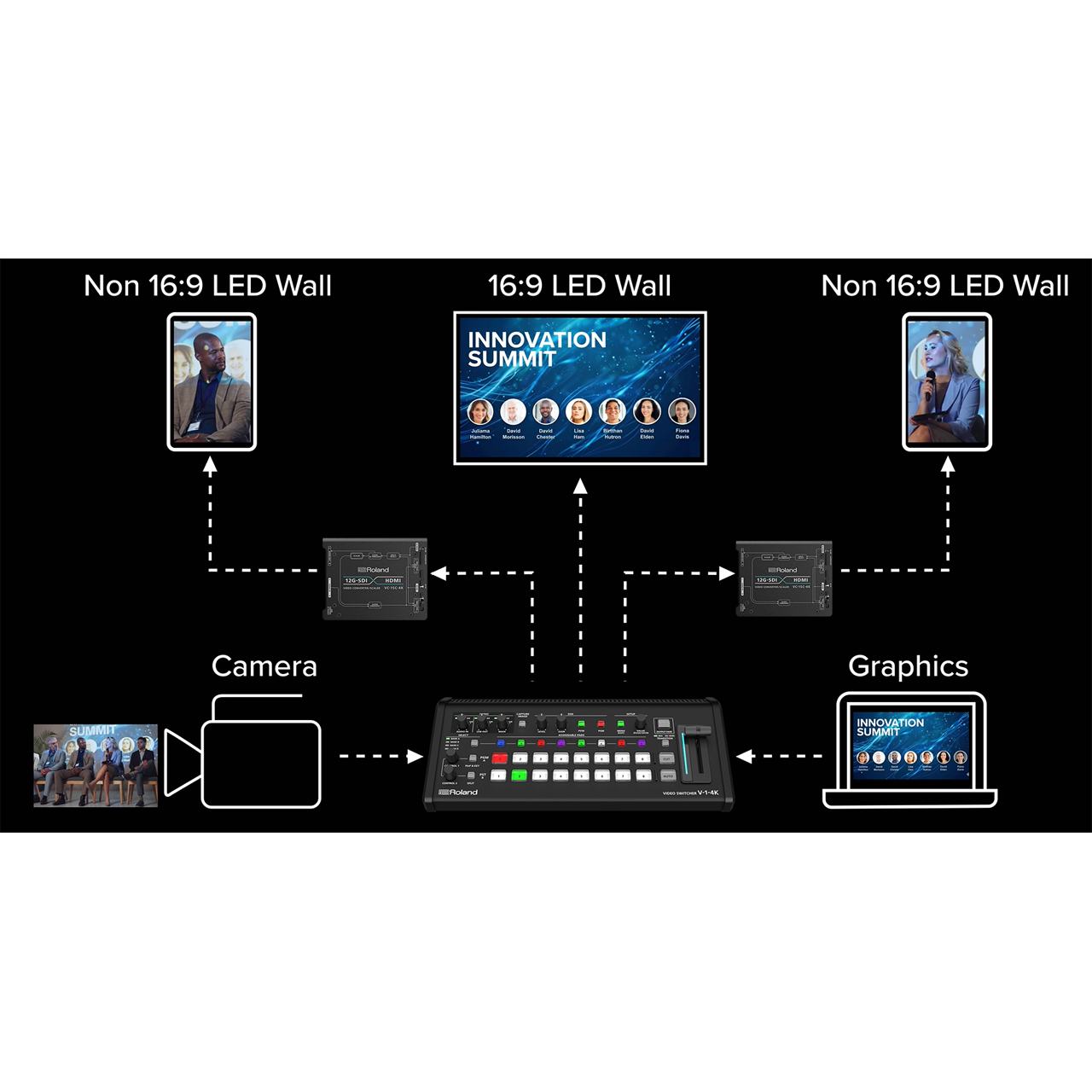

LED wall applications with various resolutions and non-16:9 displays are expanding in today's production, commercial, and rental environments. The VC-1SC-4K is a highly adaptable interface that addresses modern needs where simple signal conversion is no longer enough. This robust, streamlined package delivers high-quality 4K processing, precision control, and fast setup in a variety of display scenarios, from live events to fixed installations and beyond.
Reliable and Flexible Conversion for SDI and HDMI Sources

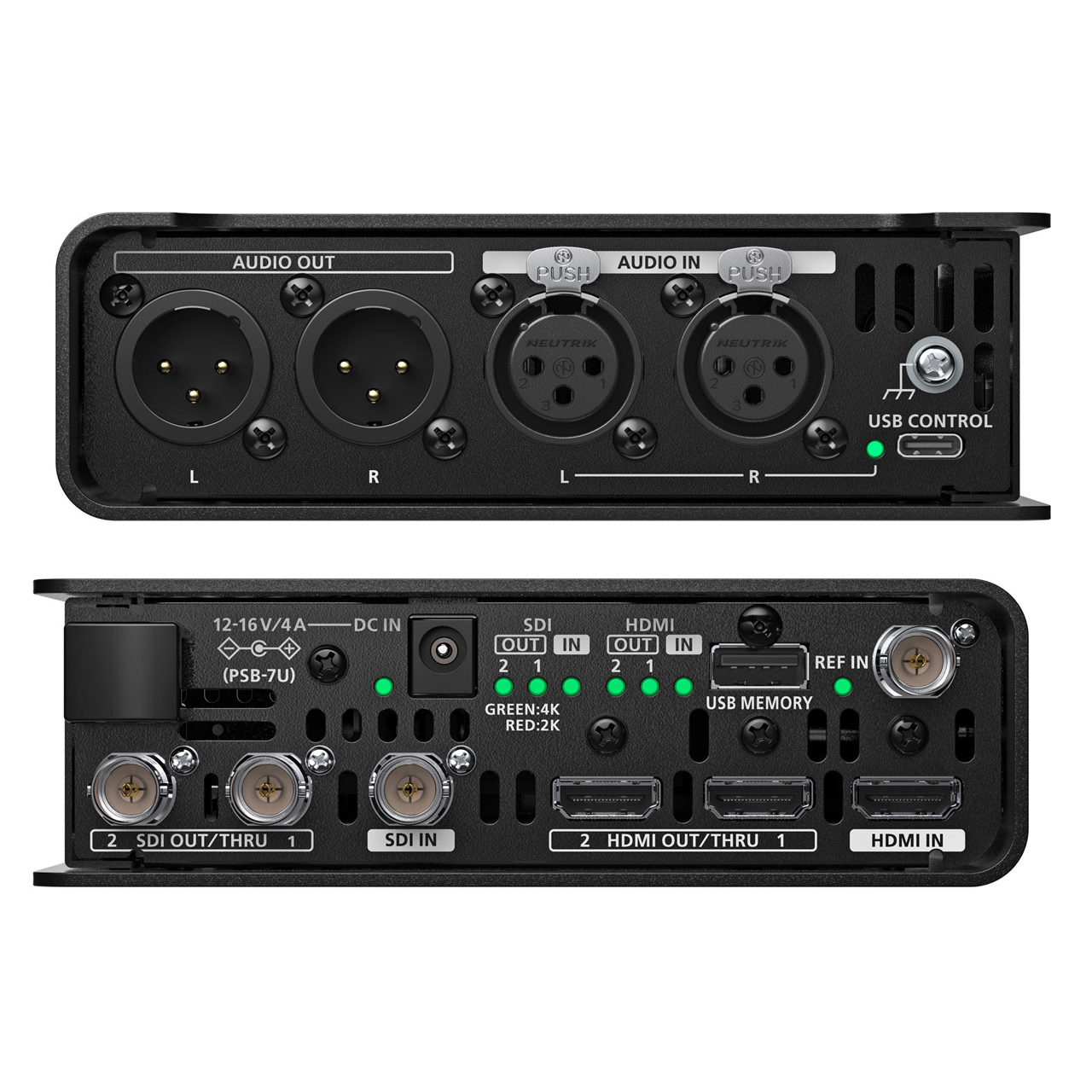

The VC-1SC-4K is equipped with SDI and HDMI inputs that support 4K and HD signals at various frame rates, as well as a reference input for locking to a system clock. The powerful onboard engine provides stable cross conversion of professional video sources with premium 4:4:4 10-bit processing and full support for 12G/6G/3G-SDI and HDMI 2.0 formats.
Versatile SDI and HDMI Signal Distribution
The VC-1SC-4K easily handles video format conversions for maximum flexibility. Converted signals are output simultaneously on all video outputs (2x SDI and 2x HDMI), allowing you to distribute video to multiple devices without extra hardware.
Powerful Configuration Tools

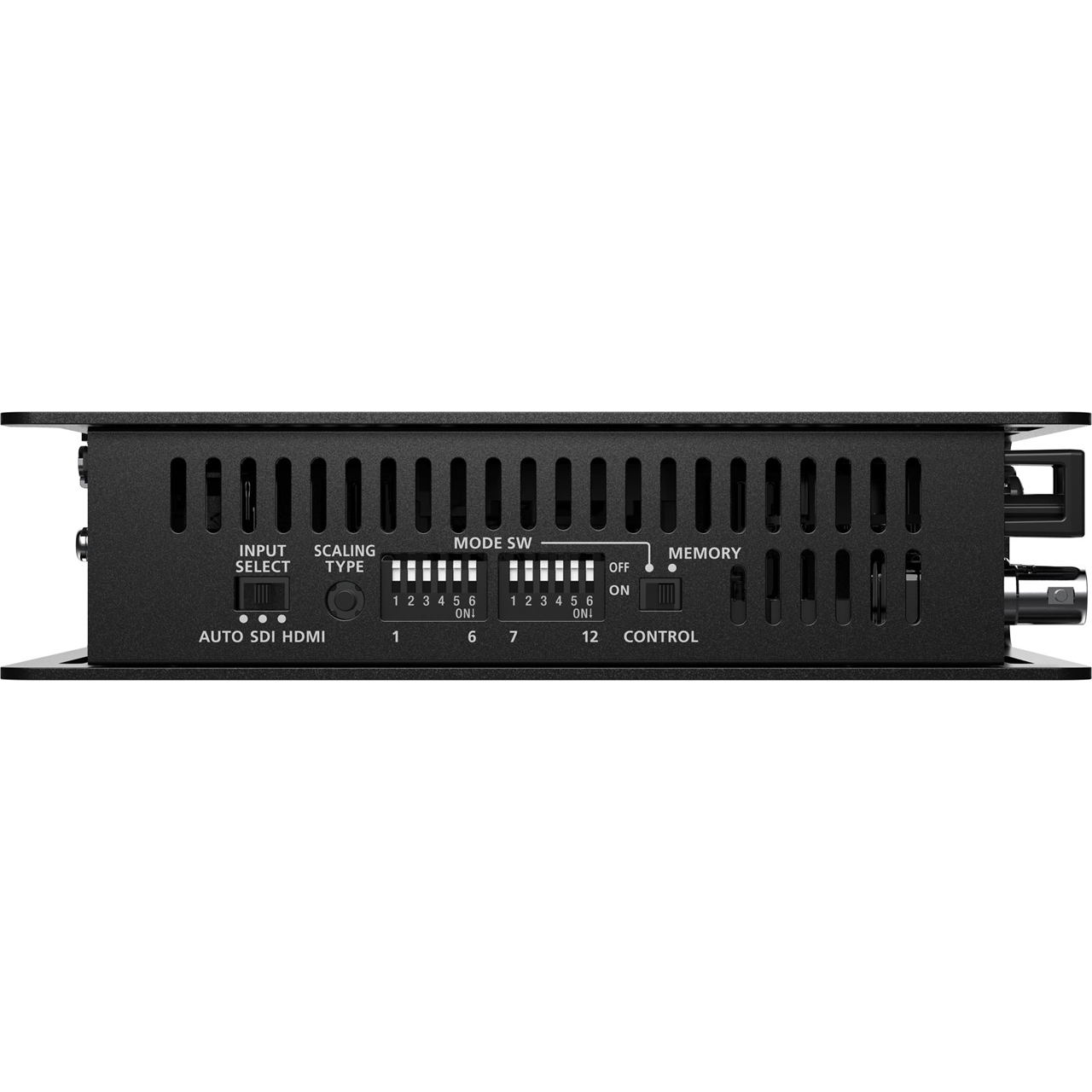

The VC-1SC-4K offers deep control options for all types of situations. Onboard buttons, selector switches, and dip switches present an efficient tactile interface for basic setups, while dedicated apps unlock much finer control via a high-speed USB-C connection.
Editor-Complete Configuration Tools
The Editor section is the command center for configuring all the VC-1SC-4K's primary parameters. Different configuration areas are organized in tabs across the top of the screen for quick access, and each selected tab features clear controls for fast operation. The Layout tab provides precise control over input size and position, while the ROI tab lets you crop areas by dragging or entering exact values. The Color tab offers detailed color correction to fine-tune the look for venue conditions. And with the Audio tab, you can enable/disable embedded audio from the video inputs and control routing of the XLR signals. Test pattern generators are also available to aid in configuration and troubleshooting.
