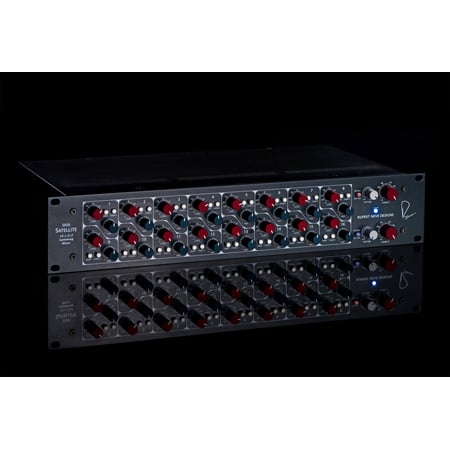

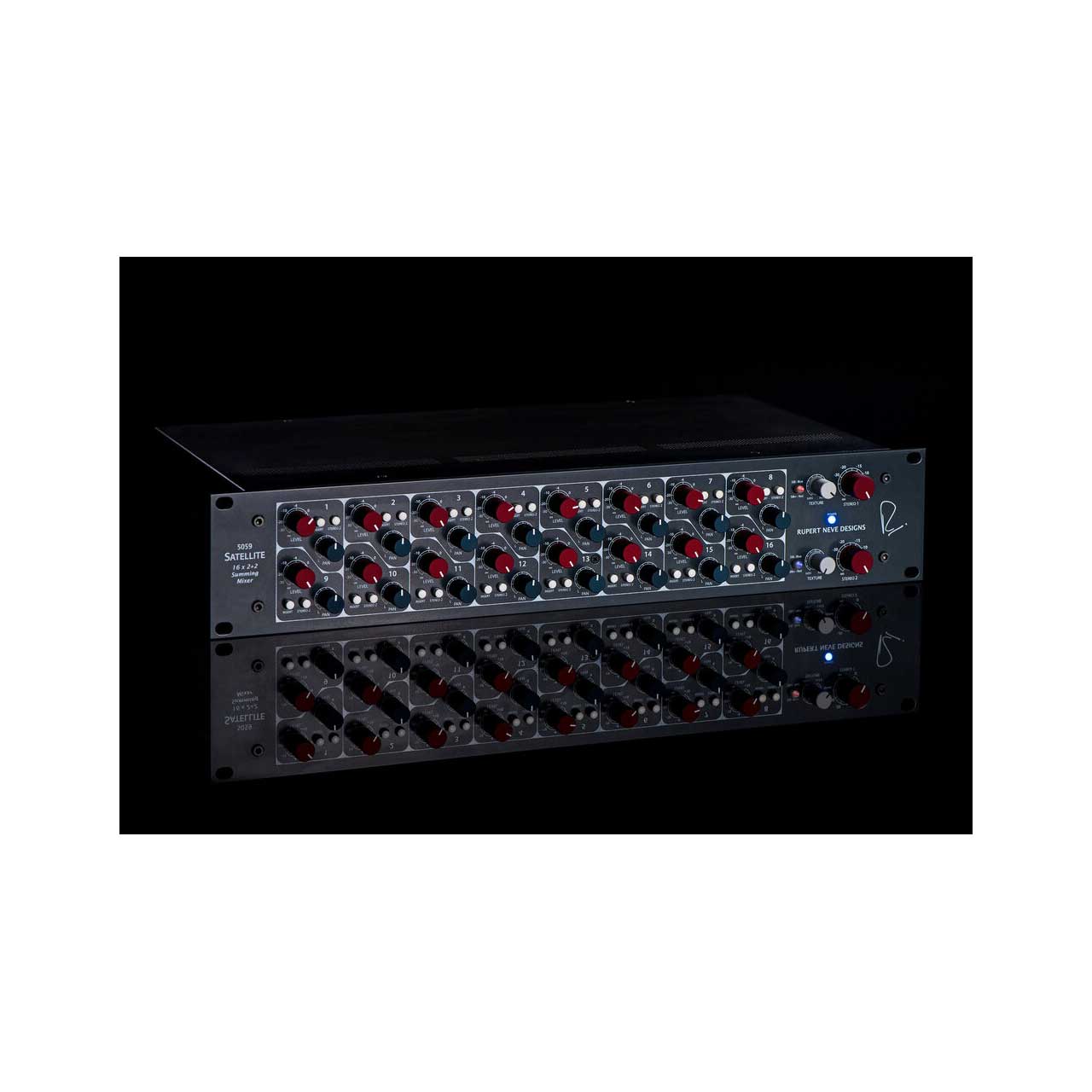

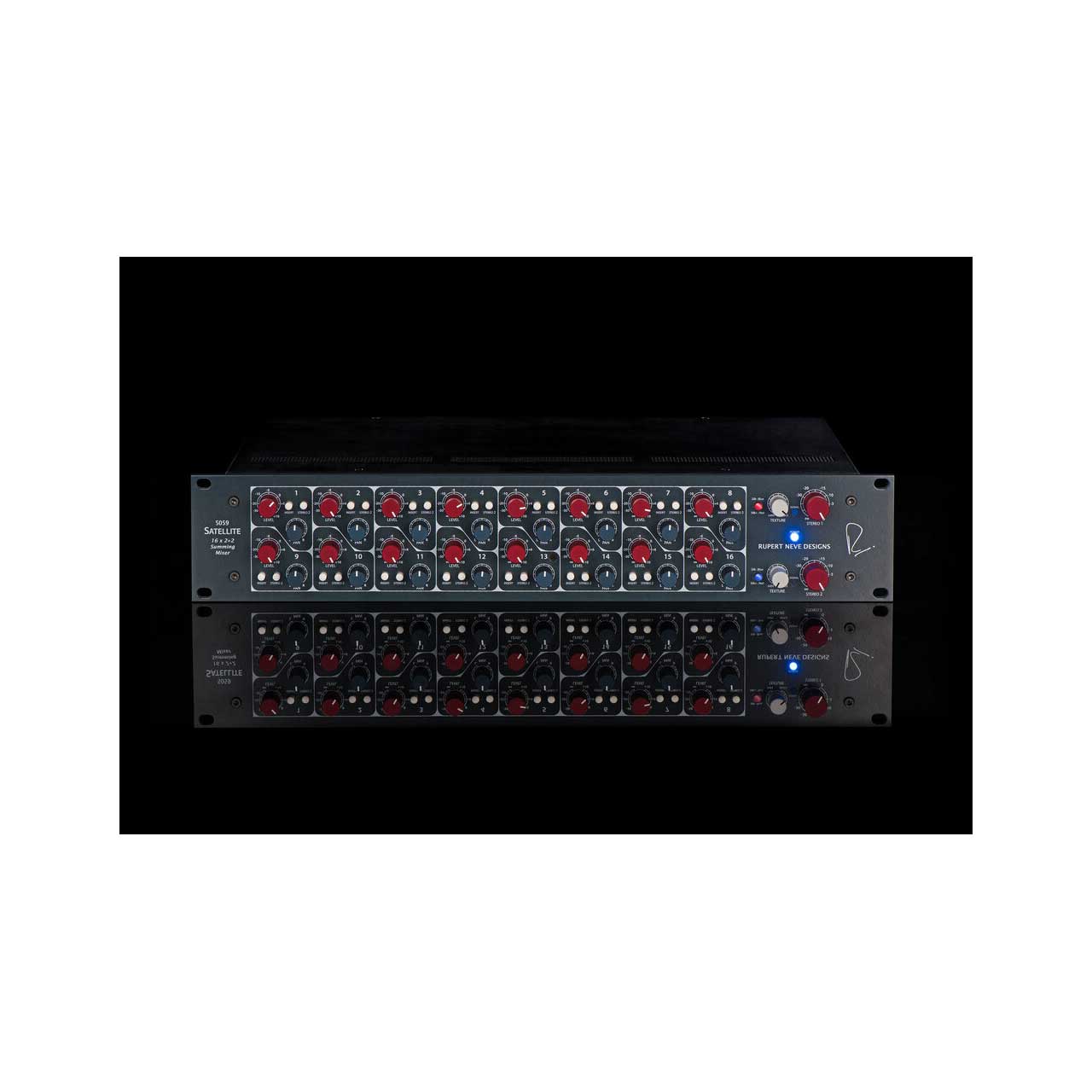

Rupert Neve Designs 5059 Satellite 16x2+2 Summing Mixer - Blue

ITEM #: RUP-5059-S MFG #: 5059-S

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$3,499.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    5059-S - Overview

    Rupert Neve's 5059 provides flexible, feature-rich analog summing with classic Rupert Neve console sound.

    Built around many of the topologies and custom transformers made famous with the 5088 mixer, the 5059 is a 16 x 2+2 summing mixer designed to deliver the ultimate out-of-the-box sonics and control in a 2U, rack-mountable chassis.

    The 5059 features 16 channels with individual level, pan, inserts, stereo-2 sends, and master texture controls, providing easy integration with outboard equipment, complete control for two separate stem mixes, and the ability to dial in analog mojo in two modes. With the same sonic heritage as mixers used to create countless hit records, the 5059 Satellite imbues your tracks with the legendary warmth and presence of a Rupert Neve design.

    • Features:

      • Silk/Texture Control
      • New Class-A Topologies
      • Custom Transformers
      • Stereo 2 Send
      • Independent Channel-level Controls
      • Independent Channel Pan
      • Channel Insert
      • Master Output Level

    • Specifications:

      • Frequency Response100K Ohm Load:; +/- 0.1 dB from 20 Hz to 20 kHz; -3 dB @ 3.5 Hz / 185 kHz
      • Noise(IEC-A-weighted.
      • Buss Outputs: -106 dBV
      • Single Channel assigned @ -∞; -104 dBV
      • Single Channel assigned @ Unity: 103 dBV
      • Noise Un-weighted, 22 Hz - 22 kHz. :
      • Single Channel assigned @ +10 dB - 100 dBV
      • Buss Outputs:
      • Single Channel assigned @ -∞: -101 dBV
      • Single Channel assigned @ Unity: -100 dBV
      • Single Channel assigned @ +10 dB -97 dBV
      • Signal To Noise:
      • +20 dBu output un-weighted, 22 Hz - 22kHz: 116 dB
      • +20 dBu output, IEC A weighted: 119 dB
      • +4 dBu output unweighted, 22 Hz - 22 kHz: 100 dB
      • +4 dBu output, IEC A weighted: 103dB
      • Output Level: Summing Busses to XLR outputs, Maximum Output Level, 20 Hz to 40 kHz: +26 dBu
      • Single Channel to Buss, Maximum Output Level, 20 Hz to 40 kHz: +24.5 dBu
      • Total Harmonic Distortion And Noise:
      • 1 kHz @ +20 dBu output: Better than 0.003%
      • 20 Hz @ +20 dBu output: Better than 0.005%
      • Total Harmonic Distortion, Silk Engaged
      • Blue Silk:100 Hz @ +20 dBu output, texture control 12 o’clock: 0.2% typical; 100 Hz @ +20 dBu output, texture control fully CW: 0.65% typical
      • Red Silk: 100 Hz @ +20 dBu output, texture control 12 o’clock: 0.1% typical ; 100 Hz @ +20 dBu output, texture control fully CW: 0.35% typical
      • Slew Rate: 4V/uS
      • Crosstalk: From Buss 1 to Buss 2.; 1 kHz: Better than -90 dB; 10 kHz: Better than -70 dB
      • Power Consumption: AC Mains, 100VAC to 240VAC, 50/60 Hz: 45 Watts; Fuses – not user accessible, internal on power supplies
      • Dimensions: 3.5 x 19 x 8" (2U)
      • Weight: 23lbs
      • Shipping Dimensions: 22 x 17 x 8”
      • Shipping Weight: 25 lbs

    • Item Includes:

      • 1x 5059 Satellite 16x2+2 Summing Mixer

    • Warranty:

      • 3 Year

    • GTIN:

      0763854076859
