Samson SW7QTCE-K1 AH7 Transmitter with Samson QE Fitness Headset Mic (489.050)

Questions? Ask a Markertek Expert:
800-522-2025 Email

Samson SW7QTCE-K1 AH7 Transmitter with Samson QE Fitness Headset Mic (489.050)

Manufacturer: Samson Technologies

Item #: SAM-SW7QTCE-K1   •   MFG #: SW7QTCE-K1



List Price:$319.99
Our Price:$248.95

free ship


Frequencies:



Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Samson AirLine 77 AH7 Fitness Headset system (SW7QTCE-K1 (489.050)) is a wireless microphone solution designed to meet the specific demands of fitness instructors and active performers. With the unique AH7 micro transmitter mounted to a sweat-resistant Qe fitness headset microphone, you can free yourself completely from cables and beltpacks for a truly exhilarating and motivating experience. This allows you to focus on your class or performance, and not have to worry about your audio.

    Move Free
    Samson revolutionized wireless with the original AirLine transmitter. Building upon this groundbreaking technology, the AH7 micro transmitter is mounted directly on the headset. This is unique when compared to traditional wireless systems that typically use a beltpack with a wire running from the microphone to the transmitter. The AH7 eliminates these extra components that would be especially cumbersome for a fitness instructor and puts everything you need neatly and comfortably around your head. And the transmitter operates for up to eight hours straight on a single AAA battery.

    The Right Mic for Fitness
    The AH7 Headset Transmitter is mounted to a lightweight, adjustable headset that fits comfortably around your ears and the back of your head, even through those days when you're teaching back-to-back classes for hours on end. The headset also features the Samson Qe condenser microphone, whose sweat-resistant capsule prevents corrosion from prolonged exposure to moisture. In addition, the mic's bidirectional pickup pattern reduces background noise, minimizes feedback problems and effectively rejects signals not originating directly in front of the mic capsule.

    Sound Received
    The CR77 True Diversity receiver provides reliable performance with up to 300' (90m) of wireless operation. Its half-rack housing is light enough to throw in your bag, or it can be permanently installed with a rackmount kit (sold separately). The rear panel features balanced XLR and unbalanced 1/4" outputs allowing flexible connection options.


    • Features

      • AirLine 77 AH7 Fitness Headset System
      • Up to 300' (90m) operating range (line-of-sight)
      • Available in multiple channels (region dependent)
      • AC adapter and 1/4" audio cable included

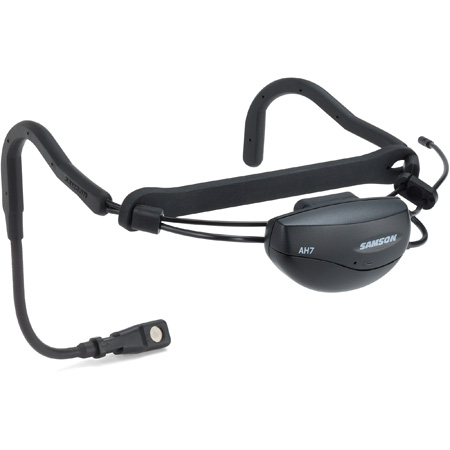

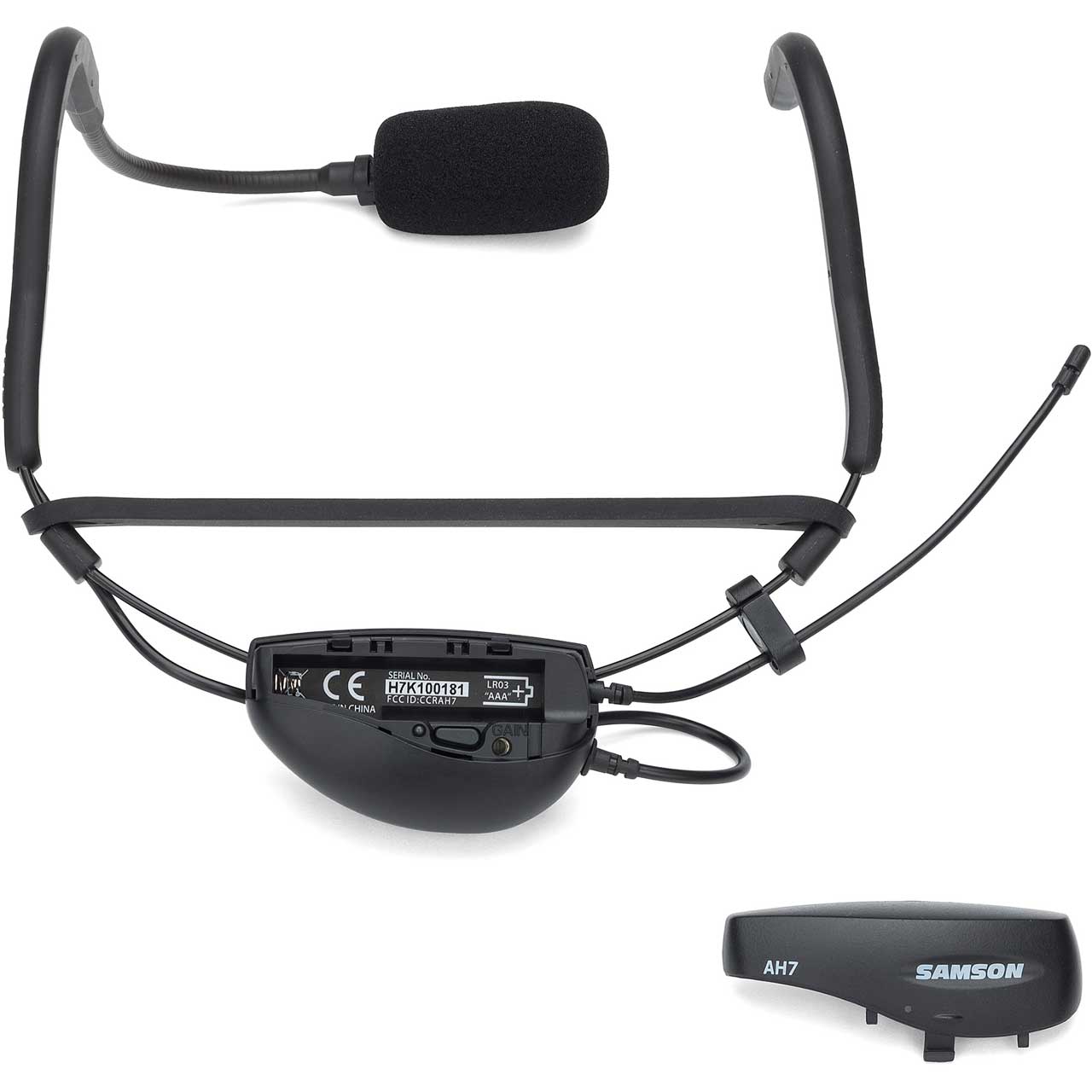

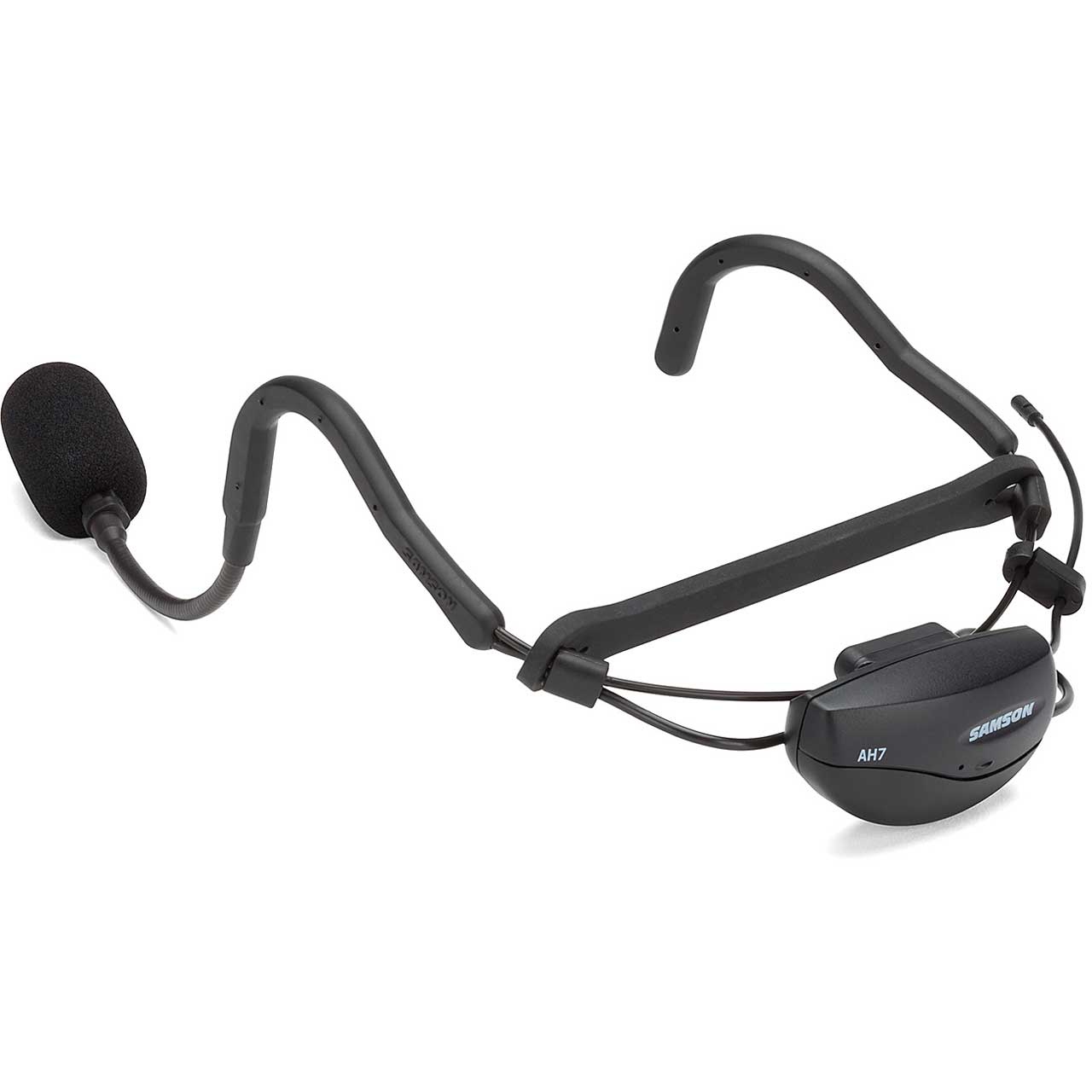

        AH7 Fitness Headset Transmitter
      • Fitness headset with mounted micro transmitter (no beltpack or cable required)

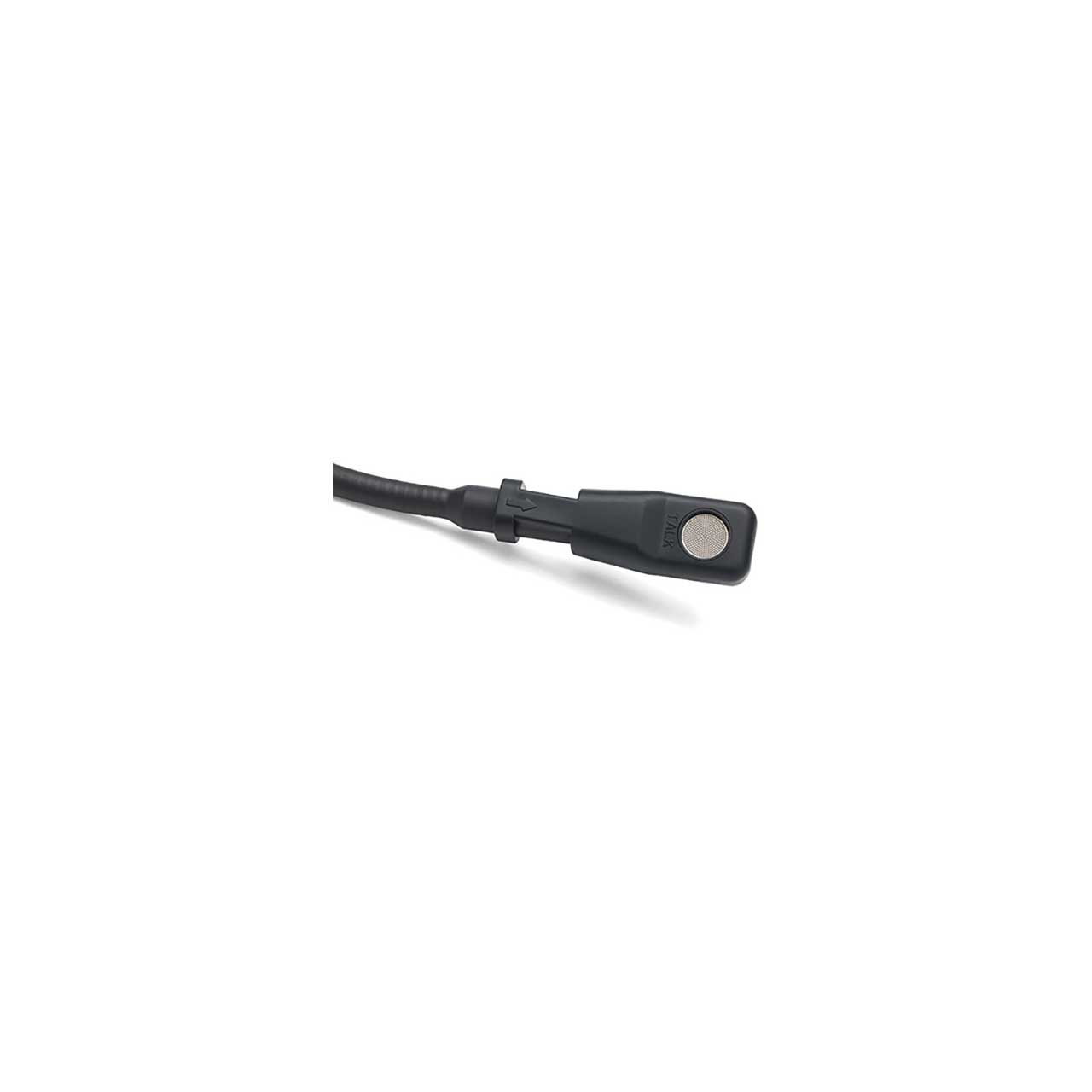

      • Qe condenser microphone element with bidirectional pickup pattern
      • Sweat-resistant mic design for high-energy instructors/performers
      • Up to eight hours of battery life using single AAA battery
      • Power/Low battery LED indicator
      • Internal Power switch

        CR77 Wireless Receiver
      • True Diversity design minimizes dropouts
      • Mountable half-rack chassis
      • 1/4-wave antennas
      • Multi-segment audio and RF level LED meters
      • Volume and squelch controls
      • Balanced XLR output, unbalanced 1/4" output
      • Mic/Line level output switch

    • Specifications

      • AH7 Transmitter
      • Operating Power Voltage:
        1.5V Typical
        1.05V Minimum
        2V Maximum
      • Current Consumption: 60mA Typical
      • Battery Life: 8 Hours (AAA size battery)
      • RF Output Power: (5mW) -4dB Minimum, +3dB Maximum
      • THD: < 2% (1 kHz deviation 15kHz)
      • Audio Frequency Response: 50Hz - 15kHz (±3.5 dB)
      • Controls: Internal Power Switch
      • Indicators:
        Power On (LED Flash)
        Low Battery: (LED On)

        CR77 Receiver
      • Oscillation Type: PLL
      • Antennas: 1/4 Wavelength Rod
      • Indicators Receiver: A/B (Green), Power On (Red), AF Level: (6 segment), RF Level (6 segment)
      • Level Control: Audio Level Volume, Squelch Level Control
      • Operating Temperature: 32° to 122°F (0° to 50°C)
      • Operating Voltage: 12 Volts ±10%
      • Current Consumption: 160 mA (all LED lights illuminated)
      • Sensitivity: 18 dBm (@ THD 2%)
      • Squelch Sensitivity: 0 - 40 dBm (Adjustable)
      • T.H.D. (Overall): 1% Max (@AF 1 kHz, RF 46 dBu)
      • S/N Ratio (Overall): 90 dB (w/IHF-A Filter)
      • Residual Noise: 90 dBv (w/IHF-A Filter)
      • AF Frequency Response: 50 Hz - 15 kHz (±3 dB overall)
      • Audio Output Level:
        Unbalanced: 0 dBv
        Balanced: -20 dBm (Line), -40 dBm (Mic)
      • Audio Output Impedance:
        Unbalanced: 5kΩ
        Balanced: 600Ω
