Sennheiser EW-DX TS 3-PIN (R1-9) Digital Wireless Tablestand Transmitter with 3-Pin XLR Connector - 520MHz to 607MHz

ITEM #: SENN-EWDXTS3PR19 MFG #: EW-DX TS 3-PIN (R1-9)

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$949.00

Our Price:

$799.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EW-DX TS 3-PIN (R1-9) - Overview

Network-ready - designed for seamless integration!

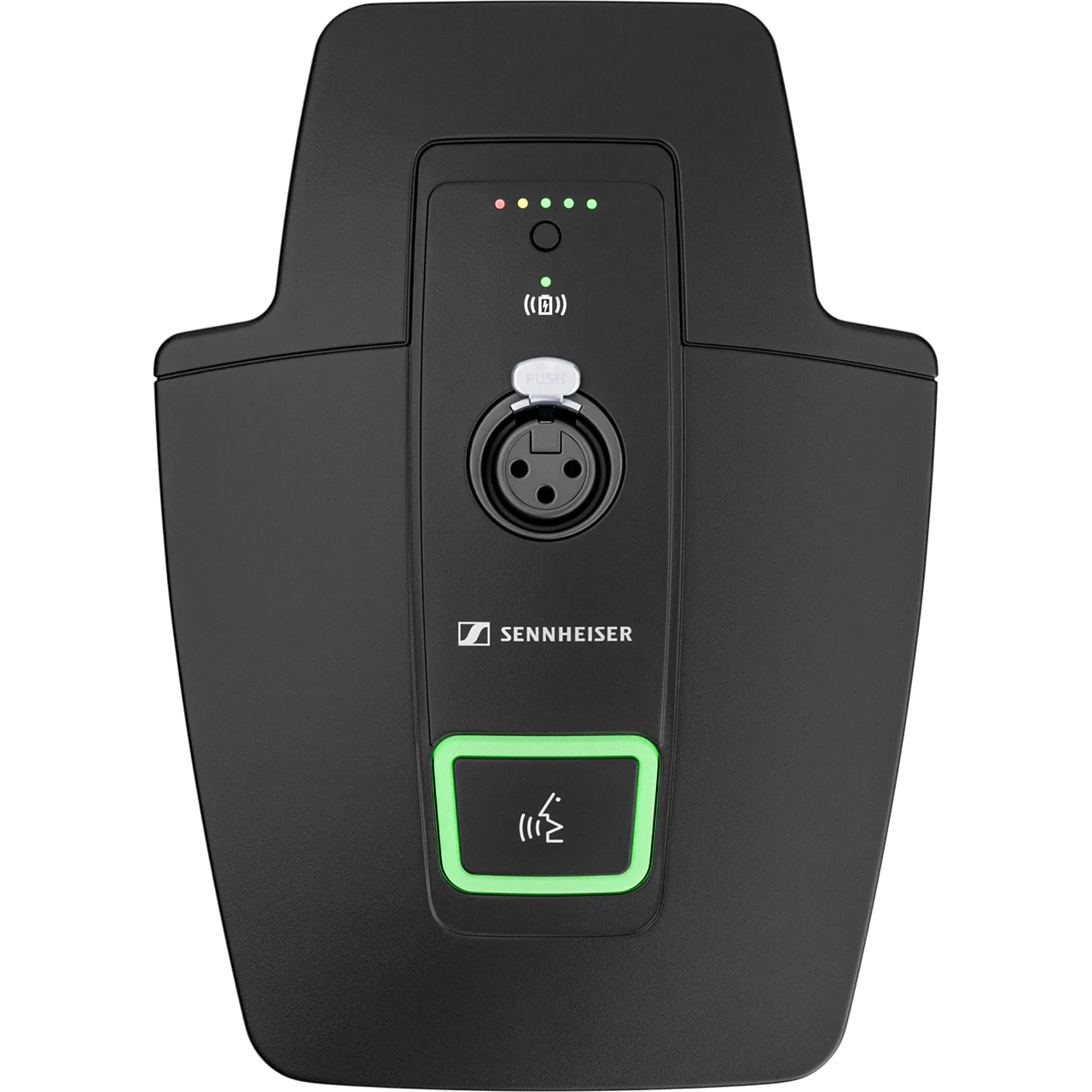

The Sennheiser EW-DX TS 3-Pin (R1-9) tablestand transmitter is a sturdy, wireless table stand that provides a stable base for a wide range of Sennheiser gooseneck microphones.

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly. EW-DX tablestand transmitters are compatible with a wide range of Sennheiser gooseneck microphones.

  • Features:

    • Tablestand transmitter with 3-pin XLR connector
    • Programmable mute switch
    • Inductive charging with CHG 2W
    • Charging via USB
    • 10 hr runtime with BA 40 lithium-ion battery
    • Wide range of compatible Sennheiser gooseneck microphones: any gooseneck without LED ring for a 3-pin variant
    • Metal housing

  • Specifications:

      Product
    • Transducer Type: Condenser
    • Latency (ms): 1.9ms
    • Total Harmonic Distortion (THD): ≤-60dB for 1kHz @ -3dBfs input level

      Frequency
    • Frequency Range: 520.000MHz - 607.800MHz
    • Audio Frequency Response: 20Hz - 20kHz (-3dB)

      Acoustic Properties
    • Dynamic Range: >134dB
    • Pickup Pattern: Cardioid, Omnidirectional

      Connectivity
    • Connection: Wireless

      Ambient Conditions
    • Operating Relative Humidity (≤%): 5% - 95% (non-condensing)
    • Operating Temperature: 14°F - 122°F (-10°C - 50°C)

      Battery & Power
    • Battery Capacity: 2.2Ah
    • Battery Count: 1
    • Battery Included: Y
    • Battery Voltage: 3.6V
    • Charging Current: < 300mA
    • Battery Operating Time (h): BA 40 rechargeable battery pack

      Electrical Properties
    • Input Voltage: 2.0V - 4.35V
    • Transmission Power (mA):
      - Audio Link: 10mW ERP (Range Y1-3: 12mW ERP)
      - LD Mode: 10mW ERP BLE: max. 10mW EIRP

      Technology
    • Transmission Method: 200kHz

      Physical
    • Product Weight: 1.43lbs (0.65kg)
    • Dimensions (LxWxH): 10" x 9" x 4" (254mm x 228.6mm x 101.6mm)

      Bluetooth
    • Bluetooth Transmission Frequency: 2402MHz - 2480MHz

  • Item Includes:

    • 1x EW-DX TS 3-PIN Table stand transmitter
    • 1x BA 40 Rechargeable battery
    • 1x Quick guide
    • 1x Safety guide
    • 1x Manufacturer declaration sheet
