SES-3MIX-HZ - Overview

When you need an affordable, quick fix to add more inputs to your mixer, portable PA, or other gear, the Sescom 3MIX-HZ provides a simple solution. This 3x1 passive mini-mixer is not only cost-effective but extremely versatile, allowing you to work with instrument-level signals, balanced or unbalanced.

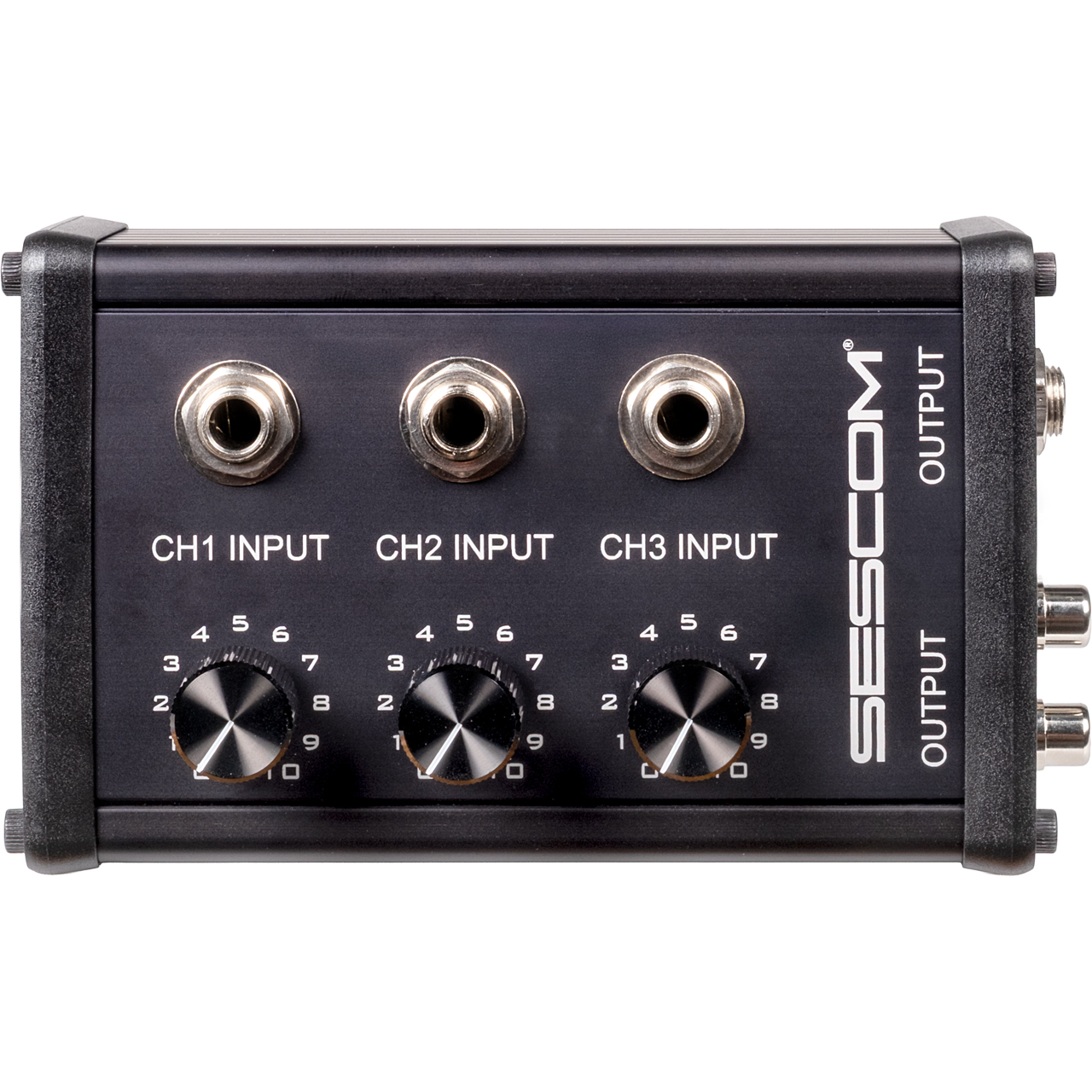

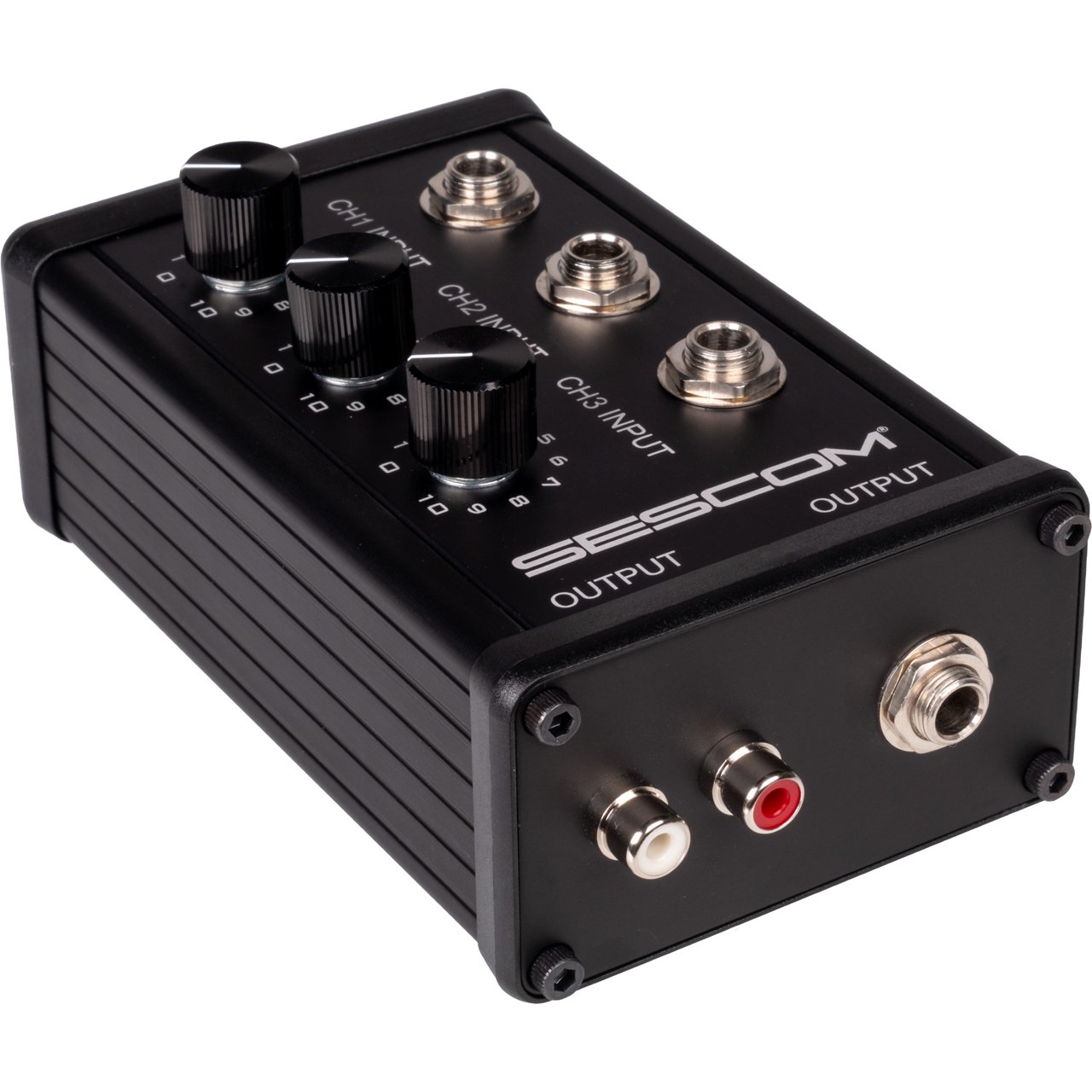

The Sescom 3MIX-HZ has 3 TRS 1/4-inch inputs, and each input has its own independent level control. The 3MIX-HZ features 1/4-inch TRS and left/right RCA outputs, which can send audio simultaneously, and is housed in a rugged anodized aluminum box suitable for use in the studio or on stage.

Sescom Tech Note: When using a TRS signal, if using unbalanced signals, all signals must be unbalanced; if using balanced signals, all signals must be balanced. Do not mix balanced and unbalanced signals. The SES-3MIX-HZ is not compatible with phantom power.

  • Features:

    • Easy to Use 3 Channel Instrument-Level Mixer
    • High-quality 1/4-inch TRS/TS Inputs
    • Left/Right RCA and 1/4-inch TRS Outputs
    • Passive design requires no power
    • Independent level/volume control for each channel
    • Rugged black anodized aluminum enclosure

  • Specifications:

    • Input Connectors: (3) 1/4-inch TRS Jack

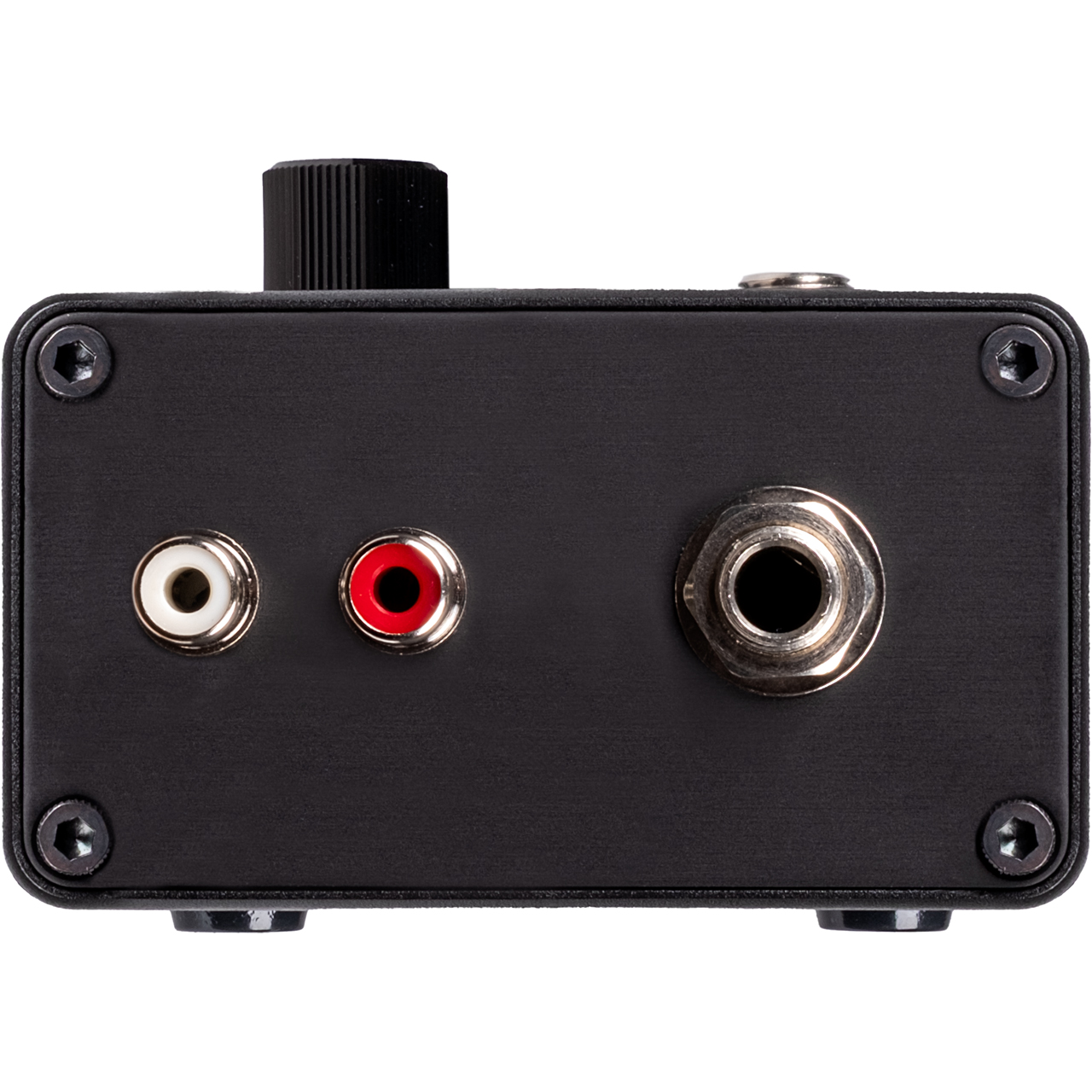

    • Output Connectors: (2) RCA (White/Red) Jacks, (1) 1/4-inch TRS Jack
    • Dimensions: 5.25" X 3.25" X 2.75"
    • Weight: 11.8 oz
    • Impedance (Ohms):
      - Unbalanced: 12.5K to 100K
      - Balanced: 25K to 200K

  • Warranty:

    • 1 Year
