Shure GM420/C Gooseneck Cardioid Microphone for DIS Systems (5900/6000) - Light Ring on Top - GSM Immune - 20 Inch

ITEM #: SH-GM420-C MFG #: GM420/C

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SH-GM420-C

GM420/C - Overview

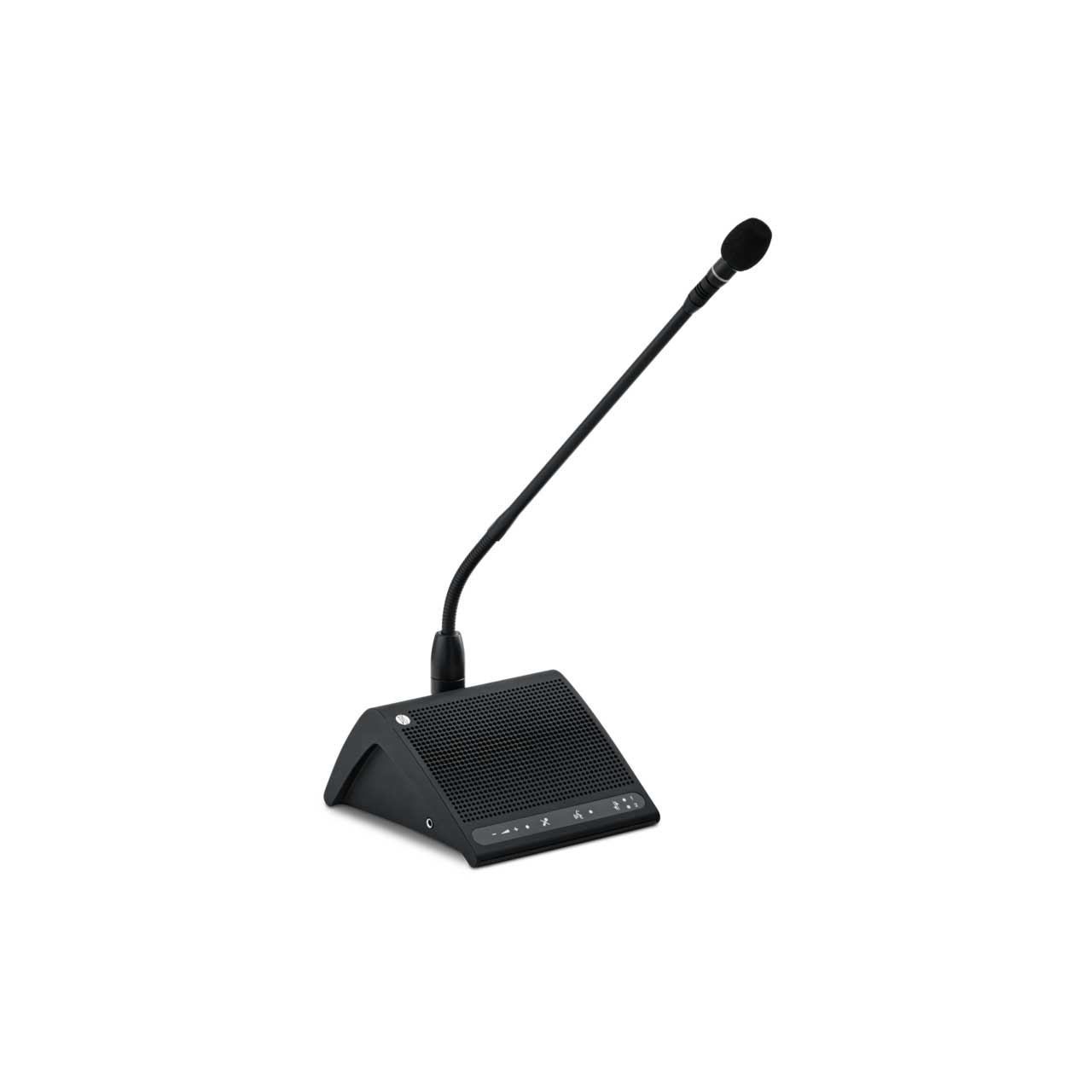

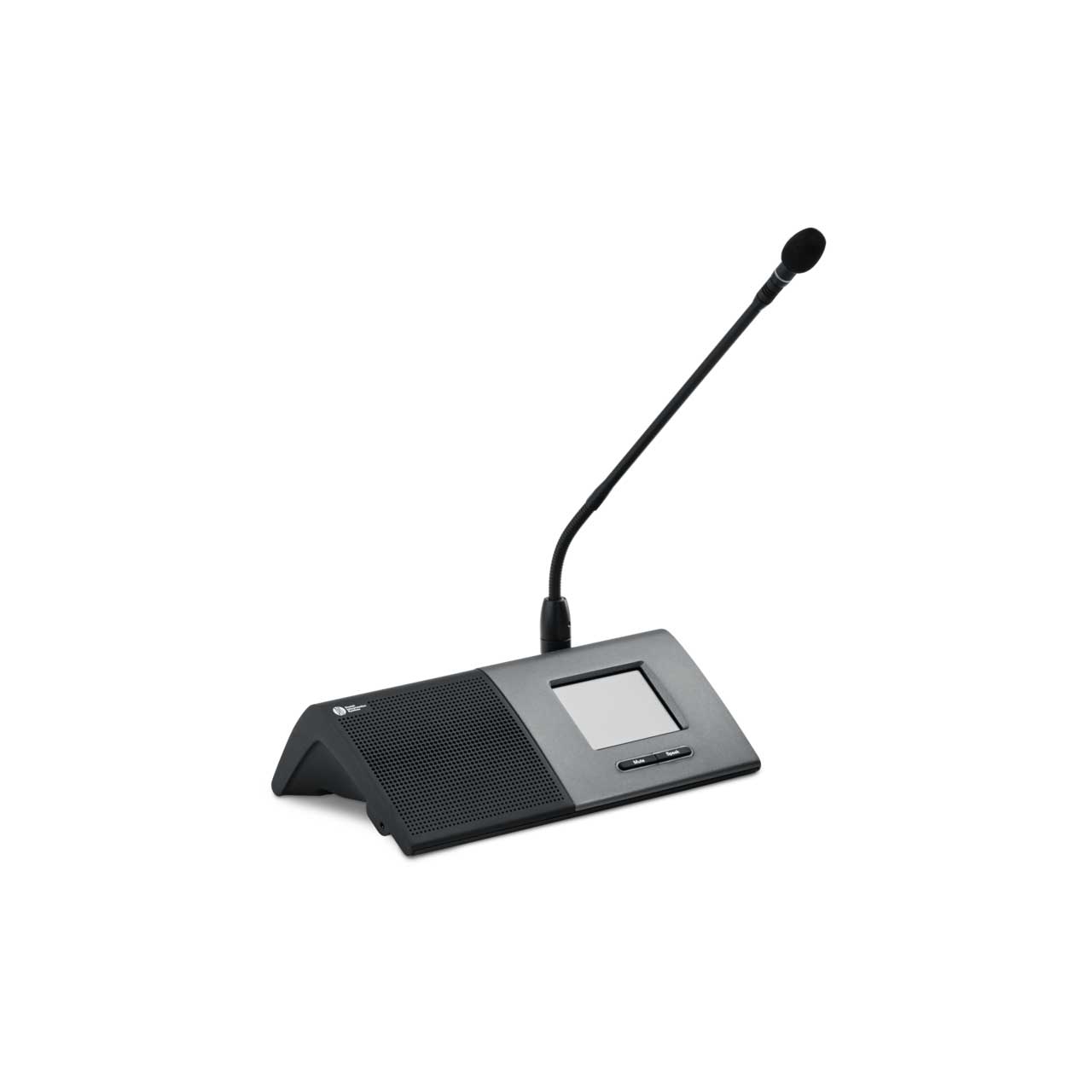

GM series GM420-C Gooseneck Microphones are compatible with Shure DCS 6000 and DDS 5900 Conference Units. They feature Shure Microflex capsules for high quality audio capture in meeting and conference spaces where communication is critical. Available in three lengths, each Gooseneck Microphone provides highly precise and flexible placement, with an integrated top LED light ring to indicate microphone activity. All variations also feature Shure CommShieldr RF immunity, ensuring dependable, reliable performance regardless of venue.

  • Features:

    • Wide dynamic range and frequency response for accurate speech capture
    • Cardioid polar pattern.
    • Interchangeable Microflex cartridges provide the right polar pattern for every application
    • Balanced, transformerless output With CommShield RF immunity to protect against electromagnetic hum and RF interference
    • Snap-fit foam windscreen

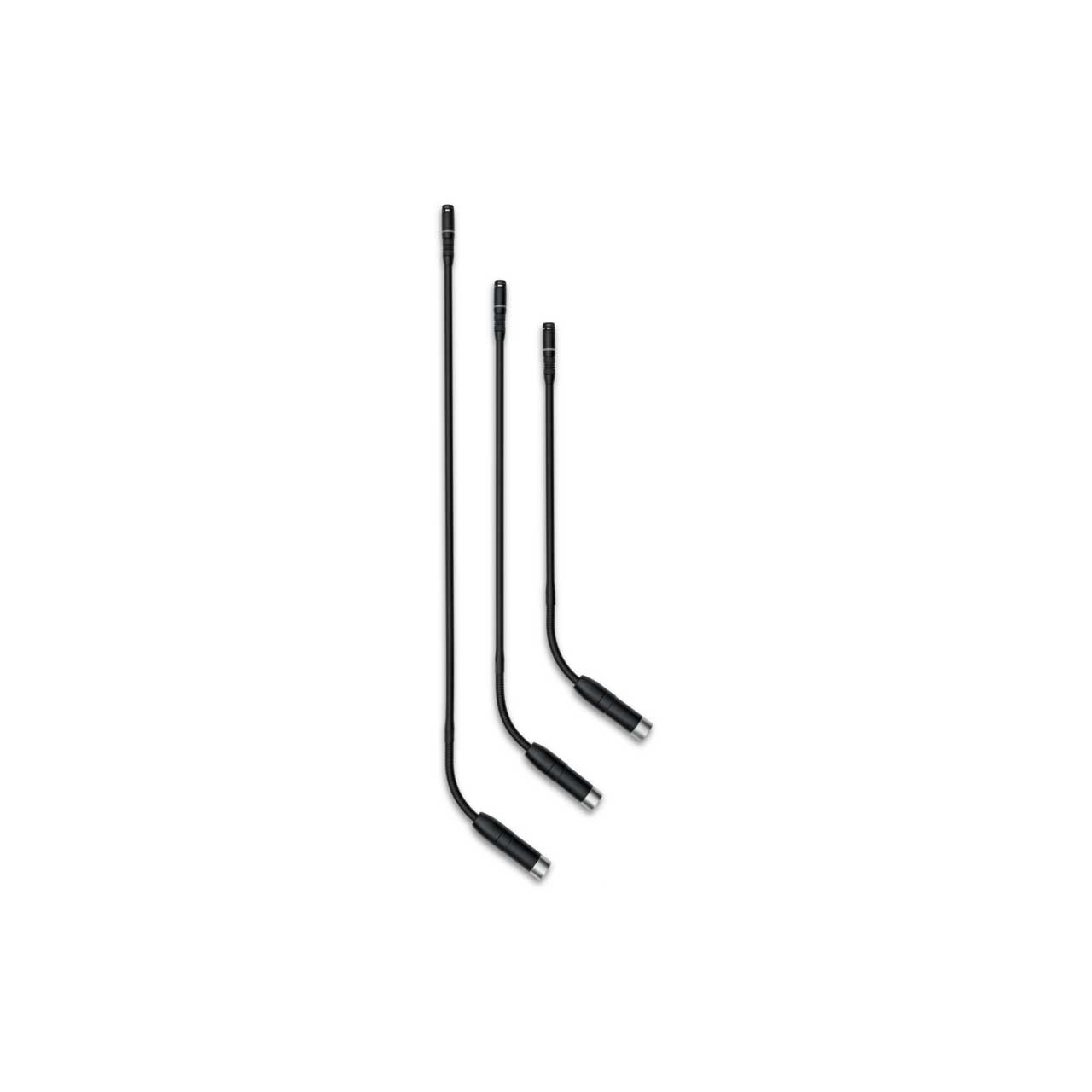

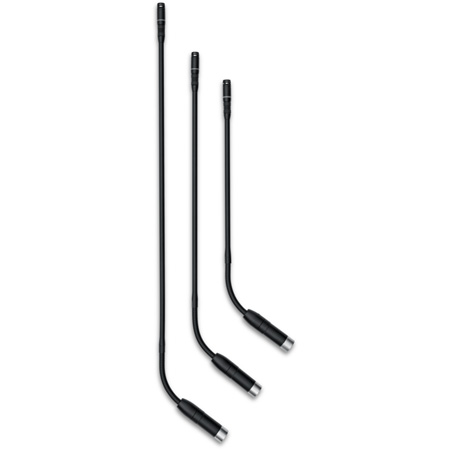

    • Available in 40 cm (15.7"), 50 cm (19.6") and 63 cm (24.8") lengths
    • Compatible with all the DIS units featuring 3-pin socket for microphone connection including DC5980P, DC 6990P, DM 6680P and IS6132P

  • Specifications:

    • Electrical
    • Microphone Type: Electret Cardioid
    • Frequency Response: 50 Hz - 17 kHz
    • Sensitivity: -46 dB ± 3dB, (0 dB = 1 V/1 Pa, 1 kHz)
    • Maximum SPL: 110 dB SPL (3% THD)
    • Signal to Noise Ratio: >60 dBA
    • Front/Back Ratio: >25 dB (1 kHz)
    • Power Requirements: 2-5 Volts DC Supplied from Conference Unit
    • Power Consumption: 10 mA (typical)

      Connectors
    • Connector Type: 3 pin male

      Mechanical
    • Weight: GM420/C: 143 g
    • Length: GM420/C: 50 cm

  • GTIN:

    0042406532792
