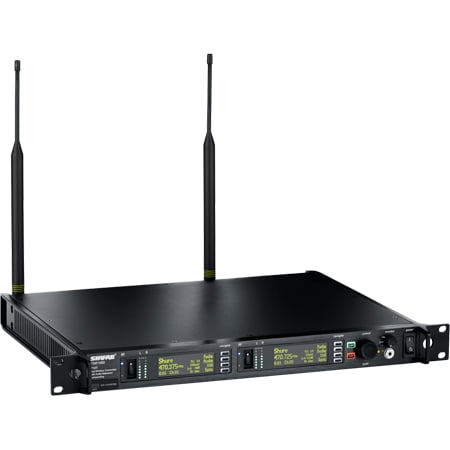

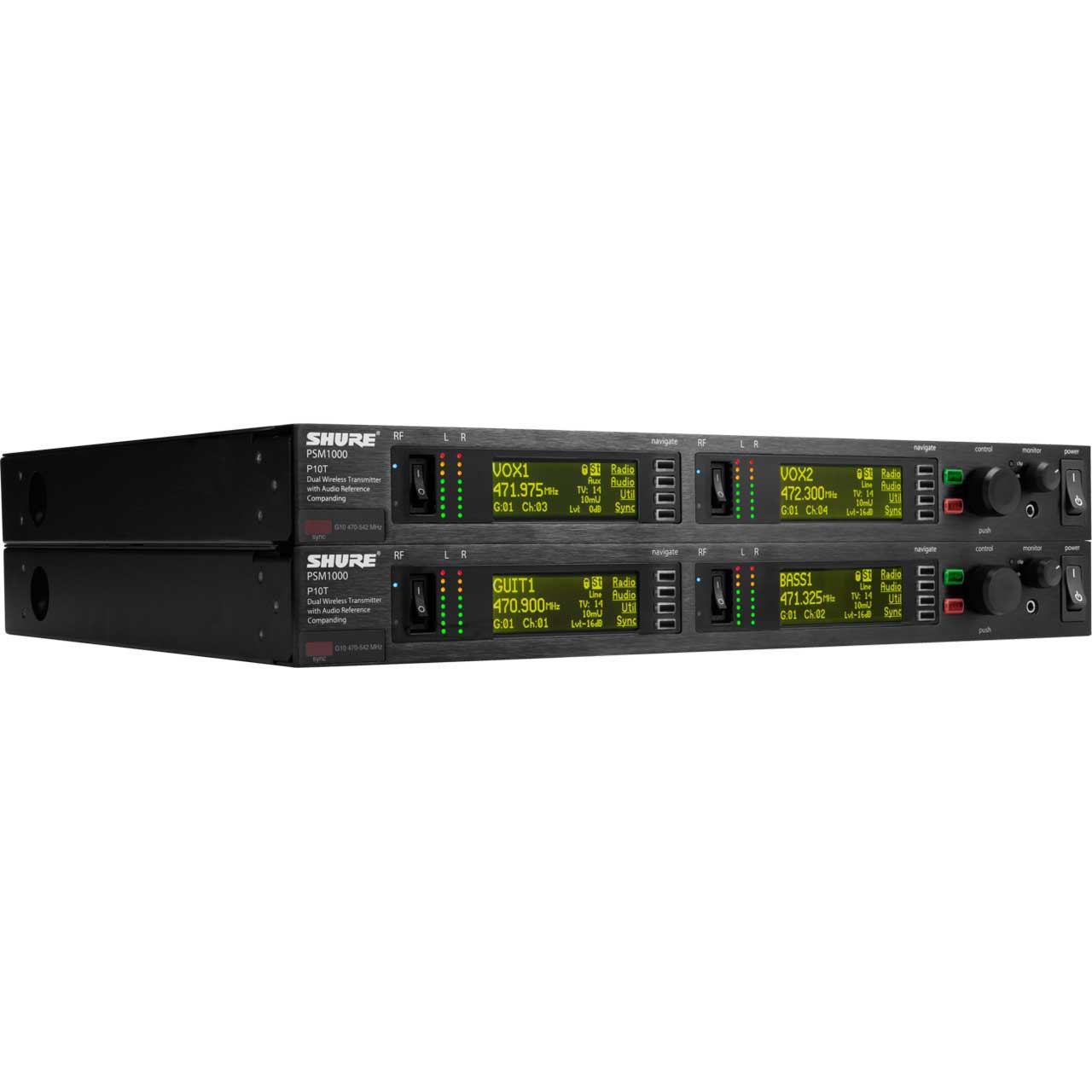

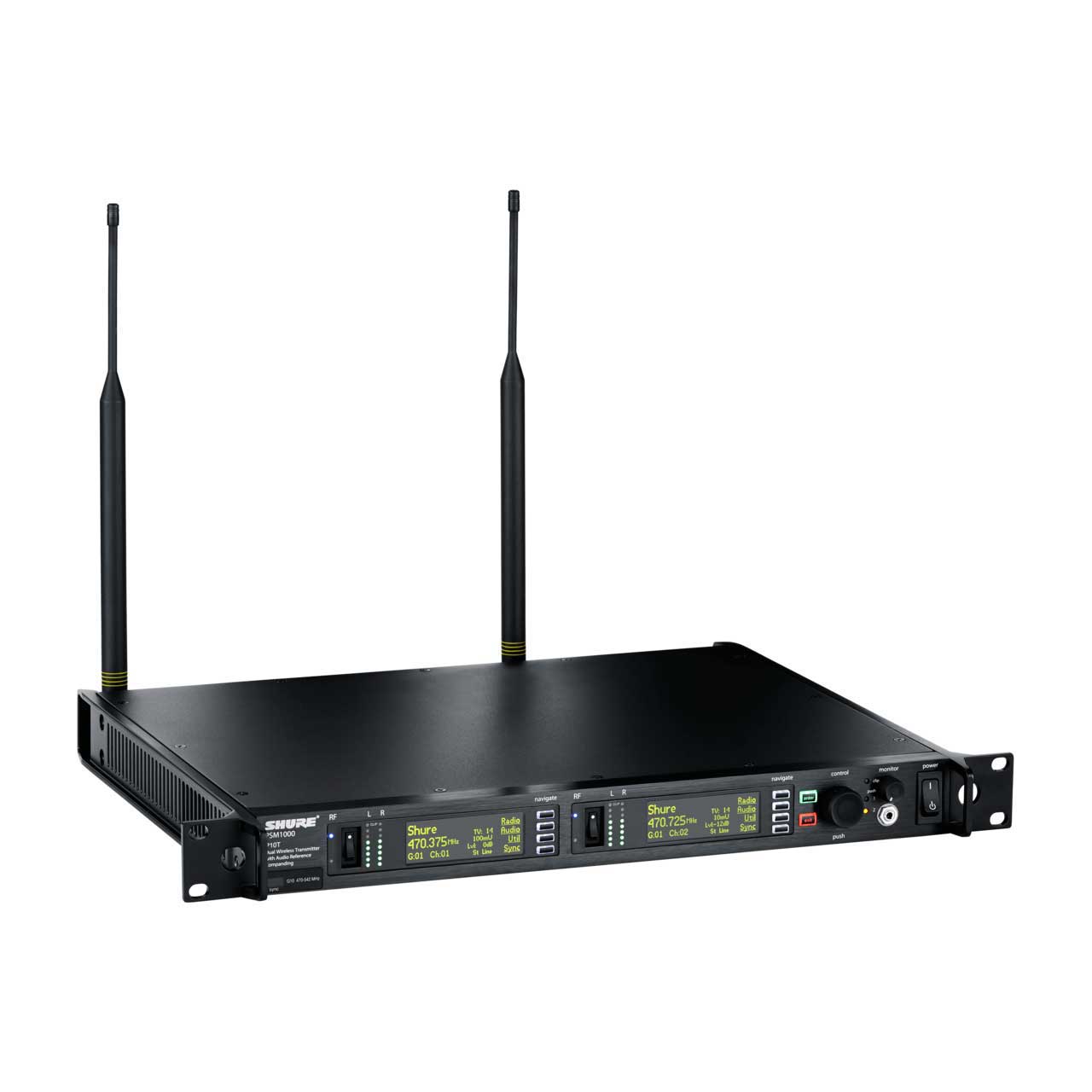

Shure P10T=-J8A PSM1000 Dual Rack Unit Wireless Transmitter - J8A (554 - 616 MHz)

P10T=-J8A - Overview

• Features:

  • Full rack, dual-channel transmitter in a professional, touring grade chassis
  • 72 MHz wide tuning range provides flexibility and performance in crowded, unpredictable RF environments
  • Backwards-compatible with PSM®900 receivers
  • RF Mute Switch allows system setup without causing RF interference
  • Sync RF scan information from a P10R bodypack quickly and easily over IR link
  • Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
  • Spectrum display provides a detailed frequency plot on the menu screen with selectable zoom

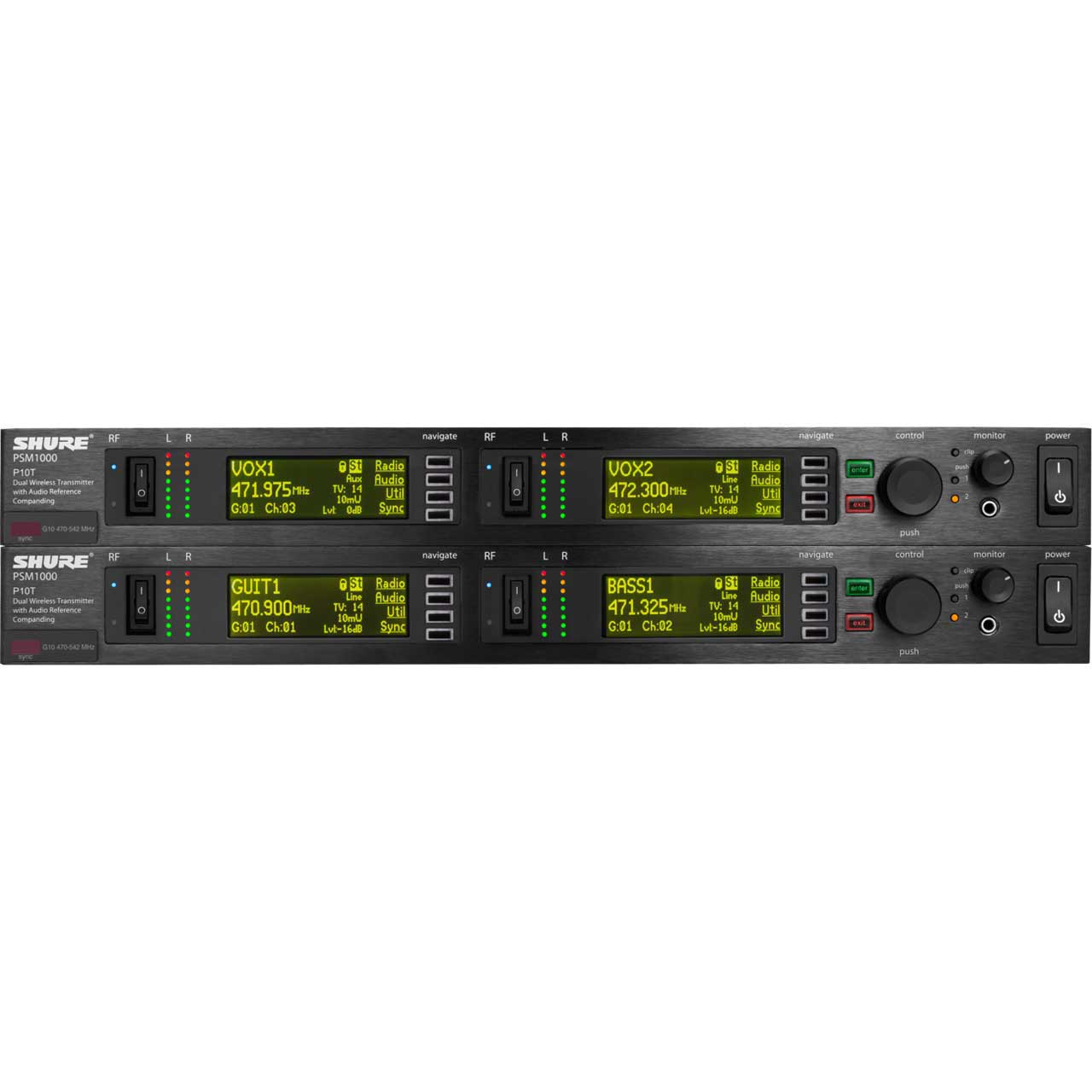

  • Front panel audio input gain adjustment and LED level meter with clipping indicator
  • Exceptional transmitter linearity vastly reduces frequency intermodulation, allowing more compatible channels per frequency range
  • High-contrast LCD with grouped menu items provides an intuitive user interface

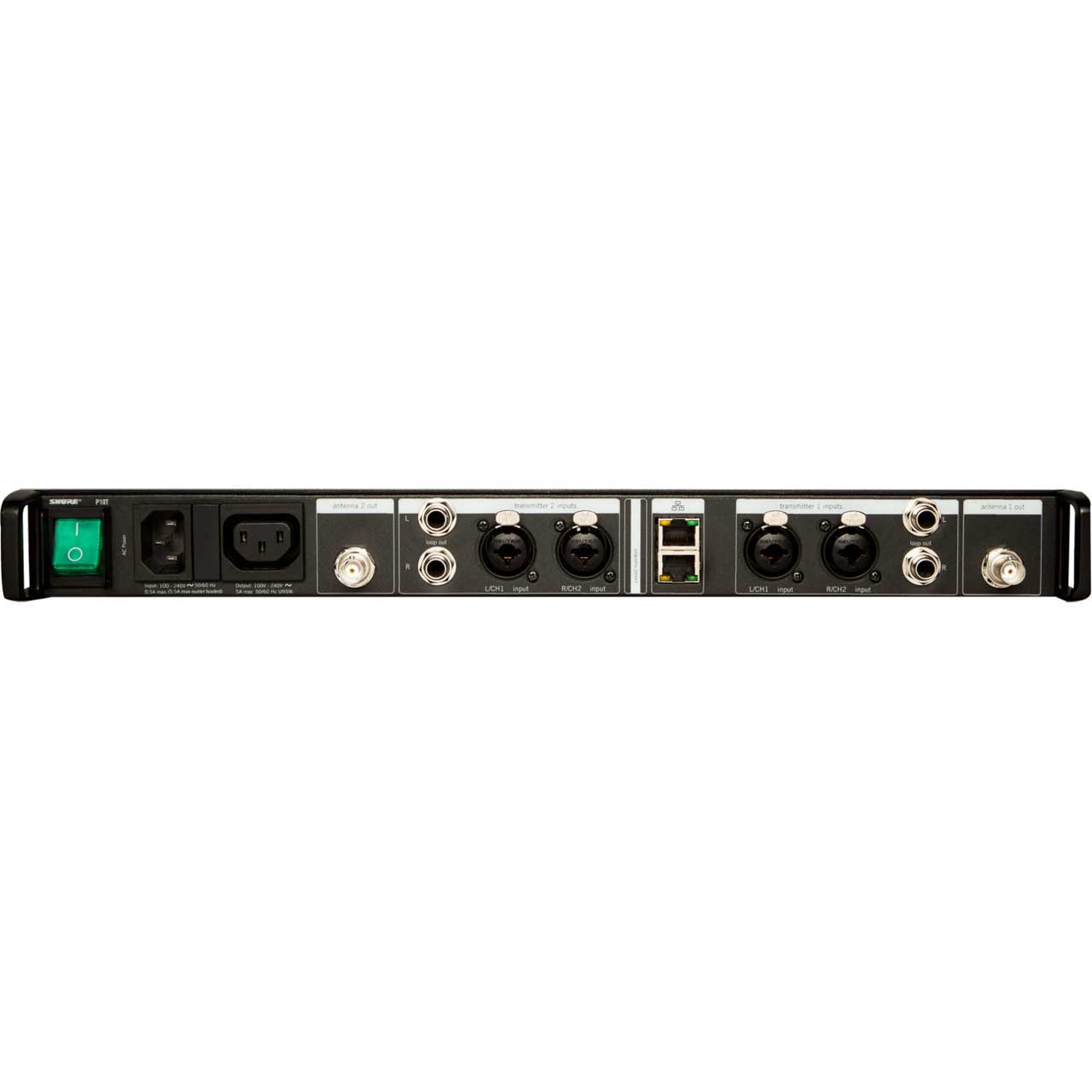

  • Front or back mountable antennas
  • Compatible with PA821B and PA821A antenna combiners
  • Loop out connectors for multiple mix setups and easy installation
  • Switchable +4dBu and -10 dBV input level
  • Balanced, 1/4" and XLR connectors
  • 1/8" headphone out on the front panel for easy monitoring


• Specifications:

  • RF Output Power Selectable: 10, 50, 100 mW (regionally dependent)
  • RF Output Impedance: 50 Ω (typical)
  • Net Weight: 4.7 Kg (10.4 lb)
  • Dimensions: 44 X 483 X 343 mm
  • Power Requirement: Input: 100-240V AC, 50/60 Hz, 0.5A max (5.5 max outlet loaded), Output: 100-240V AC, 5A max, unswitched
  • Connector Type: Combination XLR and 6.35 mm (1/4") TRS
  • Polarity: XLR: Non-inverting (pin 2 positive with respect to pin 3), 6.35 mm (1/4") TRS: Tip positive with respect to ring
  • Configuration: Electronically balanced
  • Impedance: 70.2 kΩ (actual)
  • Nominal Input Level Switchable: +4 dBu, -10 dBV
  • Maximum Input Level: +4 dBu: +29.2 dBu, -10 dBV: +12.2 dBu
  • Pin Assignments: XLR: 1=ground, 2=hot, 3=cold, 6.35 mm (1/4") TRS: Tip=hot, Ring=cold, Sleeve=ground
  • Phantom Power Protection: Up to 60 V DC
  • Connector Type: 6.35 mm (1/4") TRS
  • Configuration: Electronically balanced
  • Impedance: Connected directly to inputs
