Tripp Lite SMART3000RM2UL 3000VA 2250W UPS Smart Lithium Ion LiFePO4 LCD USB DB9 2URM

ITEM #: SMART3000RM2UL MFG #: SMART3000RM2UL

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$4,703.00

Our Price:

$2,954.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


SMART3000RM2UL - Overview

This Tripp Lite SMART3000RM2UL SmartPro® UPS system features a state-of-the-art lithium iron phosphate (LiFePO4) internal battery with longer life, more cycles and faster recharge. It more than doubles the service life of an equivalent lead acid battery, and offers up to three times more charge/discharge cycles. It recharges to 100-percent capacity in less than two hours, making the lithium UPS system an ideal backup in case of power outage. The LiFePO4 battery weighs 60-percent less than an equivalent lead acid battery, which reduces the overall UPS weight.

120-Volt Battery Backup Keeps Equipment Operating Through Short Power Failures
The SMART3000RM2UL provides up to 9.5 minutes (half load) and 3.5 minutes (full load) of battery backup, as well as AC power protection, for critical server, network and telecom equipment. In case of a prolonged blackout, the single-phase UPS system gives you enough time to save important data and perform an orderly system shutdown. With a 2250W capacity (3000VA), the line-interactive UPS system with automatic voltage regulation (AVR) maintains regulated 120V nominal output over an input range of 83V-145V without using battery power.

High Efficiency Operation Helps the Environment and Your Cash Flow
Operating with a high 98% line-mode efficiency, this 3kVA UPS system can save BTU heat output and energy costs.

Typical Applications:
Deliver regulated sine wave output to connected equipment in a network closet or small-business network
Protect point-of-sale and VoIP networks against power surges and spikes
Keep your server room operational during short power failures and allow time for safe shutdowns during longer blackouts
PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • Provides 3kVA/2.25kW capacity power protection for critical network components
    • LiFePO4 battery backup lasts longer and weighs less than equivalent lead acid battery

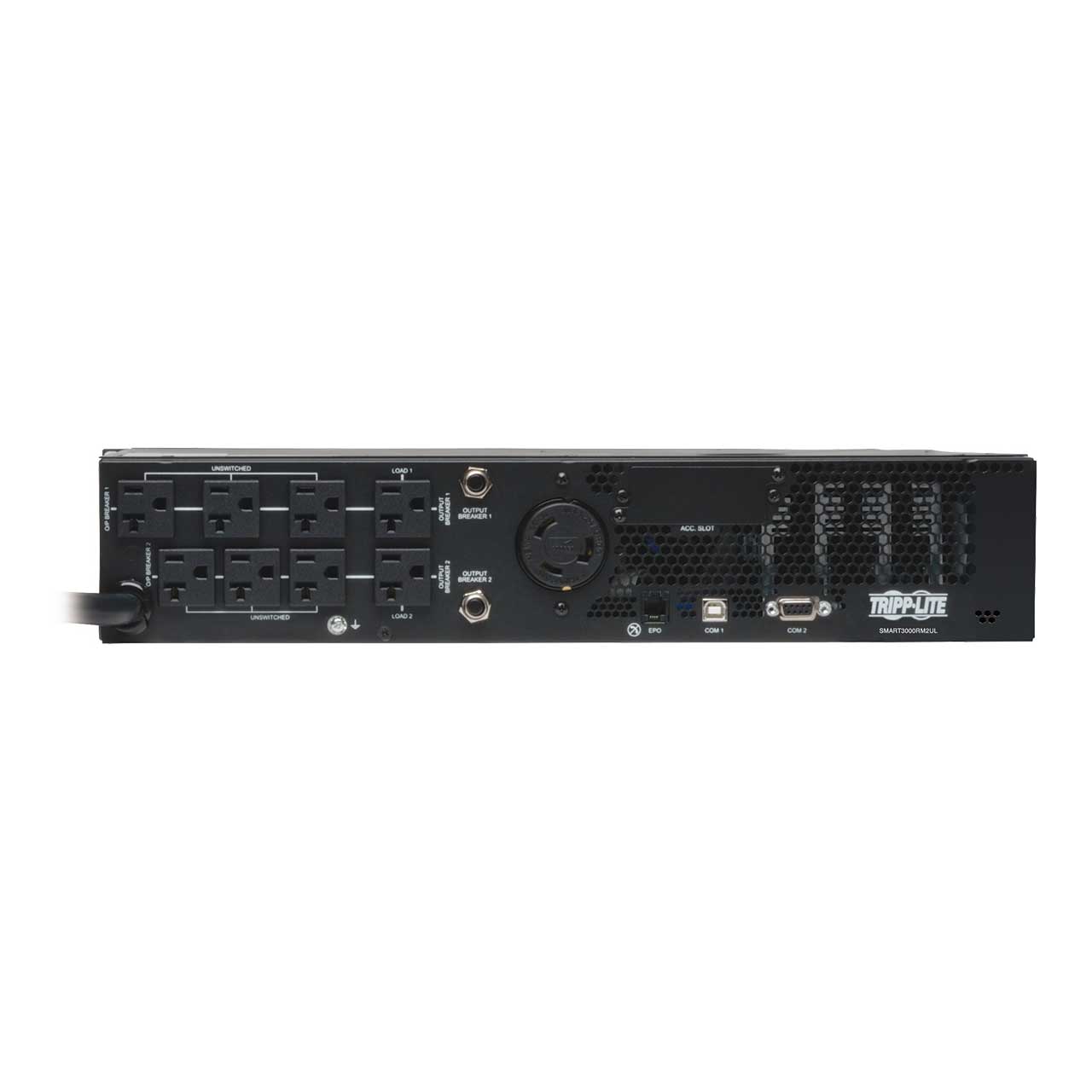

    • One NEMA L5-30R and 8 NEMA 5-15/20R outlets deliver power to rack equipment
    • 570-joule surge protection shields connected devices from damaging surges and spikes
    • High 98% line mode efficiency saves BTU heat output and reduces operating costs
    • To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
    • 5-year limited warranty
    • $250,000 Ultimate Lifetime Insurance

  • Specifications:

    • Output
    • Output Volt Amp Capacity (VA): 3000
    • Output kVA Capacity (kVA): 3.0
    • Output Watt Capacity (Watts): 2250
    • Output kW Capacity (kW): 2.25
    • Power Factor: 0.75
    • Nominal Output Voltage(s) Supported: 110V; 115V; 120V
    • Nominal Voltage Details: 120v nominal output in battery mode
    • Frequency Compatibility: 60 Hz
    • Output Voltage Regulation (Line Mode): -14%, +6%
    • Output Voltage Regulation (Battery Mode): +/- 5%
    • Output Receptacles: (8) 5-15/20R; (1) L5-30R
    • Load Management Receptacles: Two switchable single-outlet load banks
    • Output AC Waveform (AC Mode): Pure Sine wave
    • Output AC Waveform (Battery Mode): Pure Sine wave

      Input
    • Rated input current (Maximum Load): 24A (120V)
    • Nominal Input Voltage(s) Supported: 110V AC; 115V AC; 120V AC

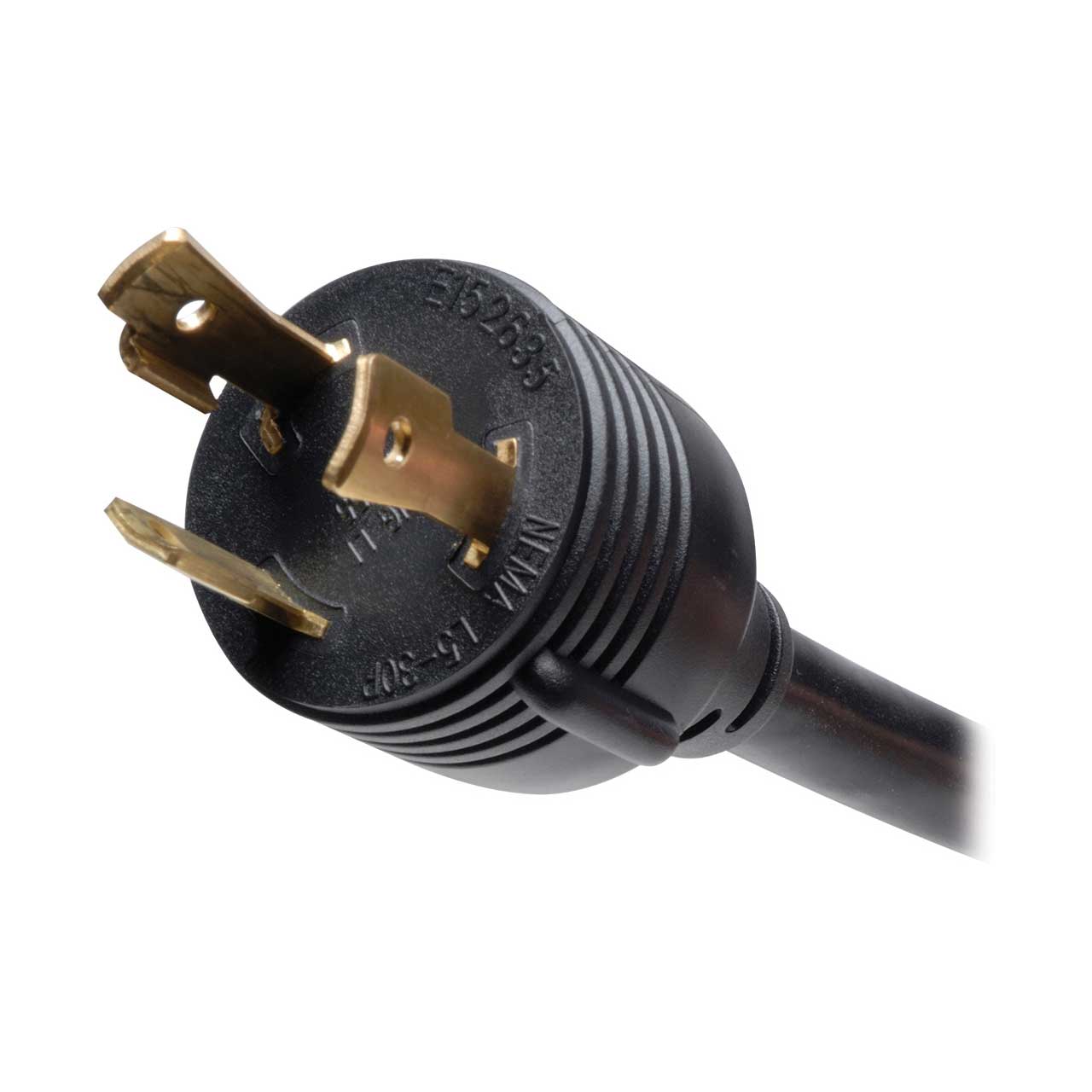

    • UPS Input Connection Type: L5-30P
    • UPS Input Cord Length (ft.): 10
    • Recommended Electrical Service: 30A 120V
    • Input Phase: Single-Phase

      Battery
    • Full Load Runtime (min.): 3.5 min. (2250w)
    • Half Load Runtime (min.): 9.5 min. (1125w)
    • DC System Voltage (VDC): 48
    • Battery Recharge Rate (Included Batteries): 1.7 hours from 10% to 90% (typical, full load discharge)

      Voltage Regulation
    • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
    • Overvoltage Correction: Input voltages between 127 and 145 are reduced by 12%
    • Undervoltage Correction: Input voltages between 108 and 96 are boosted by 12%
    • Severe Undervoltage Correction: Input voltages between 83 and 95 are boosted by 24%

      Surge / Noise Suppression
    • UPS AC Suppression Joule Rating: 570
    • UPS AC Suppression Response Time: Instantaneous
    • EMI / RFI AC Noise Suppression: Yes

      Physical
    • Included Mounting Accessory Description: 4 post rackmount installation accessories included
    • Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount
    • Primary Form Factor: Rackmount
    • UPS Power Module Dimensions (hwd, in.): 3.43 x 17.32 x 19.46
    • Rack Height: 2U
    • Minimum Required Rack Depth (inches): 24.5
    • UPS Power Module Weight (lbs.): 50.1
    • UPS Power Module Weight (kg): 22.72
    • Shipping Dimensions (hwd / in.): 8.40 x 23.80 x 21.70
    • Shipping Weight (lbs.): 63.90
    • Cooling Method: Fan
    • UPS Housing Material: Steel
    • Primary UPS Height (mm): 87
    • Primary UPS Width (mm): 440
    • Primary UPS Depth (mm): 494

      Environmental
    • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    • Relative Humidity: 0 to 95%, non-condensing
    • AC Mode BTU / Hr. (Full Load): 189
    • AC Mode Efficiency Rating (100% Load): 98%
    • Audible Noise: 45 dBA Max @ 1m front side

      Communications
    • Communications Interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
    • Network Management Cards: SNMPWEBCARD; TLNETCARD; WEBCARDLX; RELAYIOCARD
    • Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
    • Communications Cable: USB, DB9 and EPO cabling included
    • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications

      Line / Battery Transfer
    • Transfer Time: 5 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)
    • Low Voltage Transfer to Battery Power (Setpoint): 83
    • High Voltage Transfer to Battery Power (Setpoint): 145

      Certifications
    • UPS Certifications: Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
    • UPS Certification Details: UL 1778: 2014 R8.15 (5th Edition); CAN/CSA-C22.2 No. 107.3-14

  • Item Includes:

    • 1x SMART3000RM2UL SmartPro UPS, Lithium Battery Backup
    • 1x USB cable
    • 1x DB9 cable
    • 1x EPO cable
    • 1x Rack-mounting hardware
    • 1x Owner's manual

  • Warranty:

    • 5-year

  • GTIN:

    0037332207159
