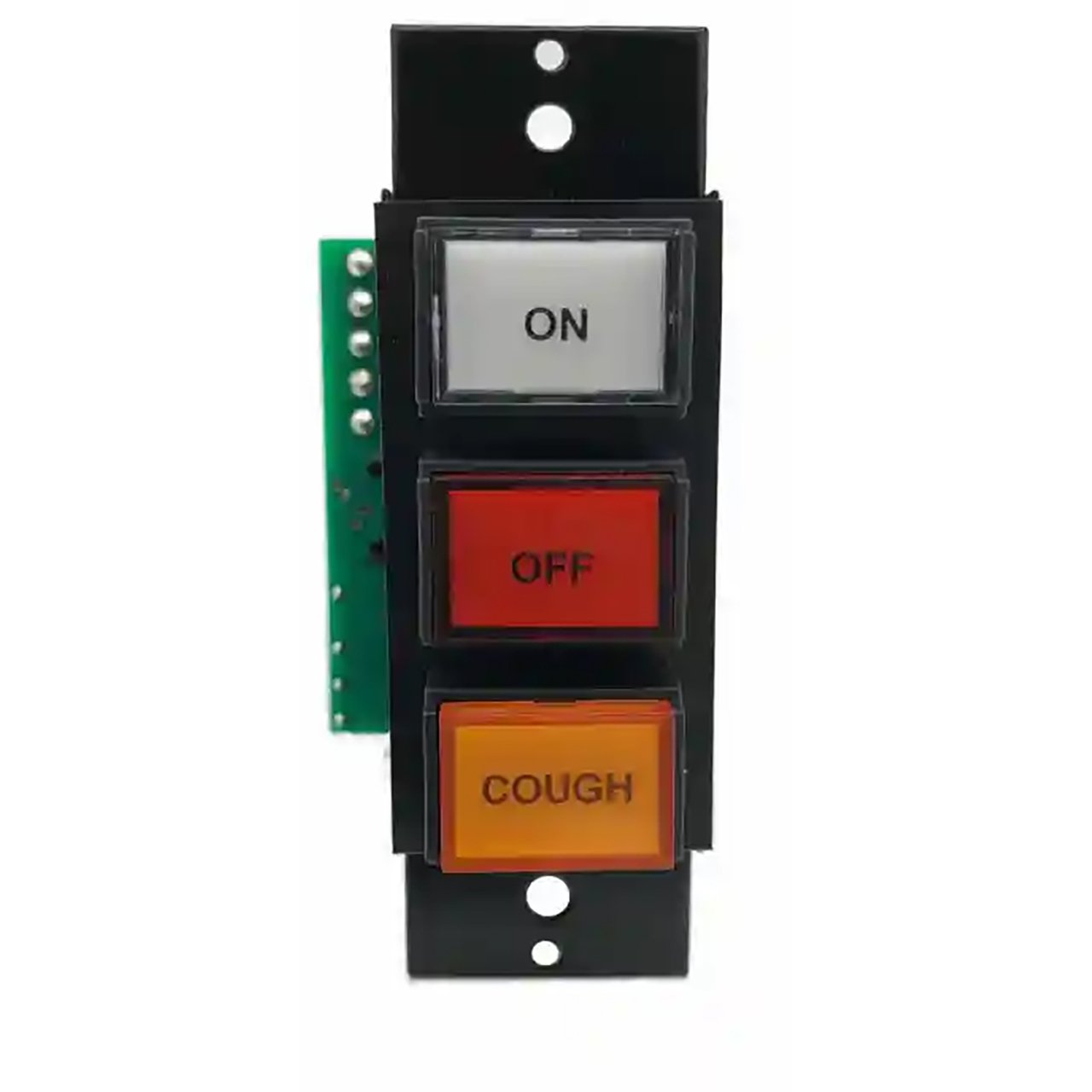

Use StudioHub SH-ONOFFCOUGH to control microphones when connected to music mixers (non-broadcast style consoles without GPIO control). ON/OFF buttons will switch the mic on/off and the "COUGH" button will momentarily mute the mic audio. All buttons are LED lit to indicate status.

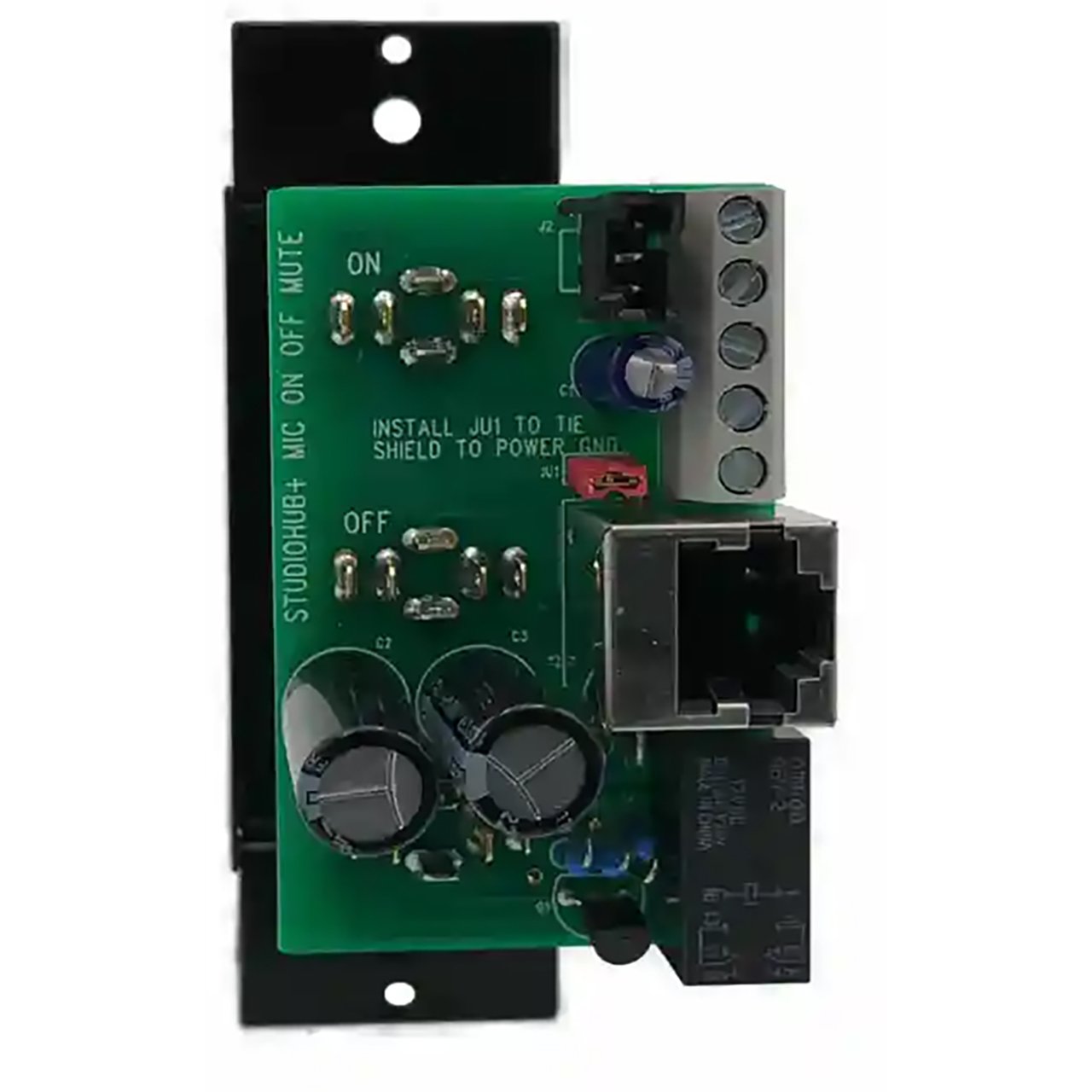

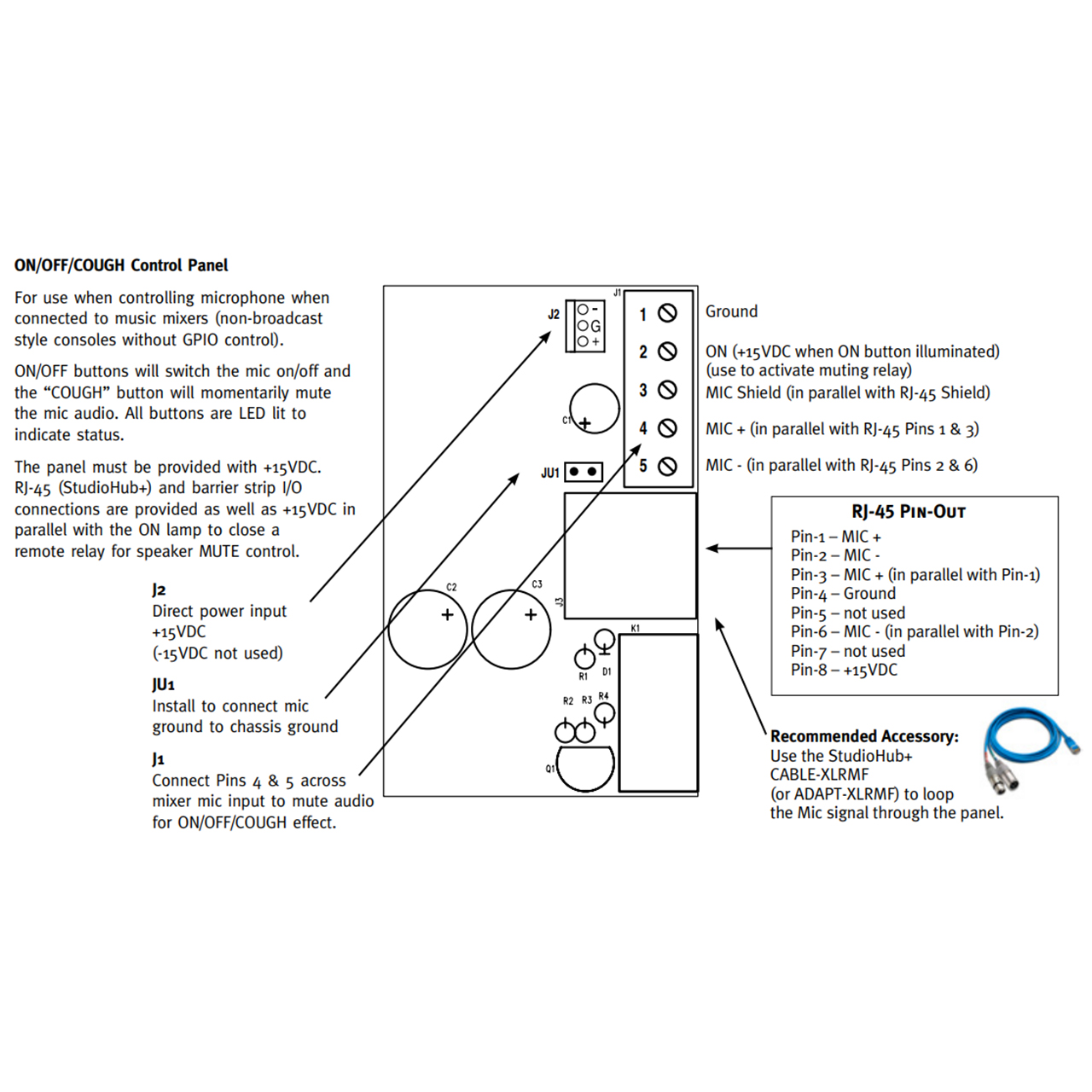

The panel must be provided with +15VDC. RJ-45 (StudioHub+) and barrier strip I/O connections are provided as well as +15VDC in parallel with the ON lamp to close a remote relay for speaker MUTE control.
Recommended Accessory: CABLE-XLRMF (sold separately)
