SmallRig 1684C Dogbone ARRI Rosette Arm

ITEM #: SR-1684C MFG #: 1684C

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SR-1684C

1684C - Overview

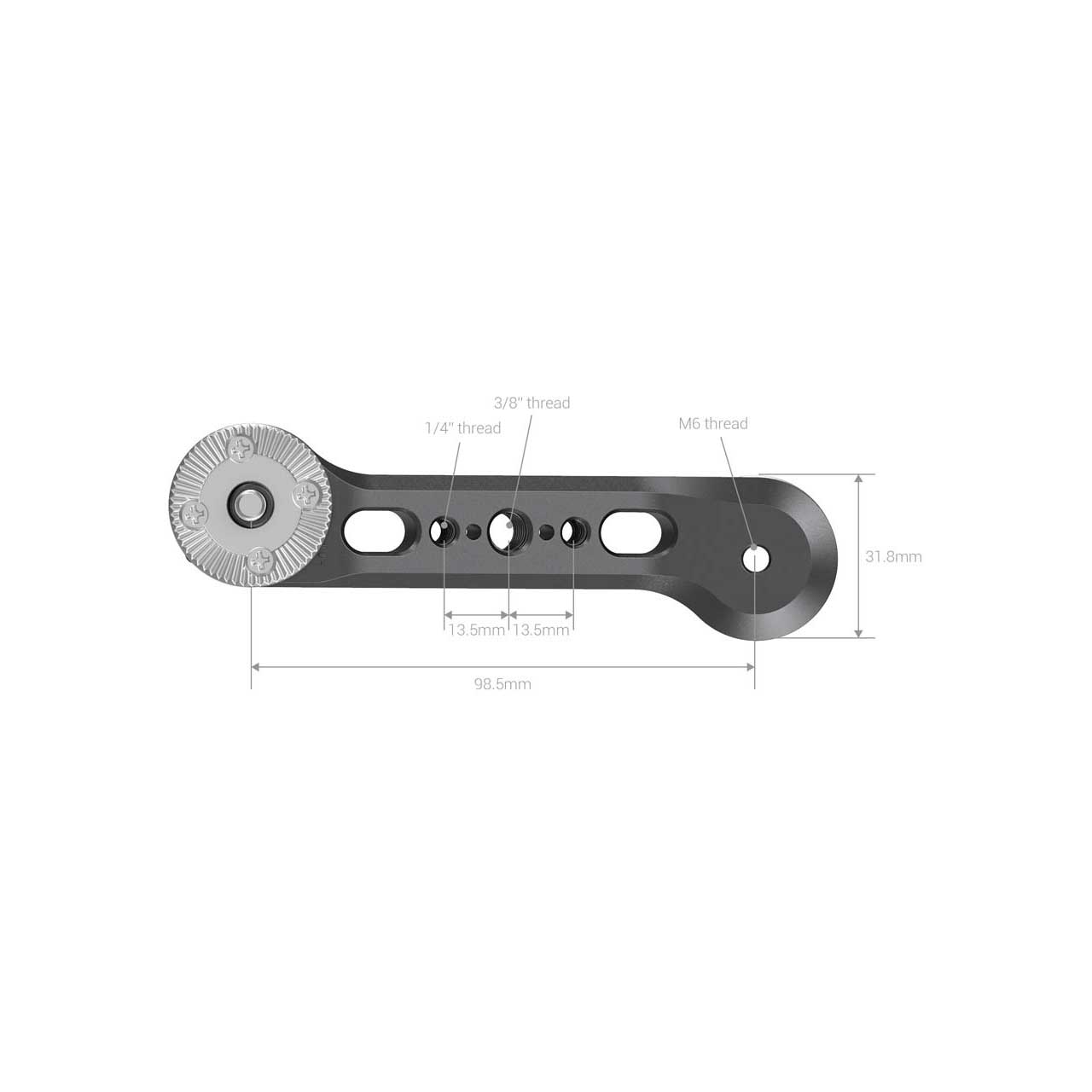

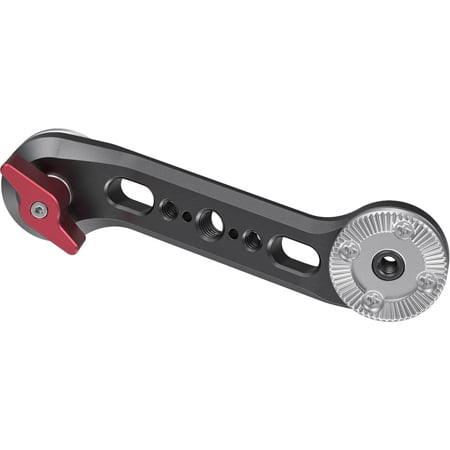

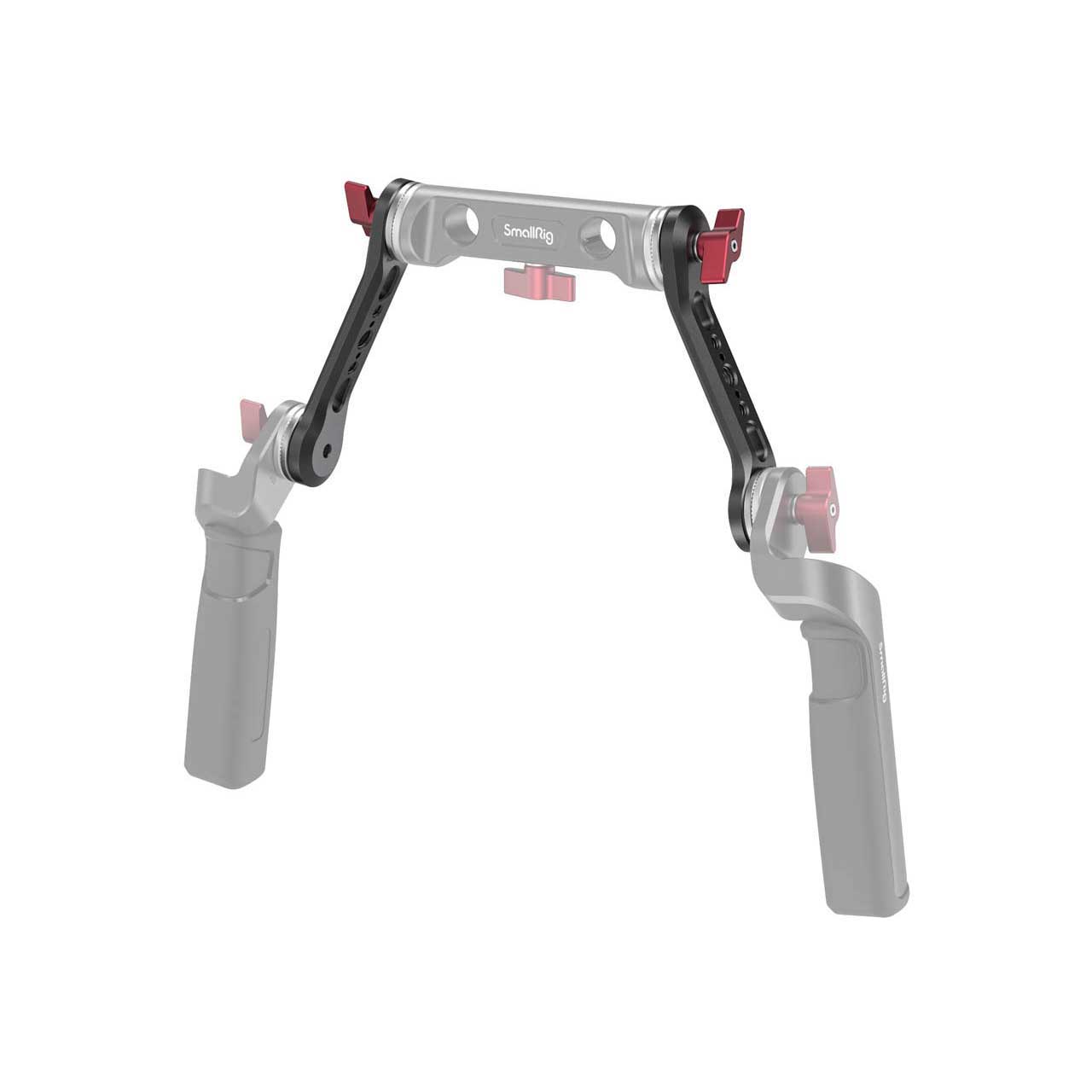

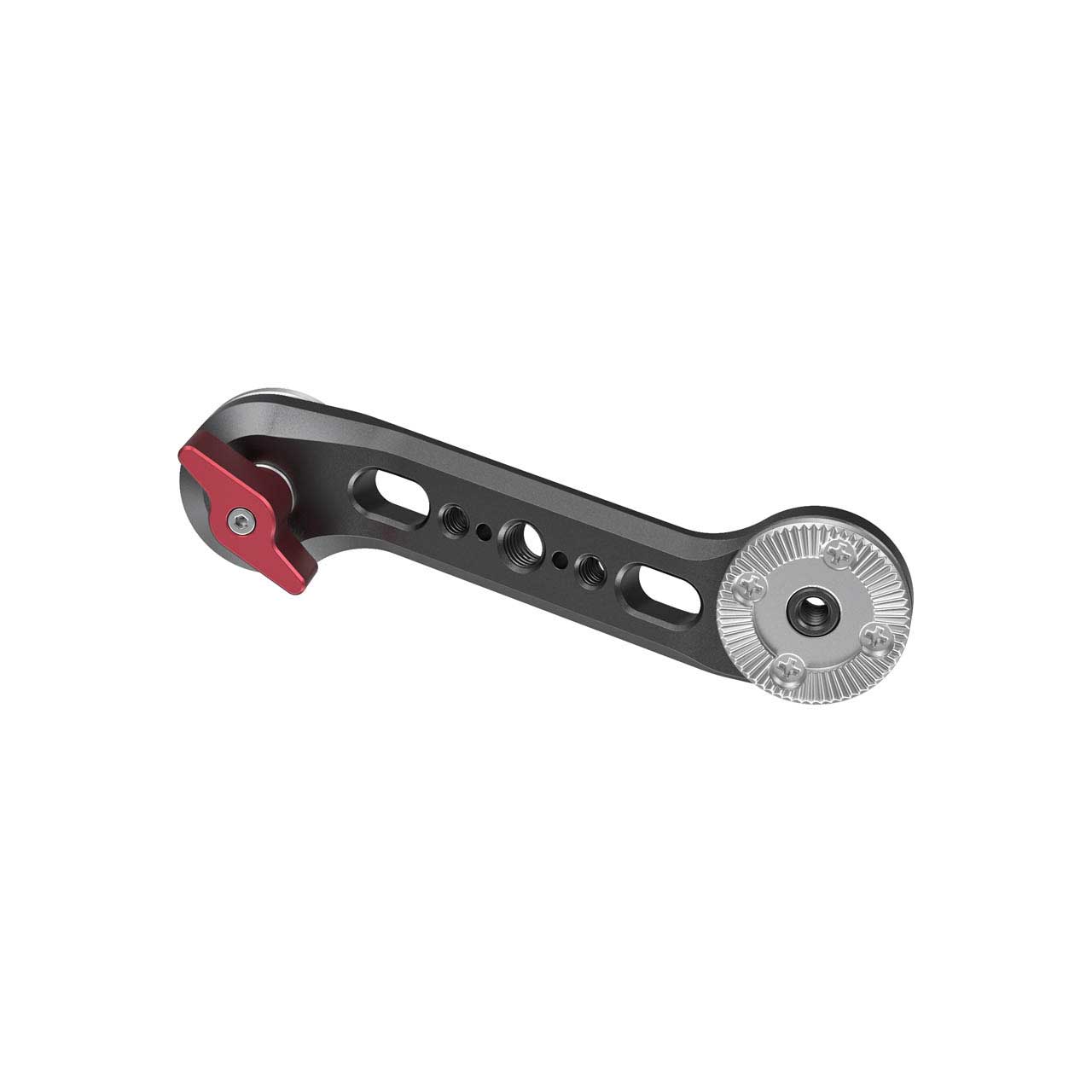

SmallRig Extension Arm With Arri Rosette 1684C is designed for handle extension. The extension arm is compatible with Cameras and accessories with arri rosette, such as rosette handle 2784. It could be both a male and female head with an M6 screw on the end and arri rosette (diameter 31.8mm) on both ends. The arm itself has an Arri locating hole and 1/4 "-20 threaded holes for attaching accessories such as articulating arm 2115.

  • Specifications:

    • Product Dimensions: 125 x 45 x 32mm (4.92 x 1.77 x 1.26in)
    • Package Dimensions: 155 x 80 x 40mm (6.10 x 3.15 x 1.58in)
    • Net Weight: 92g±5g (3.25±0.18oz)
    • Package Weight: 129g±5g (4.55±0.18oz)
    • Material(s): Aluminum Alloy, Stainless steel

  • Item Includes:

    • 1x Extension arm

  • Warranty:

    • 2 year

  • GTIN:

    6941590001043
