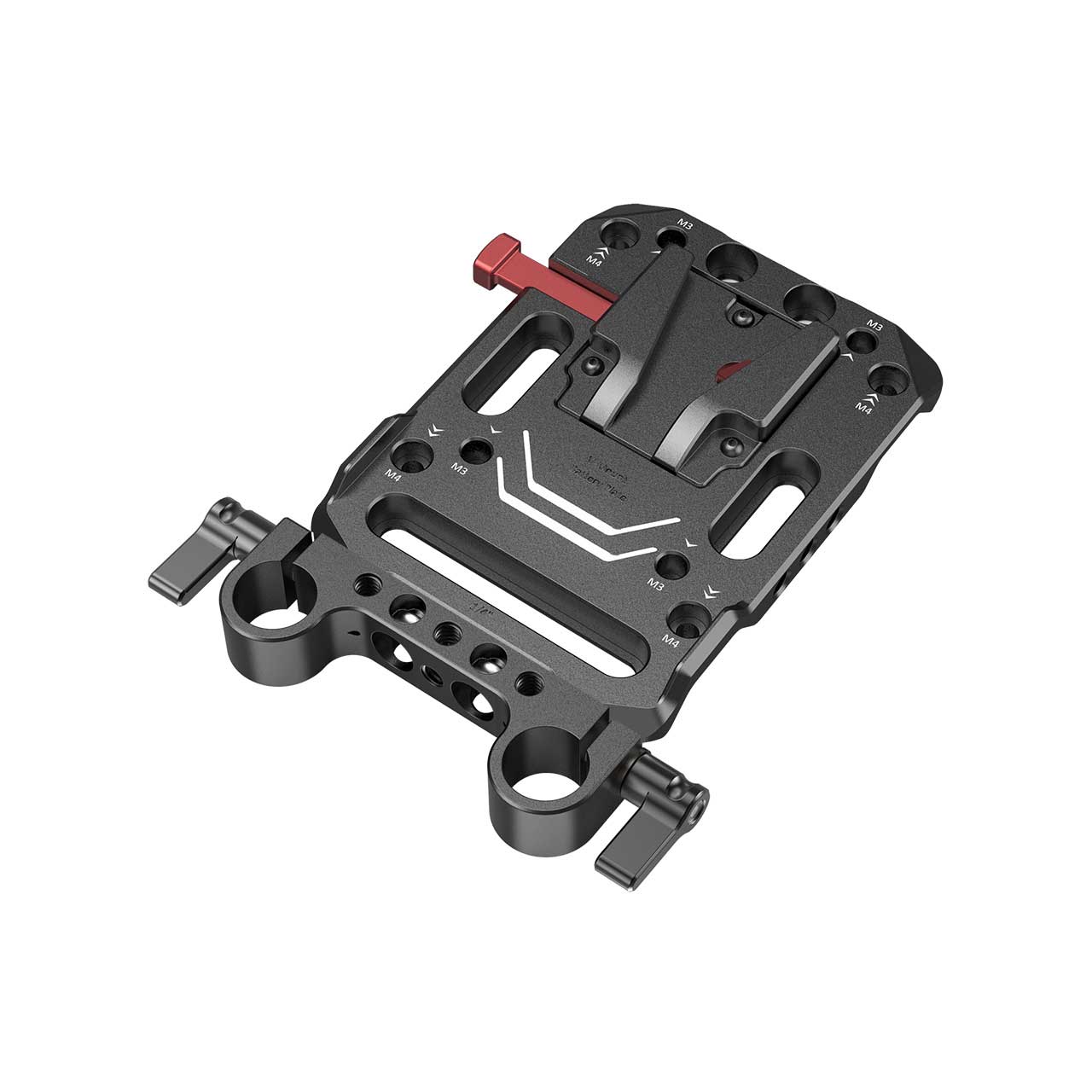

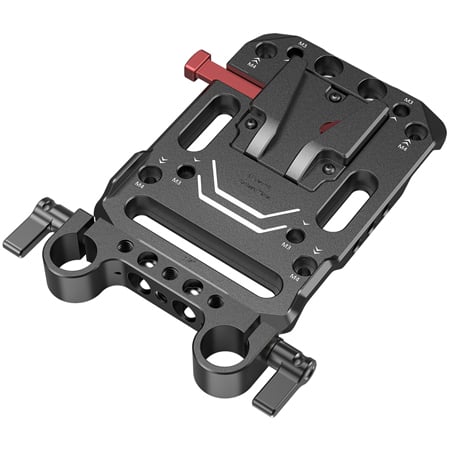

SmallRig 3016 V Mount Battery Plate with Dual 15mm Rod Clamp

3016 - Overview

• Features:

  • The plate utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s).
  • Two stoppers prevent the battery from twisting when attached.

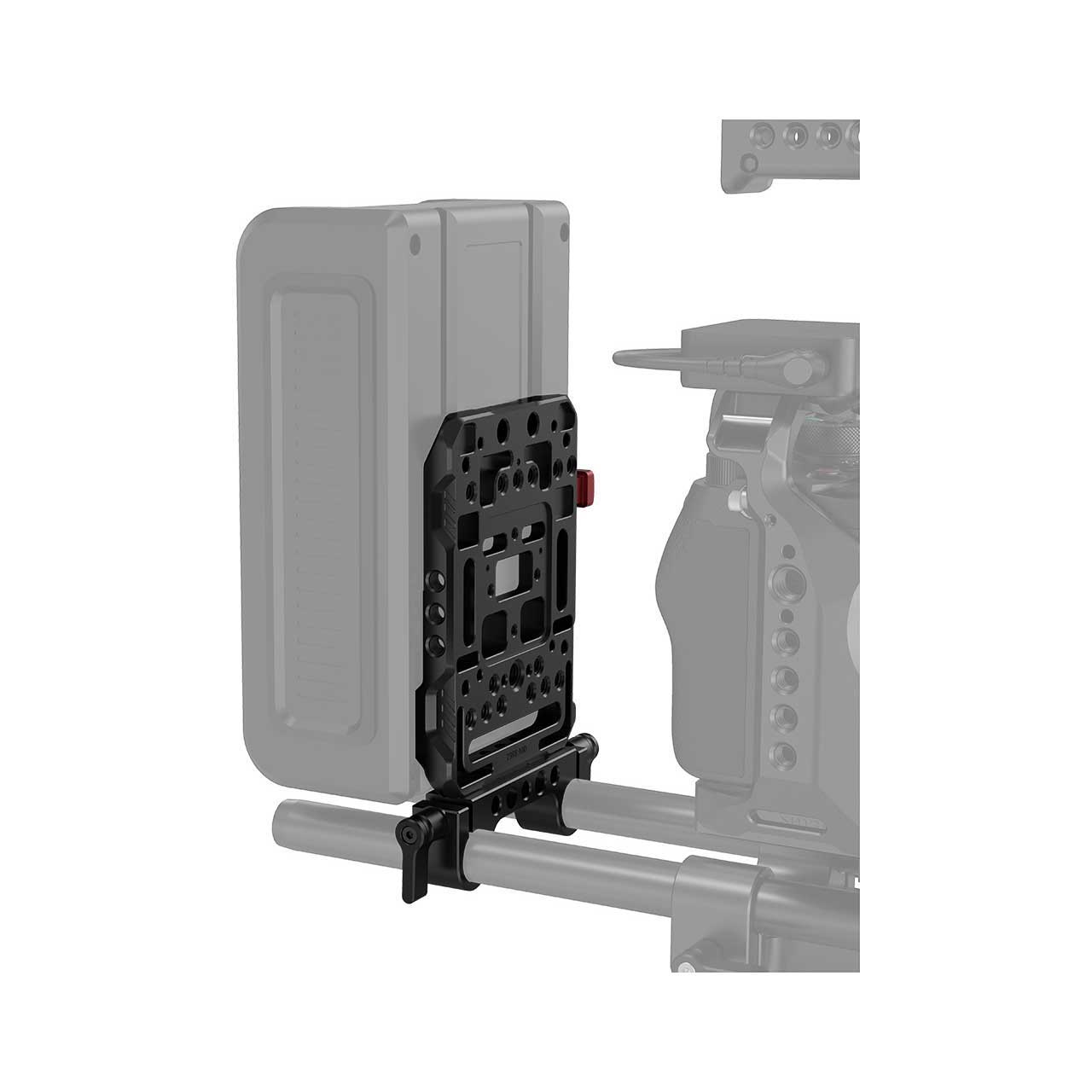

  • It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system in a variety of different installation ways.

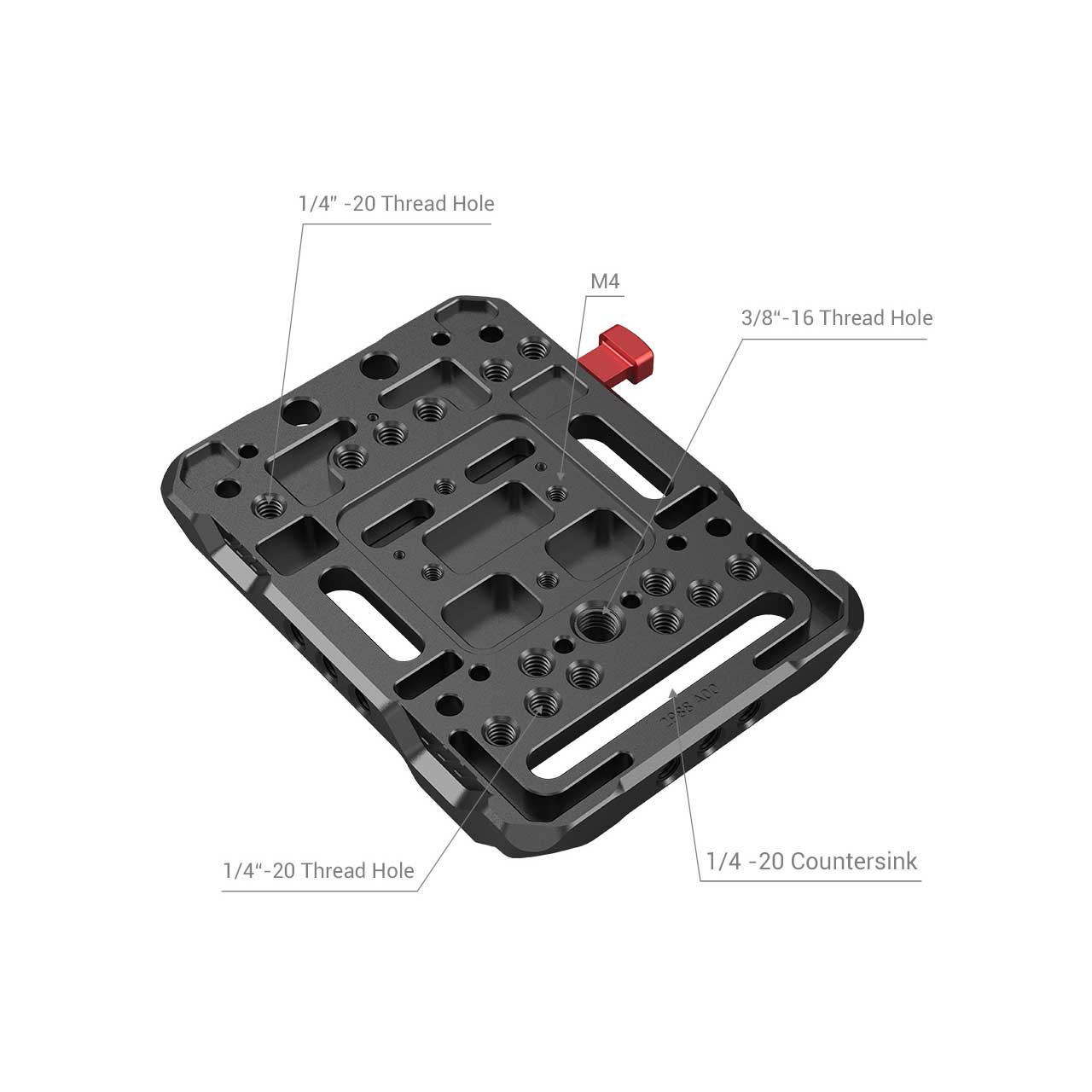

  • The Plate itself features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories.
  • It's compatible with the Blackmagic URSA mini.


• Specifications:

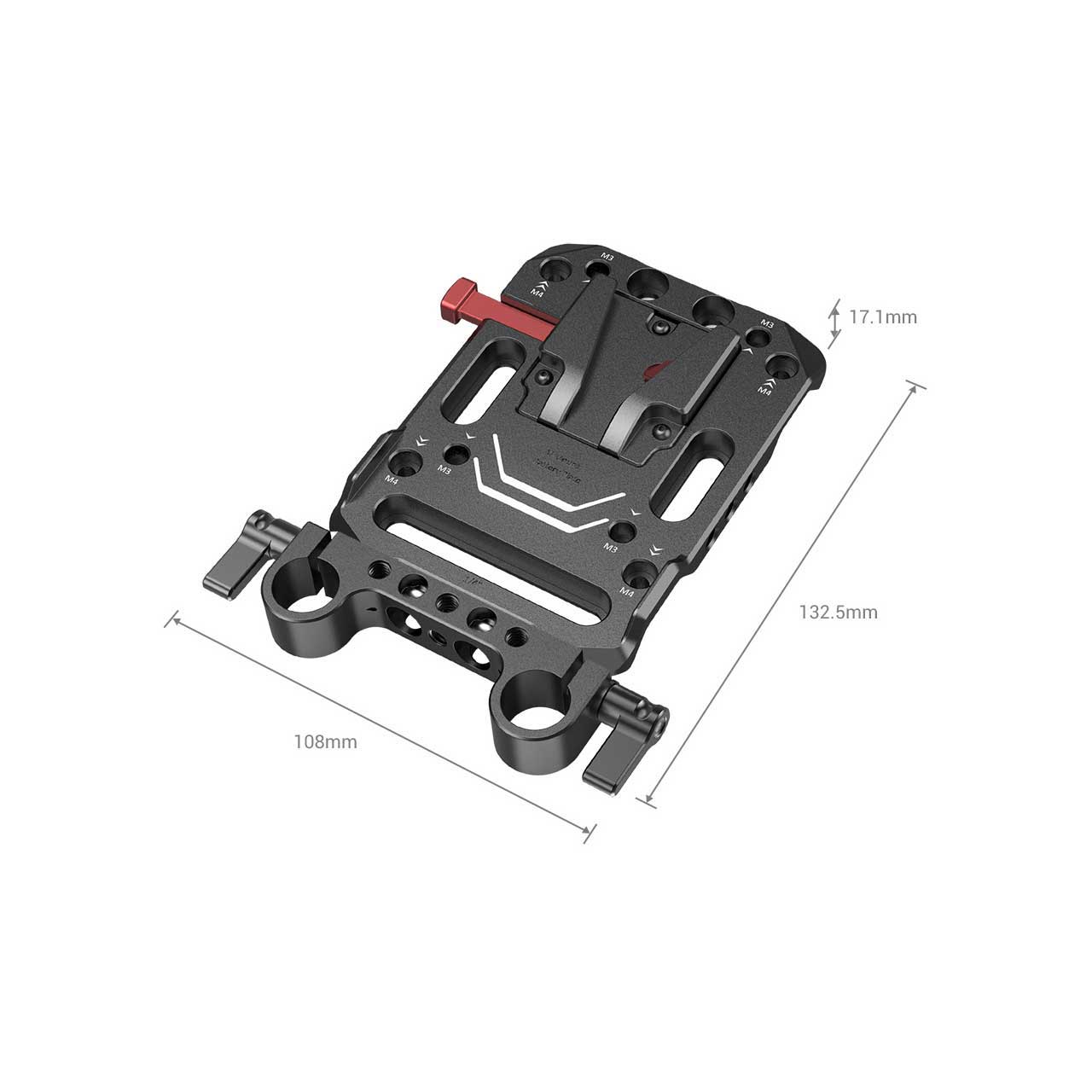

  • Product Dimensions: 132.5 x 108 x 17mm (5.22 x 4.25 x 0.67in)
  • Package Dimensions: 135 x 100 x 55mm (5.32 x 3.94 x 2.17in)
  • Net Weight: 190g±5g (6.70±0.18oz)
  • Package Weight: 242g±5g (8.54±0.18oz)
  • Material(s): Aluminum Alloy


• Item Includes:

  • 1x V Mount Battery Plate
  • 1x Dual 15mm Rod Clamp
  • 3x Allen Wrench
  • 4x 1/4-20" Screw (short)
  • 2x 1/4-20" Screw (long)
  • 4x M4 Screw
  • 4x M3 Screw


• Warranty:

  • 2 year


• GTIN:

  6941590003634
