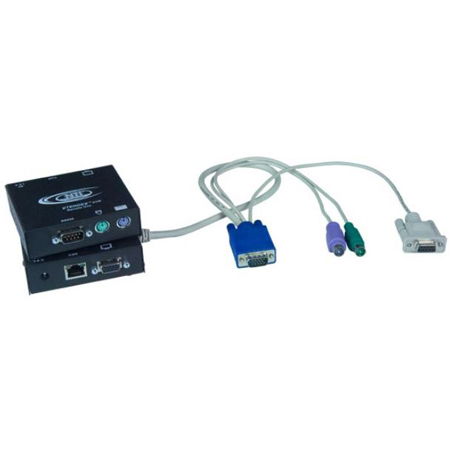

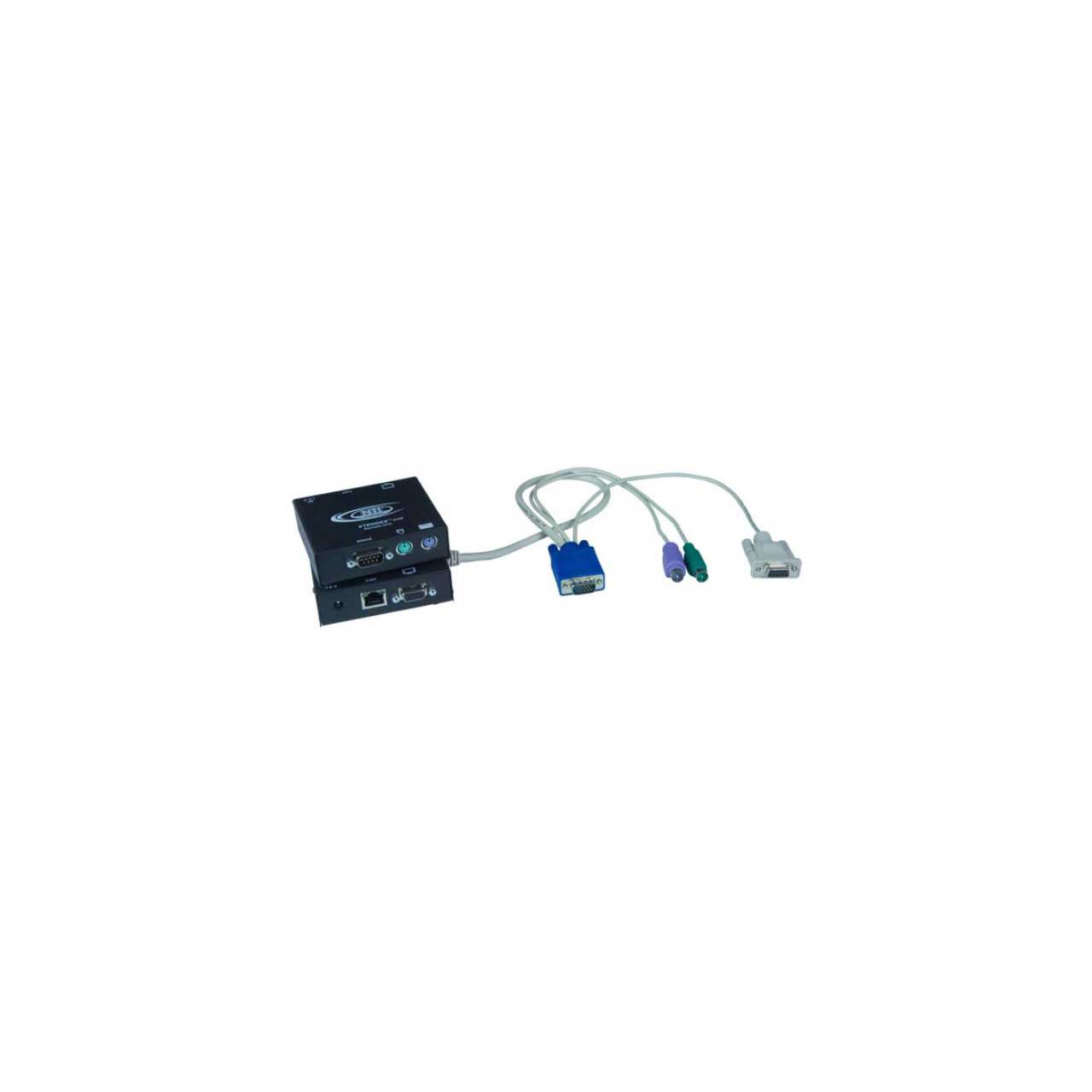

NTI ST-C5KVMRS-L-600 KVM + RS232 CAT5 Local Transmitter Unit

ST-C5KVMRS-L-600 - Overview

• Features:

  • Sharpest and clearest VGA quality over CAT5 of any manufacturer.

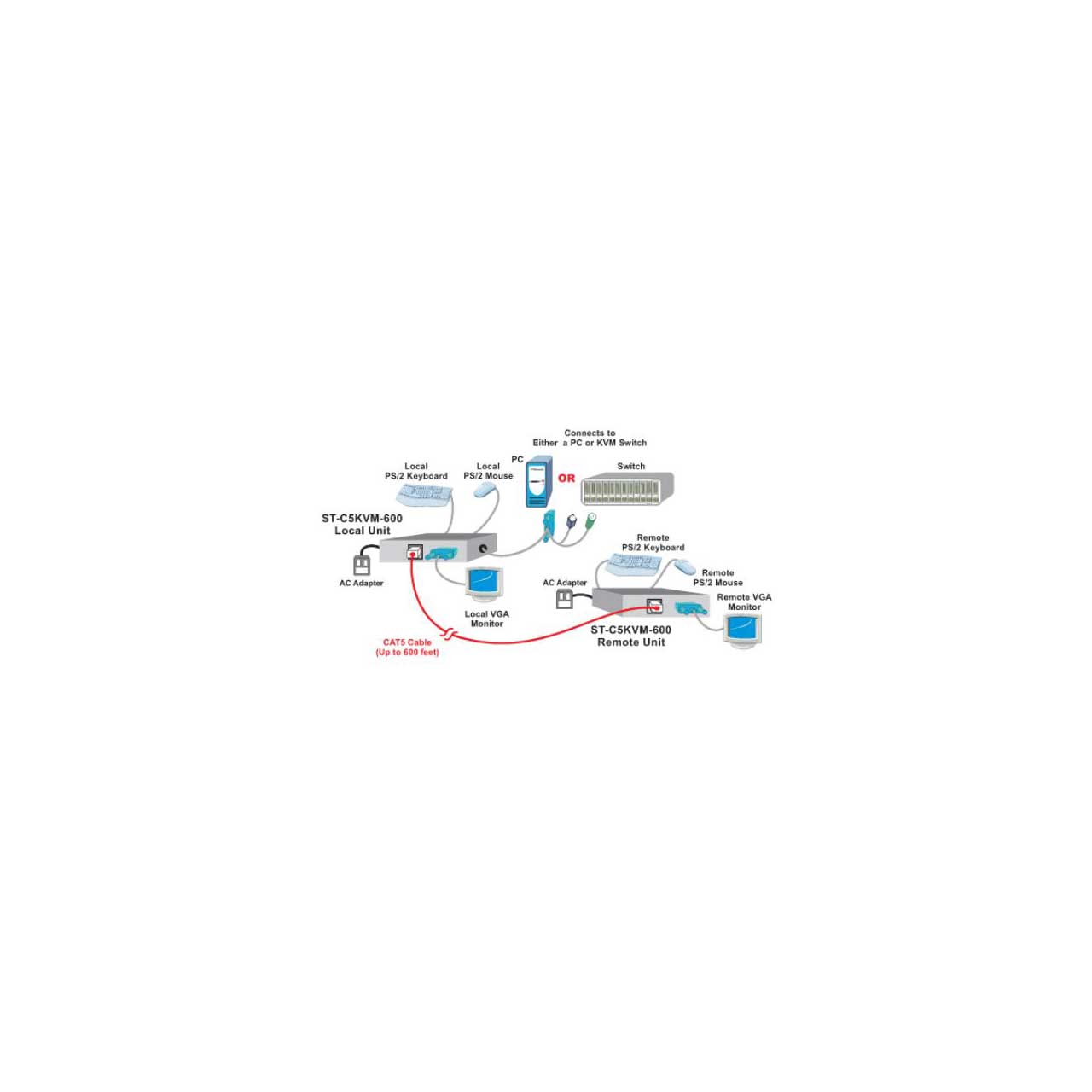

  • Supports two users: one local and one remote.
  • Local unit provides local KVM access.
  • Supports resolutions to 1920x1440.
  • Allows local and remote access to network servers.
  • Built-in surge protection.
  • Optional external surge protection available.
  • Available with optional stereo audio or RS232 control.
  • Keep-alive keboard/mouse emulation for flawless operation.
  • Use in-house CAT5 wiring to locate a keyboard, monitor and mouse remotely.
  • Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor.


• Specifications:

  • Host Connection
  • Supports a PC, SUN FireT V20z, or NTI Switch.
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12.
  • One male 15-pin HD / two male 6-pin miniDIN connectors for PC or NTI KVM switch.
  • Optional RS232 support - female 9-pin D connector.
  • Optional stereo audio support - 3.5 mm stereo plug.
  • Local Access
  • Crisp and clear 1920x1440 video resolution.
  • One female 15-pin HD / two female 6-pin miniDIN connectors.
  • Compatible with Japanese keyboard layout.
  • Supports PS/2 mice including the IBM ScrollPoint mouse.
  • Optional RS232 support - male 9-pin D connector.
  • Optional stereo audio support - 3.5 mm stereo jack
  • WxDxH: 3.5x3.1x1.2 in (89x79x30 mm)
  • Weight: 1.2 lbs (0.54 kg)
  • 100 to 240 VAC at 50 or 60 Hz via AC adapter.
  • Power Consumption: 10 W (each - local and remote unit).
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
