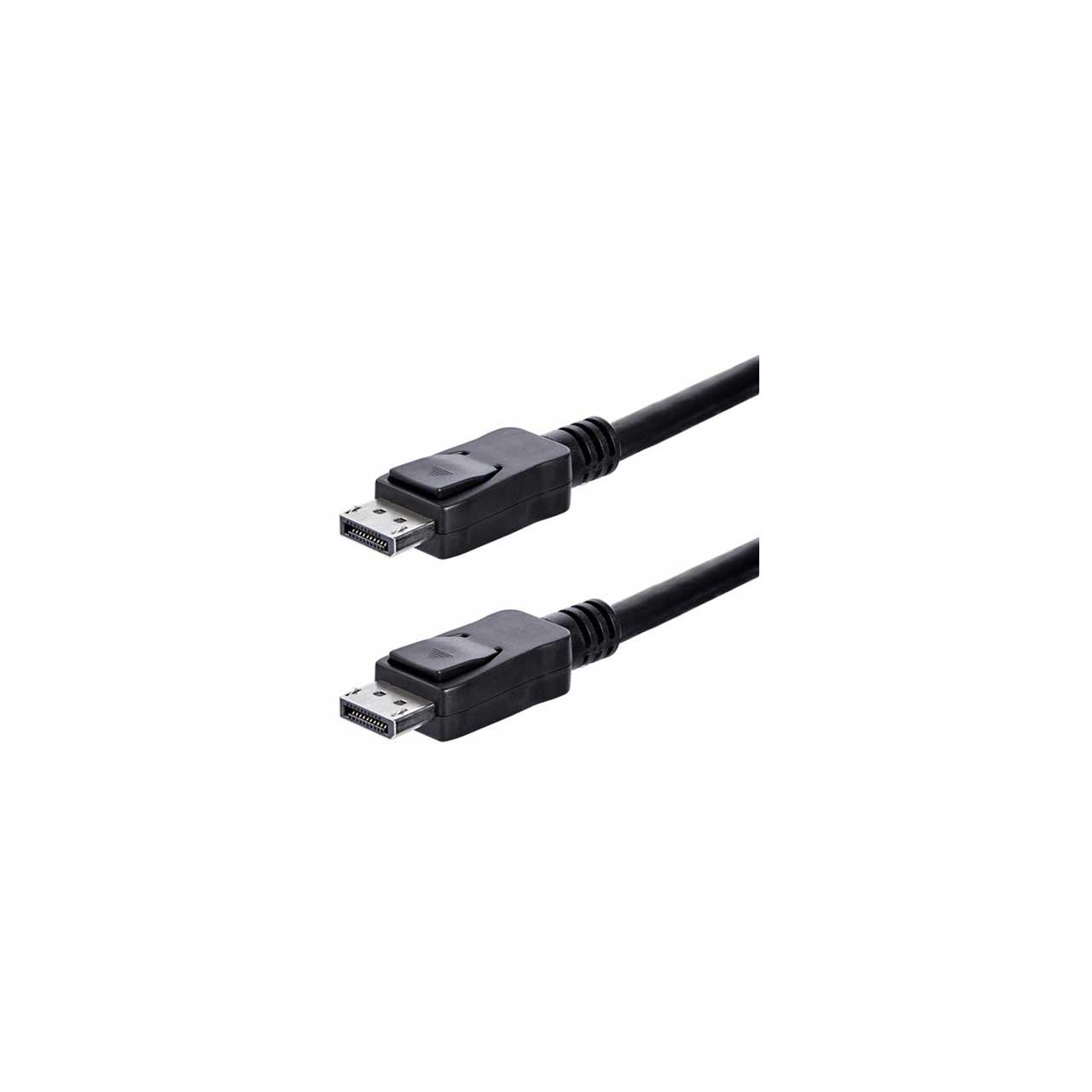

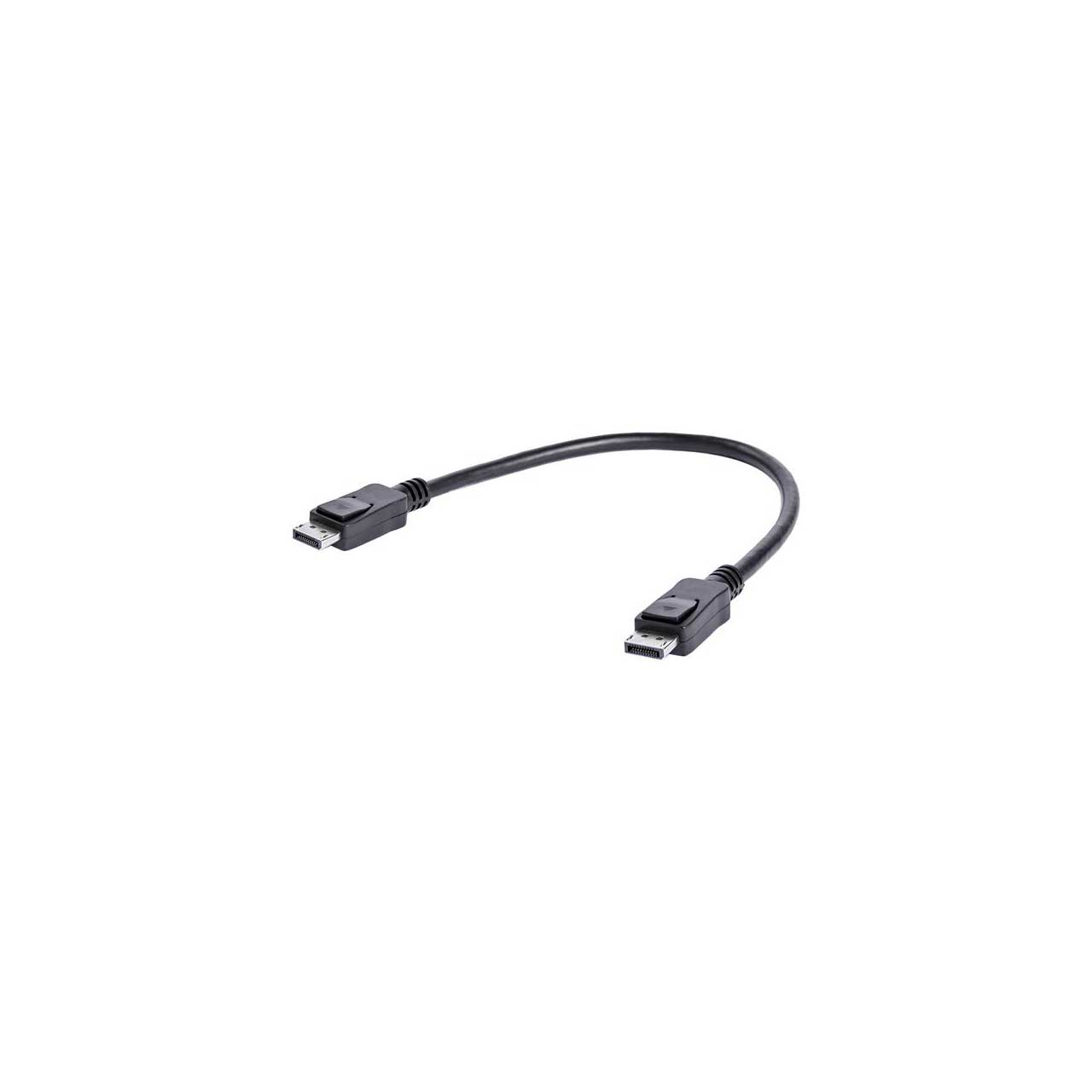

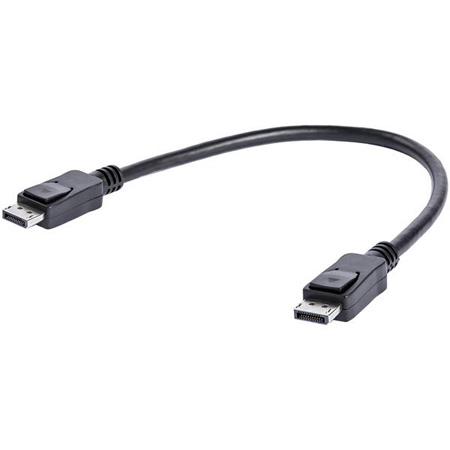

StarTech DISPLPORT1L Short DisplayPort 1.2 Cable with Latches Male/Male - DisplayPort 4k - 1 Foot

ITEM #: ST-DISPLPORT1L MFG #: DISPLPORT1L

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$15.99

Our Price:

$13.84

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    DISPLPORT1L - Overview

    The StarTech DISPLPORT1L 1ft DisplayPort 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMIr or dual link DVI.

    The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.

    The short 1-foot DisplayPort cable is perfect for mobile applications, such as connecting your laptop to a monitor and it provides a portable solution that makes it perfect for carrying as a laptop accessory.

    The DISPLPORT1L is backed by StarTech's Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

    Applications
    Connecting a DisplayPort Display to a PC or other DisplayPort Source

    • Features:

      • High-resolution support of up to 4k x 2k
      • Support for High Bit Rate 2 (HBR2) bandwidth of up to 21.6 Gbps
      • Backward compatible with DisplayPort 1.1

    • Specifications:

      • Hardware
      • Cable Jacket Type: PVC - Polyvinyl Chloride
      • Cable Shield Type: Aluminum-Mylar Foil with Braid
      • Connector Plating: Nickel
      • Fire Rating: CMG Rated (General Purpose)
      • Number of Conductors: 19

        Connector(s)
      • Connector A: 1 - DisplayPort (20 pin) Latching Male
      • Connector B: 1 - DisplayPort (20 pin) Latching Male

        Physical Characteristics
      • Cable Length: 1 ft [0.3 m]
      • Cable OD: 0.3 in [6.5 mm]
      • Color: Black
      • Product Height: 0.5 in [1.3 cm]
      • Product Length: 1 ft [0.3 m]
      • Product Width: 0.8 in [20.9 mm]
      • Weight of Product: 1.6 oz [46 g]
      • Wire Gauge: 28 AWG

        Packaging Information
      • Package Height: 0.6 in [14 mm]
      • Package Length: 8.7 in [22 cm]
      • Package Width: 7.9 in [20 cm]
      • Shipping (Package) Weight: 2 oz [56 g]

    • Item Includes:

      • 1x 1 - 1ft Latching DisplayPort cable

    • GTIN:

      0065030840118
