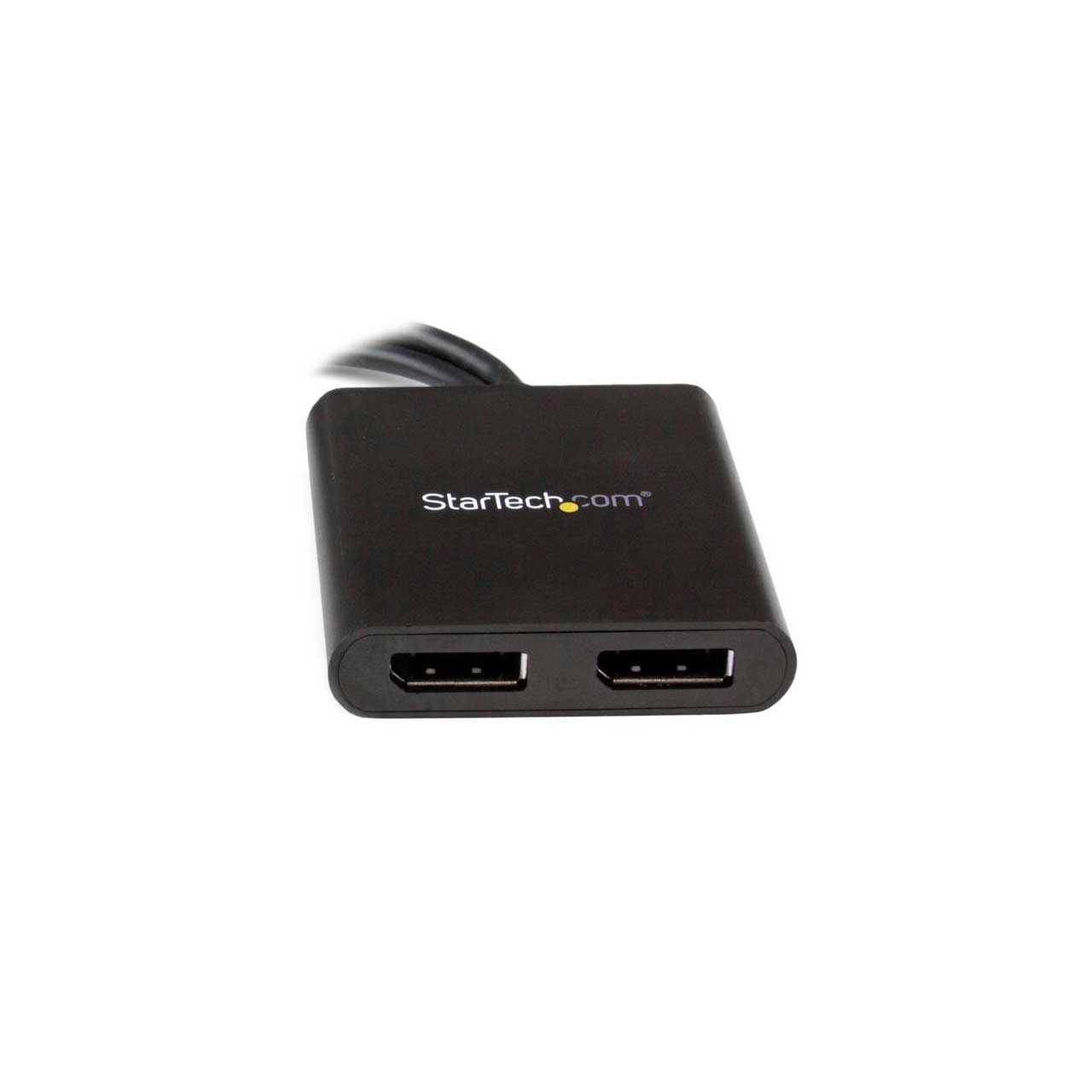

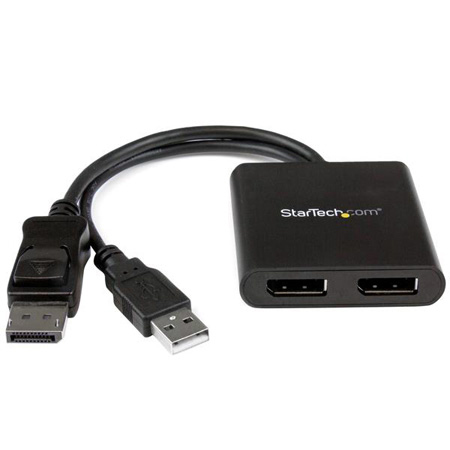

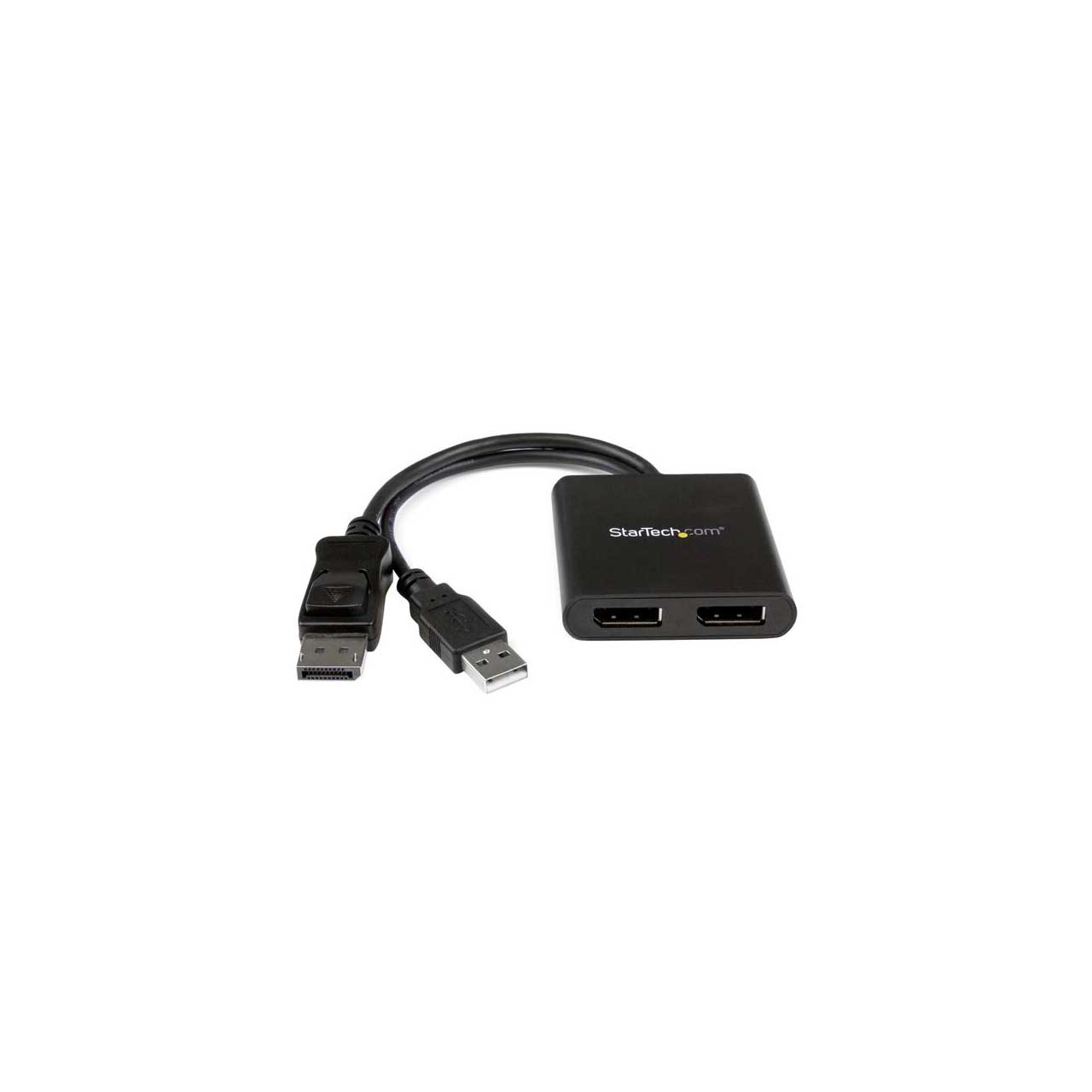

StarTech MSTDP122DP MST Hub - DisplayPort to 2-Port DisplayPort

ITEM #: ST-MSTDP122DP MFG #: MSTDP122DP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$71.99

Our Price:

$62.07

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    MSTDP122DP - Overview

    This MST hub lets you connect two monitors to your DisplayPort (DP) 1.2 equipped Windows® laptop or desktop. It’s USB powered, so the only thing you'll need to operate the hub is your computer.

    Increase productivity with multiple screens

    The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect two additional displays to your computer, which makes multitasking much easier.

    Connect to any display

    With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.

    Configure your displays for any environment

    Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

    Enjoy amazing video quality, without draining system resources

    MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.

    Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays. Resolution limitations apply.

    The MSTDP122DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 2-year warranty and free lifetime technical support.

    Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.

    Average resolution bandwidth allocation

    1920x1080 (High-definition 1080p) @60hz - 22%
    1920x1200 @60hz - 30%
    2560x1440 @60hz - 35%
    2560x1600 @60hz - 38%
    3840 x 2160 (Ultra HD 4K) @30hz - 38%

    Note: Exceeding 100% will reduce functionality.

    • Features:

      • Maximize your productivity by connecting two independent displays to your computer using the MST Hub
      • Connect to almost any television, monitor or projector with the support of low-cost adapters
      • Increase external video performance with support for resolutions up to 4K

    • Item Includes:

      • 2-port DP MST Hub
      • Quick install guide

    • GTIN:

      0065030860574
