S32M2NGFFPEX - Overview

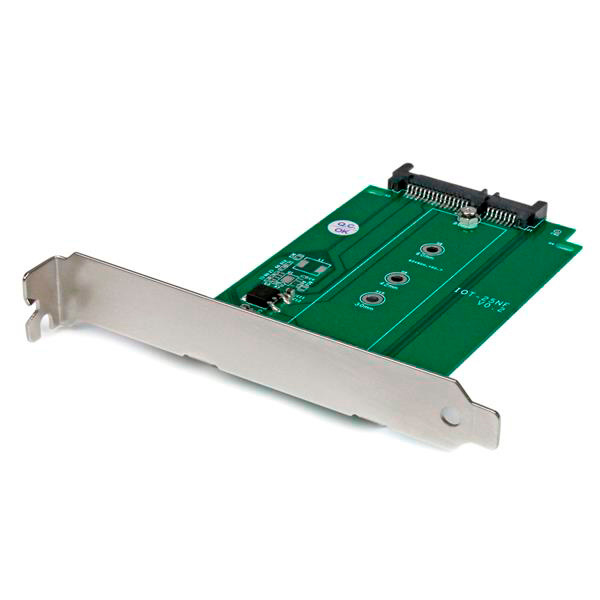

The S32M2NGFFPEX M.2 to SATA adapter lets you connect a SATA M.2 (NGFF) SSD to a standard SATA port, and mount the drive into any desktop expansion slot.

Now, you can greatly increase the performance of your desktop computer by replacing your platter drive with a fast M.2 NGFF solid state drive. By installing your primary operating system on the M.2 SSD drive and using your higher-capacity platter HDD for bulk storage, you can harness the speedy performance of the M.2 drive for frequently accessed data while storing files you access less often on your platter drive.

For a hassle-free installation, the adapter mounts into any new or legacy desktop expansion slot, with support for AGP, PCI, and PCIe slots. The adapter also includes full-profile and low-profile brackets, ensuring compatibility with both full-sized and small form factor desktops.

The S32M2NGFFPEX is backed by a StarTech 2-year warranty and free lifetime technical support.

  • Features:

    • Maximize system speed by adding SSD performance
    • Wide installation compatibility with the included low-profile, and full-profile expansion slot brackets
    • Get the most out of your SSD with support for SATA III, achieving transfer speeds up to 6 Gbps
    • Includes both low-profile, and full-profile expansion slot brackets
    • Supports SATA I,II,III drives (1.5/3.0/6.0 Gbps)
    • PCI/PCIe slot compatible

  • Specifications:

    • Warranty: 2 Years
    • Compatible Drive Types: (Type and Rate) M.2 (NGFF; B Key)
    • Drive Installation: Fixed
    • Interface: SATA
    • Number of Drives: 1
    • General Specifications: Not compatible with PCI-Express M.2 SSDs
    • Maximum Data Transfer Rate: 6 Gbps
    • Type and Rate: SATA III (6 Gbps)
    • Drive Connectors: 1 - M.2 (NGFF; B Key) Receptacle
    • Host Connectors: 1 - SATA Data & Power Combo (7+15 pin) Receptacle
    • Product Height: 3.7 in [95 mm]
    • Product Length: 4.7 in [120 mm]
    • Product Weight: 4.6 oz [130 g]
    • Product Width: 0.7 in [18 mm]
    • Humidity: 5% to 95% RH
    • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    • Storage Temperature: -10°C to 85°C (14°F to 185°F)
    • Shipping (Package) Weight: 5.3 oz [150 g]

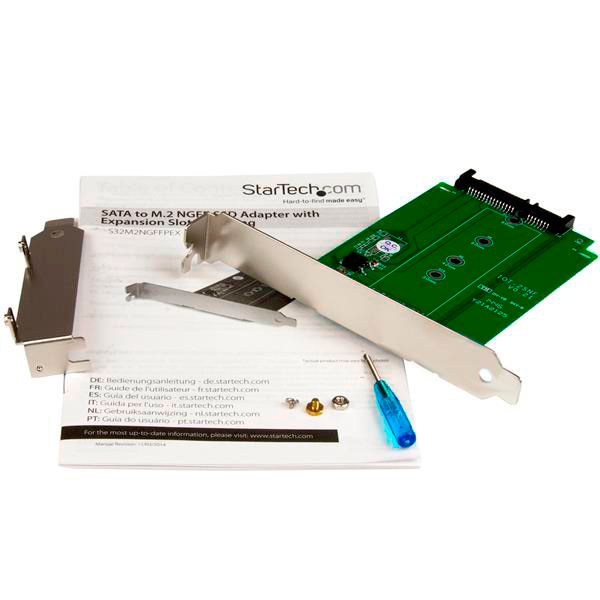

  • Item Includes:

    • 1-SATA to M.2 NGFF SSD Adapter
    • 1-Full profile bracket (pre-installed)
    • 1-Low profile bracket
    • 1-SSD installation screw
    • 1-Screw driver
    • 2-Standoffs (for PCI slot installation)

  • GTIN:

    0065030859820
