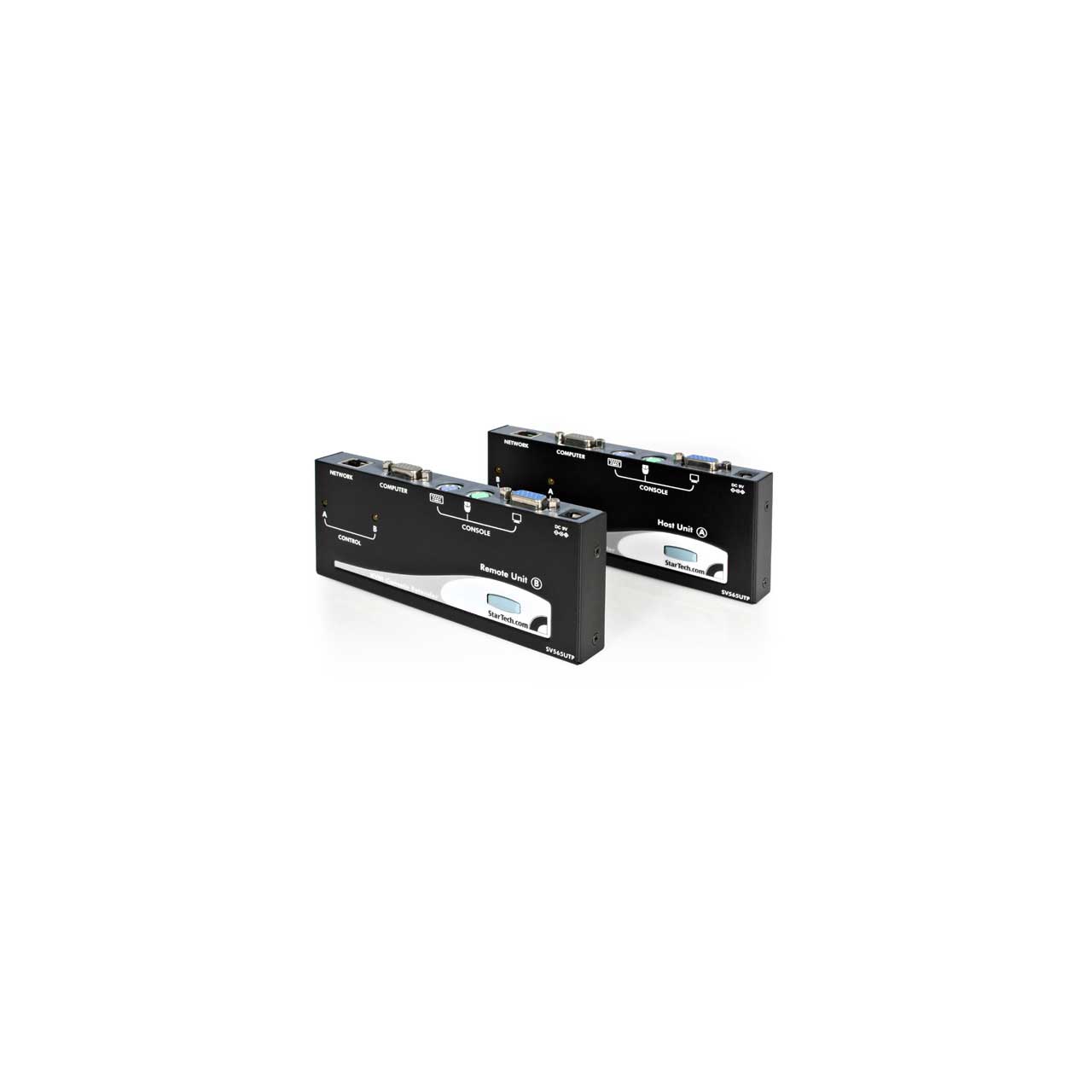

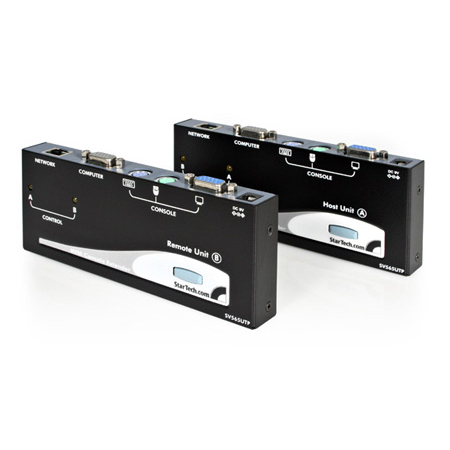

USB or PS/2 KVM Extender Over Cat5 Cable Up To 500 Feet

ITEM #: ST-SV565UTP MFG #: SV565UTP

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$204.99

Our Price:

$204.18

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    SV565UTP - Overview

    The SV565UTP USB PS2 KVM Console Extender Cat5 Extender (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away.

    Use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

    For added convenience, the Console/KVM extender supports both USB and PS/2 computer connections, and is compatible with any brand of KVM Switch.

    • Features:

      • Intuitive hotkey commands
      • Easy installation using industry-standard UTP network cable
      • Both USB and PS/2-based computers are supported at the host and remote locations (PS/2 keyboard and mouse required for remote console)
      • Supports auto-switching between host and remote users or dedicated control
      • Can be used with a single computer or connected to an existing KVM switch

    • Specifications:

      • Warranty: 2 Years
      • Audio: No
      • Color: Black
      • IP Control: No
      • KVM Ports: 2
      • Multiple Monitor: No
      • PC Video Type: VGA
      • Power Adapter Included: Yes
      • Rack-Mountable: No
      • Shipping (Package) Weight: 3.54 lb [1.6 kg]
      • Product Height: 0.79 in [2 cm]
      • Product Length: 2.95 in [7.5 cm]
      • Product Weight: 10.55 oz [299 g]
      • Product Width: 6.1 in [15.5 cm]
      • Supported Resolutions:
        - 1280x1024 @ 300ft/ 100m
        - 1024x768 @ maximum cable length
      • PC Interface: Both USB and PS/2
      • Maximum Cable Length: 500 ft. (150m)
      • Console Interface(s): 1 - VGA (15 pin; High Density D-Sub) Female
      • Console Interface(s): 2 - PS/2 (6 pin; Mini-DIN) Female
      • Host Interface(s): 1 - VGA (15 pin; High Density D-Sub) Female
      • Other Interface(s): 1 - RJ-45 Female
      • Input Voltage: 110 ' 240 AC
      • Input Current: 0.2A
      • Output Voltage: 9 DC
      • Output Current: 0.6A
      • Center Tip Polarity: Positive
      • Plug Type: M
      • Humidity: 0'80% RH
      • Operating Temperature: 0°C to 40°C (32°F to 104°F)
      • Storage Temperature: -20°C to 60°C (-4°F to 140°F)

        Note: Product weights, measurements and connectors indicate a single unit only (either Host or Remote)

    • Applications

      :

      • Monitor computer-controlled equipment in a factory or warehouse
      • Use one or more servers in a server room from a remote location

    • GTIN:

      0065030812887
